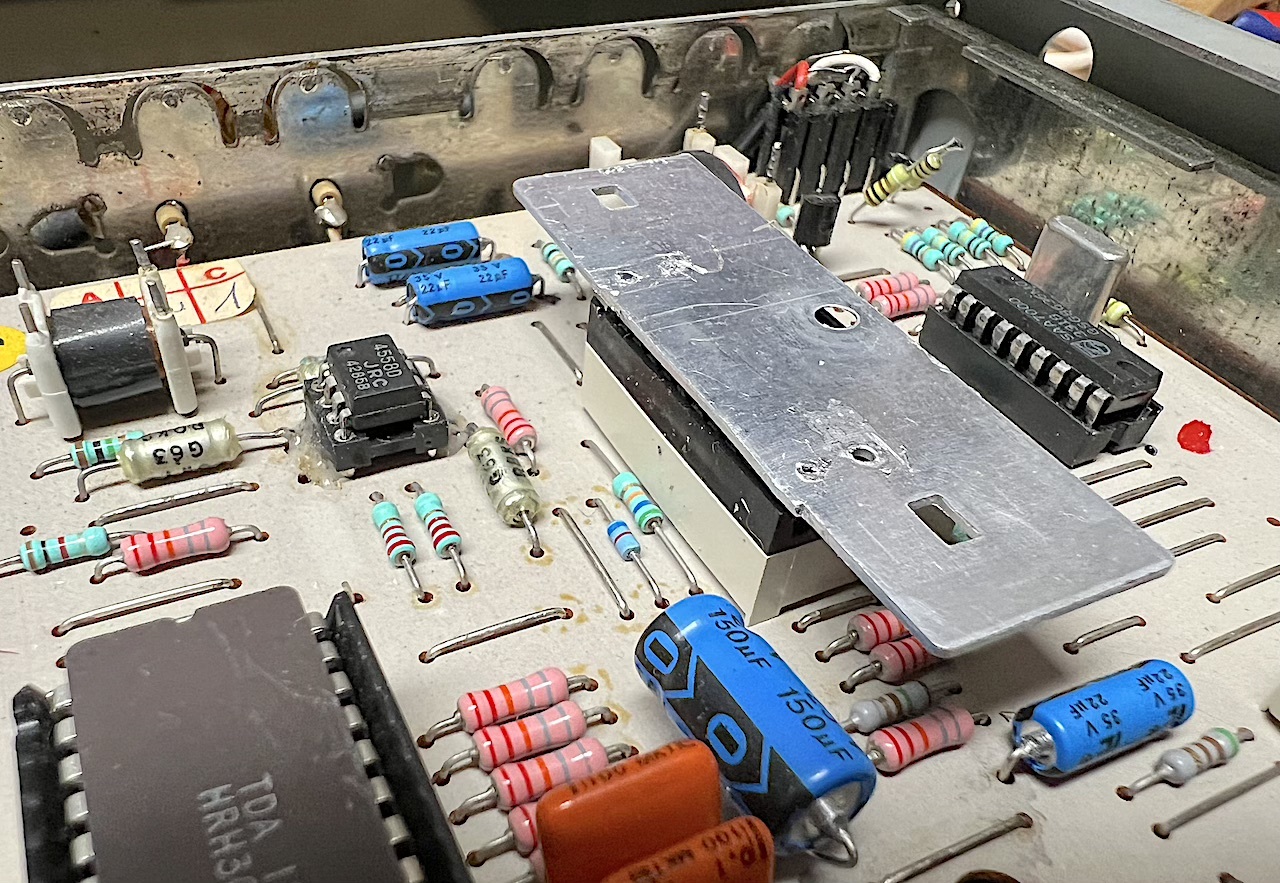

CD 202 needs a lot off TLC

by · Published · Updated

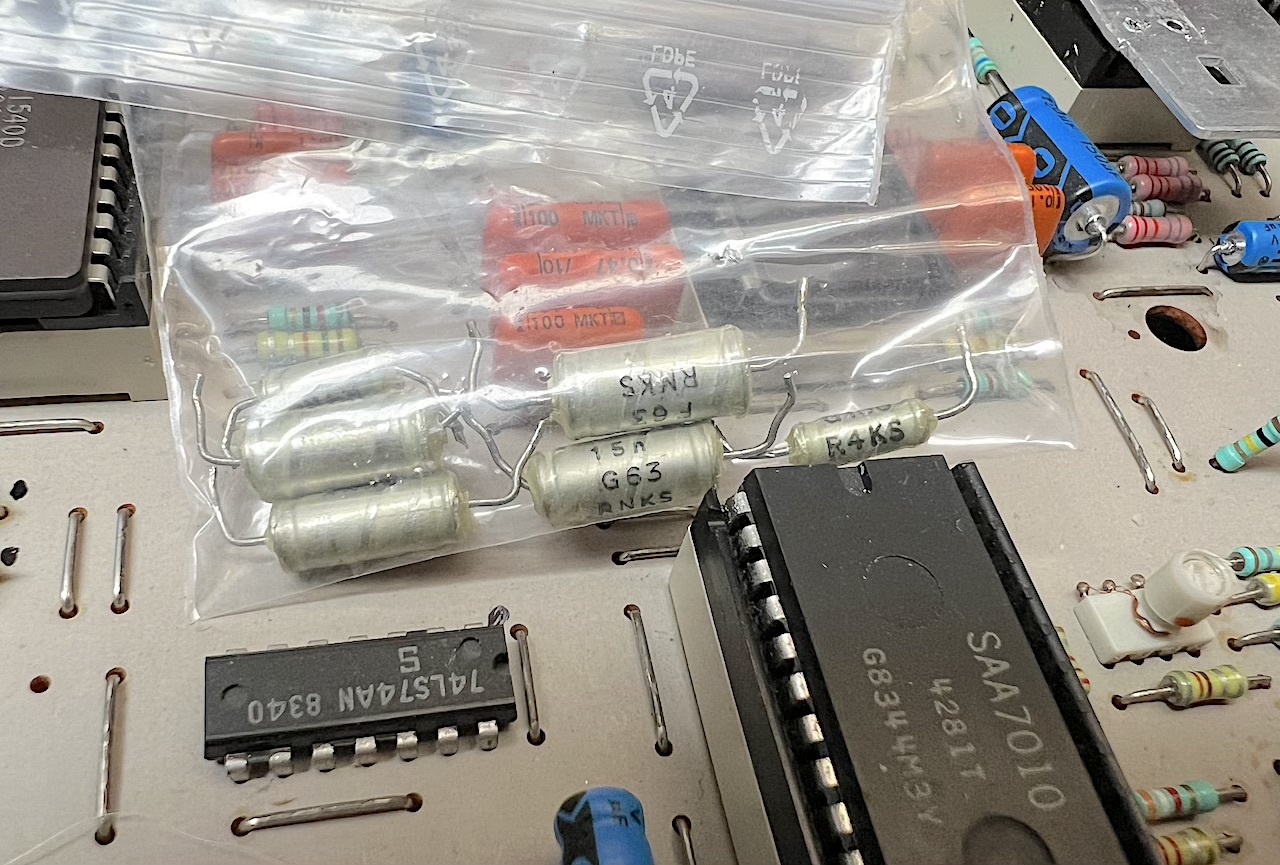

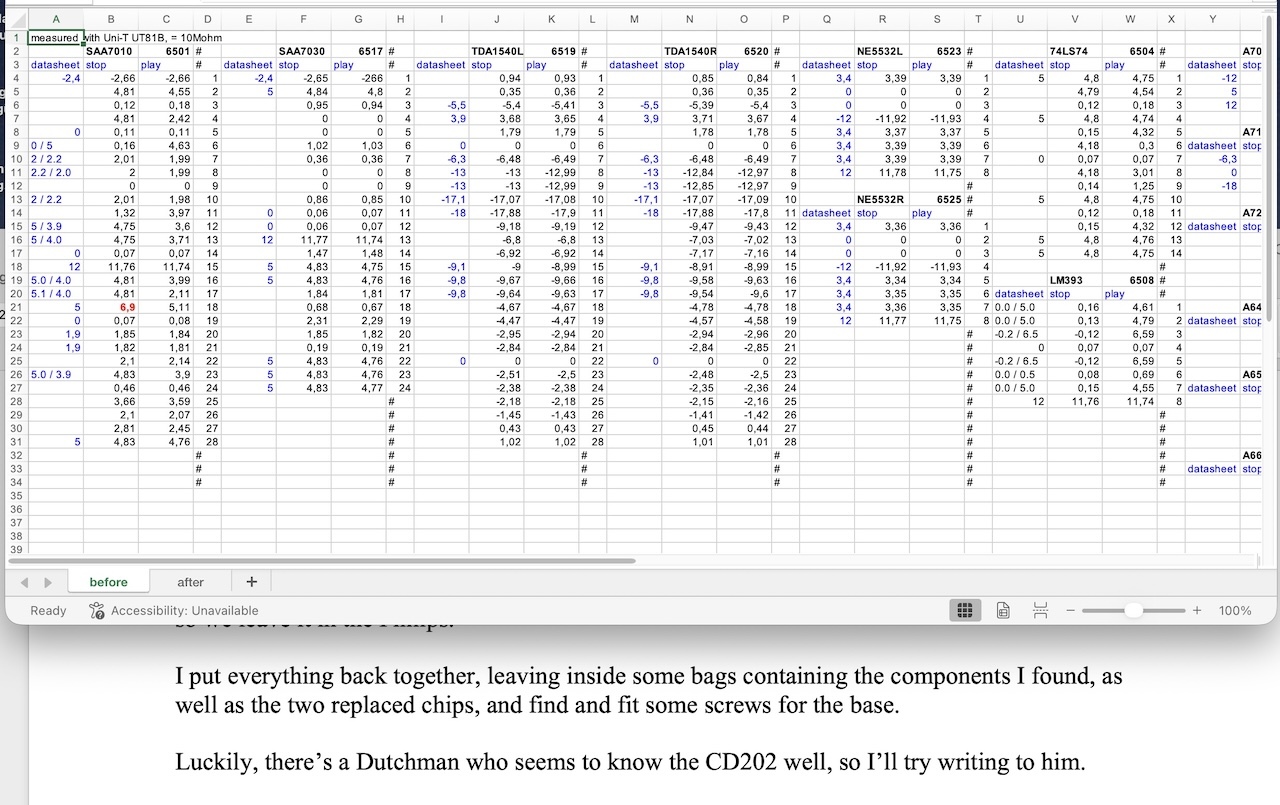

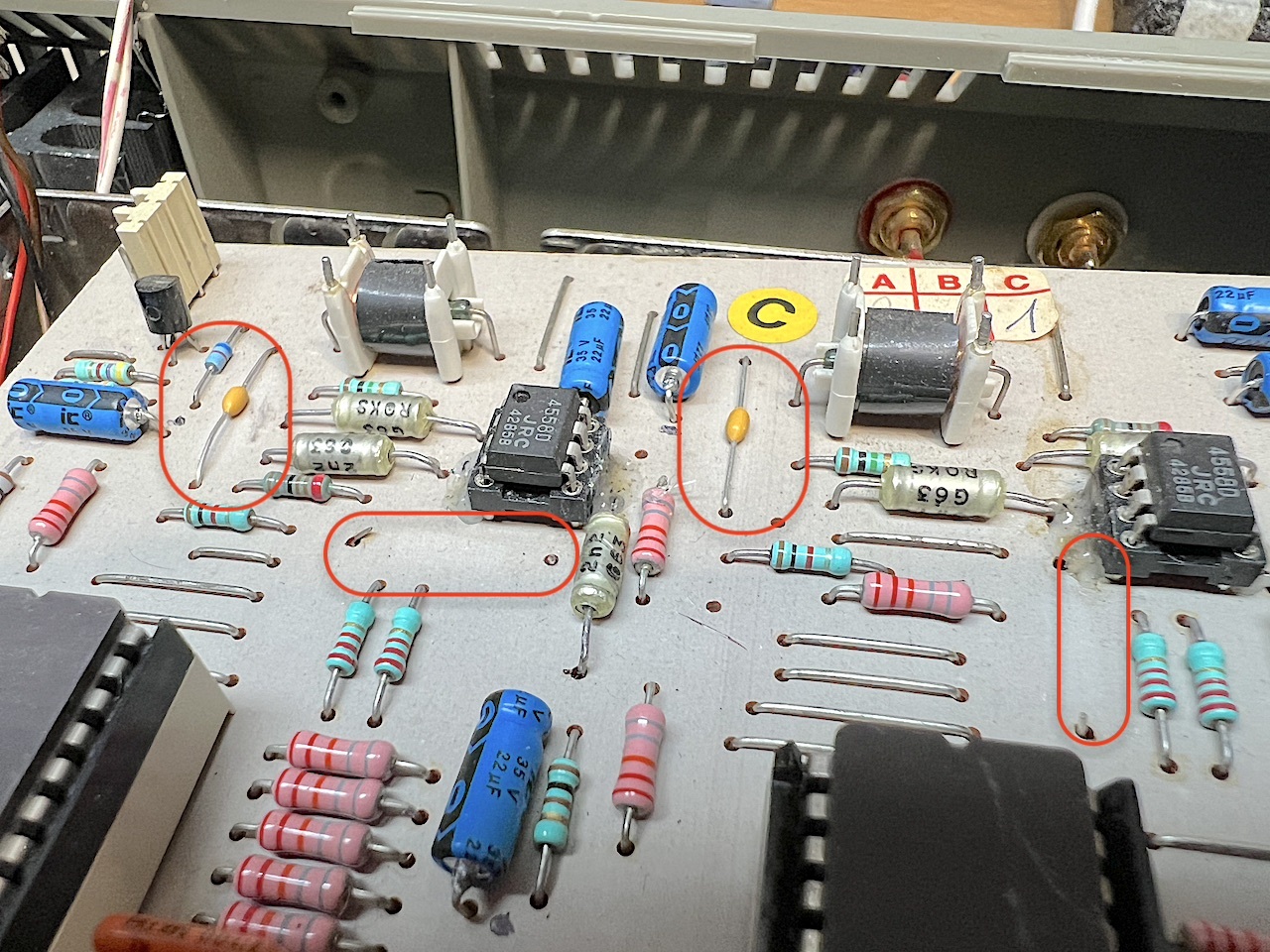

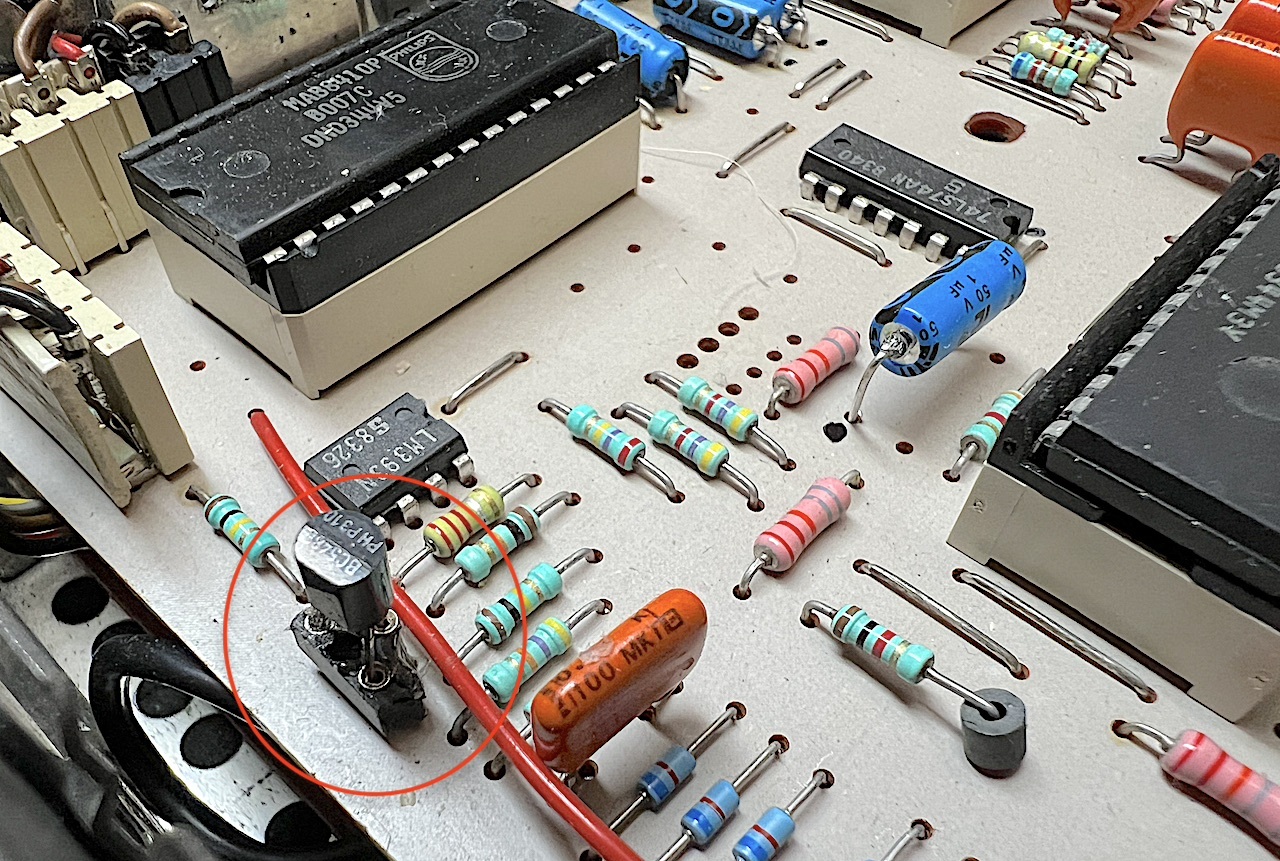

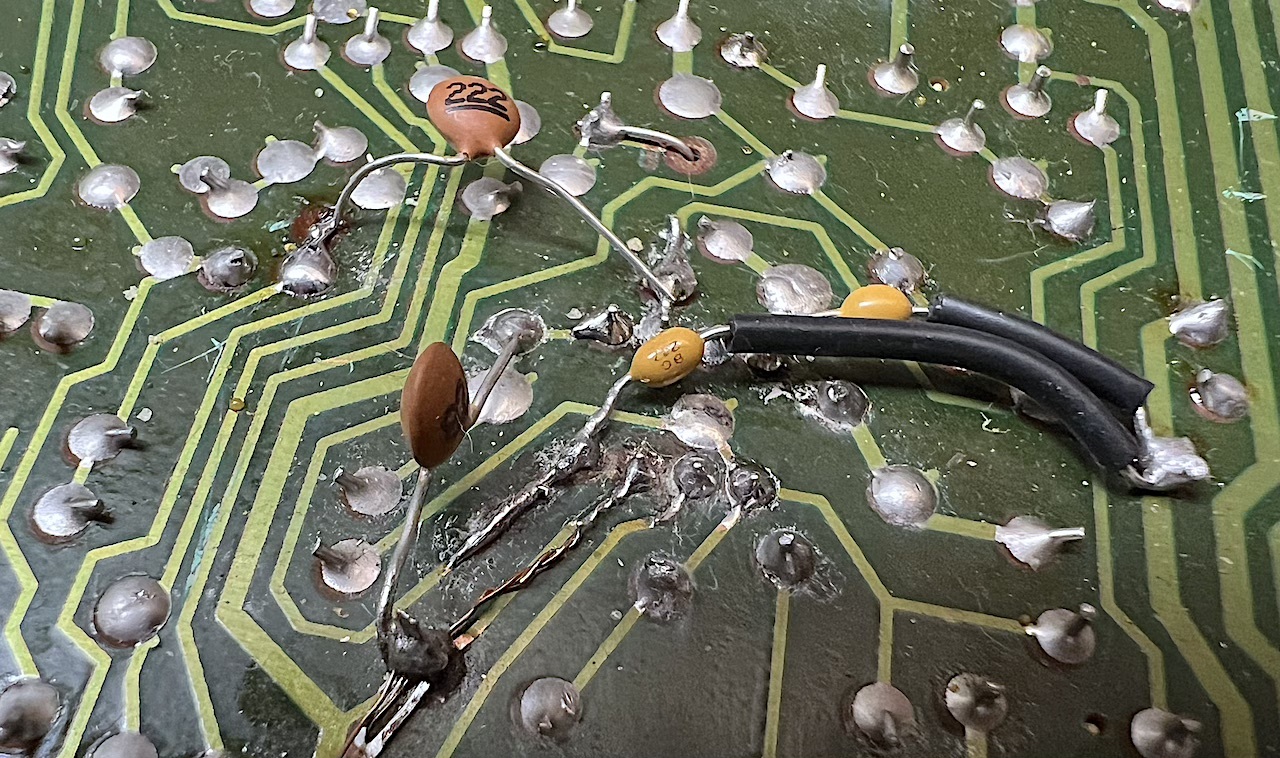

These Caps are not the correct type , has to be 1% POCO capacitors

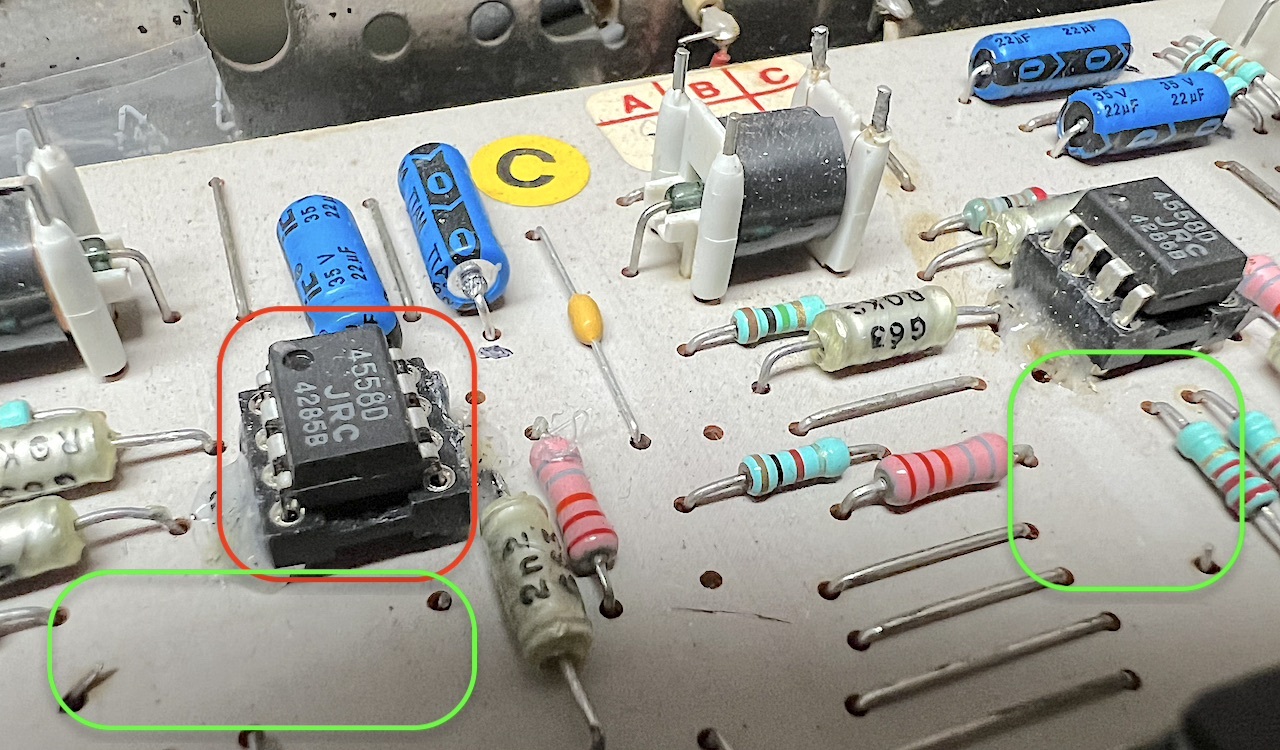

C2502 and C2501

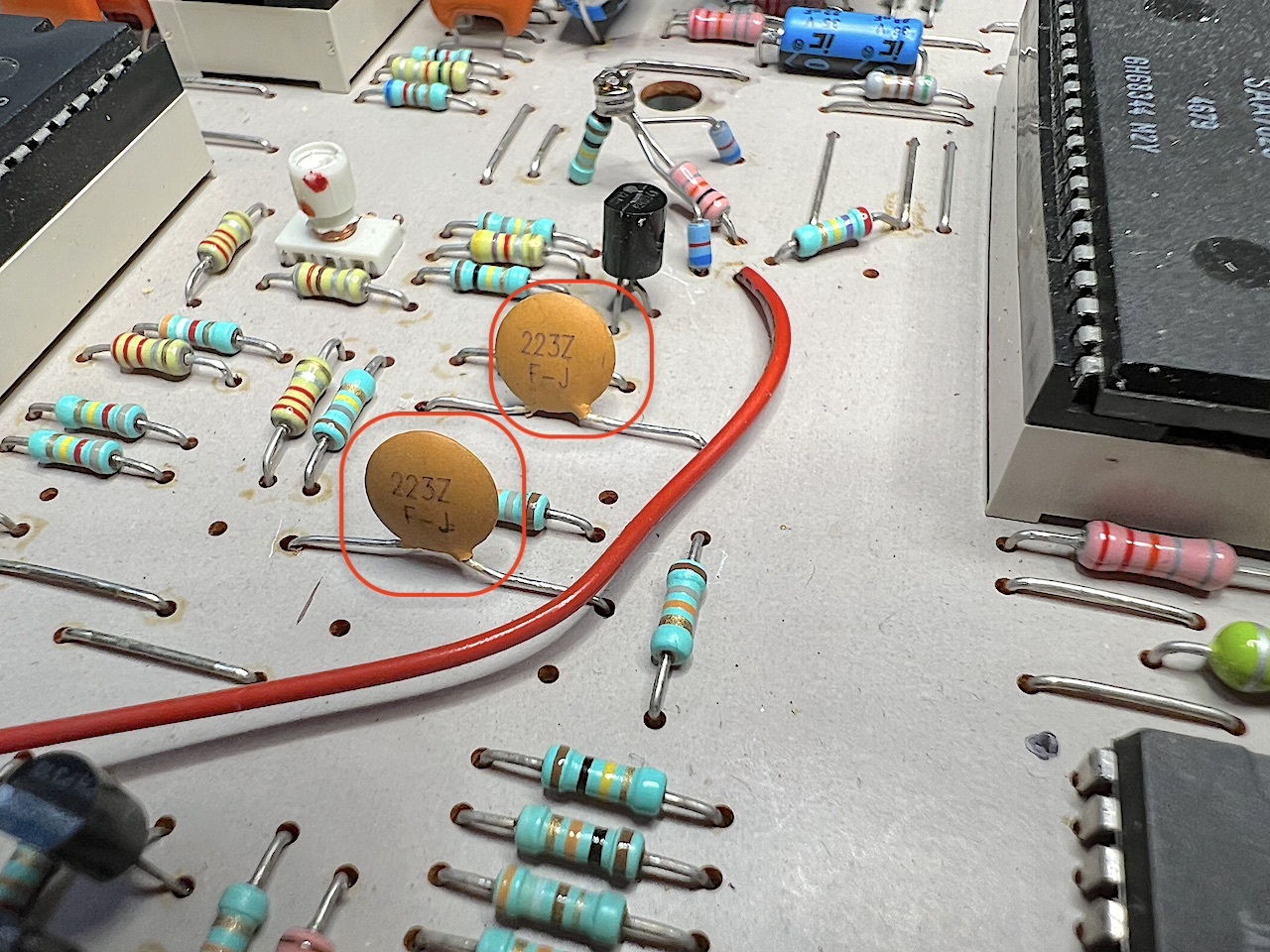

C2501 and C2502 are 22nf 1% Poco’s



A schematic of the modified-audio-filter.

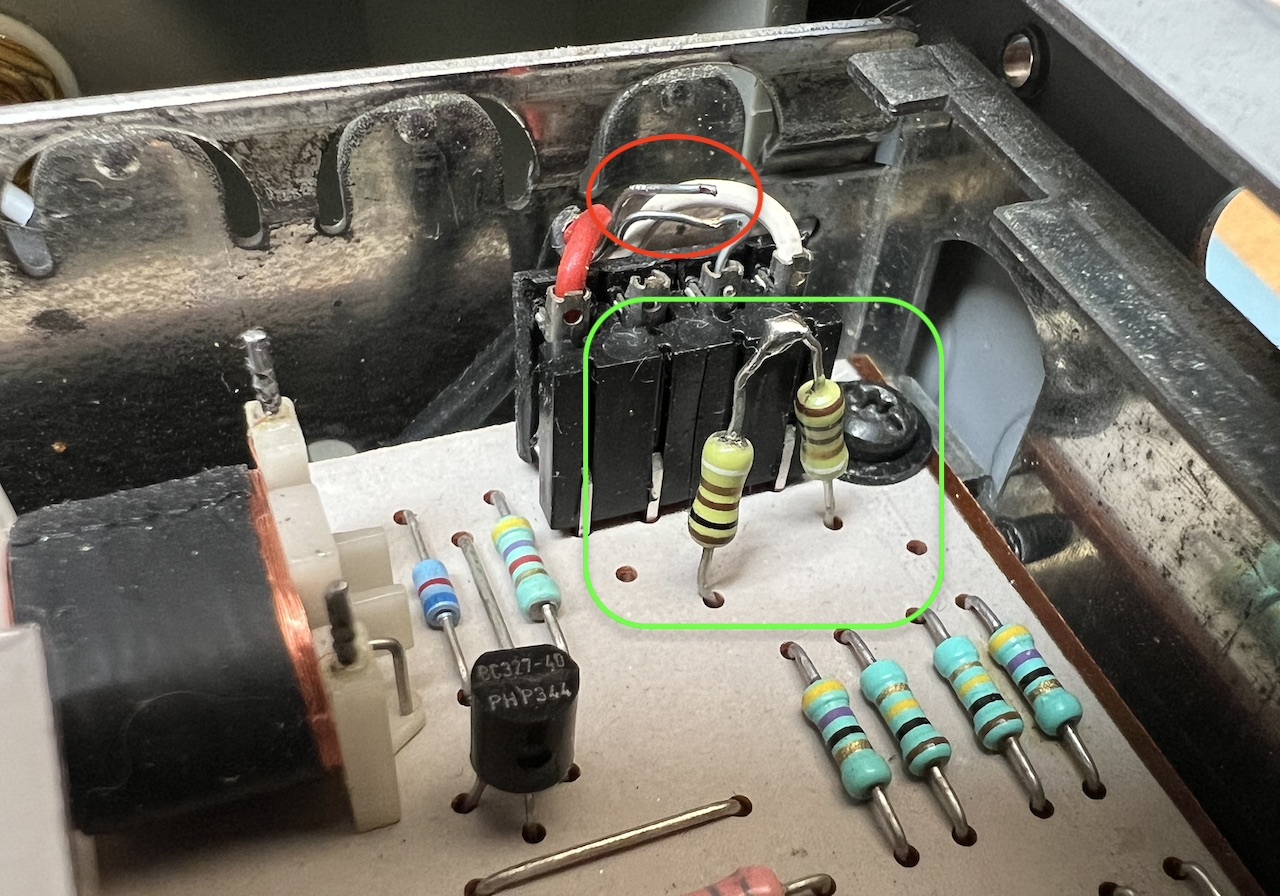

Rebuild Original audio filter and C2501 and C2502 are now 22nf 1% Poco’s

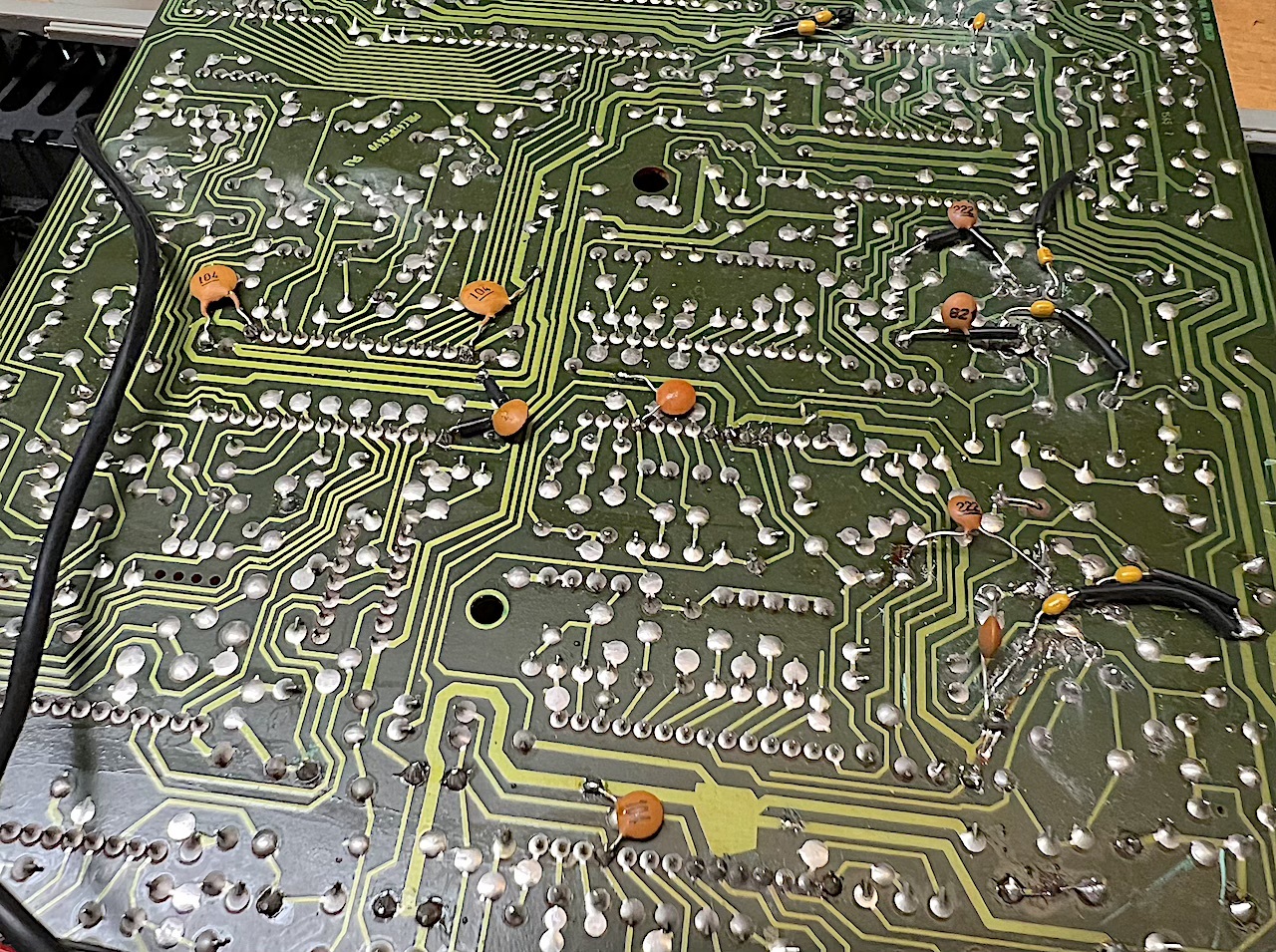

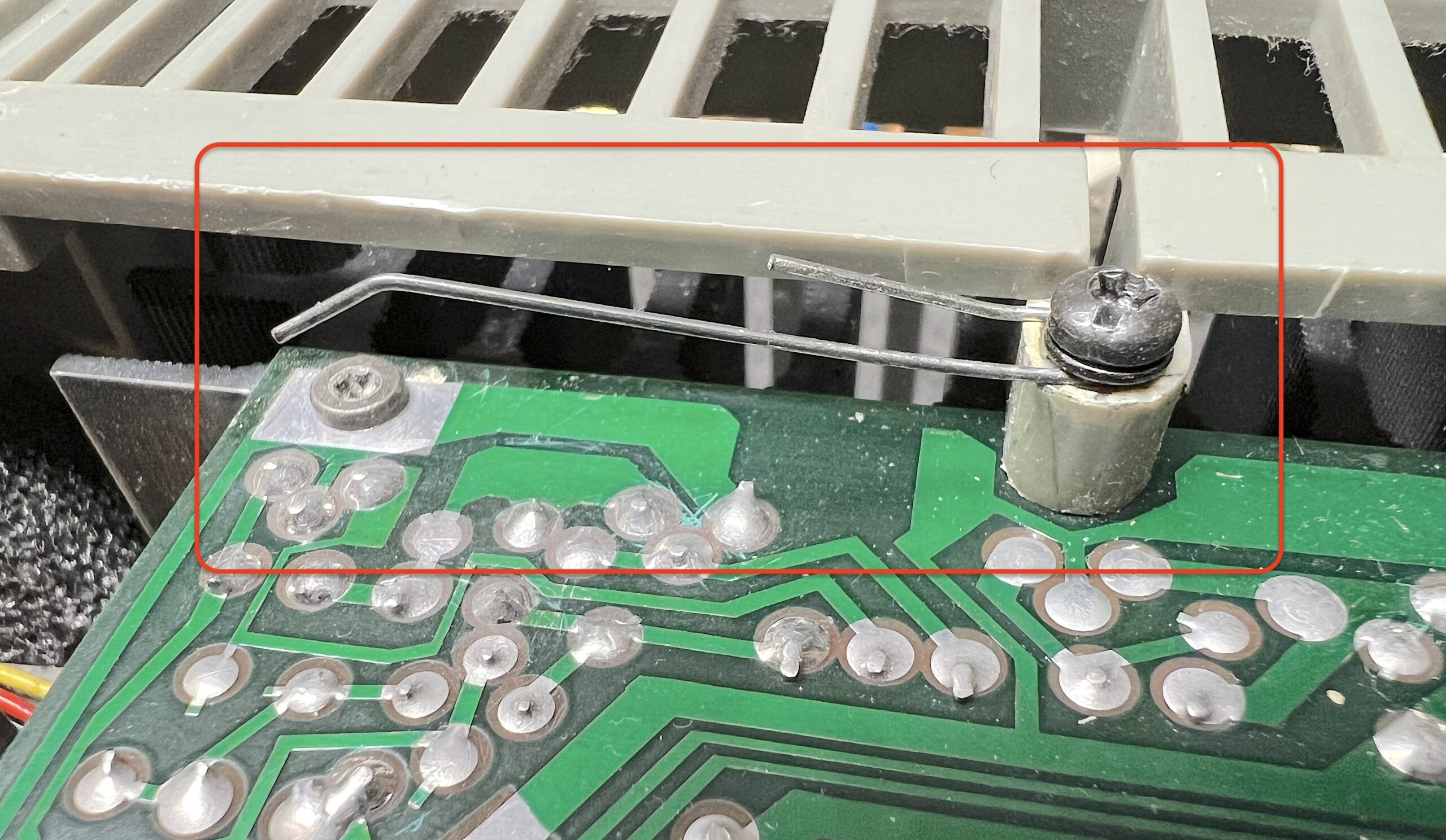

Removed old IC-sockects , and resoldered the board

next resolder the servoboard,

After Resoldering Servo-board ,  and some maintenance on CDM-0 we have a  nice eye-pattern

Okay Next , Front , Display, Caps, ect

Lots of dry Joints on the LED’s

resoldered , testing display , new keys,

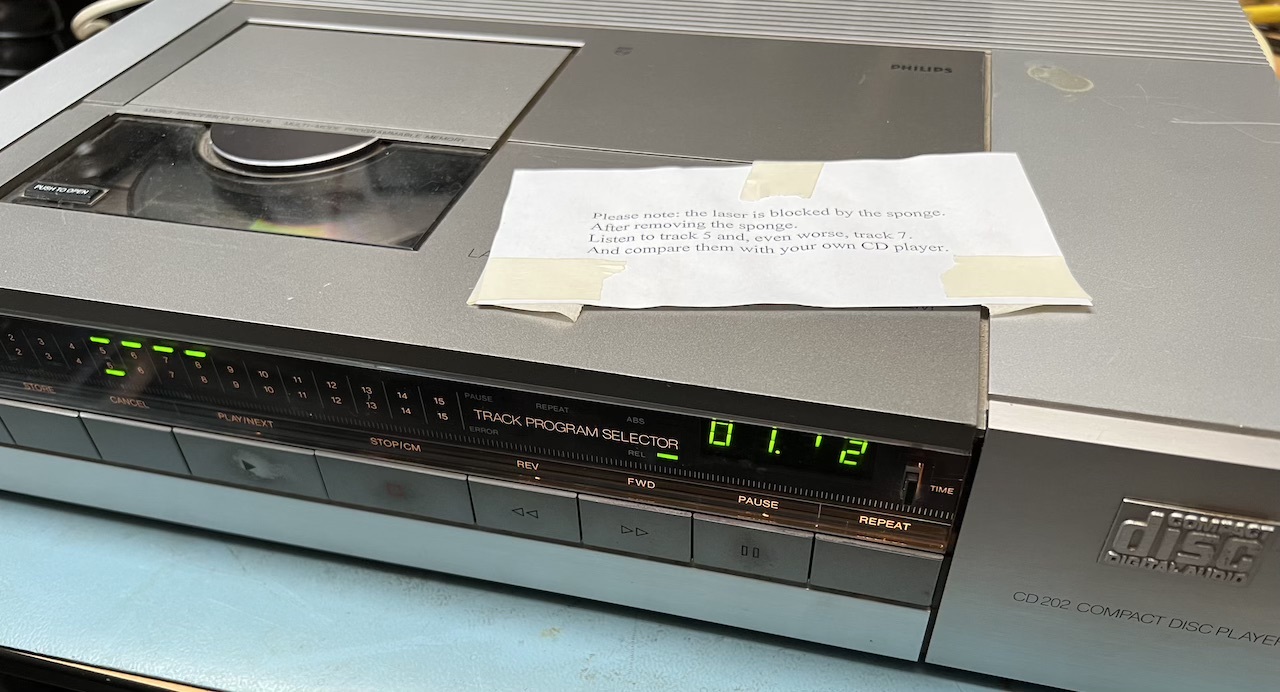

Old foam

New foam

Testing , looking good 😉

Looking good 😉

“I´ve handed over the Philips CD-202  it works a treat.  it sounds marvellous, just as expected from the 202-303  series – in fact, even better. Congratulations!”
