Philips Black Test Disc

by · Published · Updated

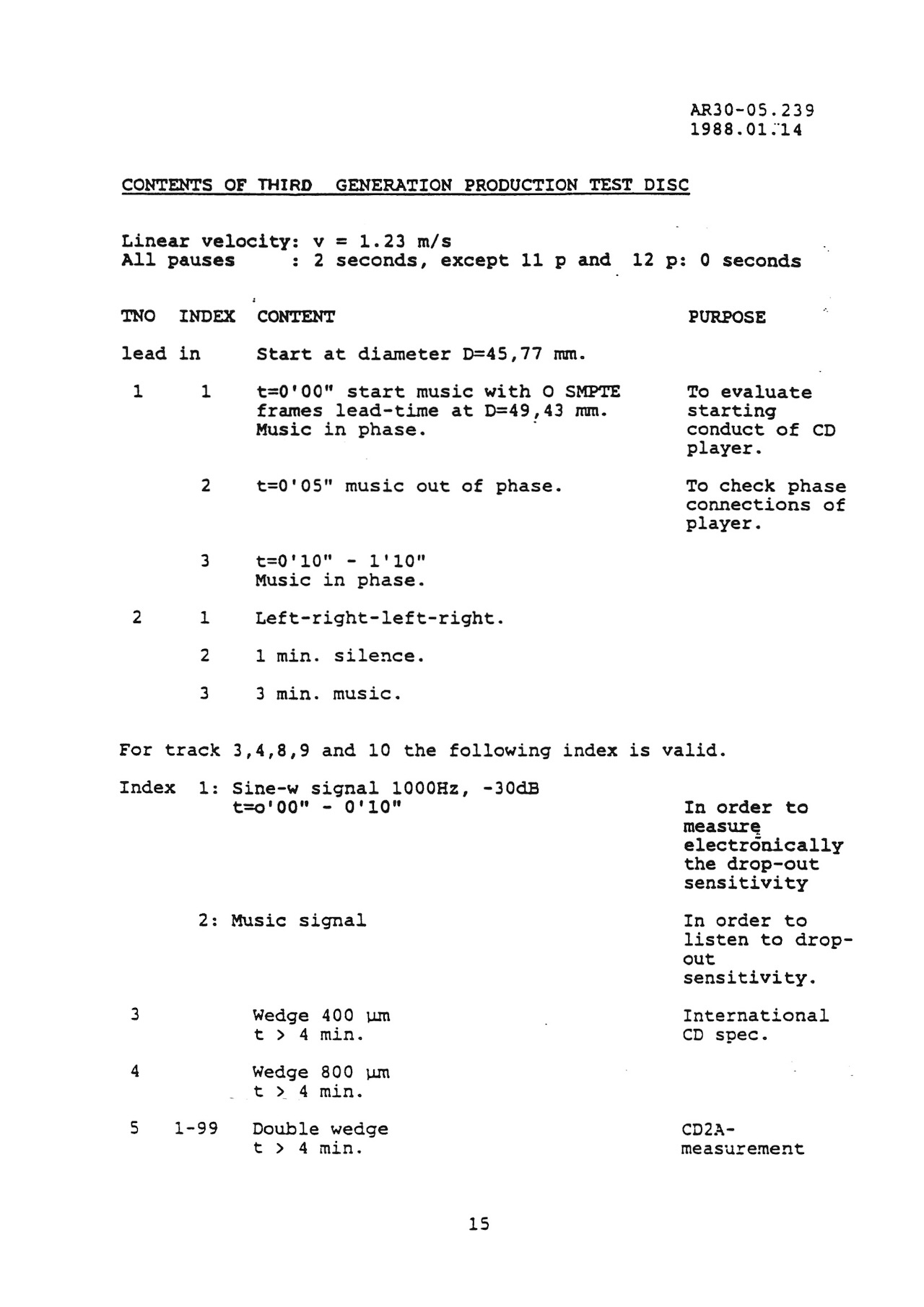

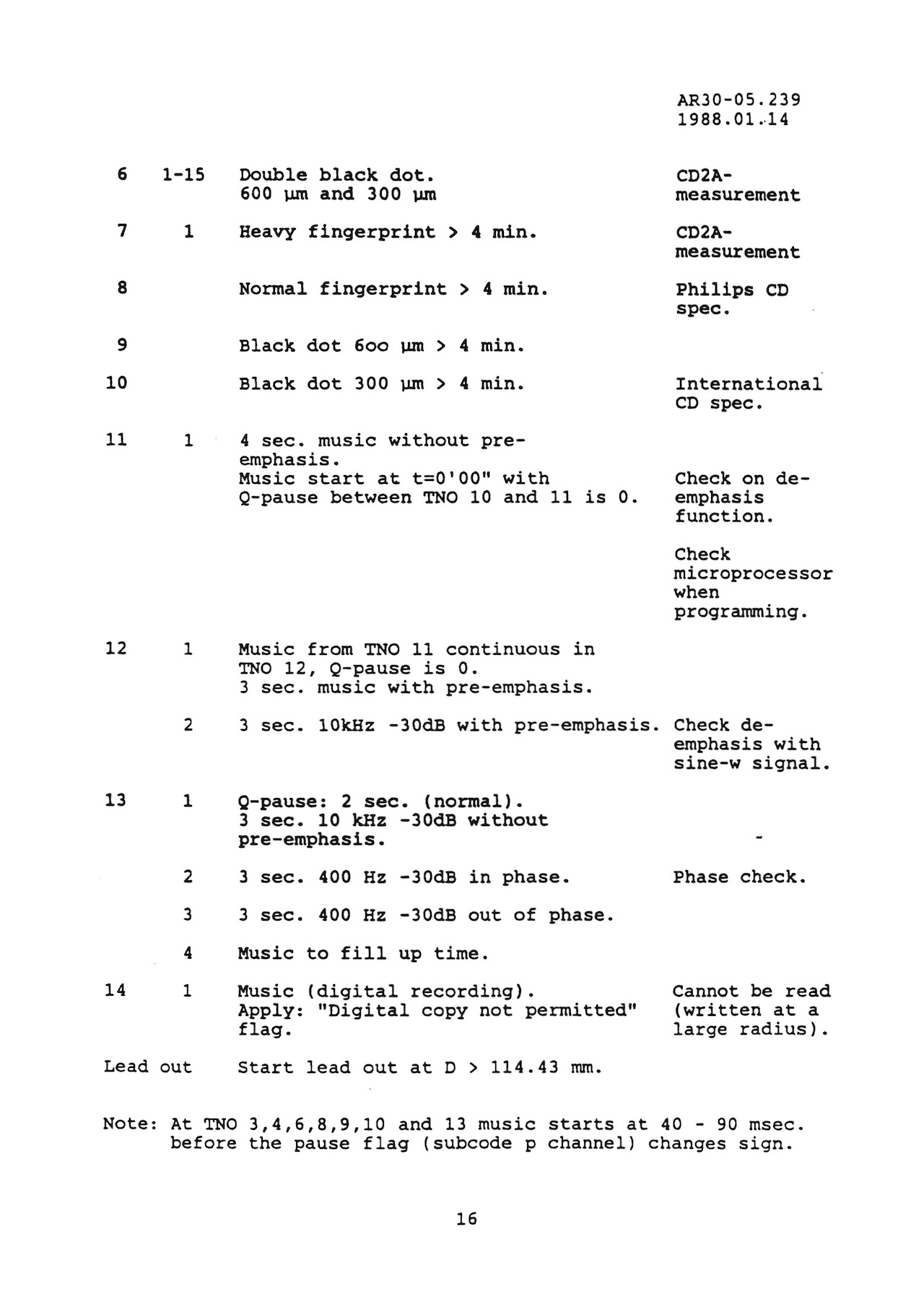

THIRD GENERATION PRODUCTION TEST DISC

Track 1
  • Index 1 – 00:00 – 00:05 : Music
  • Index 2 – 00:05 – 00:10 : Music 1 Channel Out off Phase
  • Index 3 – 00:10 – 01.10 : Music in phase
Track 2
  • Index 1 – 00:00 – 00:06 : Voice Left Right  Channel Identification
  • Index 2 – 00:07 – 01:06 : Silence
  • Index 3 – 01:06 – 05:59 : Music
Track 3
  • index 1 – 00:00 – 00:09 : 1 kHz
  • index 2 – 00:10 – 04:00 : Music
Track 4
  • index 1 – 00:00 – 00:09 : 1 klHz
  • index 2 – 00:10 – 04:00 : Music
Track 5
  • index 1 t/m 99 ( every 4 seconds increment index by 1 )
  • 00:00 – 03:06 : Music
  • 03:07 – 04:49 : Music
  • 05:50 – 07:10 : Music
Track 6
  • index 1  t/m 15 ( every 4 second increment index by 1 )
  • 00:00 – 03:47 : Music
Track 07
  • index 1
  • 00:00 – 02:41 : Music
  • 02:41 – 04:58 : Music
  • 05:59 – 06:16 : Music
Track 08
  • index 1 00:00 – 00:10 : 1 khz
  • index 2 00:10 – 04:44 : Music
Track 09
  • index 1 – 00:00 – 00:10 : 1 khz
  • index 2 – 00:10 – 04:00 : Music
Track 10
  • index 1 – 00:00 – 00:10 : 1 kHz
  • index 2 – 00:10 – 03:30 : Music
Track 11
  • index 1 – 00:00 – 00:03 : Music
Track 12
  • index 1 – 00:00 – 00:03 : Music
  • index 2 – 00:03 – 00:05 : 10 kHz
Track 13
  • index 1 – 00:00 – 00:03 : 10 kHz
  • index 2 – 00:03 – 00:06 : 400 Hz
  • index 3 – 00:06 – 00:09 : 400 Hz 1 Channel Out off Phase
  • index 4 – 00:12 – 03:55 : Music
  • index 4 – 03:55 – 05:48 : Music
  • index 4 – 05:48 – 07:08 : Music
  • index 4-  07:09 – 10:16 : Music
  • index 4 – 10:17 – 12:14 : Music
  • index 4 – 12:15 – 15:25 : Music
  • index 4 – 15:26 – 25:41 : Music
Track 14
  • index 1 – 00:00 – 00:03 : Music

Edit : 31-01-2024 found more information 🙂
