TDA1541(a) Synced TikTak
I regularly get these questions ,
- Can my CD player sound better, I read somewhere on the internet……
-
Can a Grundig DEM Modification be done easy on my TDA1541(a) Player
-
Can i replace the Ceramic or SMD Capacitors by better ones like , C0G, PP , PPS, ect ect,.. in my CD player, because…..
i don’t know the answer, “I don’t drink cognac and I don’t smoke cigars”
Be my guest and have fun , TDA1541(a) High Precision Synced TikTak mod_Board 😉
Grab your Gerber-file and have fun : TDA1541(A) Tiktak_V1.2 gerber

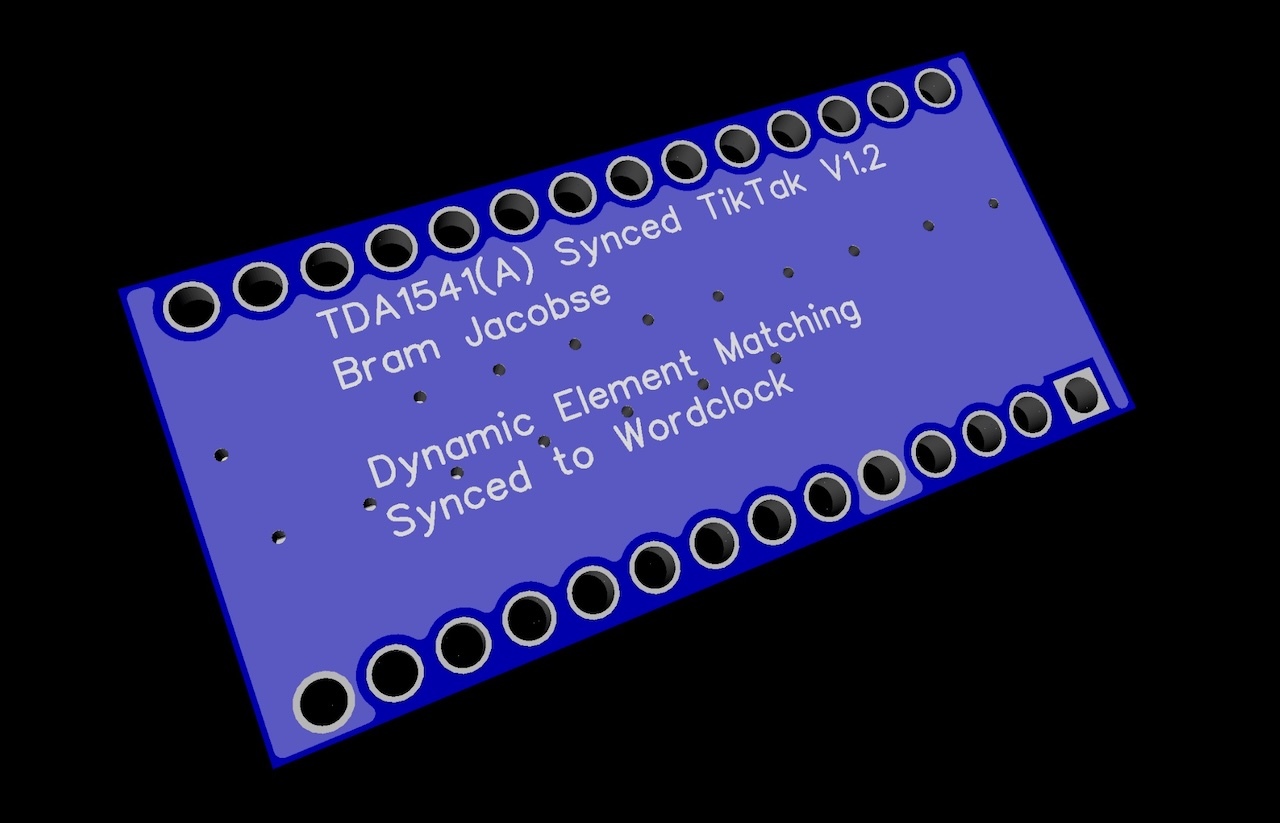

- WordClock Synced Dynamic Element Matching Oscillator
- High Quality Decouple Capicitors : please read Sound decoupling caps TDA1541a
Remove the original parts you want to upgrade and plug an pray 😉

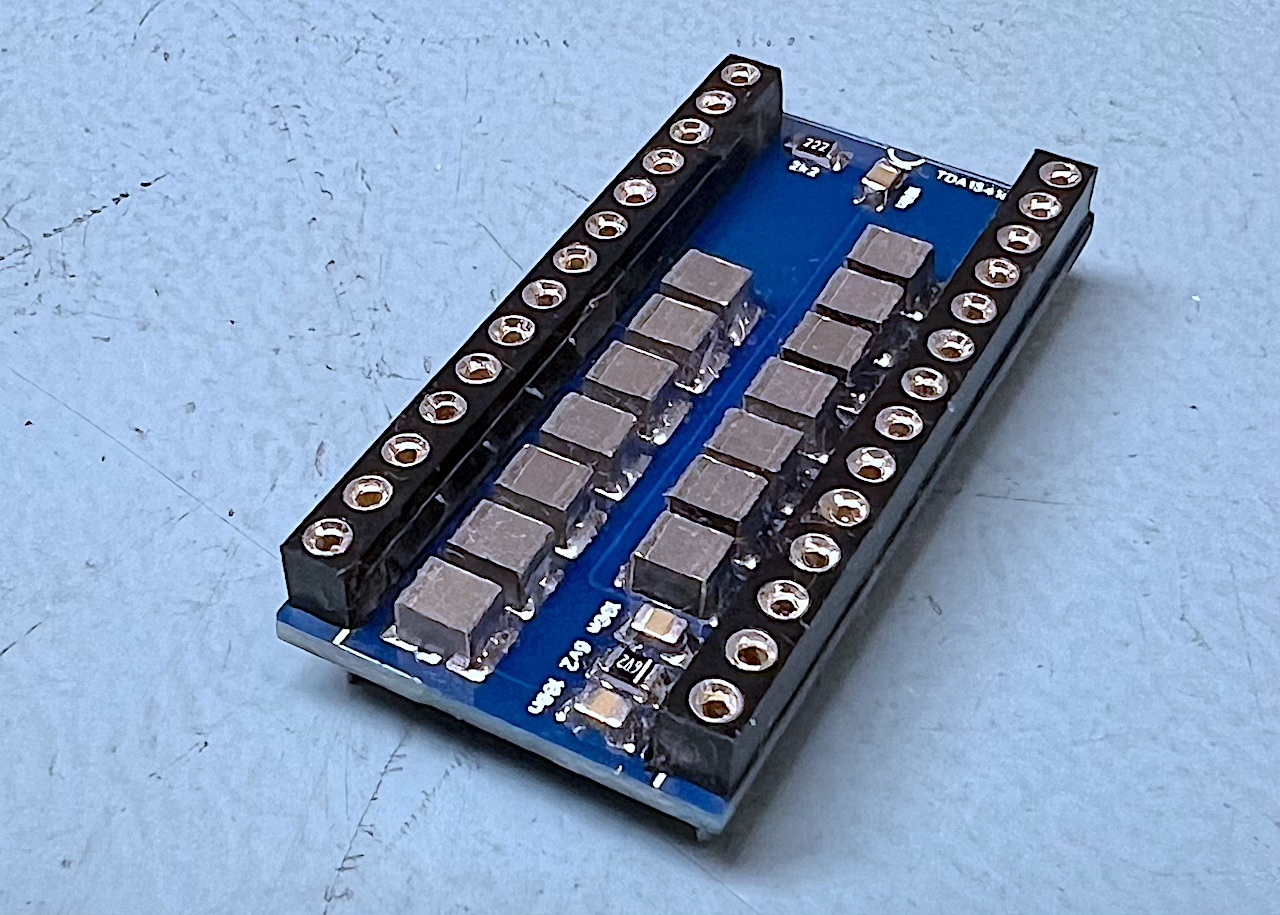

Using Panasonic PPS 2% Capacitors

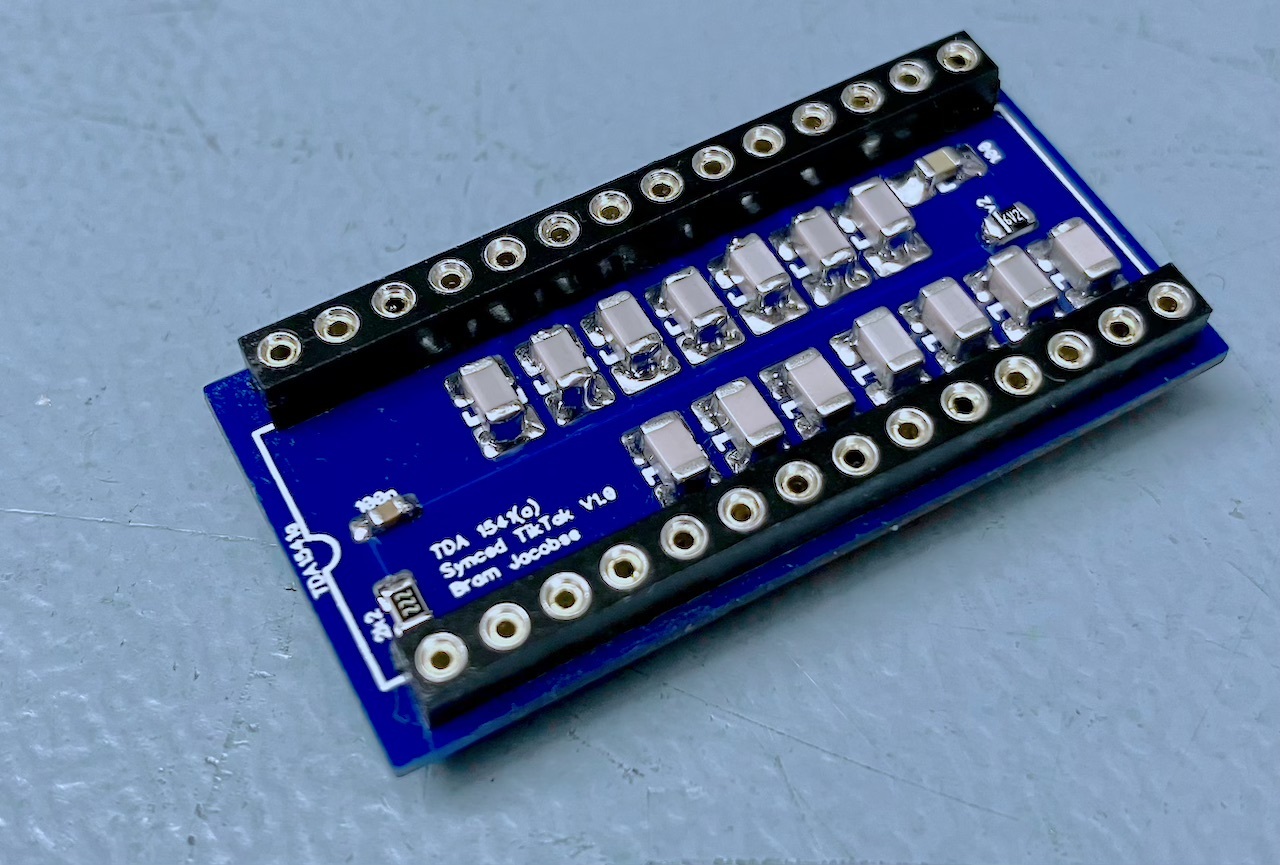

Prototype using Murata 100n c0g capacitors

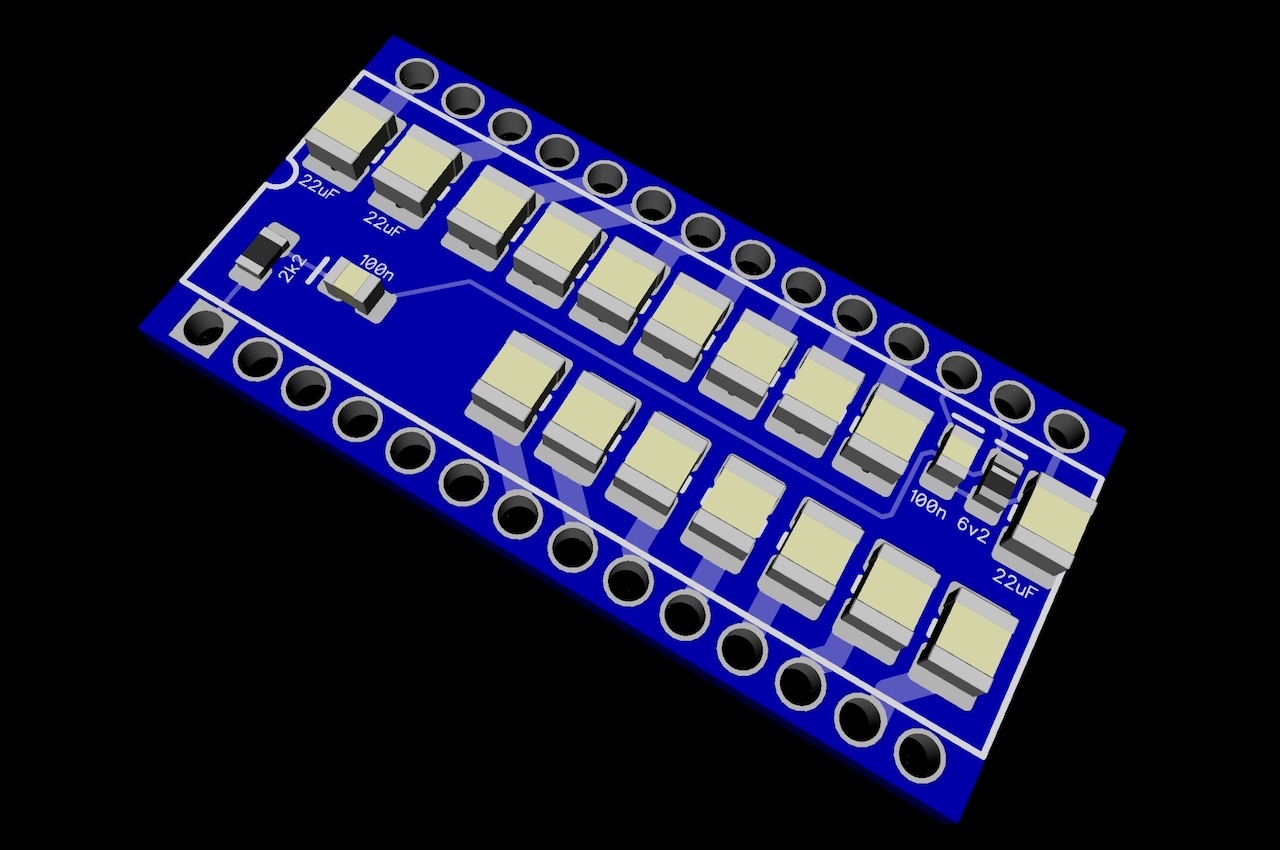

V 1.2 Added possibility to add 3 SMD Capacitors on Power Supply Pins
The WordClock Synced Dynamic Element Matching is based on a Philips Application Note,
Here Philips used The Alternative External Control Ciruit locked to WordClock in FT990 Digital Satelliet Radio Tuner
This can also be found in the Grundig CD 9009 servicemanual
