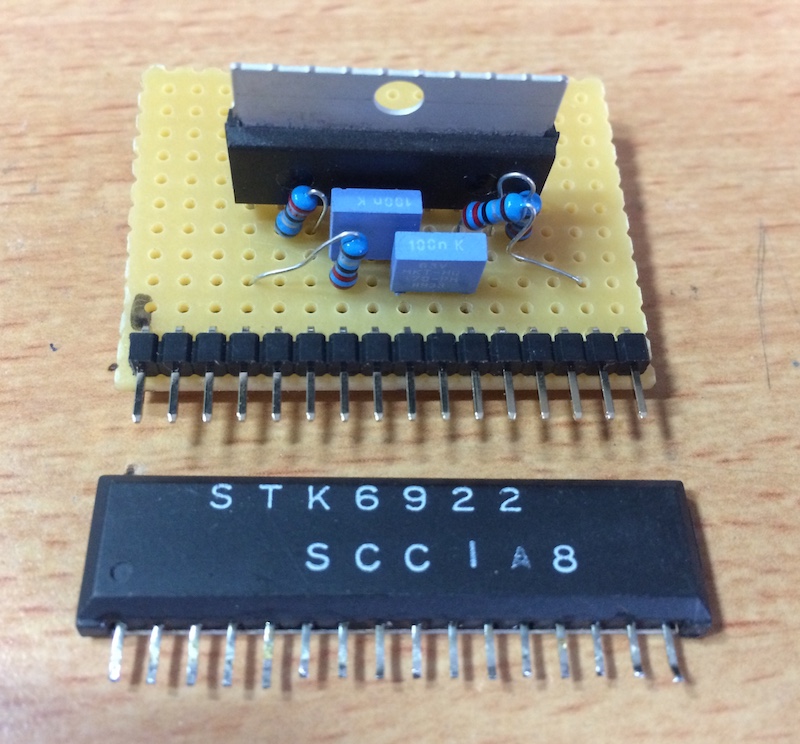

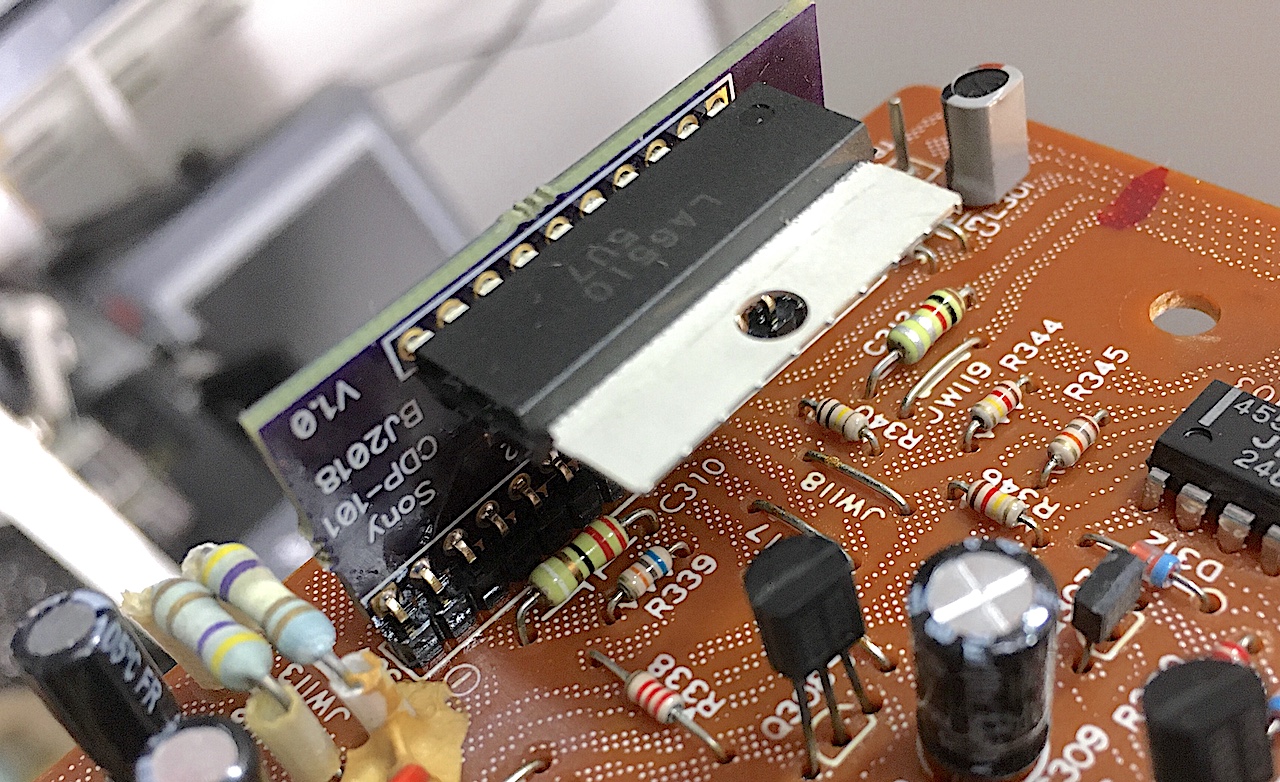

SONY CDP 101 STK 6299 Replacement

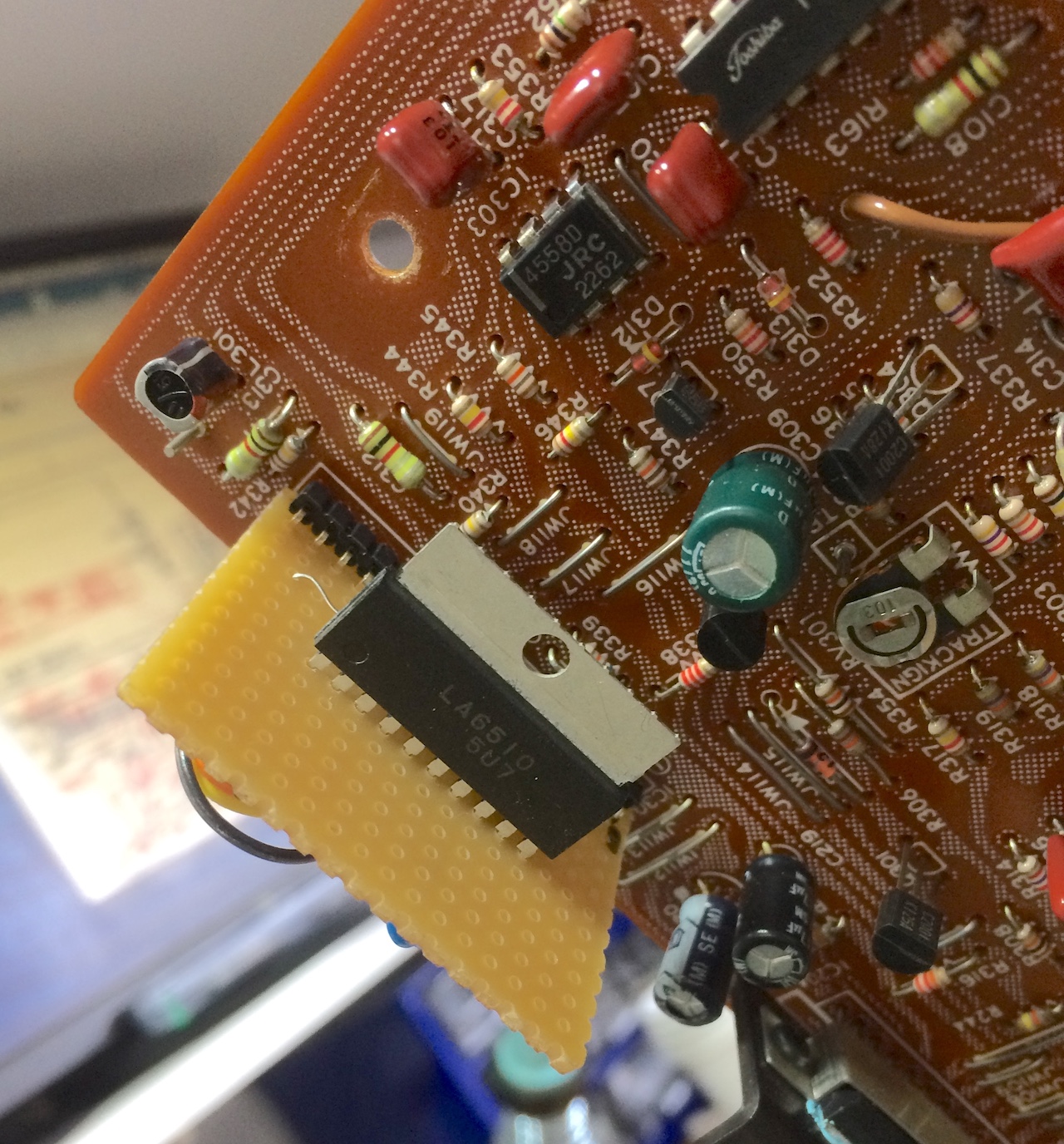

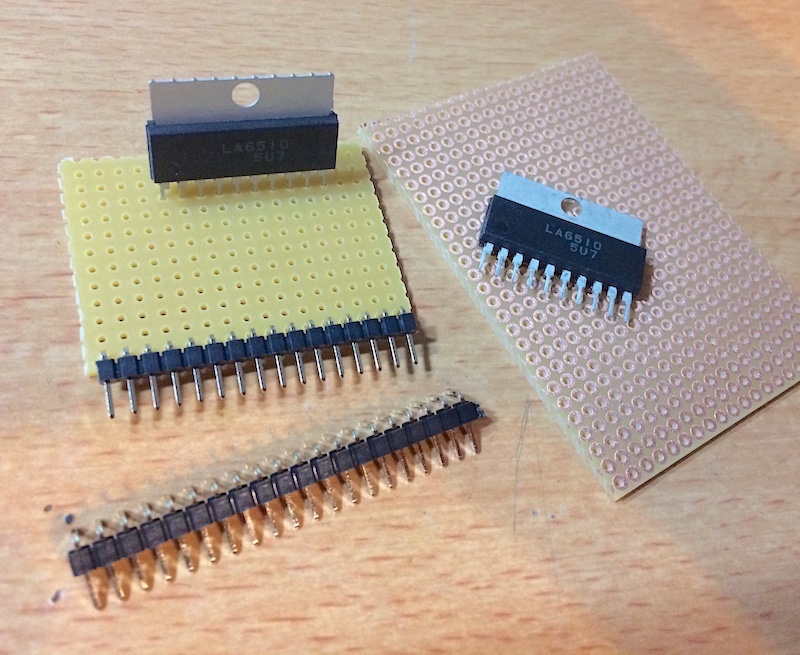

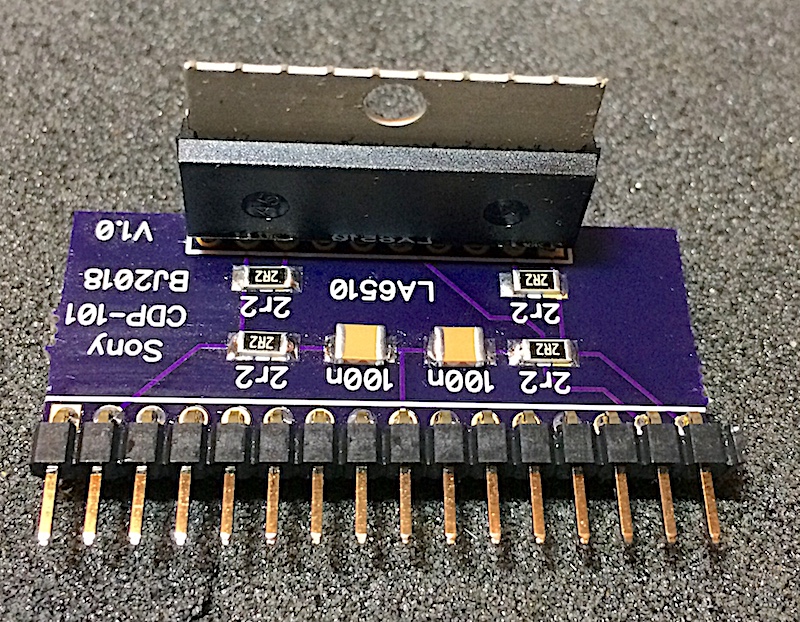

Added LA6510

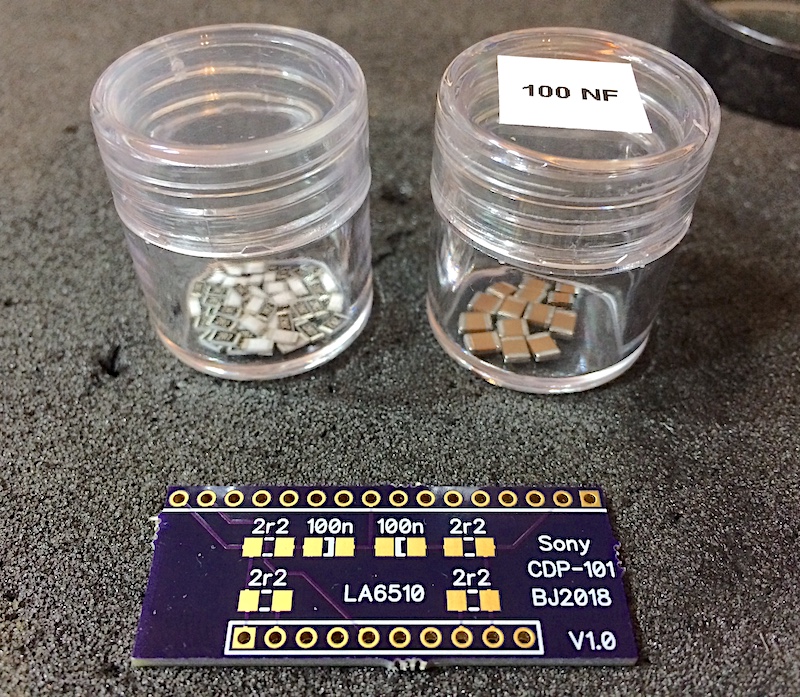

2 x 100nf SMD 1206

4 x 2r2 Resitors SMD 1206







Just thought I’d drop you an email to say thankyou again
Using the diagrams and links I was able to determine that my new circuit wasn’t receiving a 12v supply to pin 1 , this was due to my poor soldering , the pin wasn’t far enough in to get a good contact , not long after (using a christmas cd , not got many left now) I have a fully working Sony CDP 101 again.
You and your circuit boards and information have been brilliant

August 2021

“Hi Bram! , I’ve received the PCB for the STK6922. , Simply OUTSTANDING. It work at the first try.
Thank you so much 😀 ! , Do you have paypal or something? I want to offer you a coffee!
You saved my CDP-101 and is soooo stable with cd reading!”



April 2026 : Youtube “Scratching an itch – the Sony CDP-101”

May 2026 – “Thank you again for your help. I have successfully installed the replacement boards in my Sony CDP-111, and the unit is now back up and running”



If you want to make your one replacement boards have fun  , no warranty 😉

buy circuitboard on OSHpark  https://oshpark.com/shared_projects/y9KxWRQO

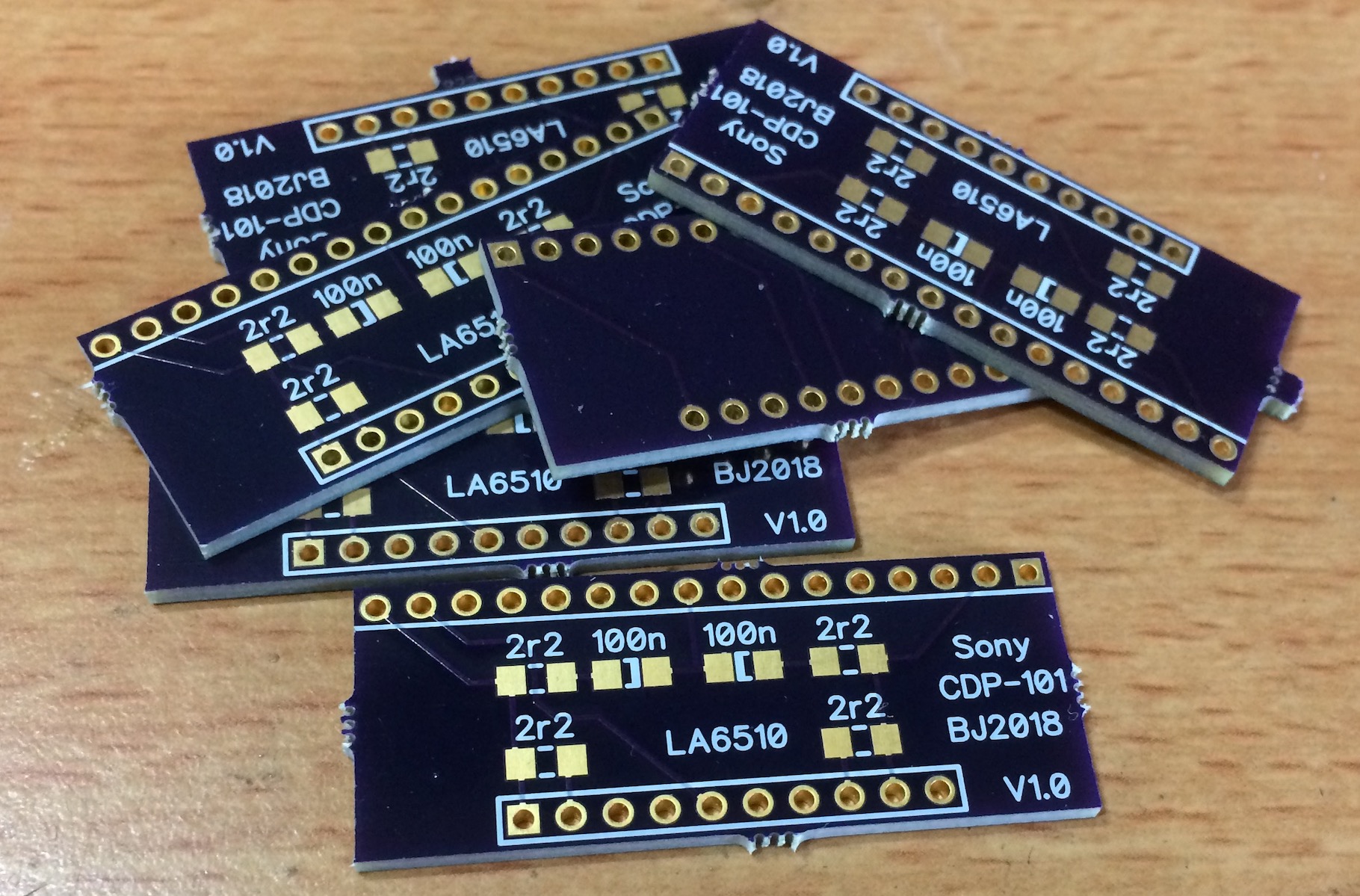

Gerberfile –  STK 6922 replacement – Sony-cdp101

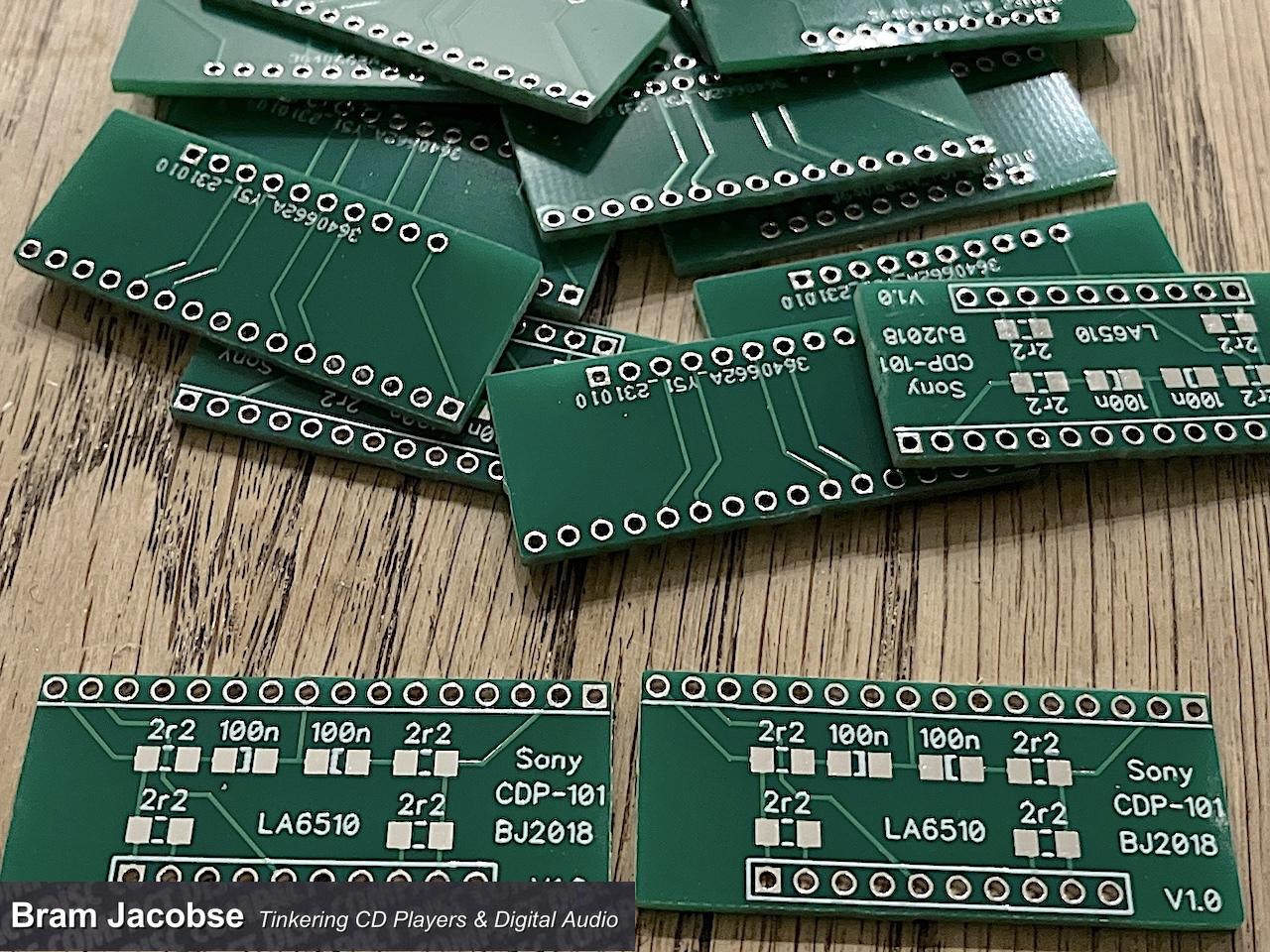

2023 oktober new stock
