Beogram CD X

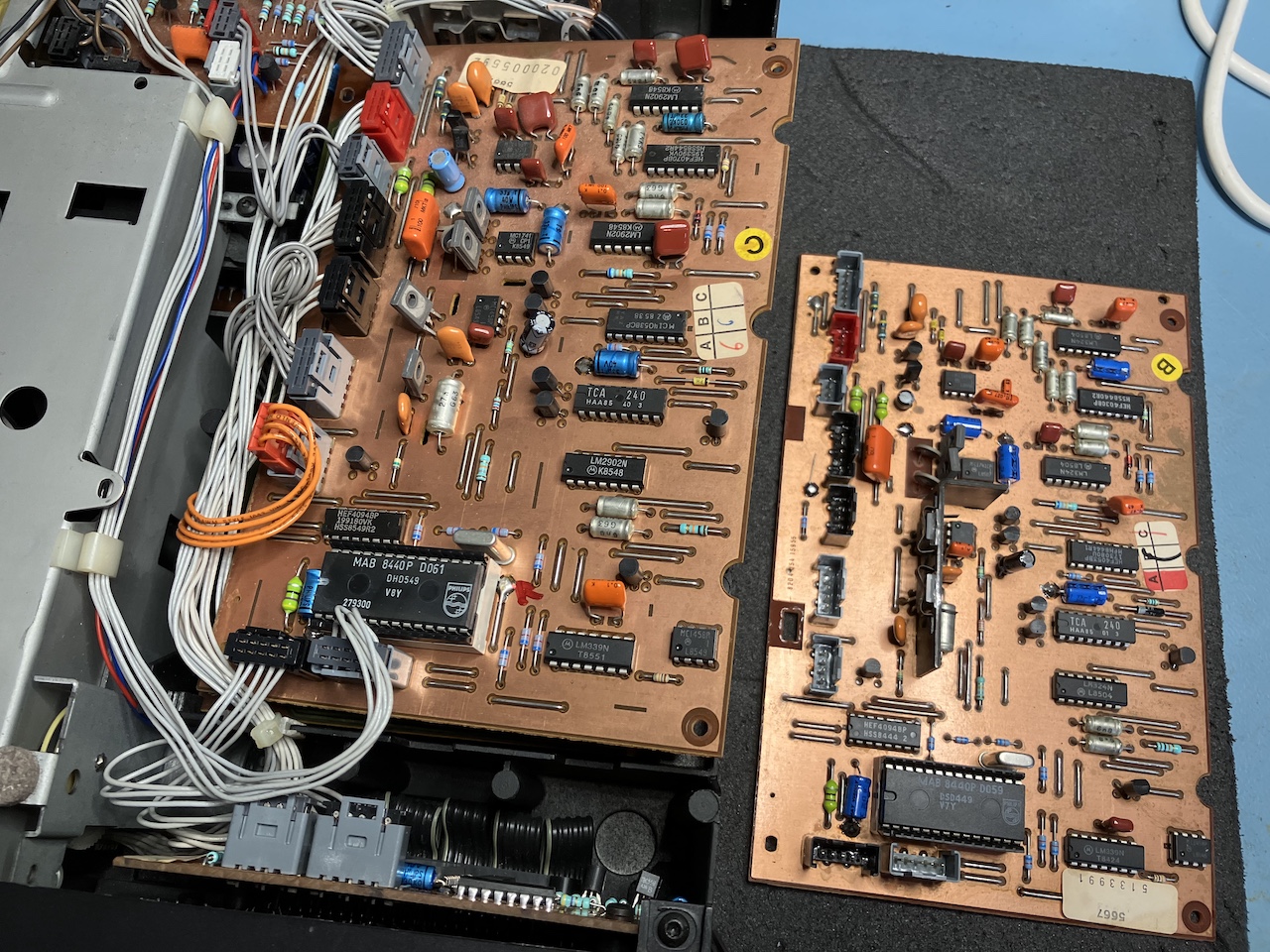

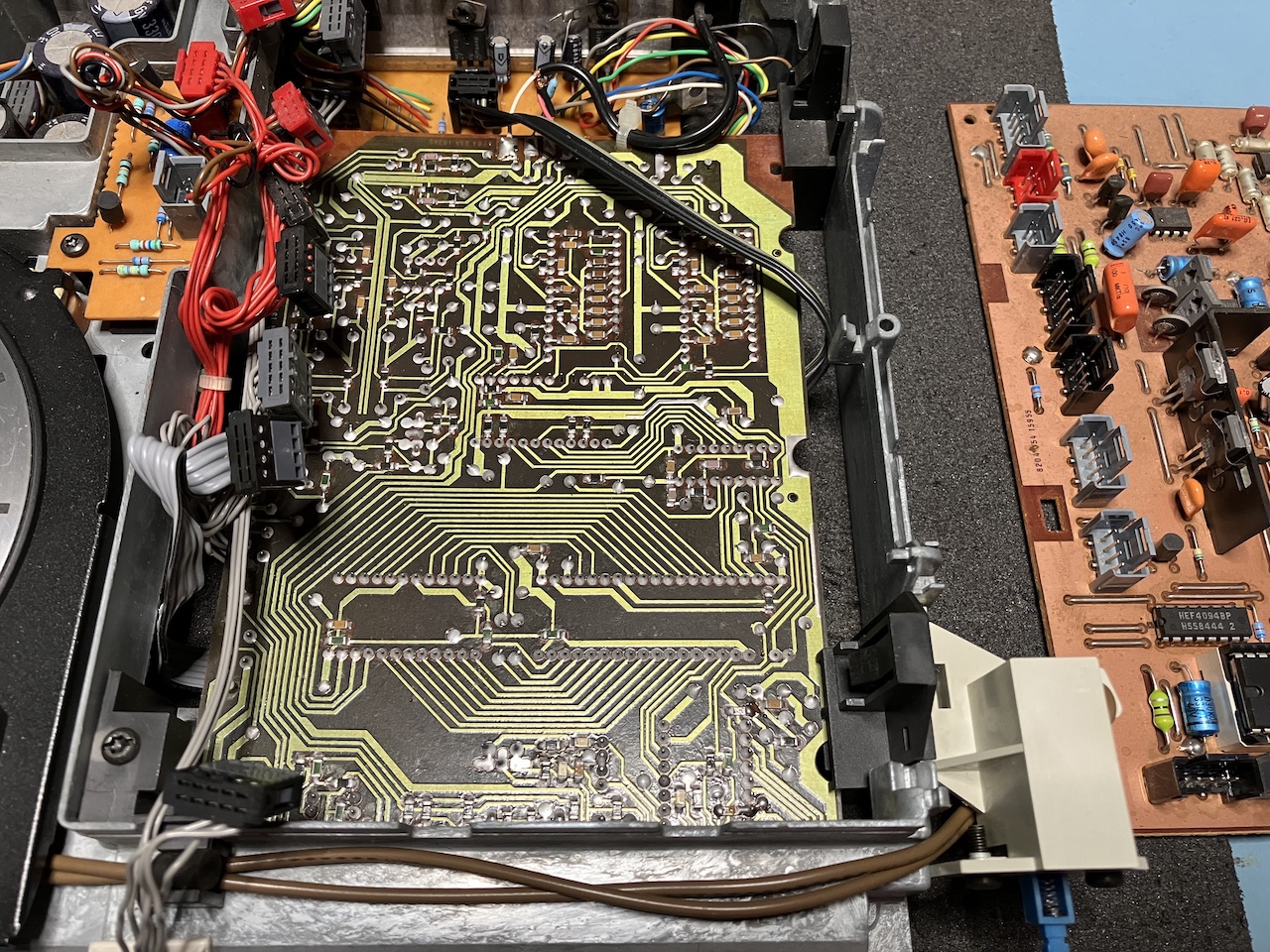

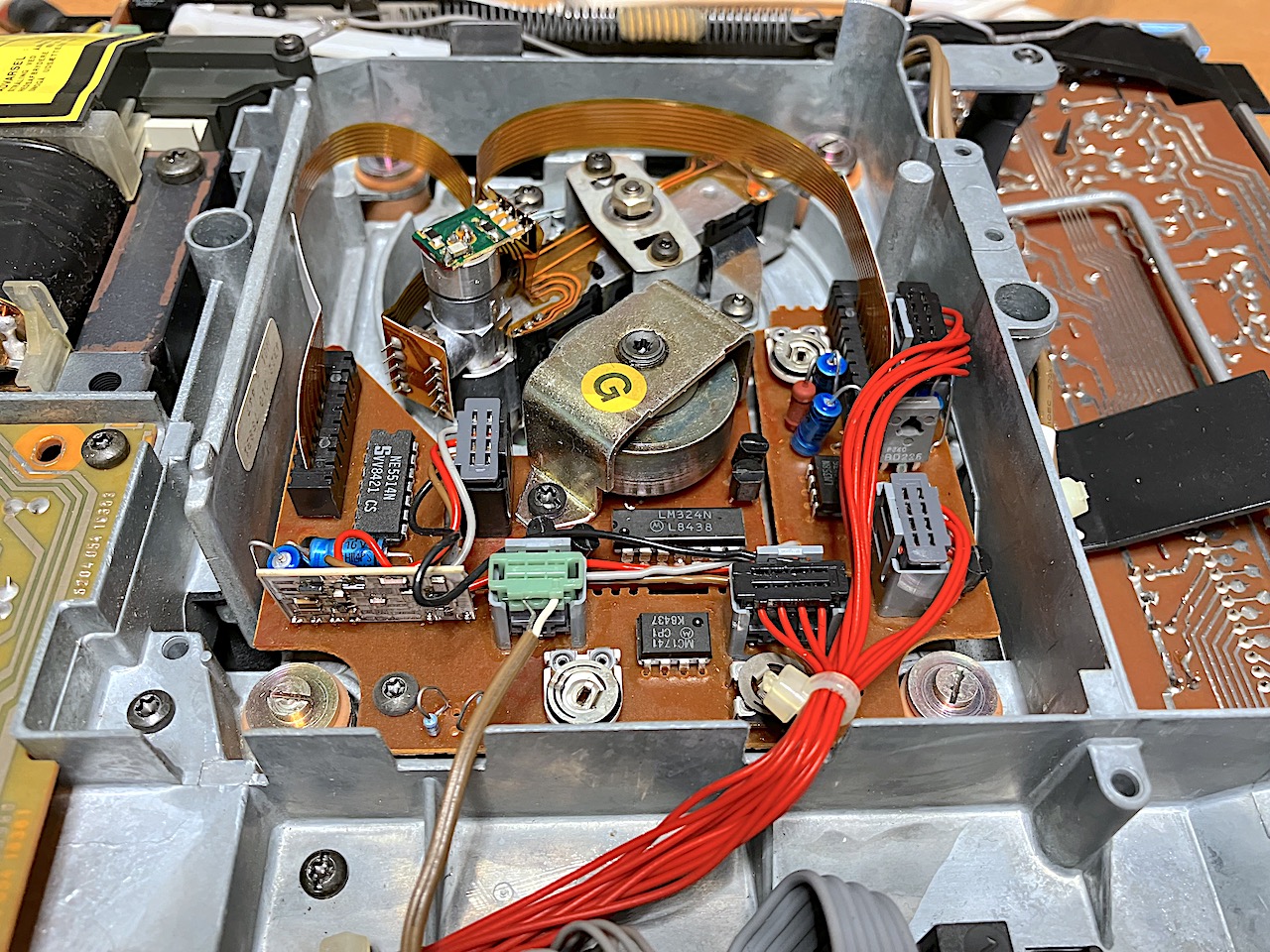

Testing Servo en audio PCB in CD 104 frame.

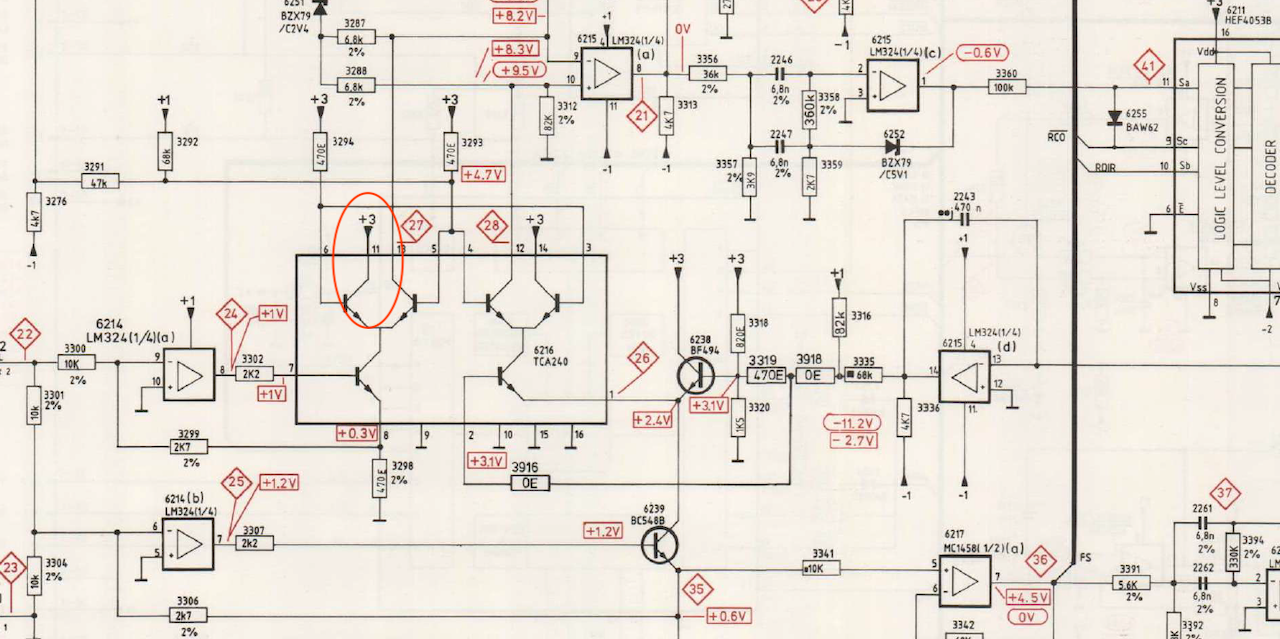

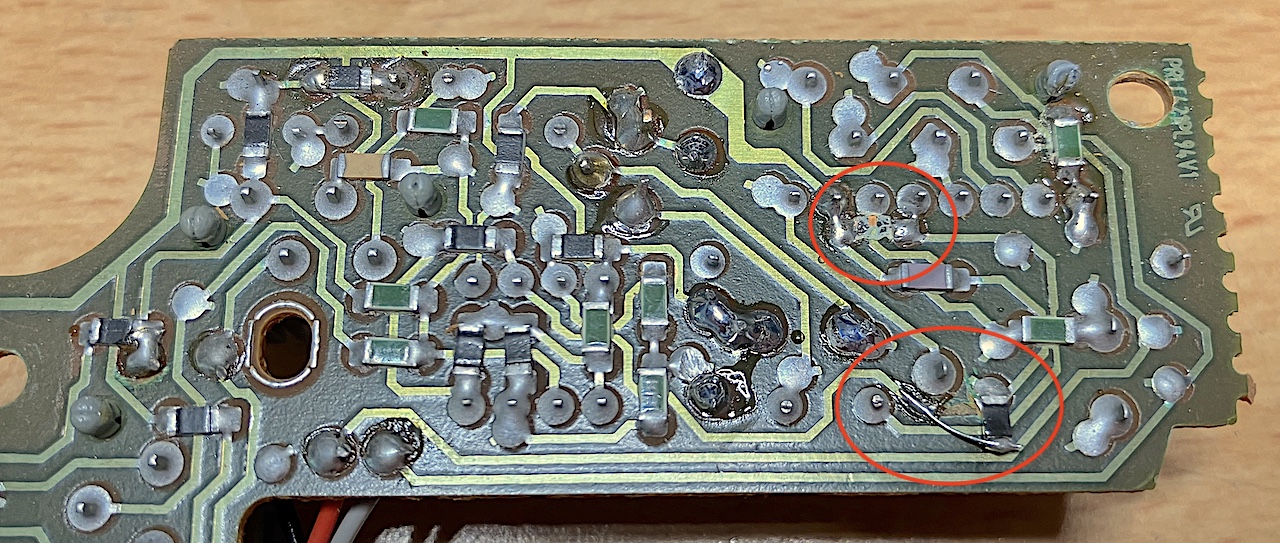

Finally , after hours searching and measuring , found a broken pcb trace to +3  around pin 11   TCA240

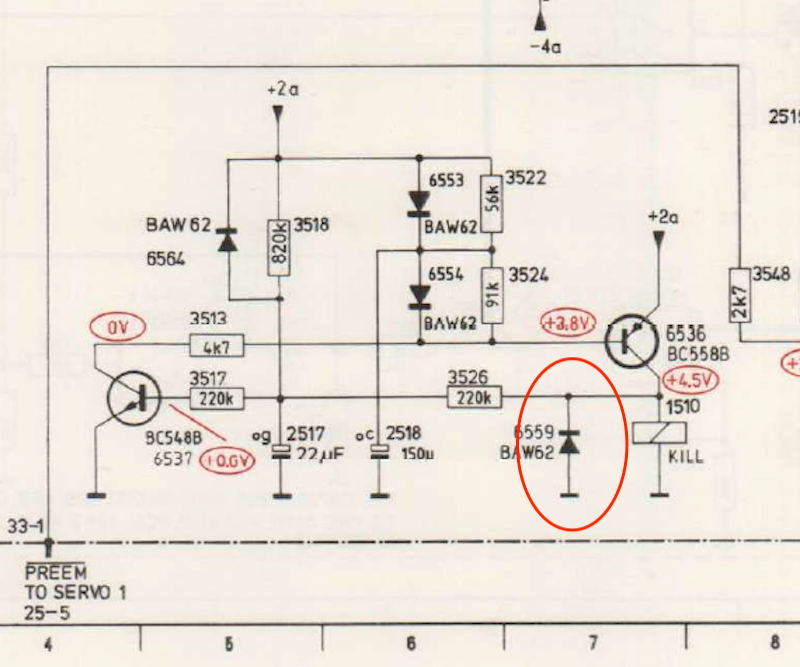

No audio due to faulty Diode in kill circuit

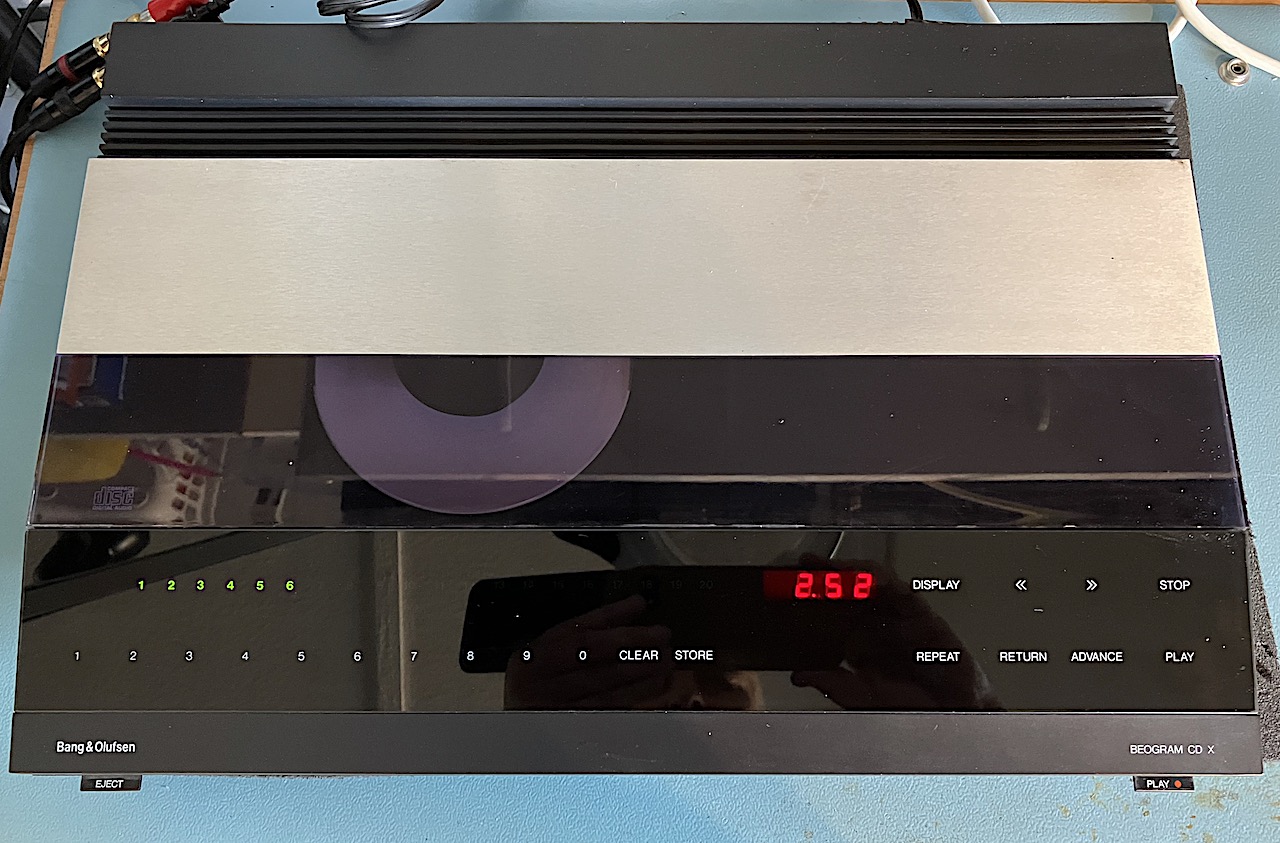

Finally , working
