SAA7220P/C

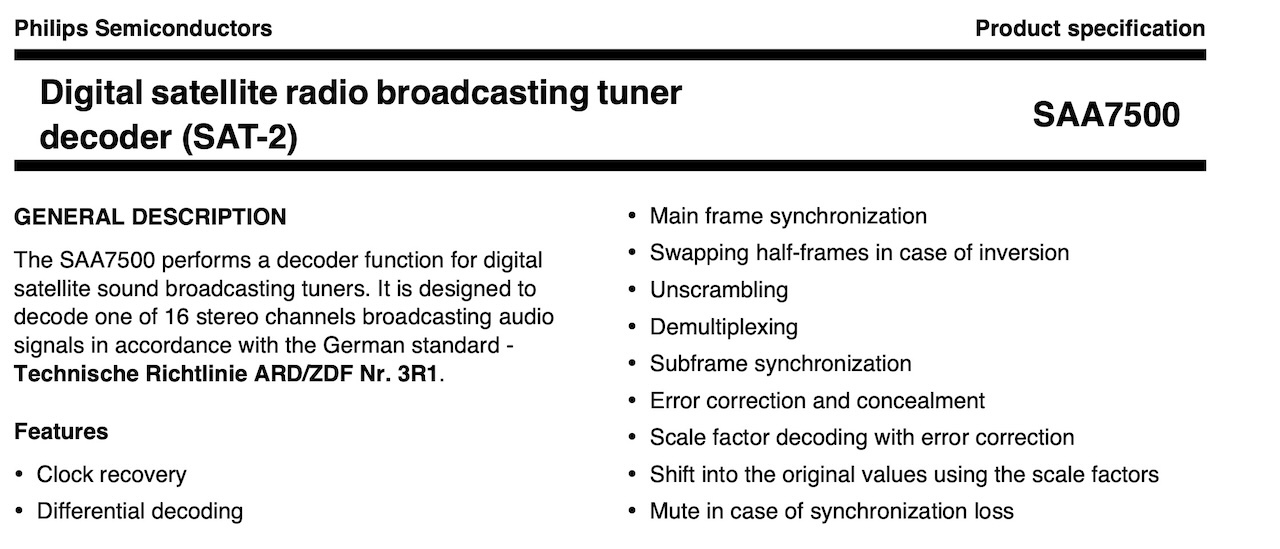

The SAA7220P/C is used in combinatoin with the SAA7500 & SAA7501 Digital satellite radio broadcasting tuner decoder (SAT-2)
Philips FT990 Tuner

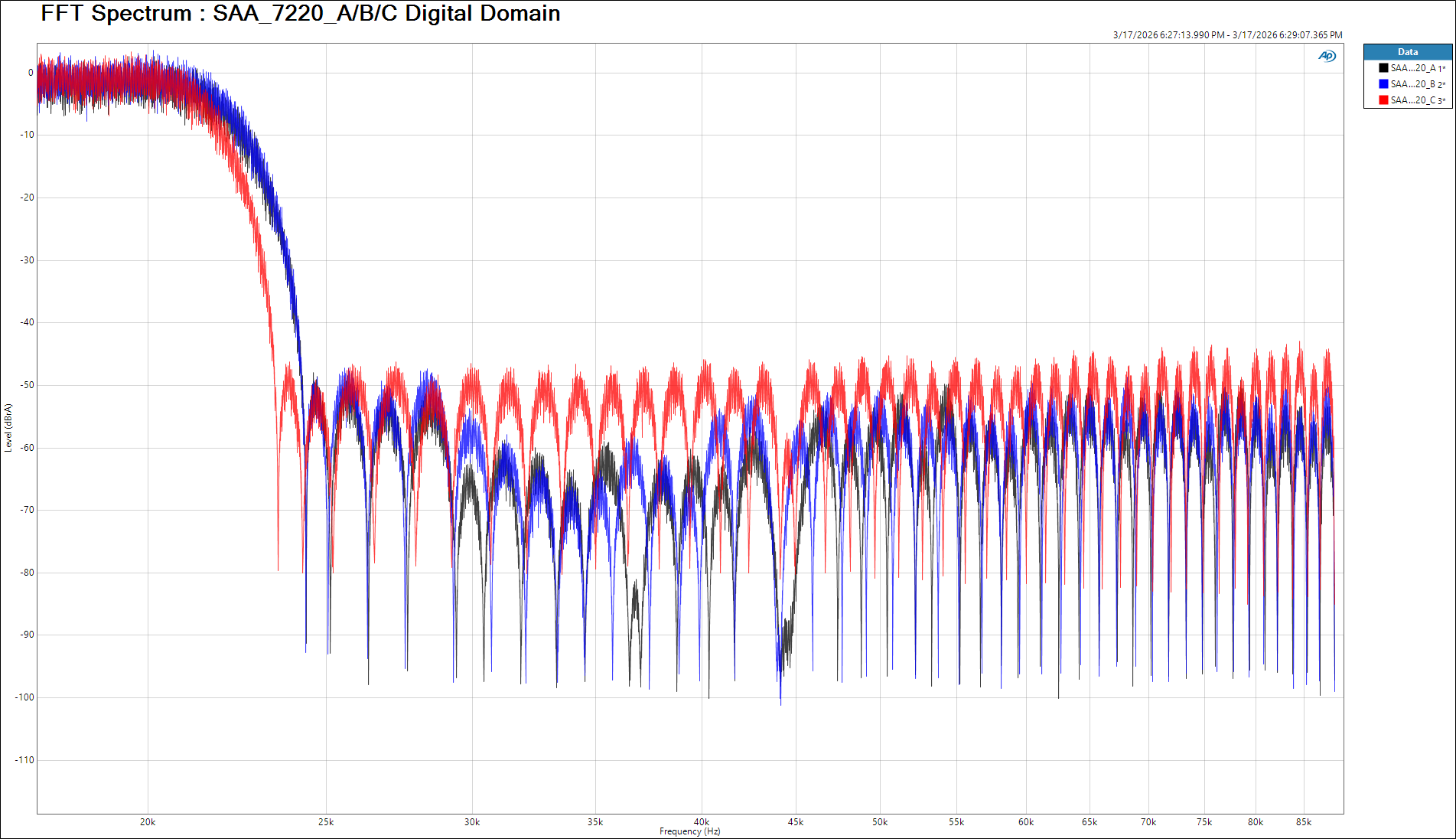

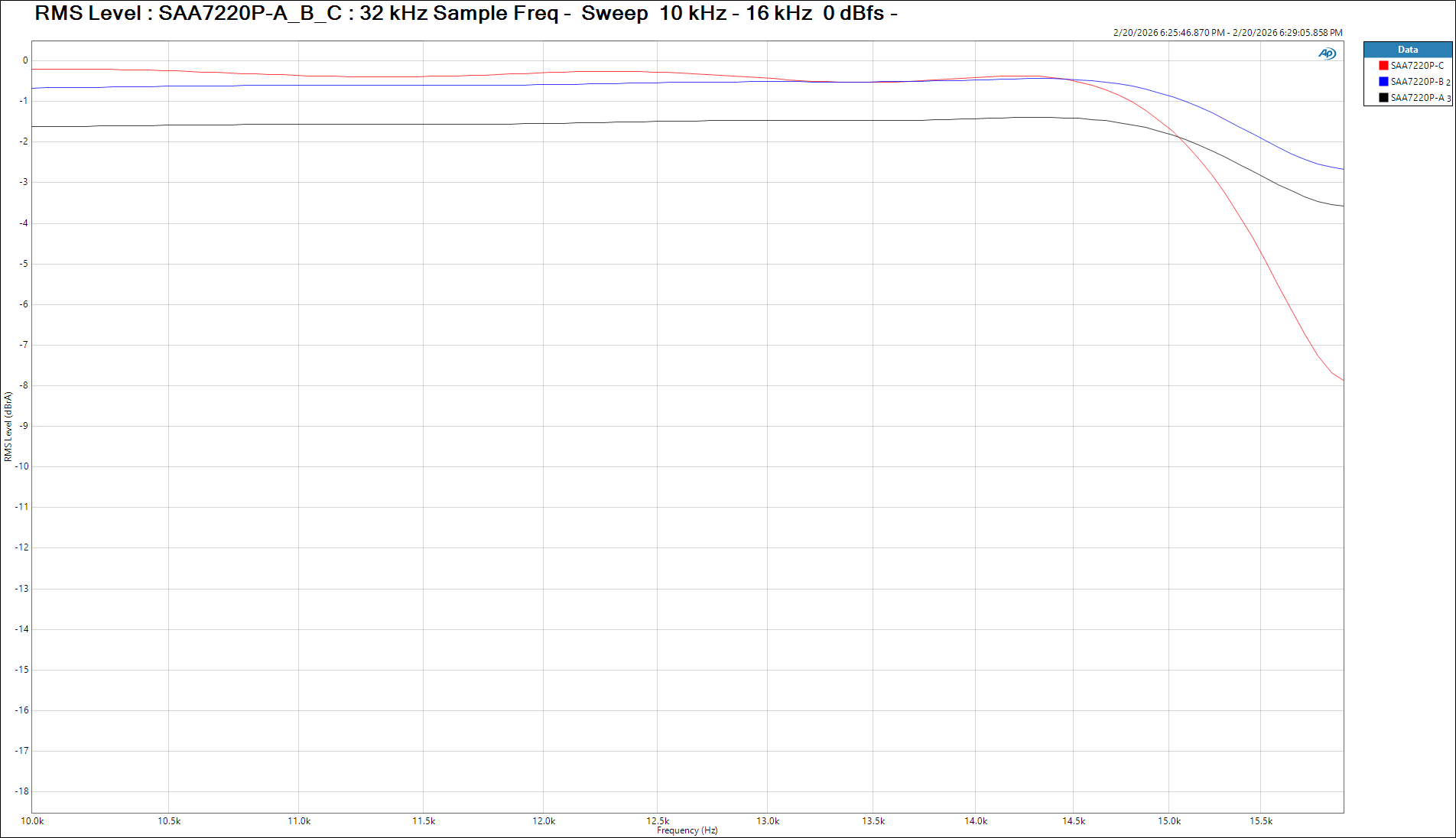

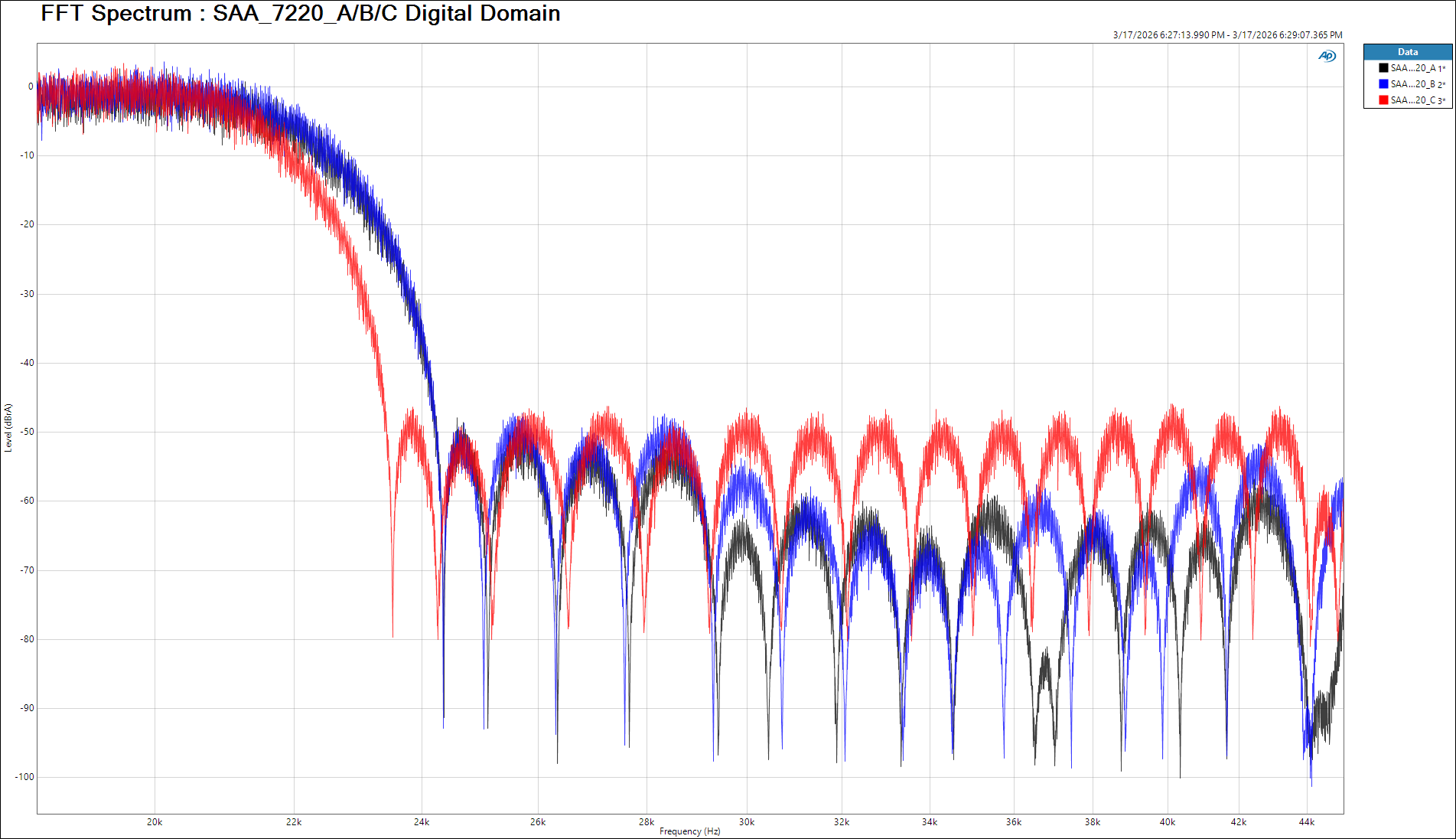

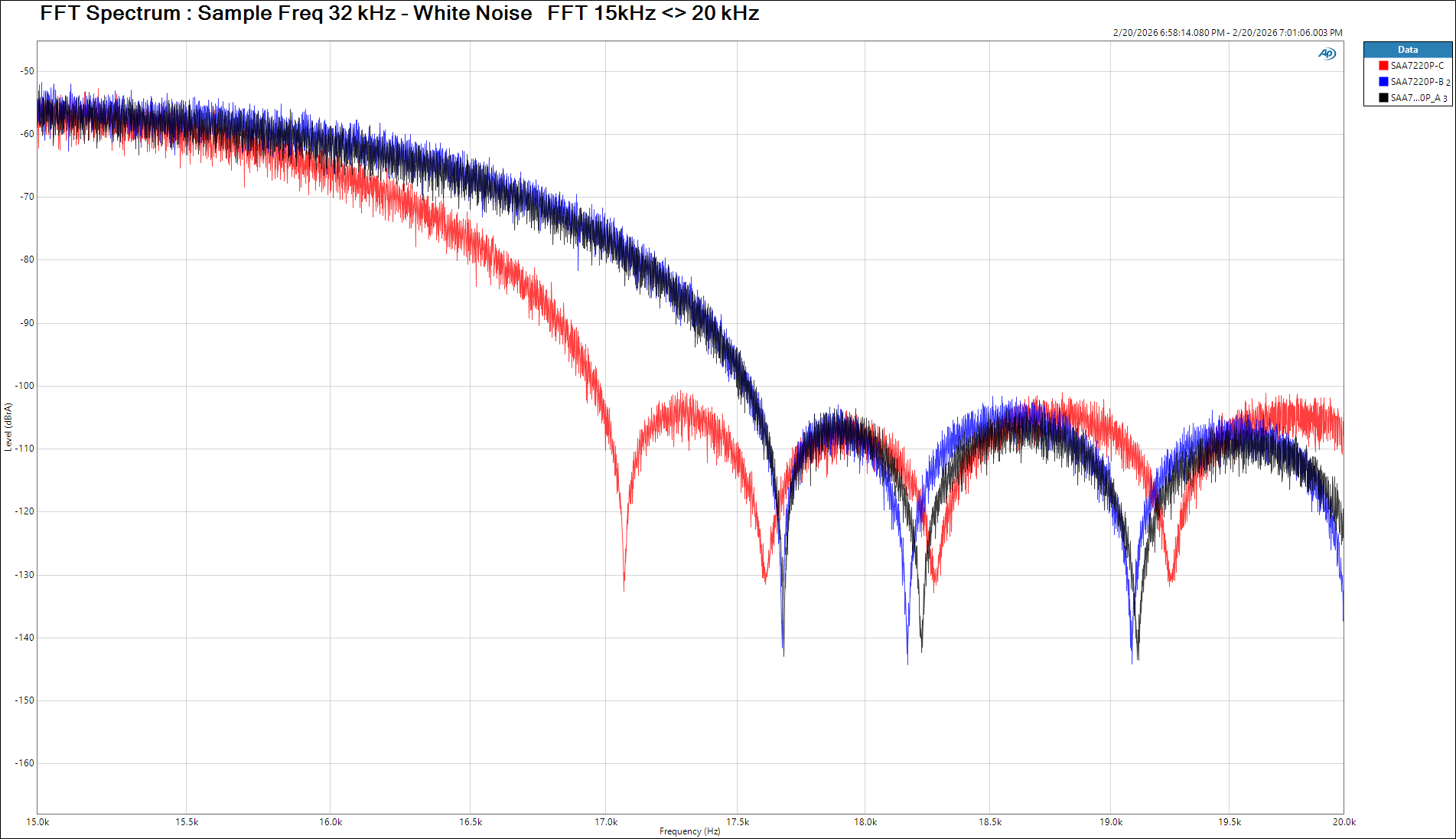

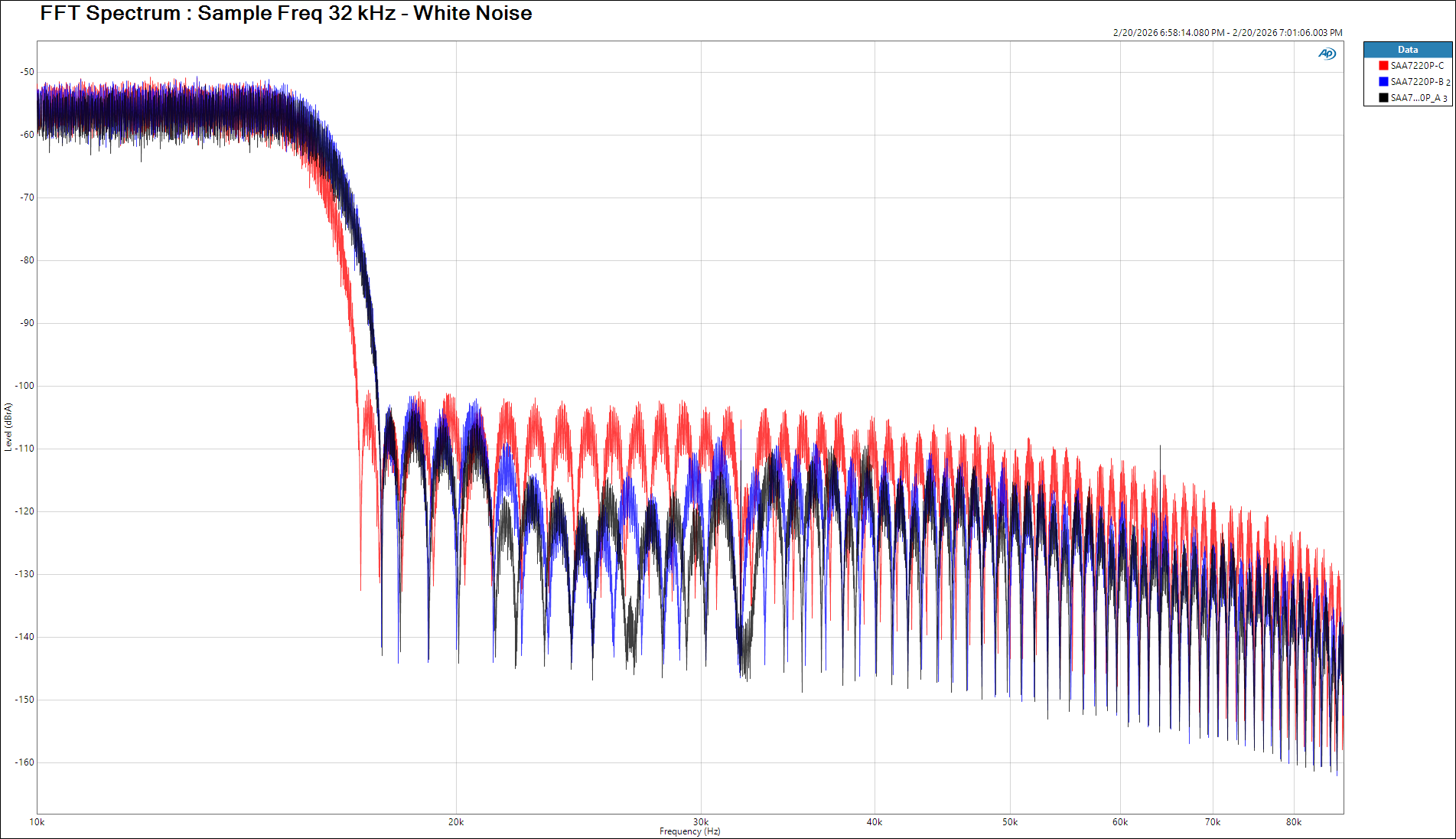

Measured in analog domain : CD 160 with CD player as a DAC 2025 SPDIF Input with SAA7220P/A,B,C via TDA1541A

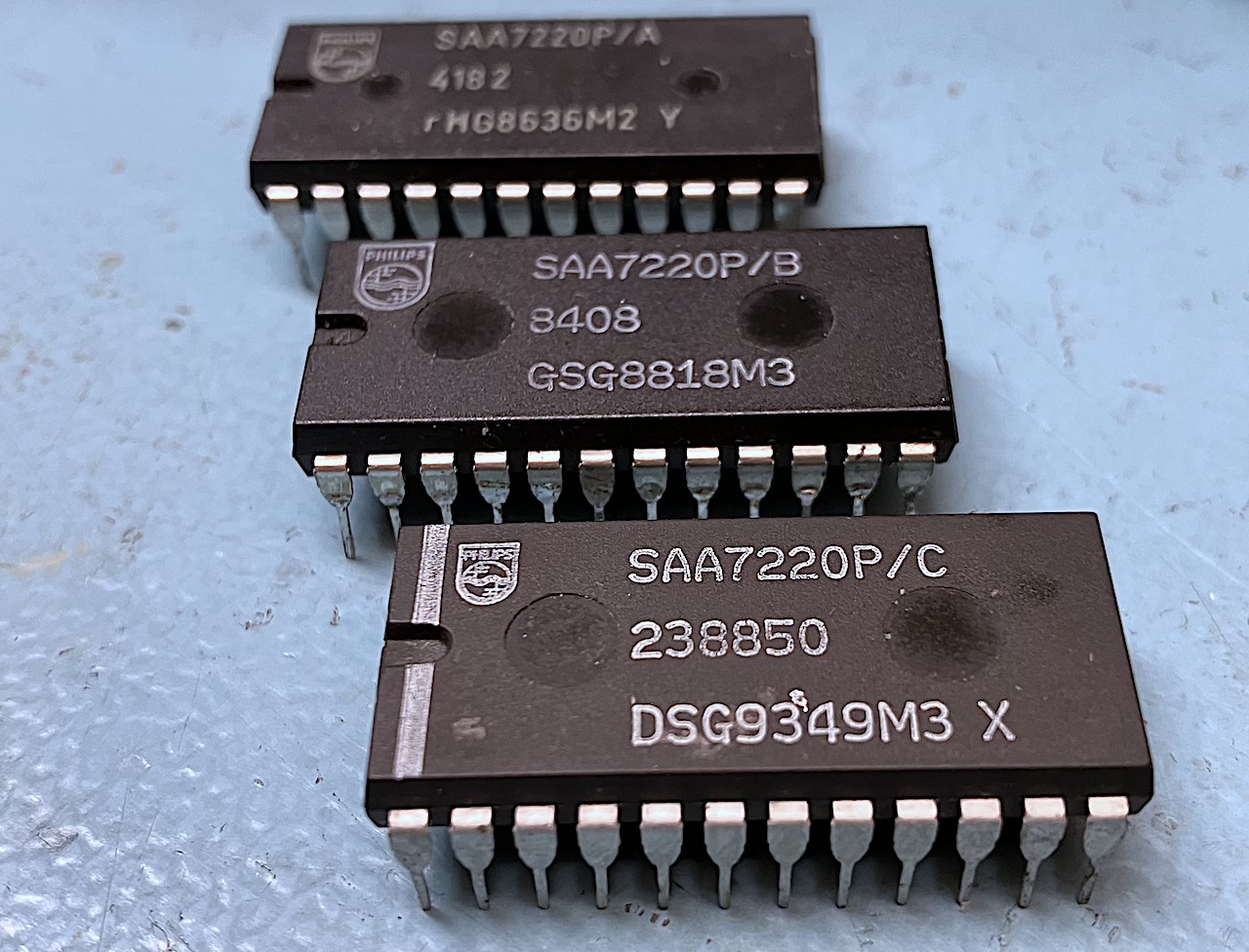

- SAA7220P/A Black
- SAA7220P/B Blue
- SAA7220P/C Red

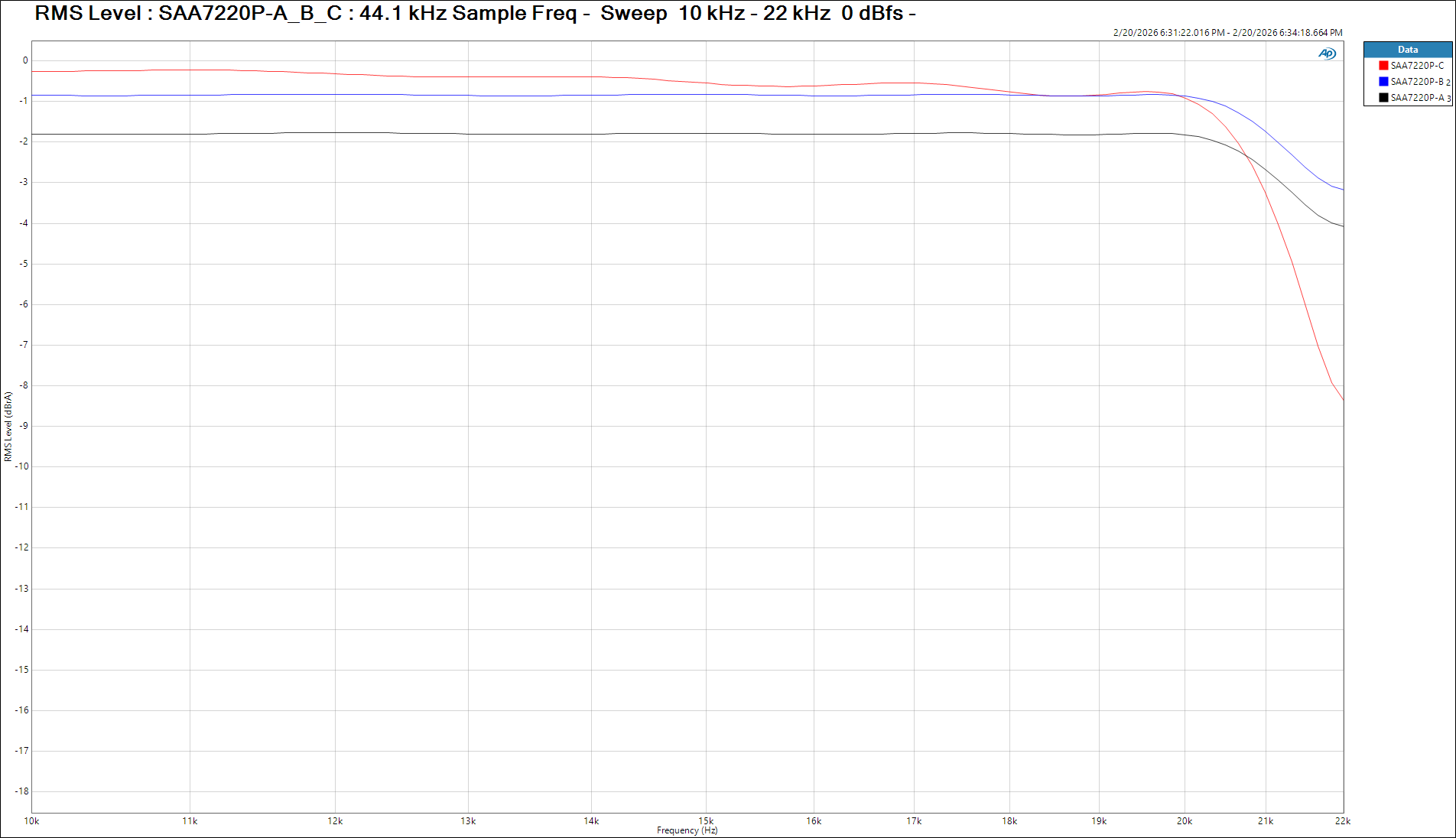

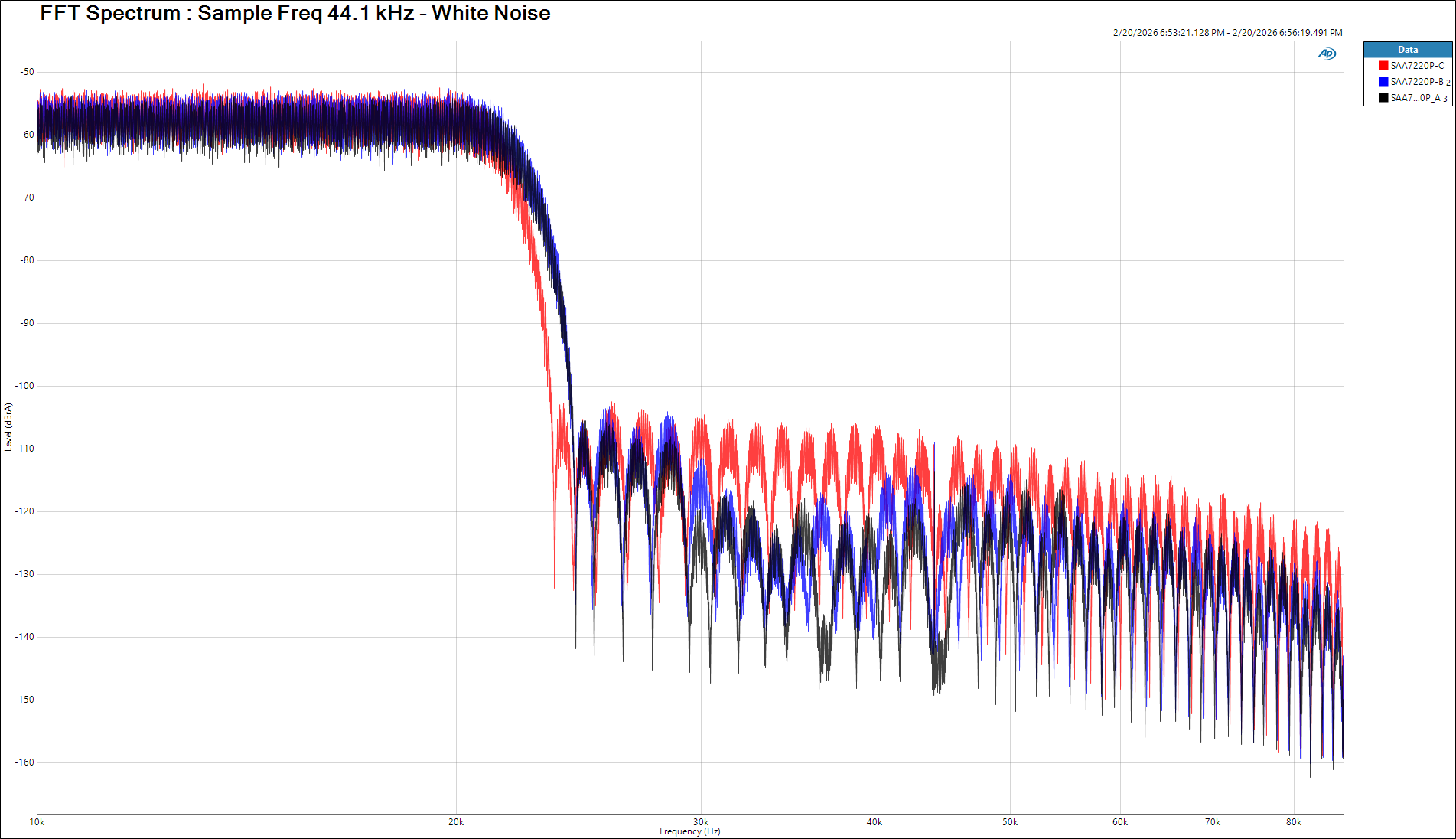

44.1 Khz

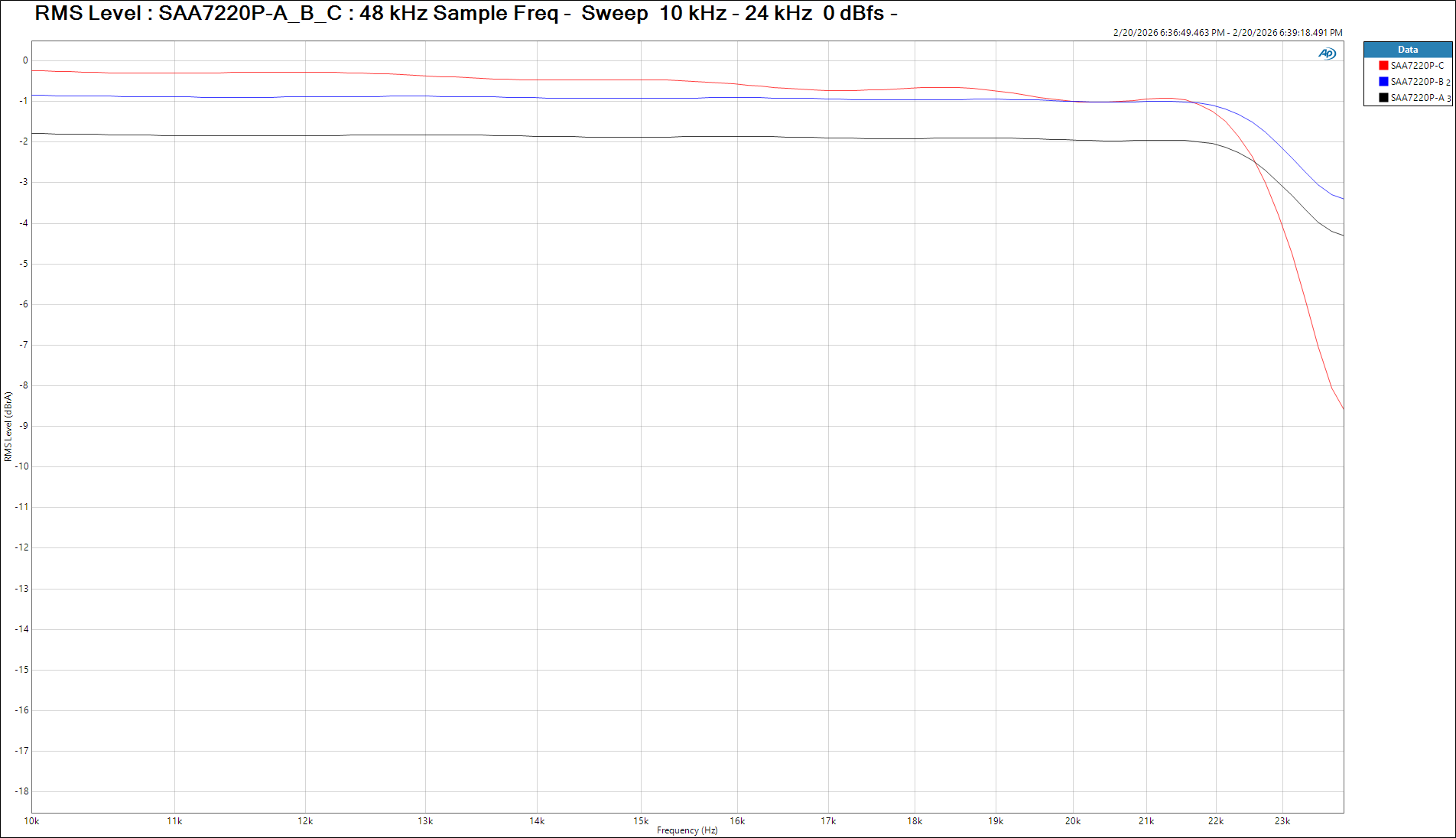

48 kHz
Wanted : Datasheet of SAA7220 P/C
