Dynamic Element Matching modificaties

De Bron CDD882 met TDA1541A s1 SAA7220p/b

Meten met 192 kHz Sampling, bandpass 96 khz ,  FFT 1M , avarages 8* power

Orginele TDA1541a S1 DEM clock met 860 pf, DEM-FREQ = 144 khz

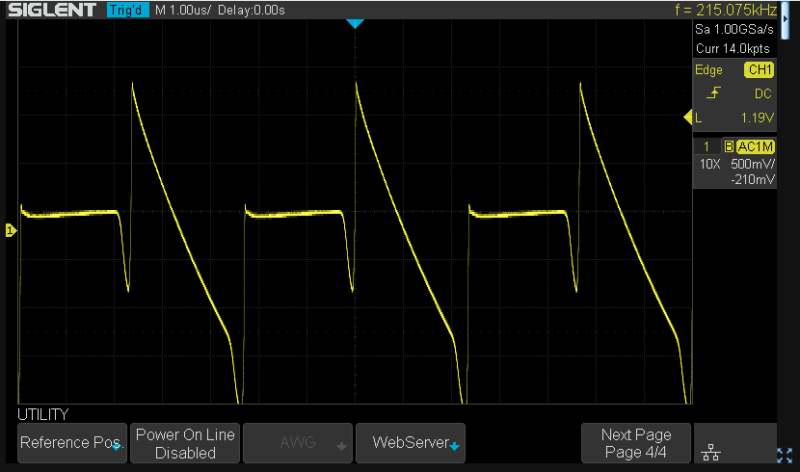

DEM-mod Clock met 680pF + 6k81 DEM-FREQ = 215 kHZ

Grundig DEM , DEM-FREQ sync aan Wordclock 176.4 kHZ

Meten met 192 kHz Sampling, bandpass 96 khz ,  FFT 1M , avarages 8* power

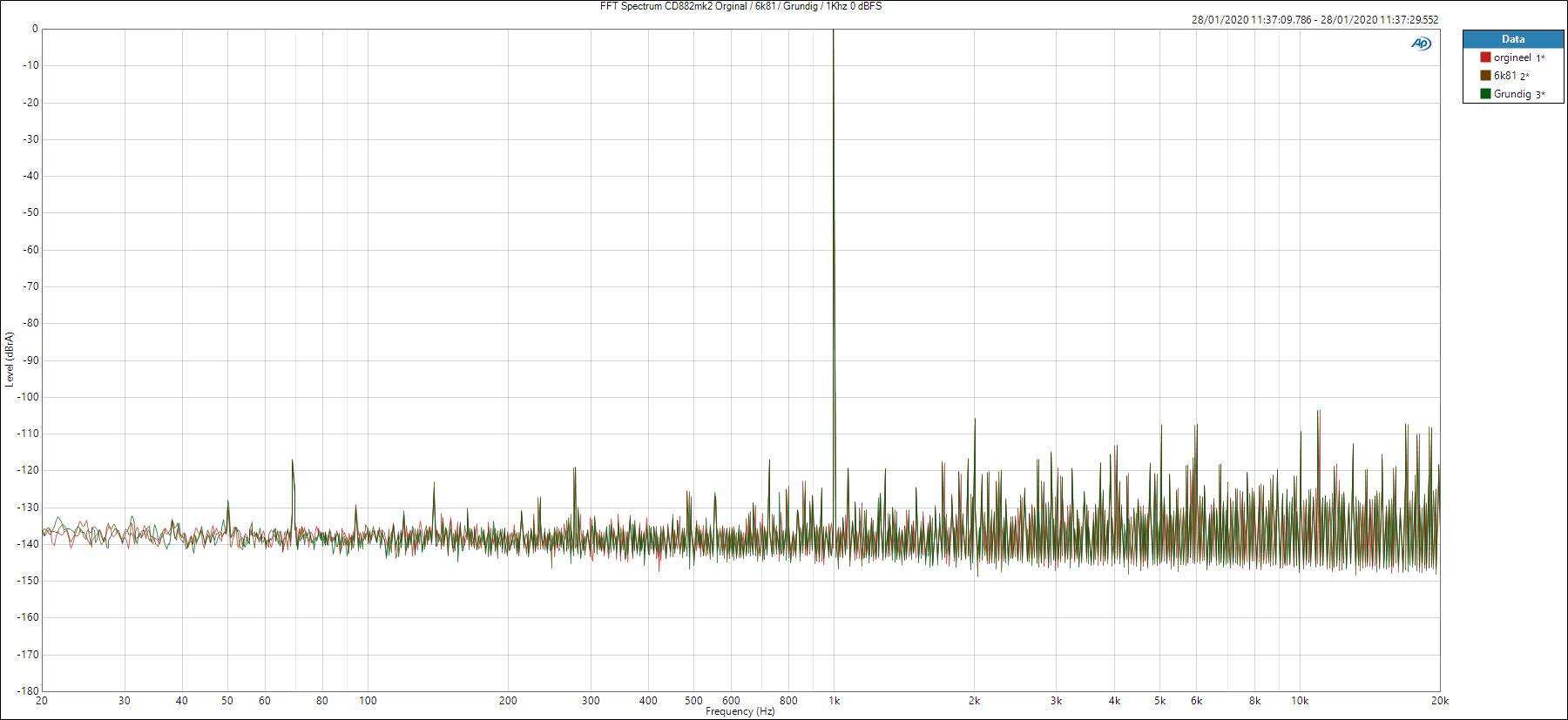

1 Khz 0 dBFS 20 Hz – 20000 Hz

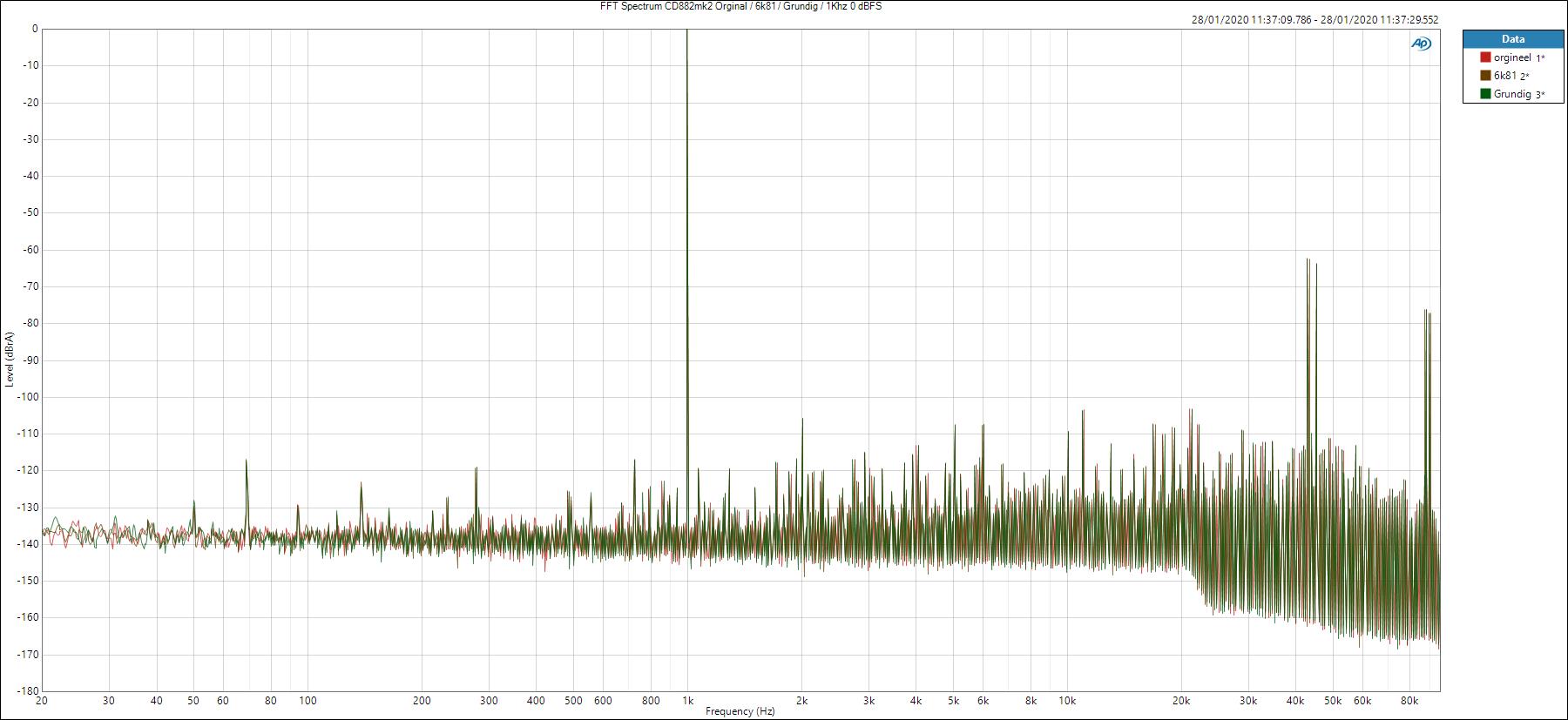

1 Khz 0 dBFS 20 Hz – 96000 Hz

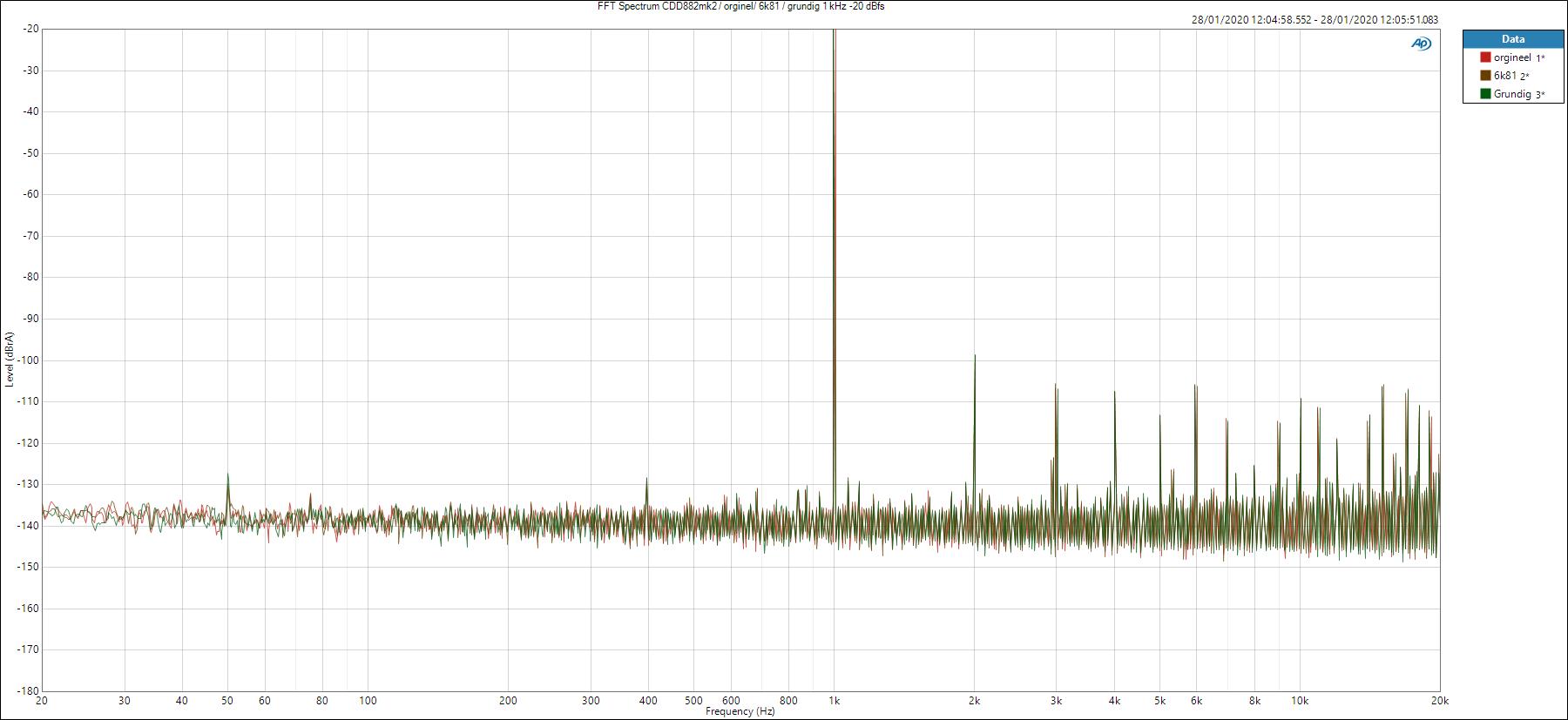

1 Khz -20 dBFS 20 Hz – 20000 Hz

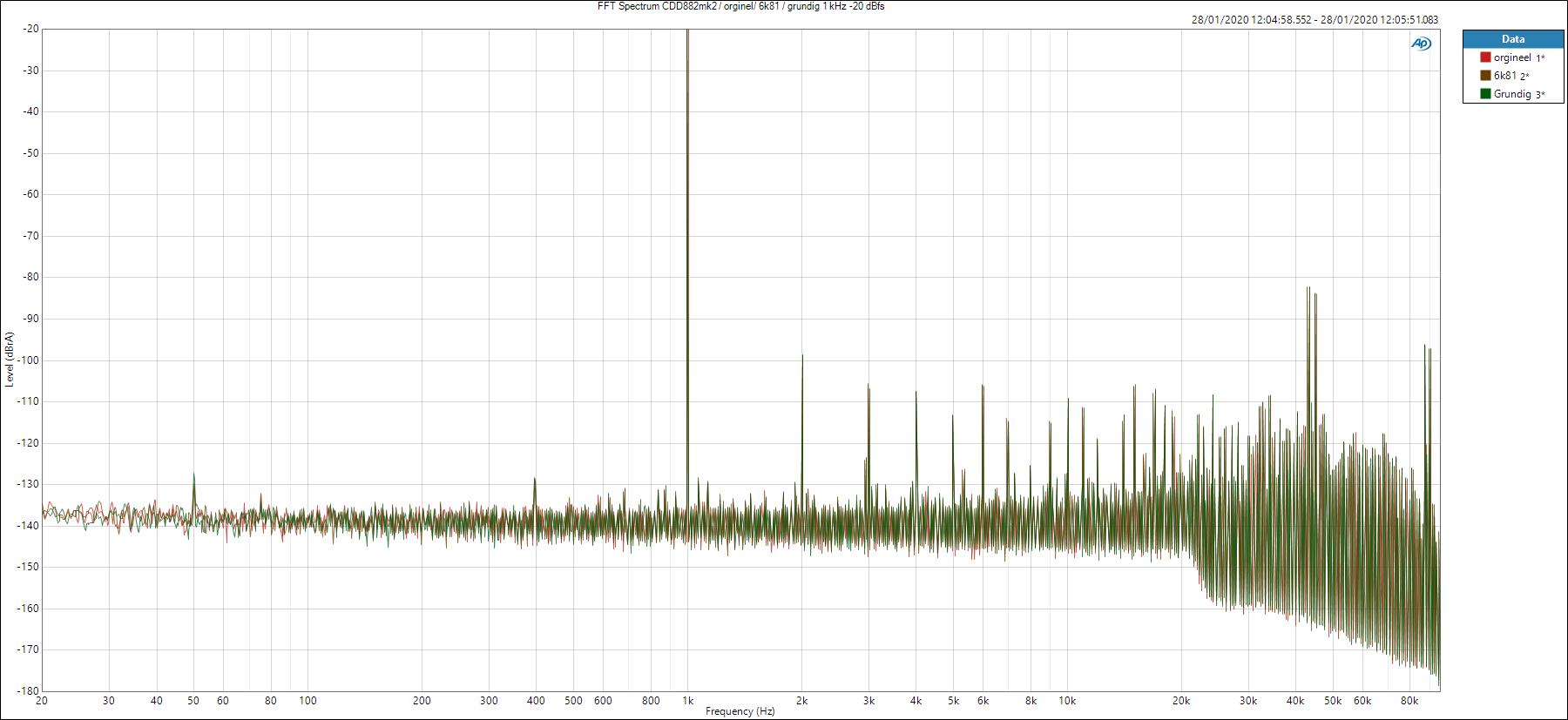

1 Khz -20 dBFS 20 Hz – 96000 Hz

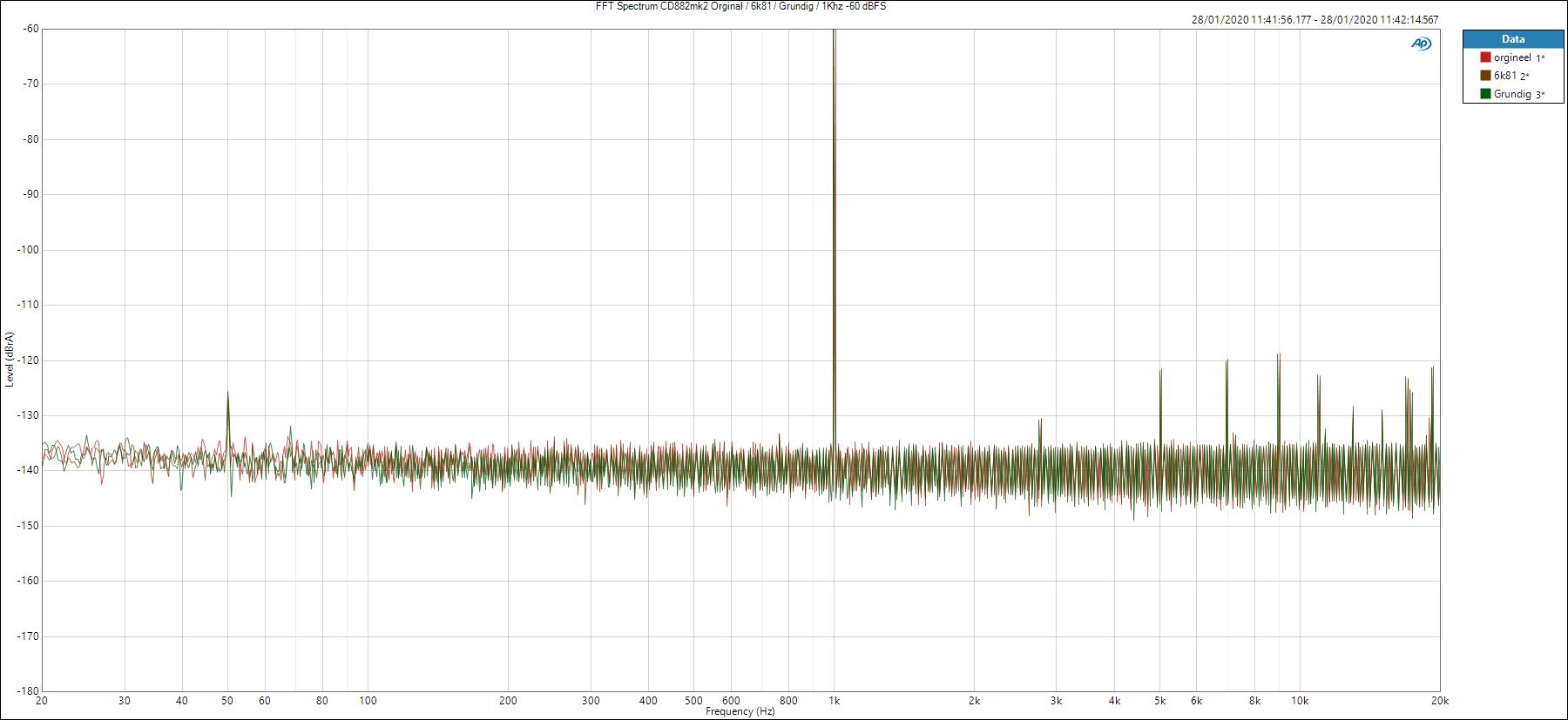

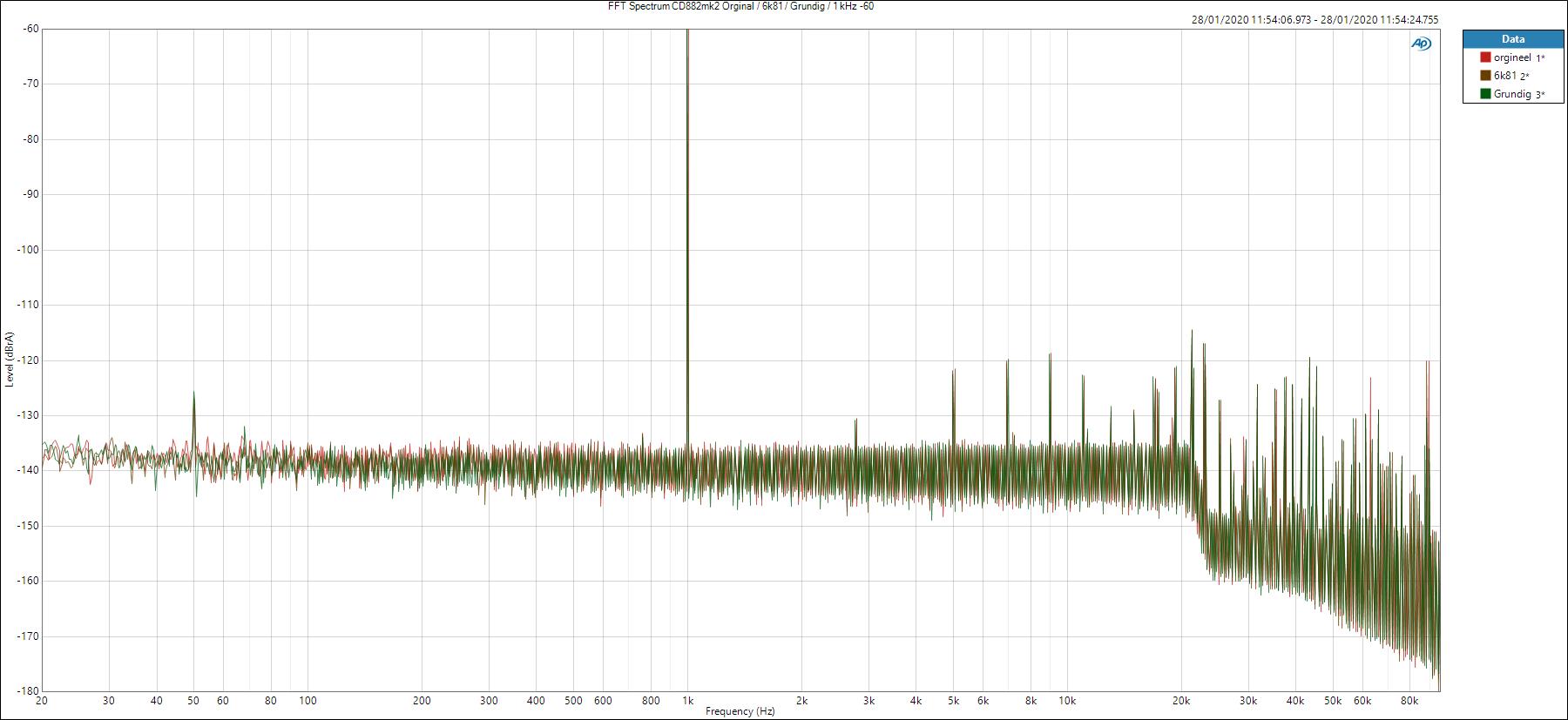

1 Khz -60 dBFS 20 Hz – 20000 Hz

1 Khz -20 dBFS 20 Hz – 96000 Hz

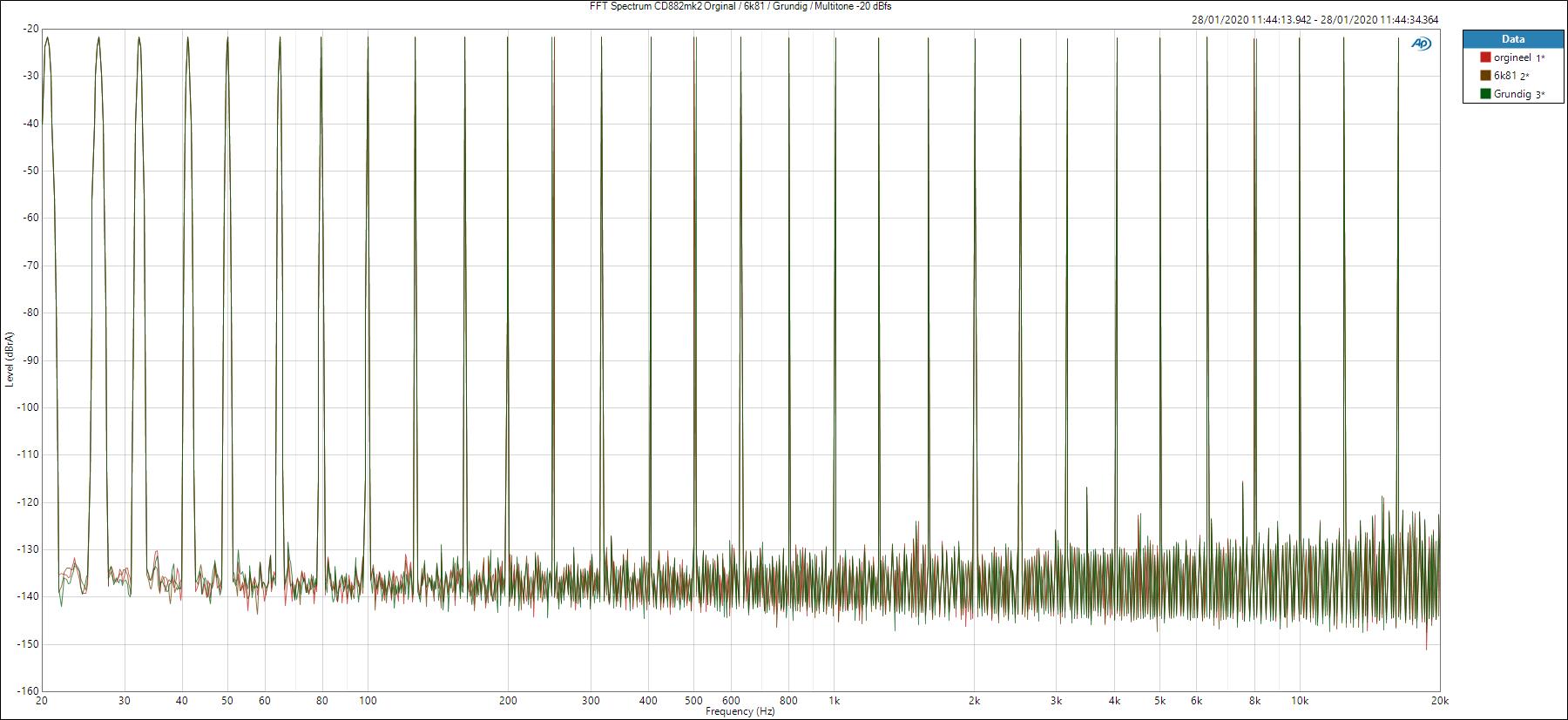

Multitone  -20 dBFS 20 Hz – 20000 Hz

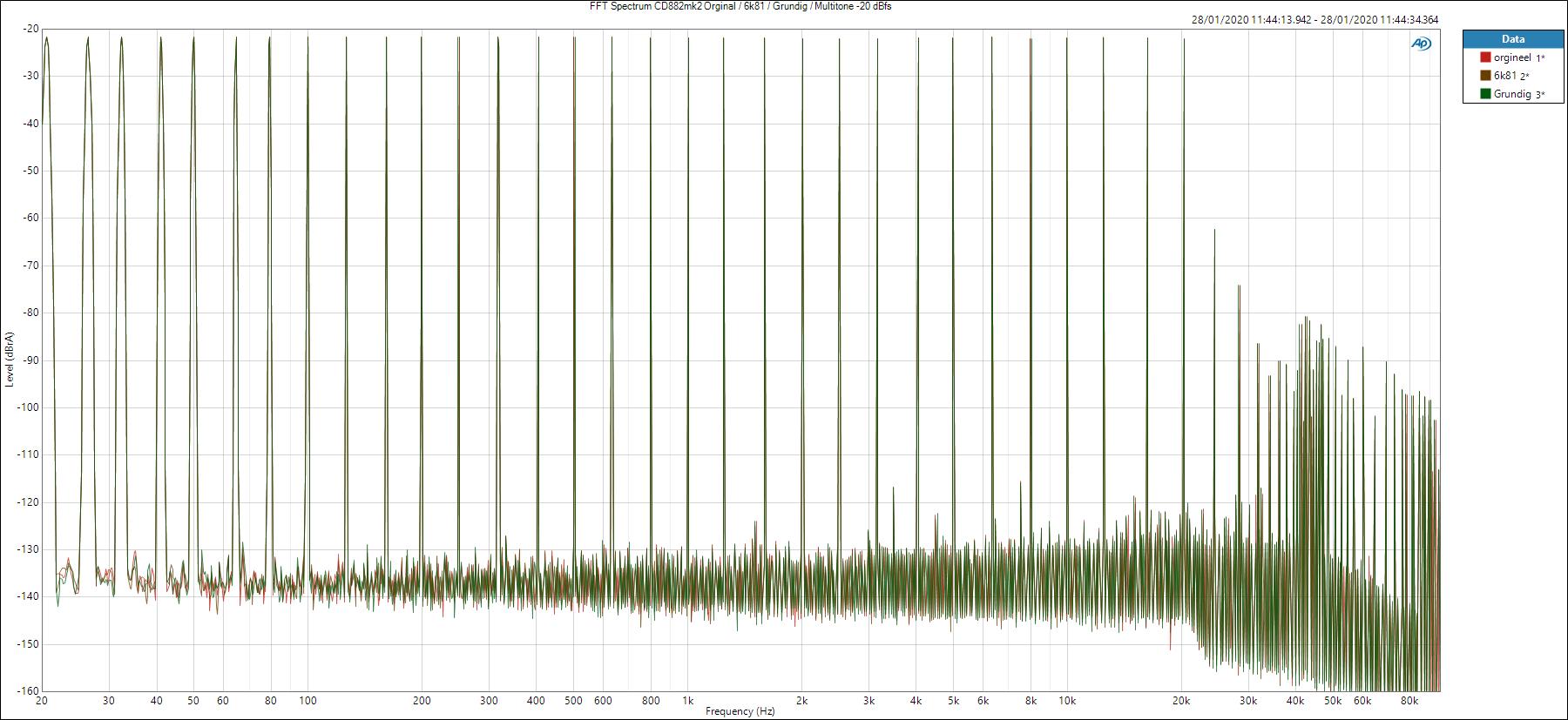

Multitone  -20 dBFS 20 Hz – 96000 Hz

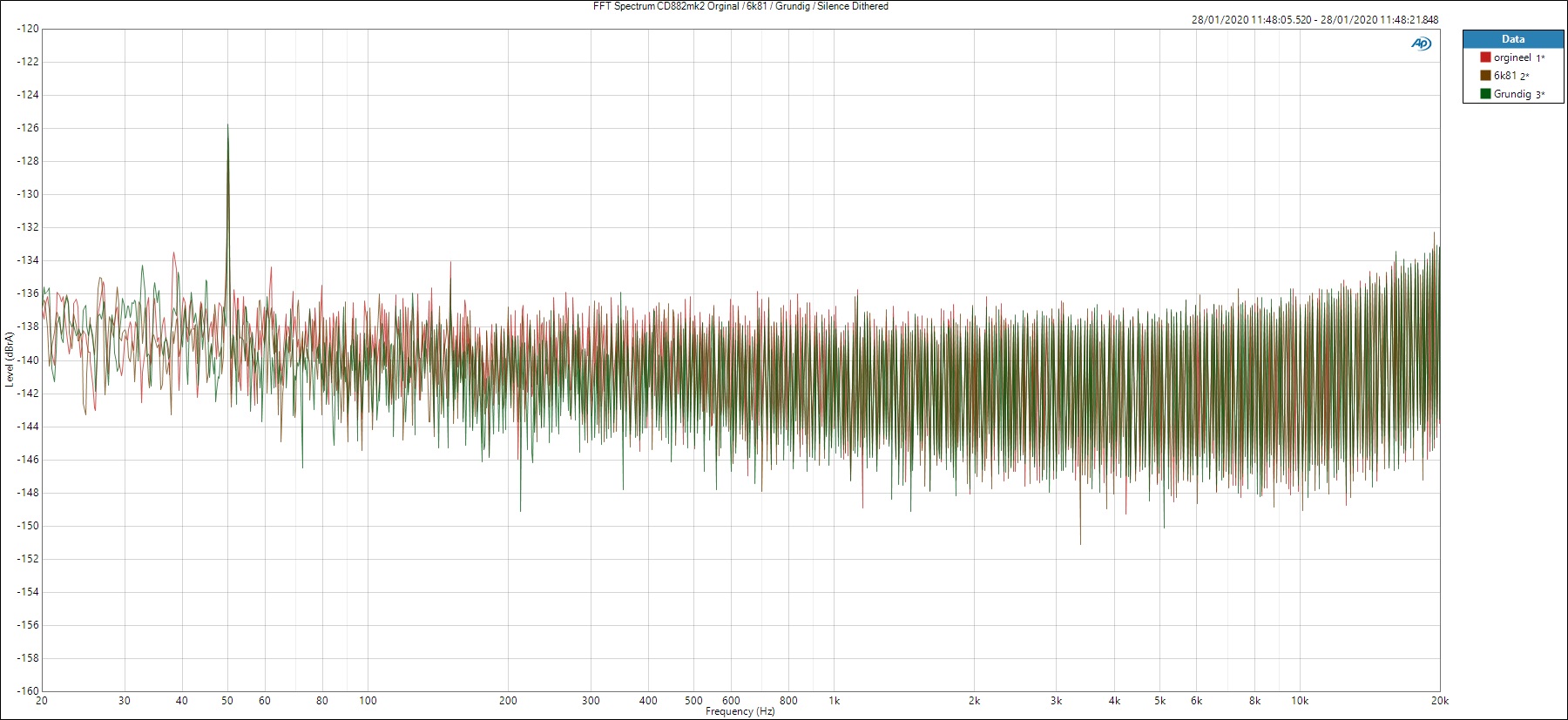

Silence Dithered 20 – 20000 kHz

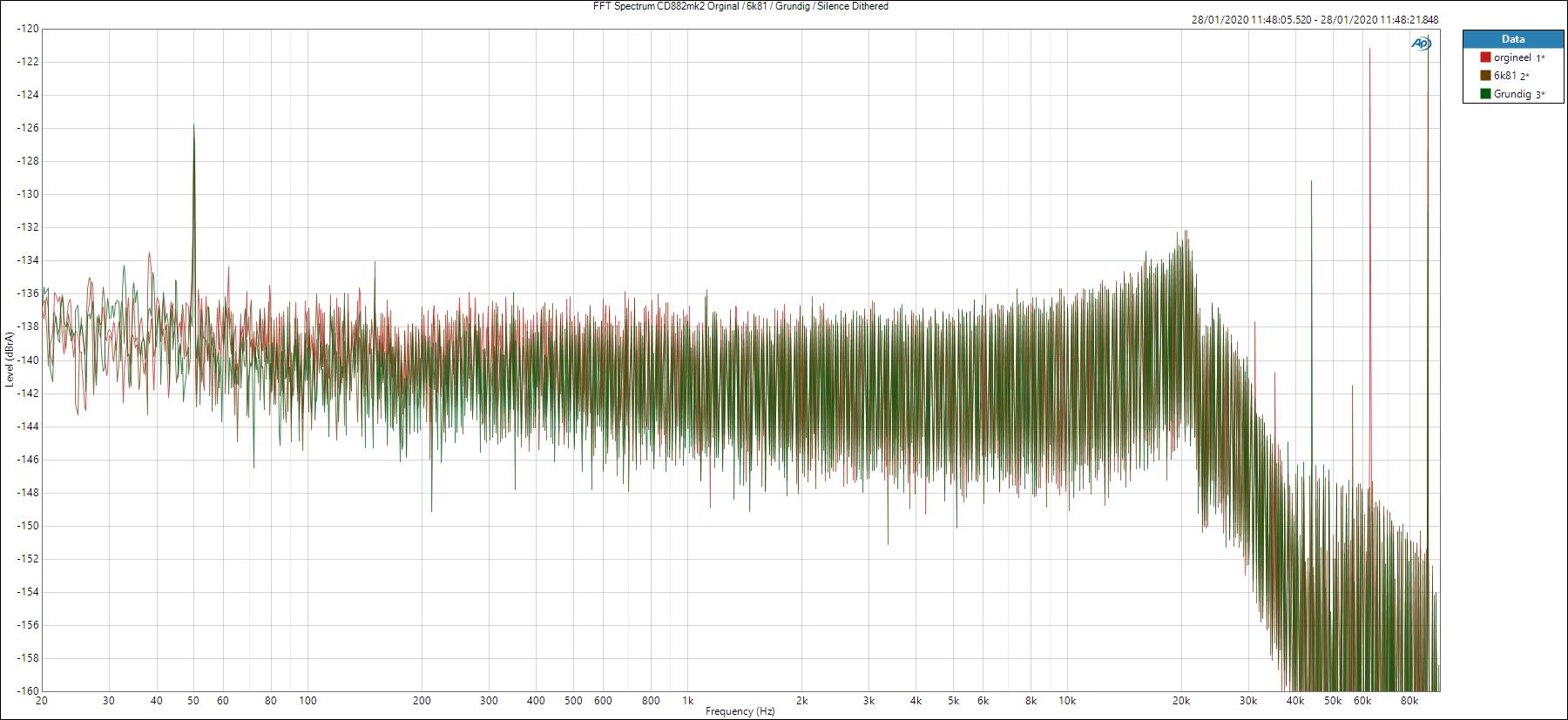

Silence Dithered 20 – 96000 kHz

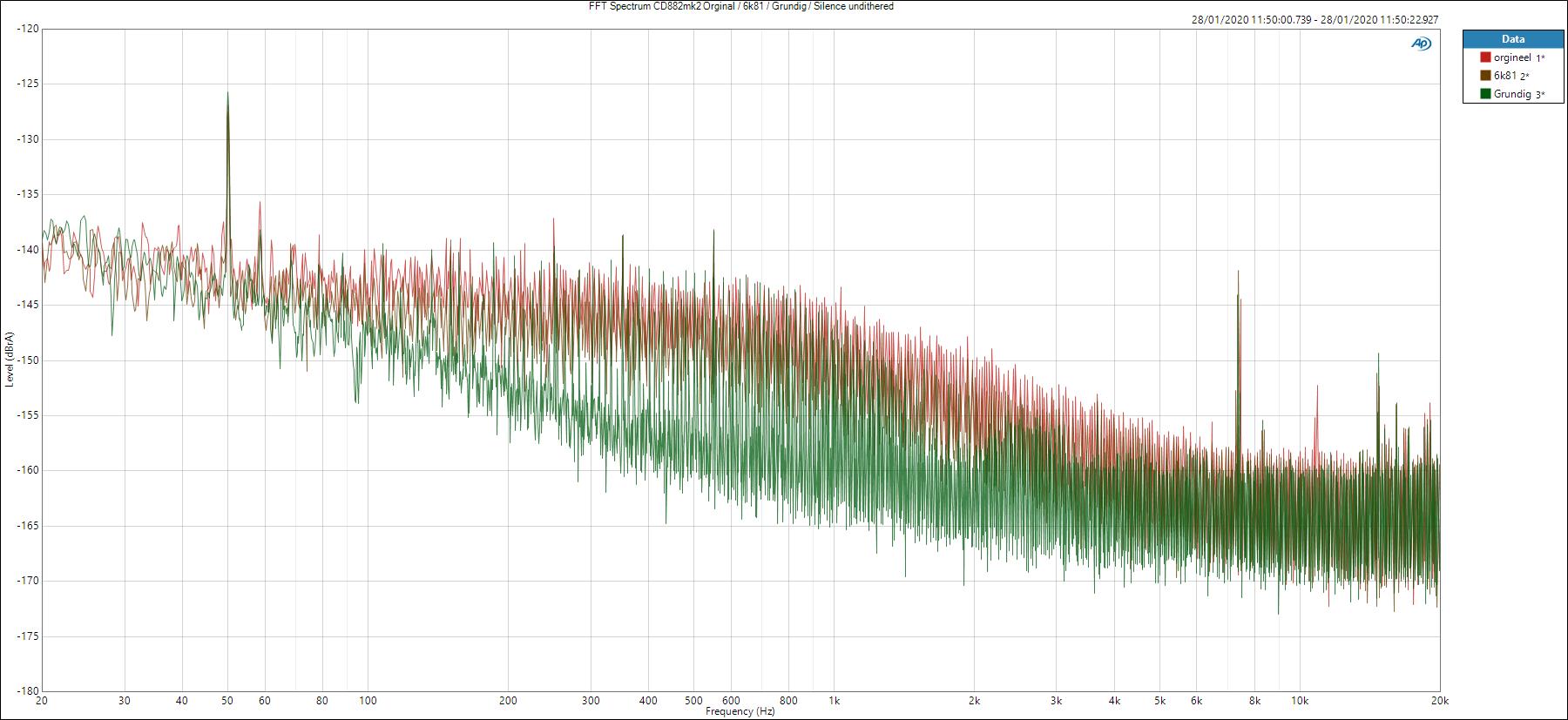

Silence un-Dithered 20 – 20000 kHz

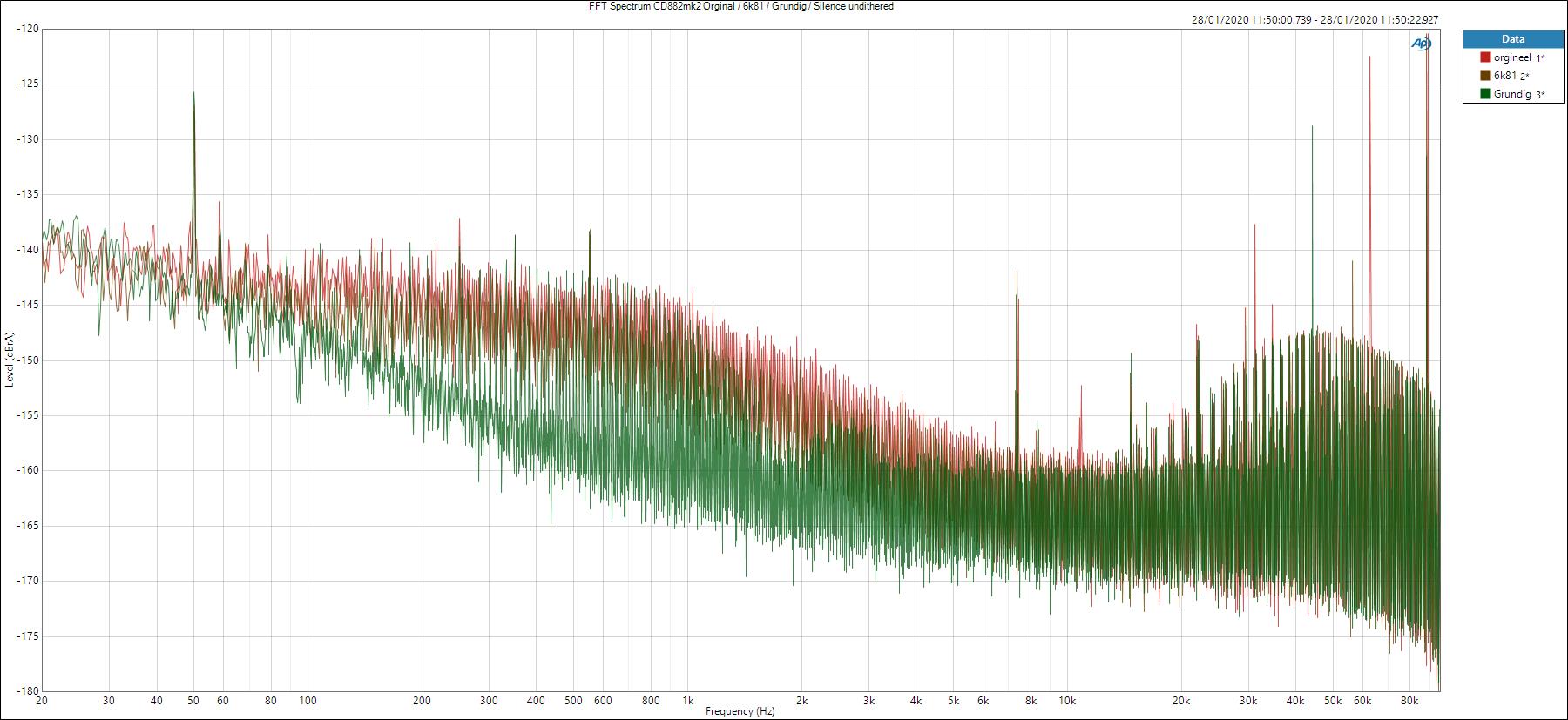

Silence un-Dithered 20 – 96000 kHz

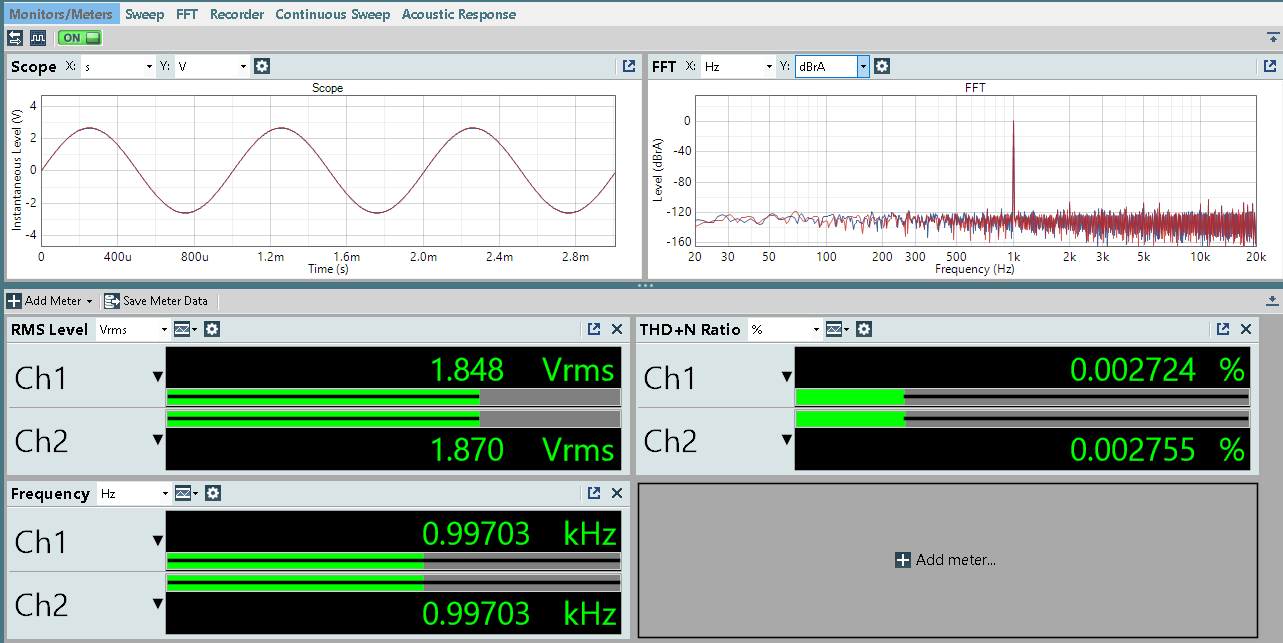

Orgineel 680 PF 1 Khz Bandpass 22 Khz ongewogen

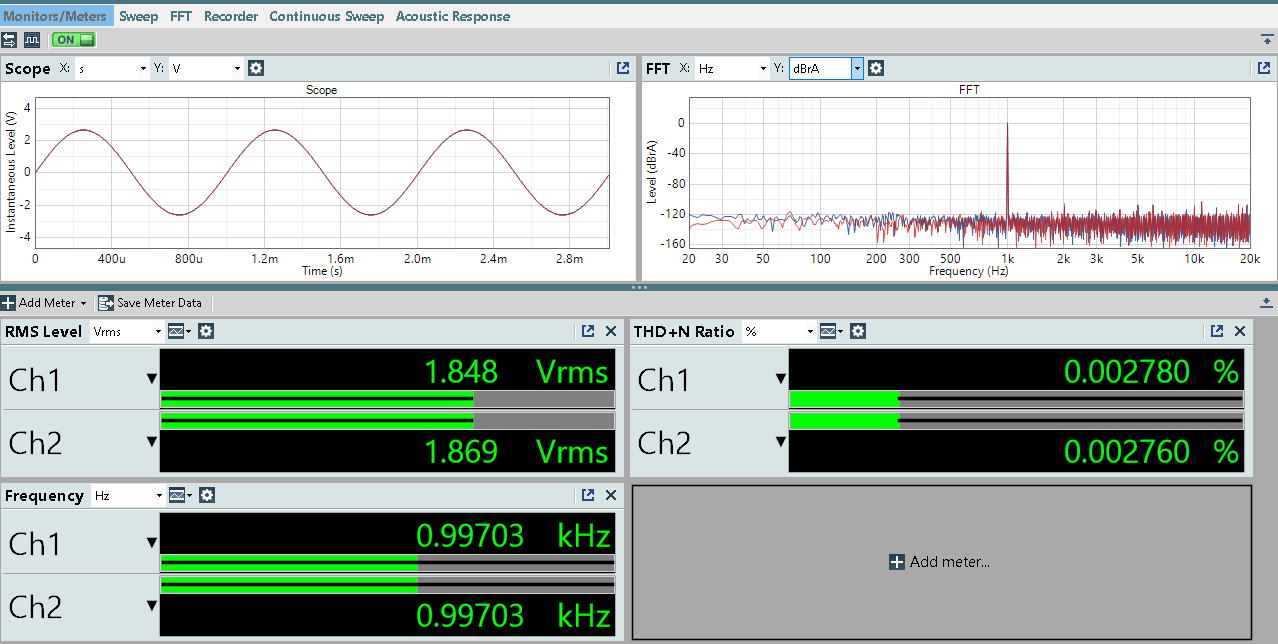

6K81 mod 1 Khz Bandpass 22 Khz ongewogen

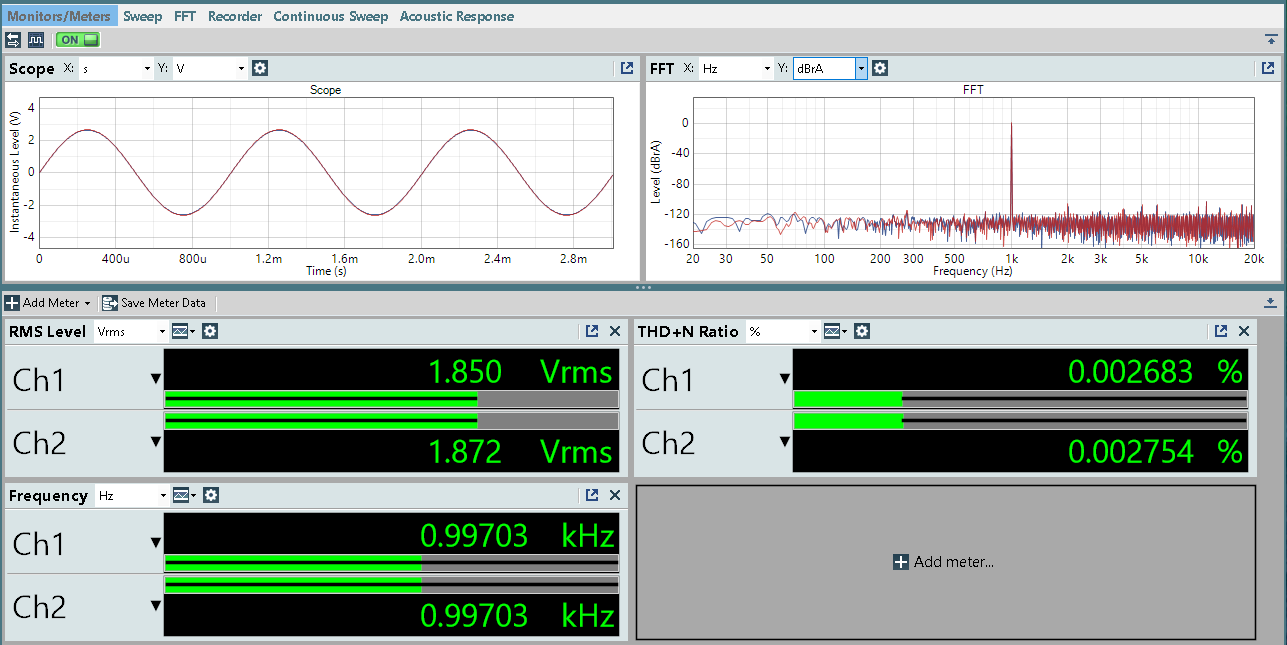

Grundig Mod 1 Khz Bandpass 22 Khz ongewogen



Nog wat undithered toontjes gevonden op CBS test CD

Meten met 192 kHz Sampling, bandpass 96 khz ,  FFT 1M , avarages 16* power

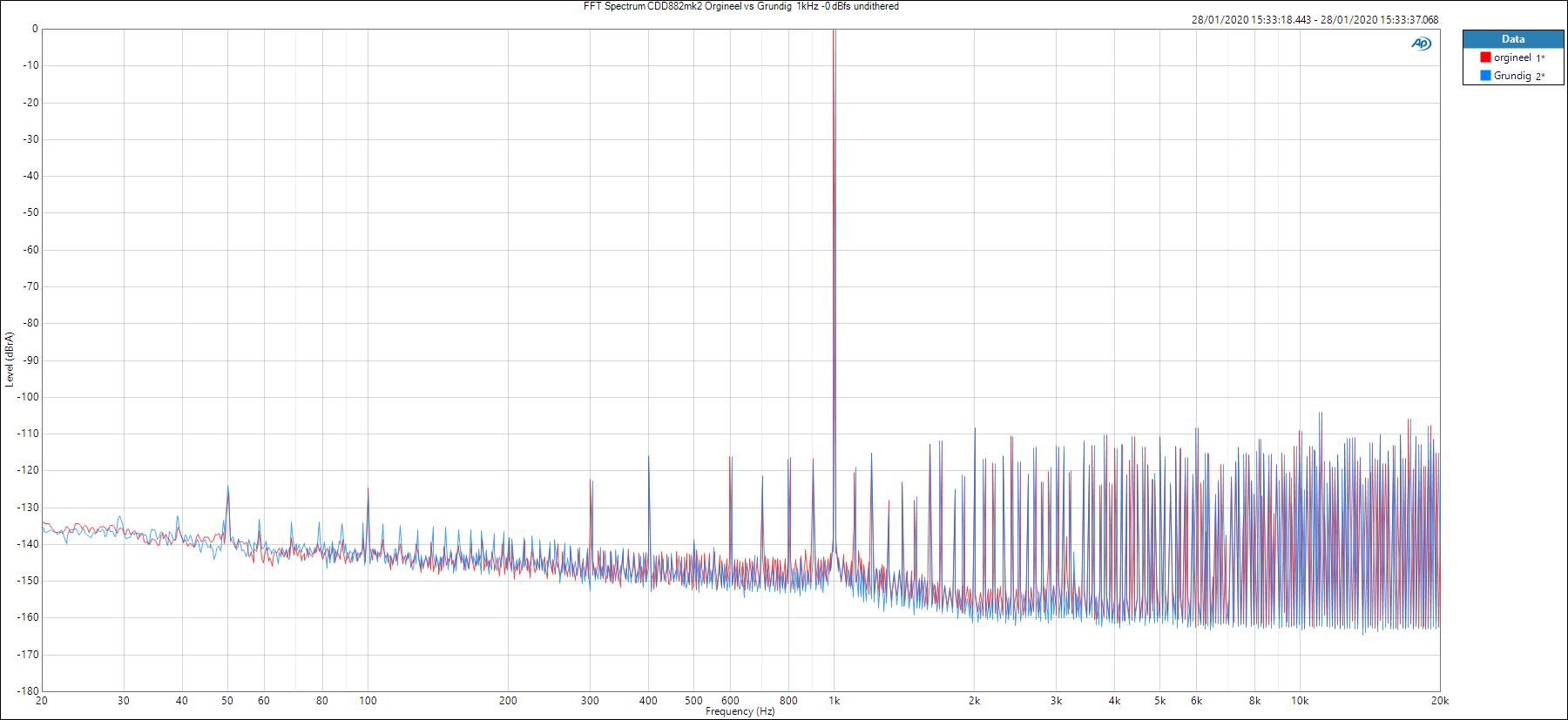

Orgineel vs Grundig Dem 1 kHz 0 dBFS 20 – 20000 Hz

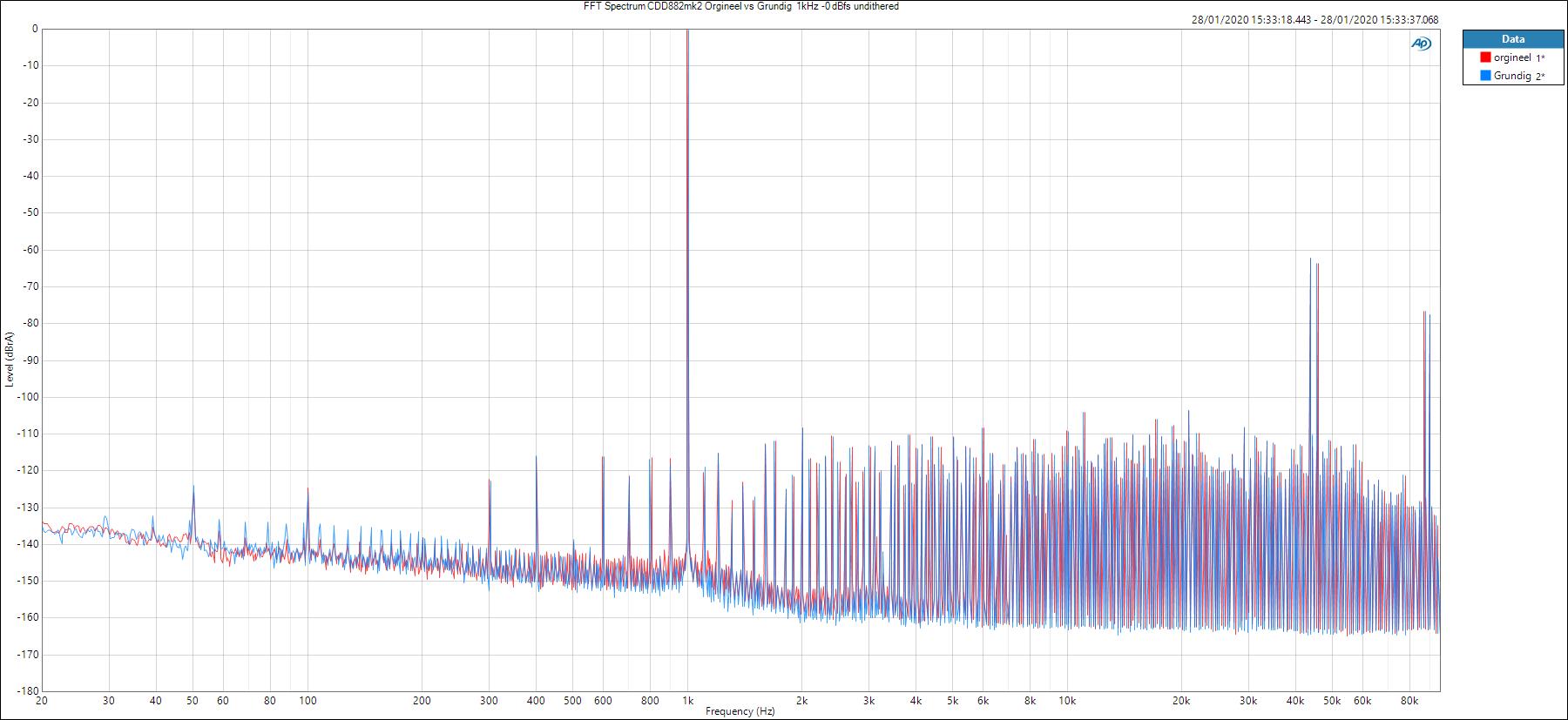

Orgineel vs Grundig Dem 1 kHz 0 dBFS 20 – 96000 Hz

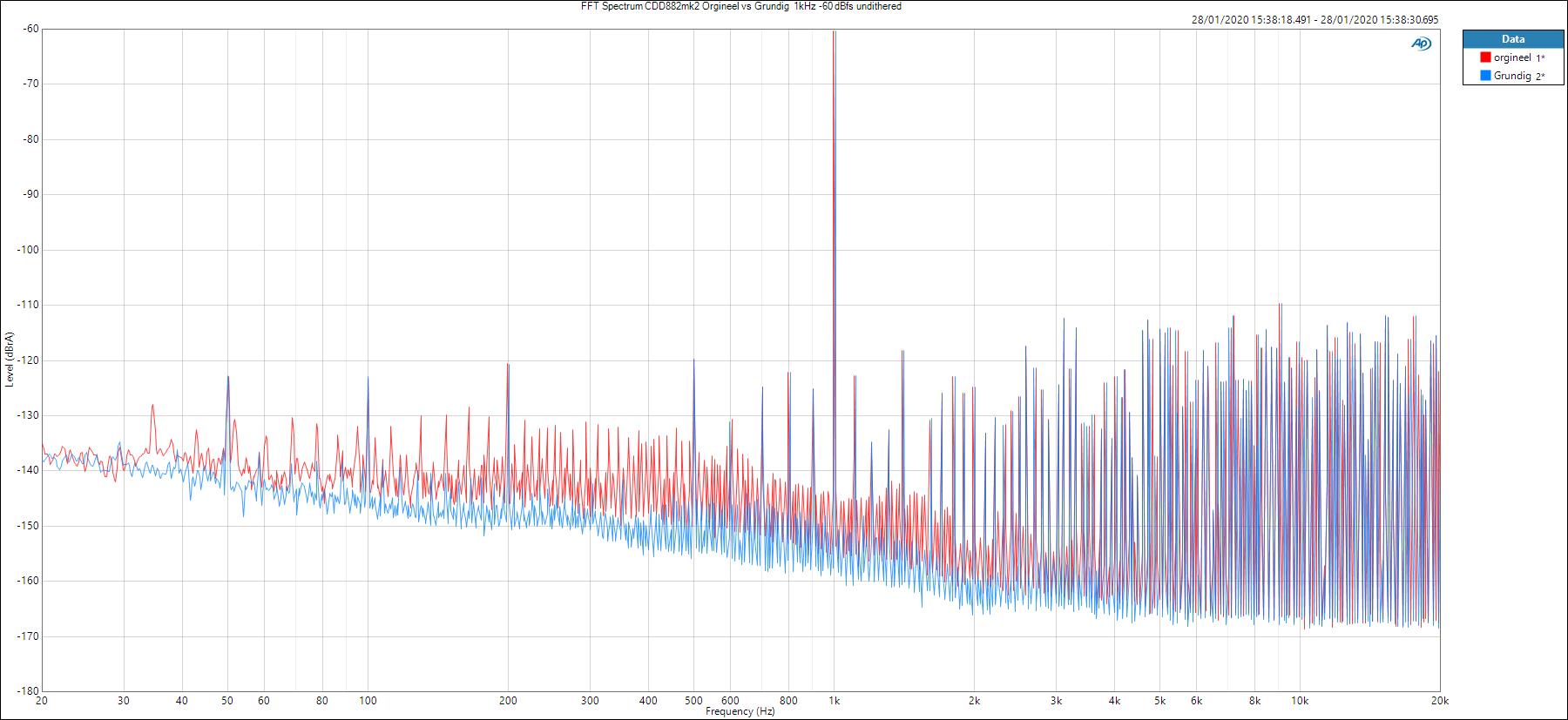

Orgineel vs Grundig Dem 1 kHz -60 dBFS 20 – 20000 Hz

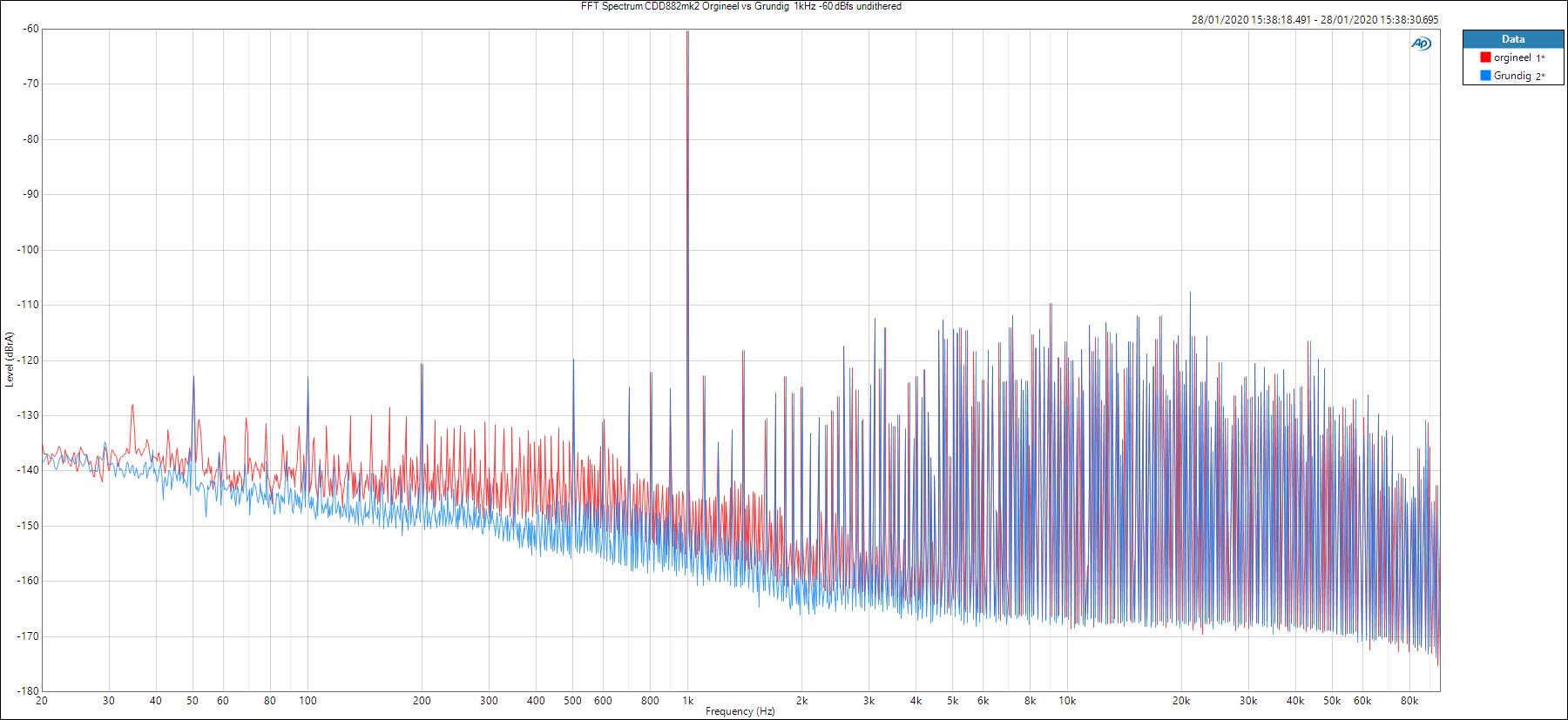

Orgineel vs Grundig Dem 1 kHz -60 dBFS 20 – 20000 Hz

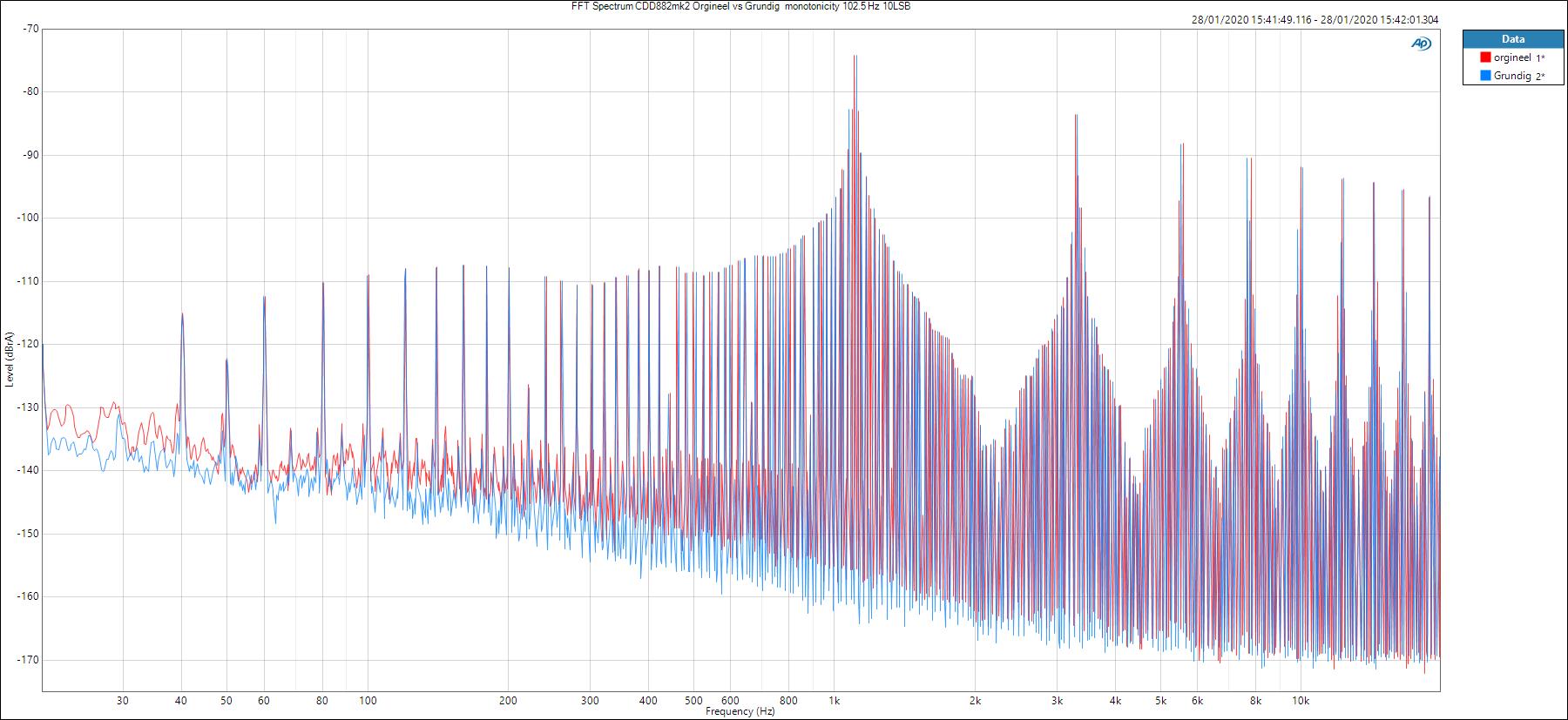

Monotonicity  102.5 Hz 10LSB
