TDA1540 High Precision Synced TikTak

by · Published · Updated

I regularly get these questions ,

  • Can my CD player sound better, I read somewhere on the internet……
  • Can a Grundig Dynamic Element Matching (DEM) modification be done in my TDA1540 Player
  • Can  i replace the Ceramic or SMD Capacitors by better ones like , C0G, PP ,  PPS,  ect  ect,..  in my CD player, because…..
  • In the Datasheet of the TDA 1540…….

i don’t know the answer, “I don’t drink cognac and I don’t smoke cigars”

Be my guest and have fun , TDA1540 High Precision Synced TikTak mod_Board 😉

Grab your Gerber-file and have fun  : TDA1540_Synced_tiktak

  • Synced Dynamic Element Matching (DEM) Oscillator to Word Clock
  • High Precision Metalfilm Resistors I-Ref as noted is TDA1540 Datasheet
  • High Quality Decouple Capicitor

Remove the original parts you want to upgrade and  plug an pray 😉

Prototype

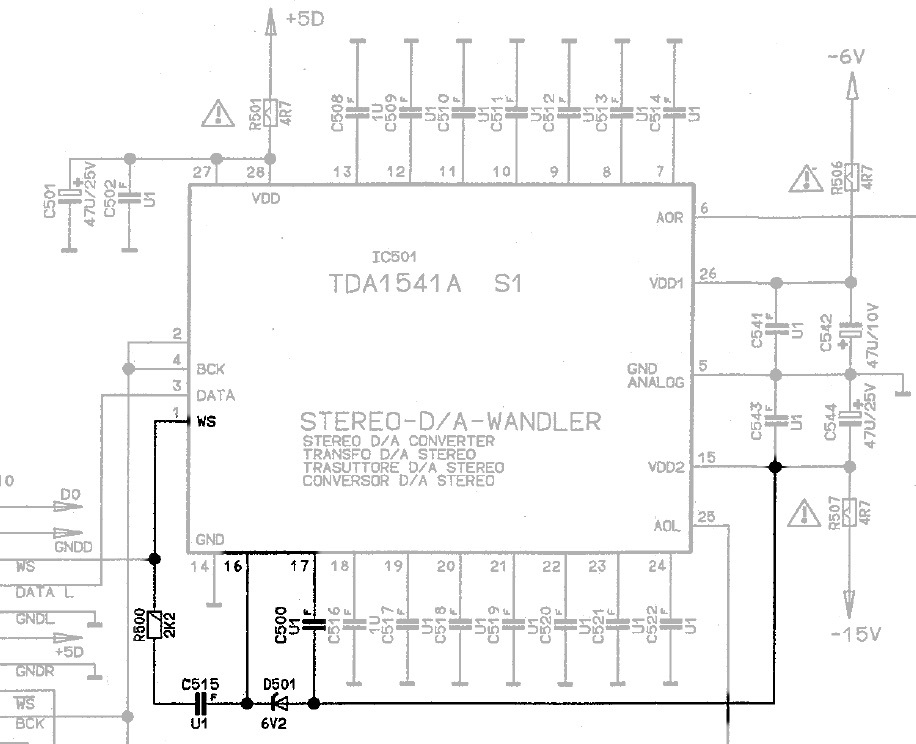

From Early TDA1541 Datasheet or the Application Notes , a Alternative External Control Circuit for the Dynamic Element Matching (DEM)  Clock

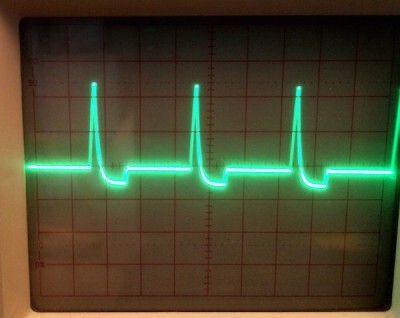

Here the Alternative External Control Circuit done in an Grundig CD-9009 player , Dynamic Element Matching (DEM) sync to the  WordClock

Try’d the Alternative External Control Circuit sync on a TDA1540

Synced Dynamic Element Matching (DEM) only Mode

High Precision I-ref mod

Choose  0.5% or 0.1% xx ppm  Resitors and Capicitor  SMD size 0603

SMD Decouple Caps ,  C0G or Polyphenylene Sulfide or Polypropylene  modification

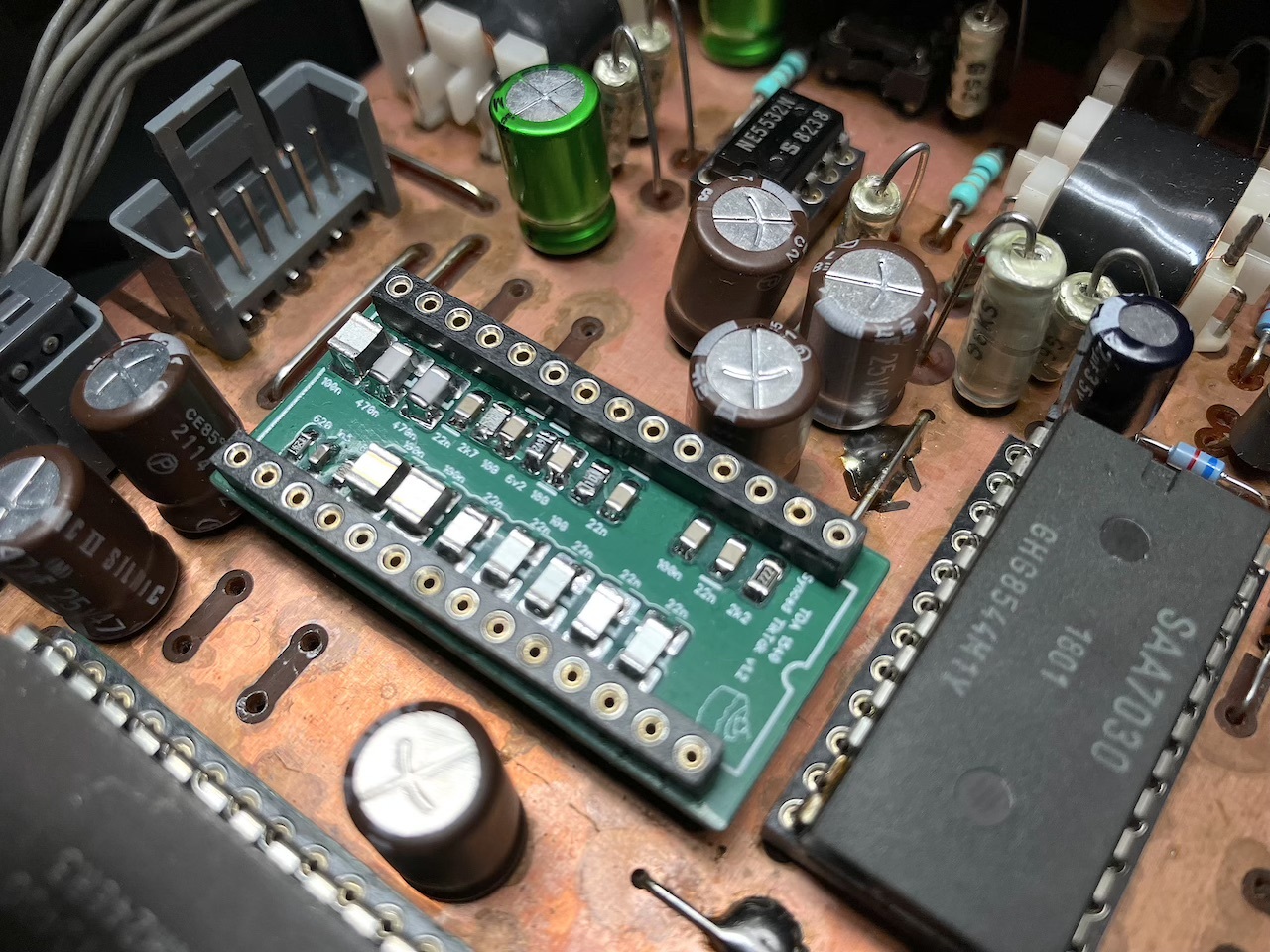

Fully loaded  mod board



All these SMD  components  and 4 tht capicitors have to be removed if the board is fully loodde , example CD 104





The Measurements ,

Original CD 104 vs CD 104 with TikTak V1.2

  • Red – Original CD 104
  • Blue – CD 104 with TikTak

  • Red – Original CD 104
  • Blue – CD 104 with TikTak

the spike at 650 Hz is the Wobble Generator

  • Red – Original CD 104
  • Blue – CD 104 with TikTak

  • Blue– Original CD 104
  • Red – CD 104 with TikTak

  • Blue– Original CD 104
  • Red – CD 104 with TikTak

Some other test done in 2016 with 2 resistors 6k81 ,  see also DEM voor TDA1540

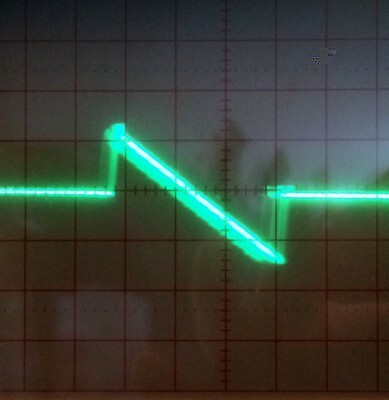

Original Dynamic Element Matching  Clock on TDA

Dynamic Element Matching Clock lock on Word Clock

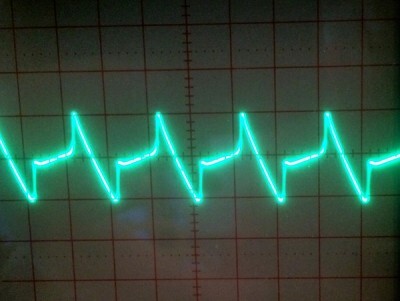

Here Dynamic Element Clock Capicitor connected with  6K81

Test circuit with 6k8 resistor



Also checkout – TDA 1540_P vs TDA1540_D
