TDA 1541a 1 µF vs 100 nF on MSB
Some Measurement with 1 µF vs 100 nF some say it sounds better .

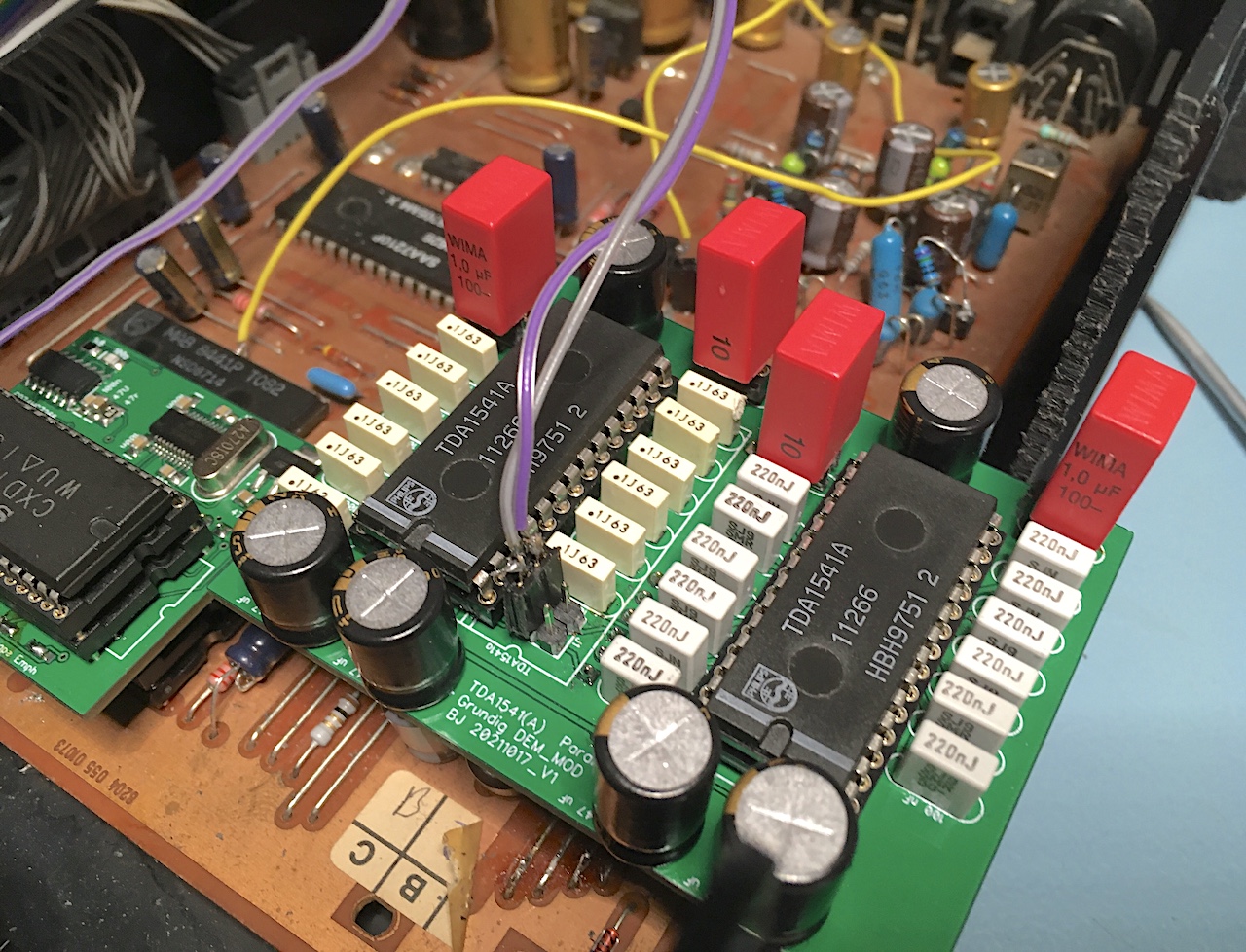

Tested on staggered TDA1541a

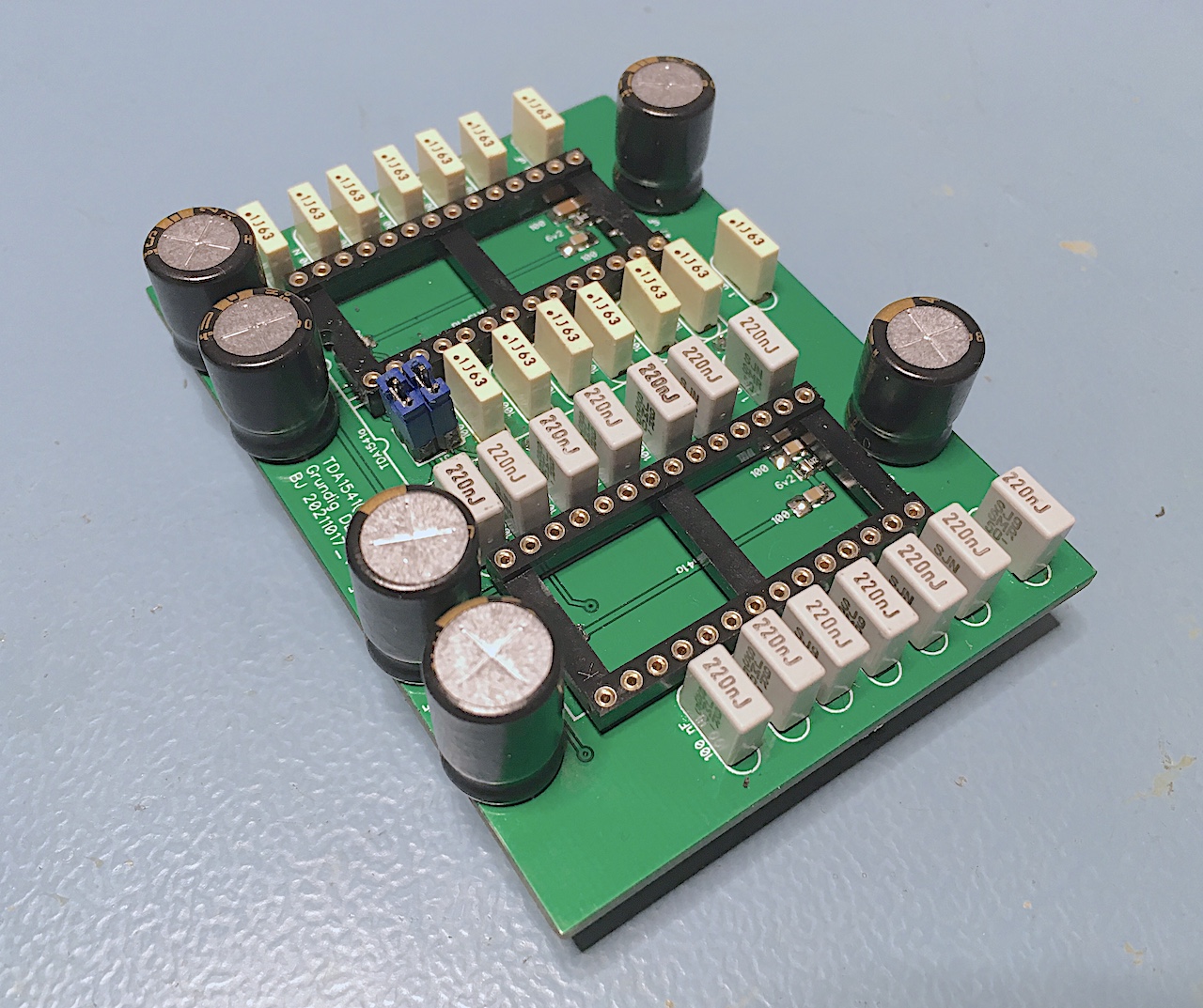

Board with 1µf on MSB

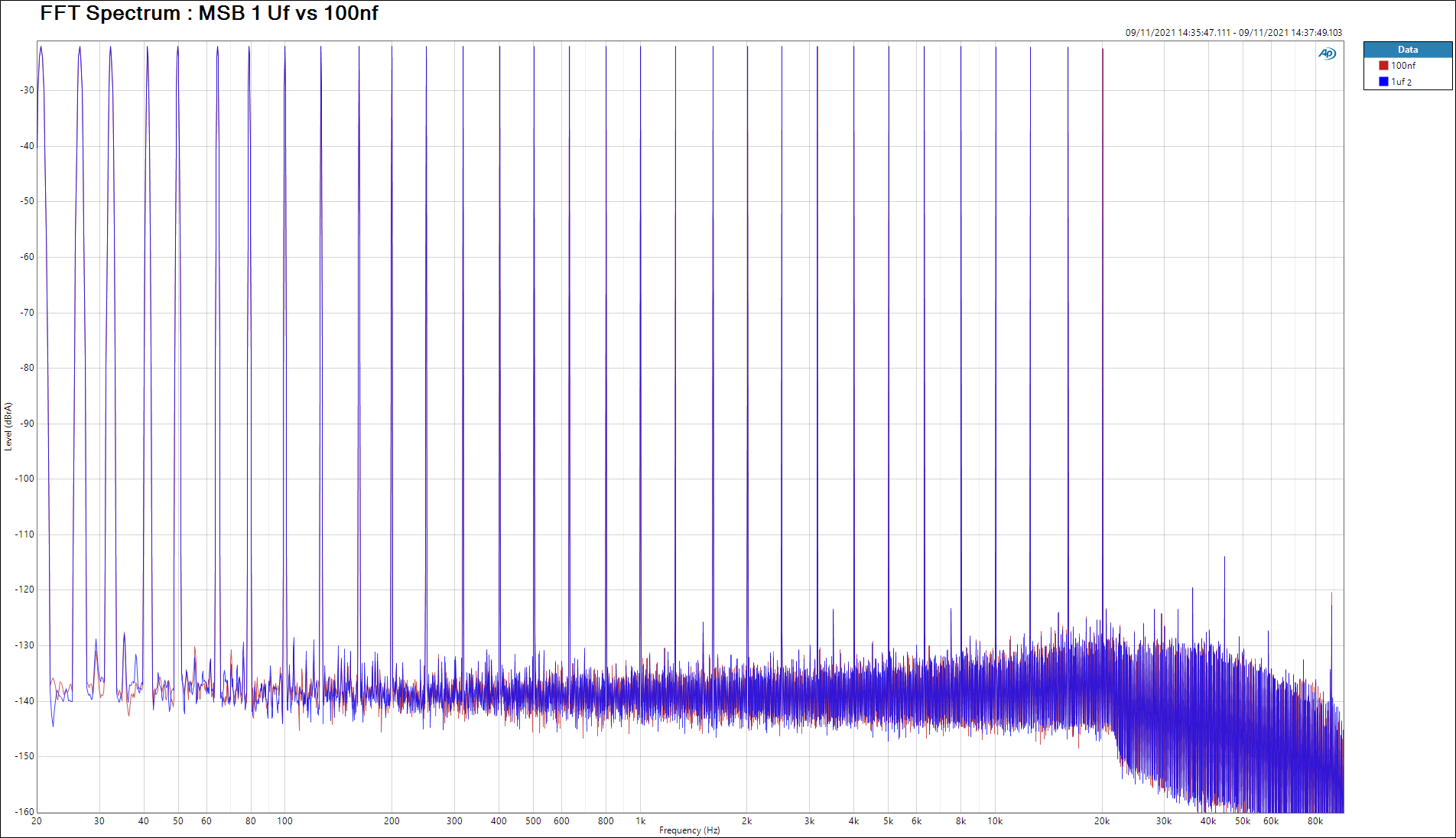

Multitone -20 dBfs – spectrum 20 – 96 kHz
- Red 100 nF
- Blue 1 µf
THD + Noise20 Hz – 20kHz , 0 dBfs
- Red 100 nF
- Blue 1 µf
