CD 207 meten is weten

by Bram · Published 2020-02-25 · Updated 2021-01-26

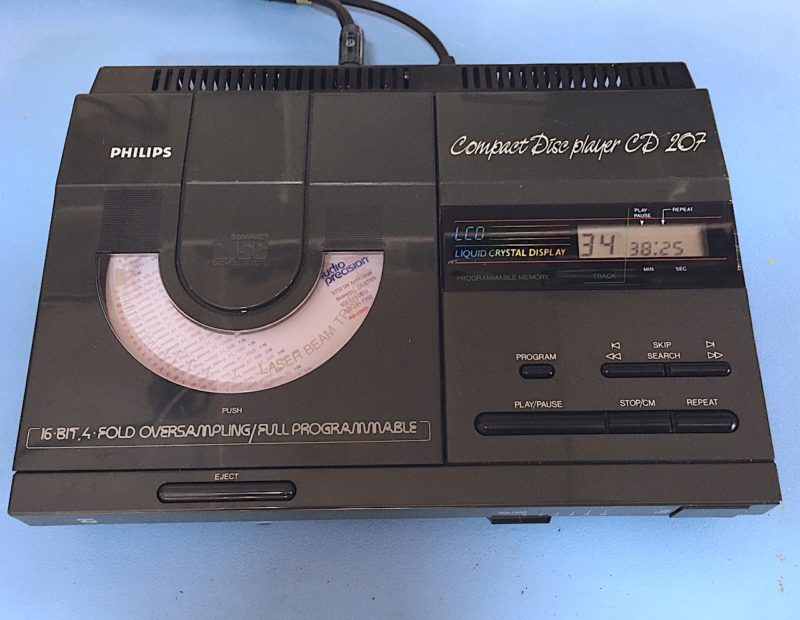

Hoe meet deze gereviseerde dappere Philips CD 207

1 kHz 0 dbFS

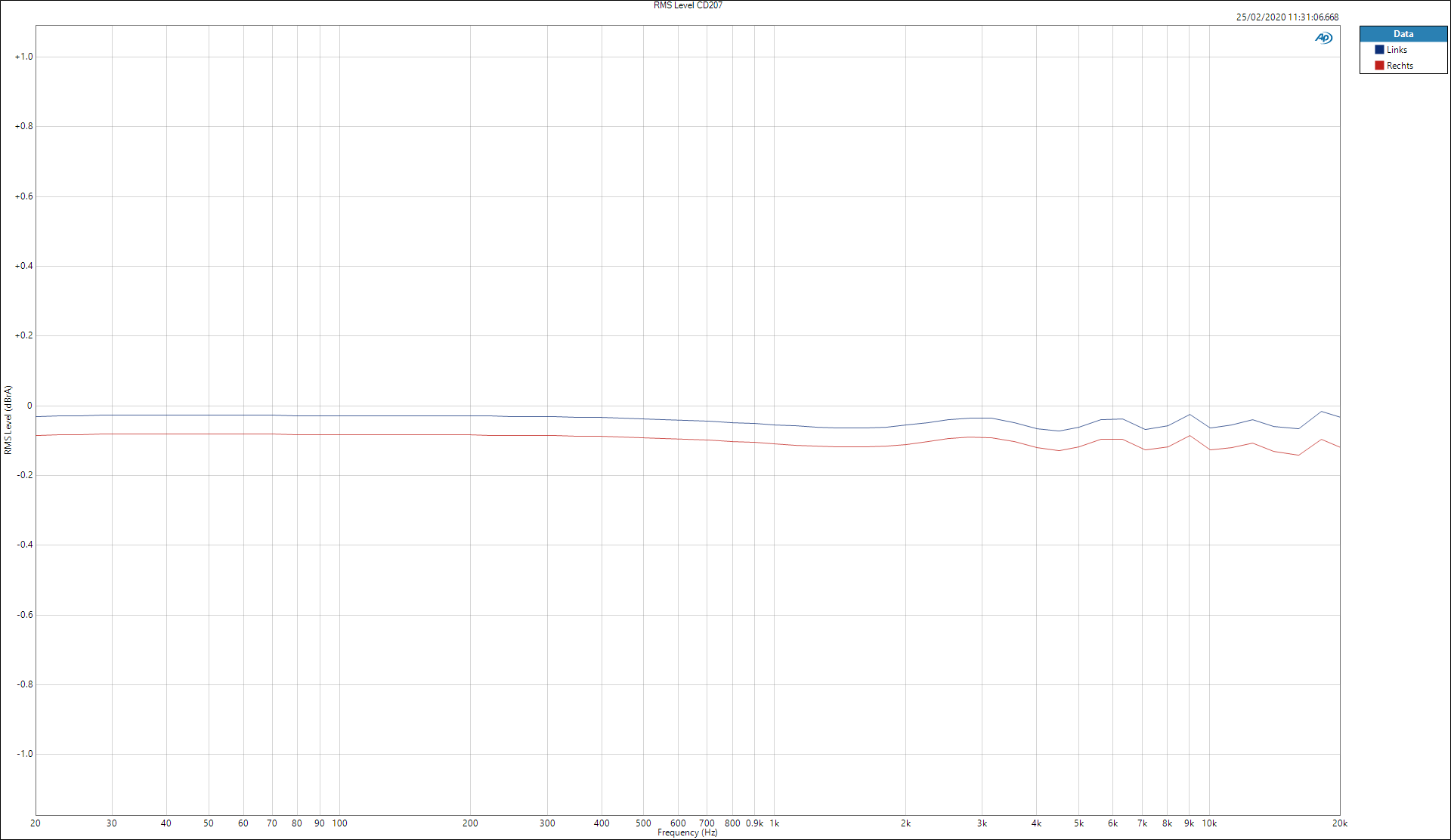

0 dBfs sweep van 20 – 20000 Hz

Vervorming + Ruis nivo – Bandpass filter

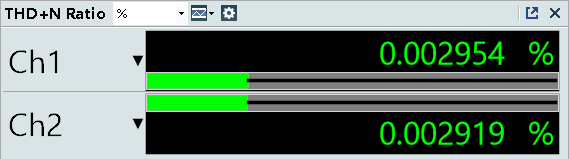

Vervorming + Ruis Ratio – Bandpass filter

Stilte track ongedithered 20 Hz – 96000 Hz

Stilte track gedithered 20 Hz – 96000 Hz

1 kHz 0 dBfs FFT 20 – 20000 Hz

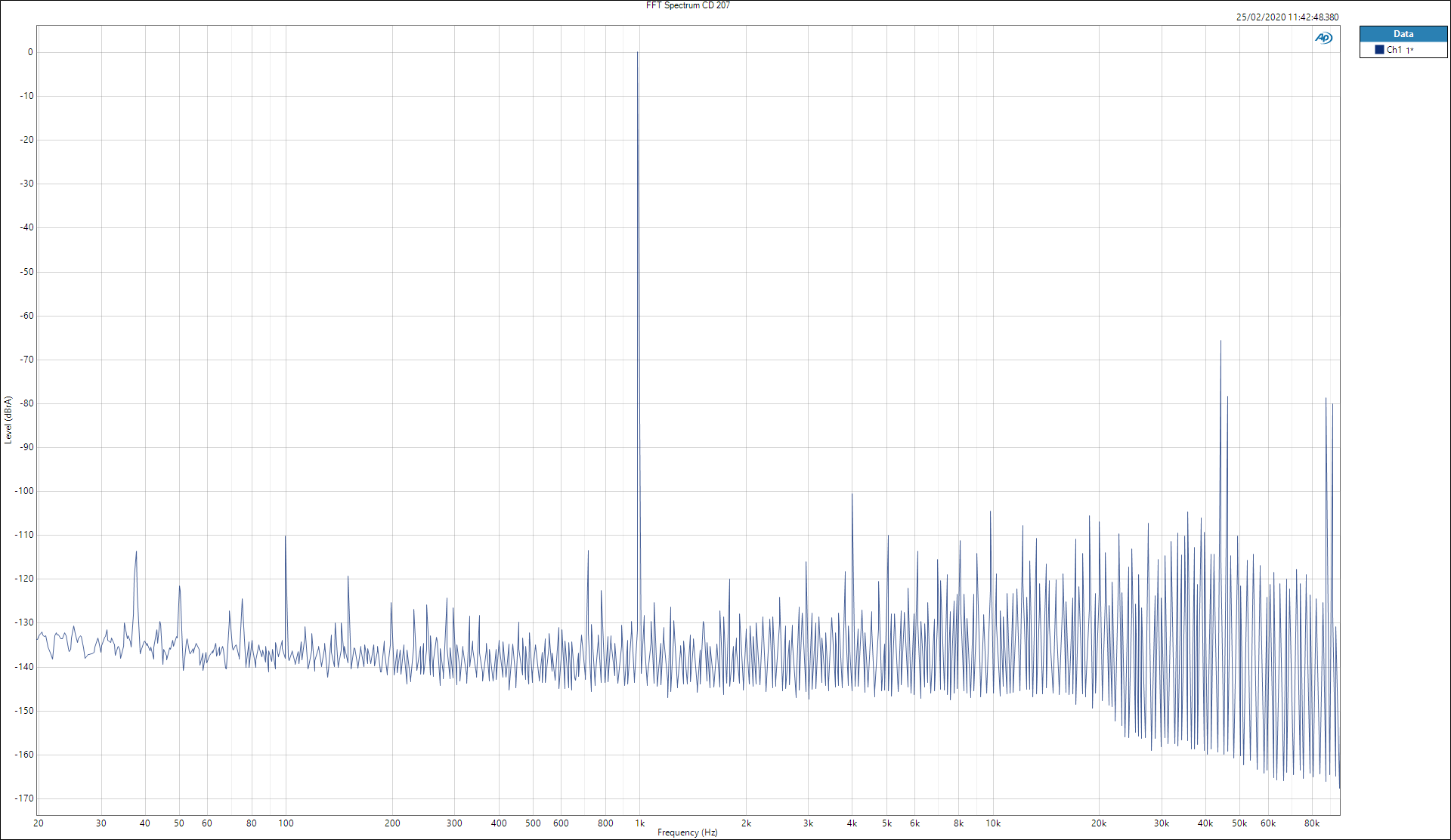

1 kHz 0 dBfs FFT 20 – 96000 Hz

1 kHz -60 dBfs FFT 20 – 96000 Hz

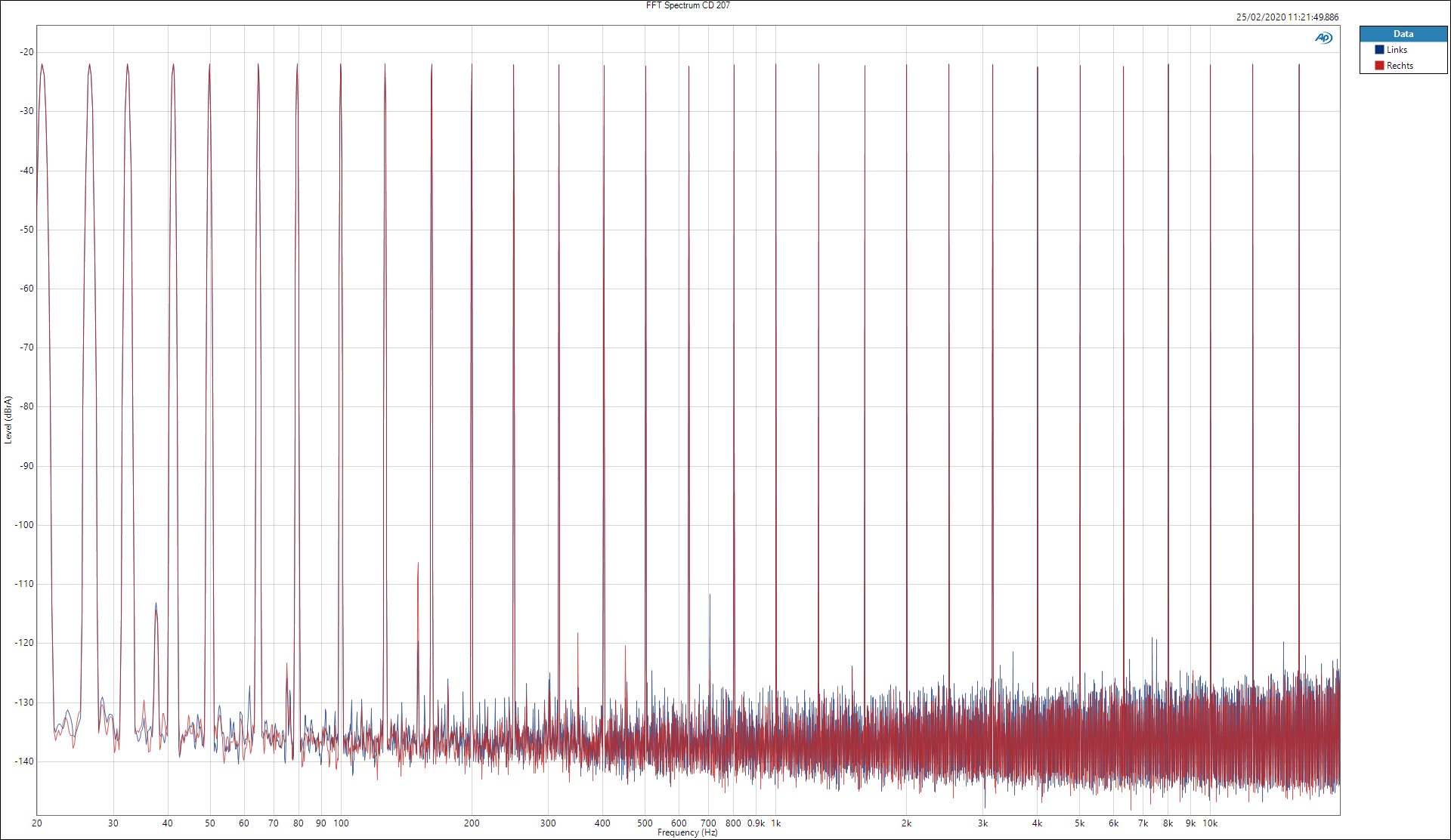

Multitone -20 dBfs 20 – 20000 Hz
