SRC4192 – TDA5141A Measurements

Measurements of a TDA1541a at 192 kHz with a SRC4192

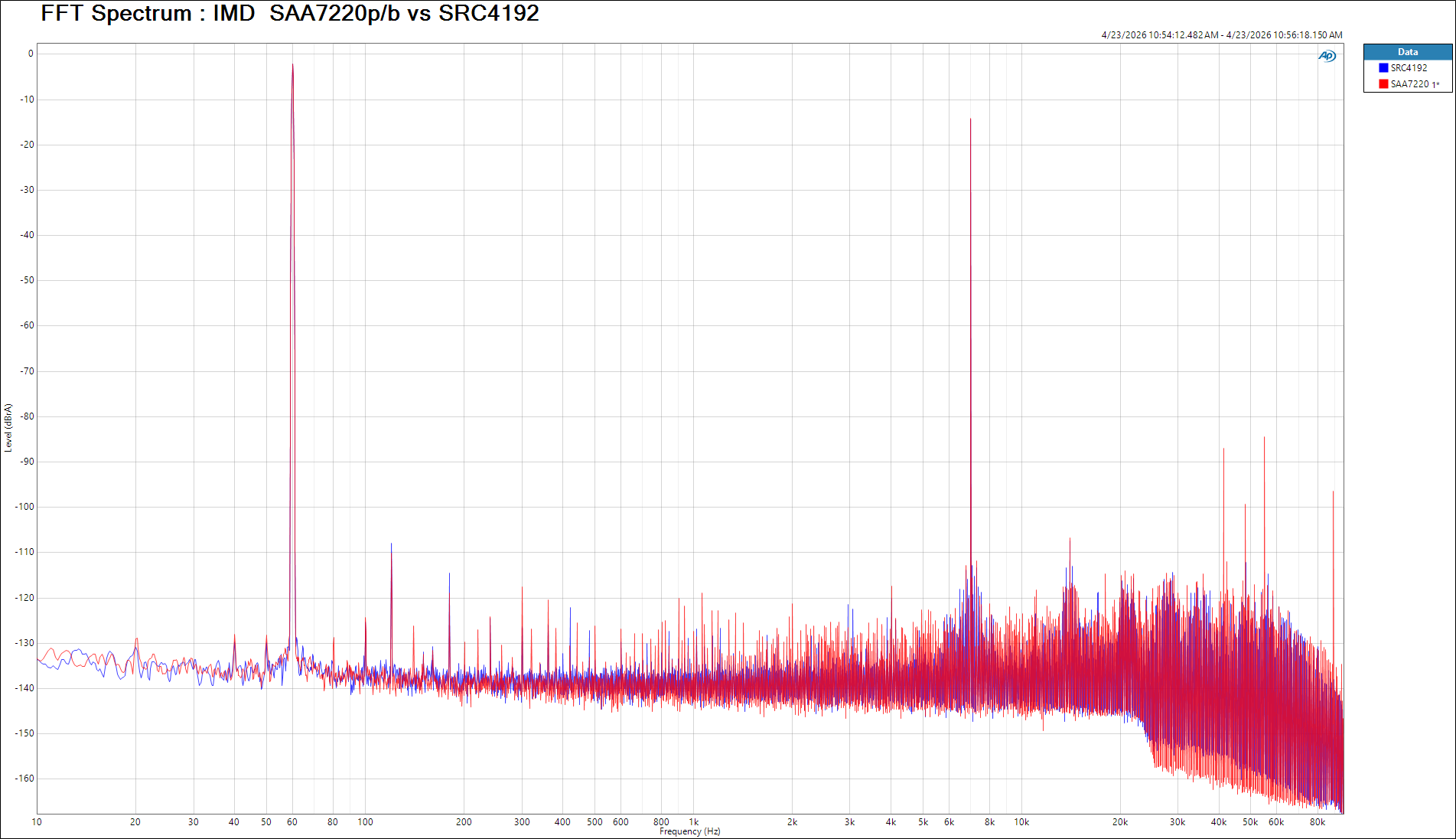

Intermodulation distortion , measured at CD player analog output

• Red : SAA7220p/b
• Blue : SRC4192

1 kHz dithered fs 48 kHz input , measured at CD player analog output

• Red : SAA7220p/b
• Blue : SRC4192

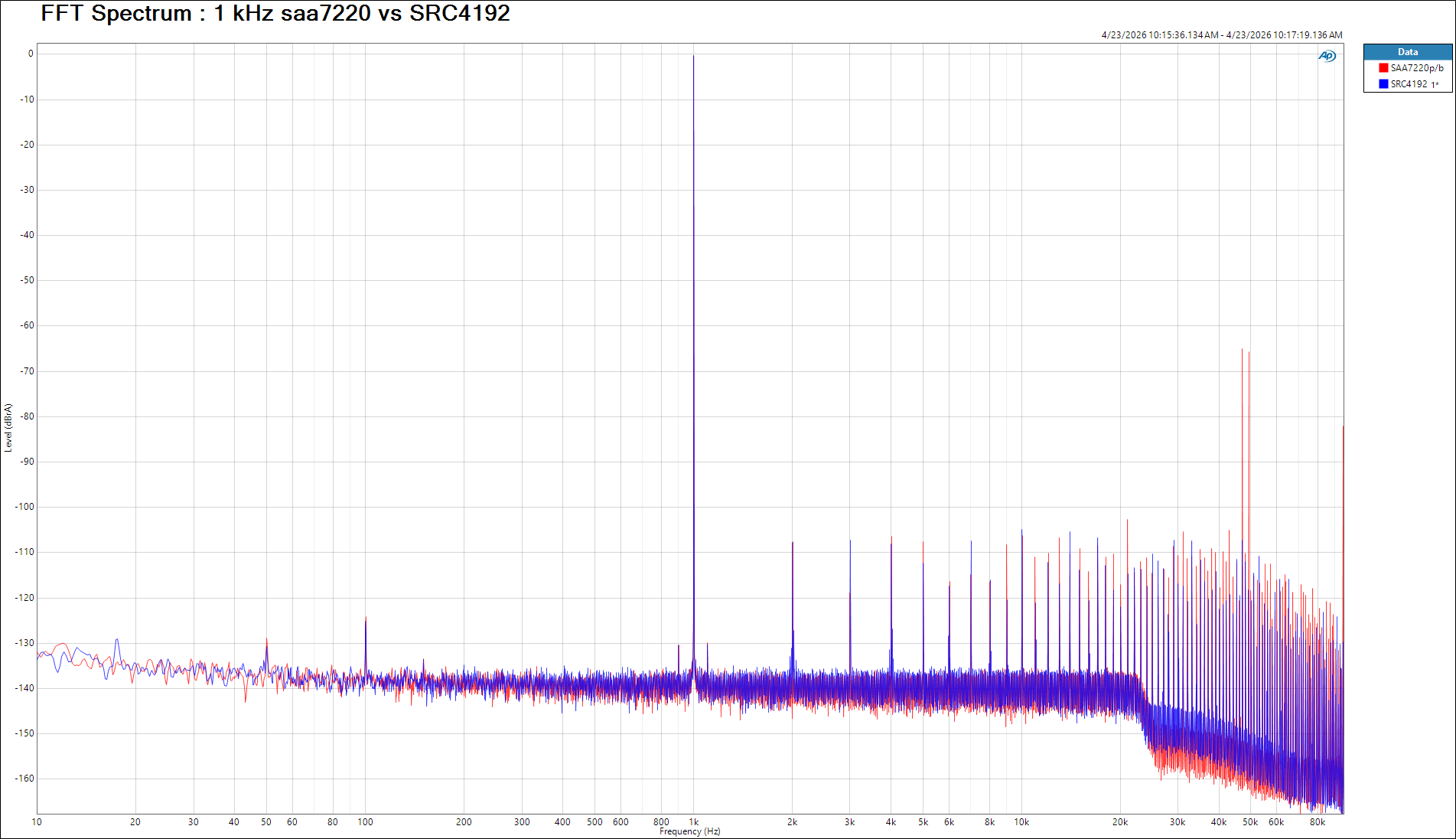

1 kHz dithered at different input frequencies  to 192 kHz, measured at CD player analog output

• Black : 32 kHz
• Red 44.1 kHz
• Yellow : 48 kHz
• Green 88 kHz
• Orange : 96 kHz
• Blue : 192 kHz

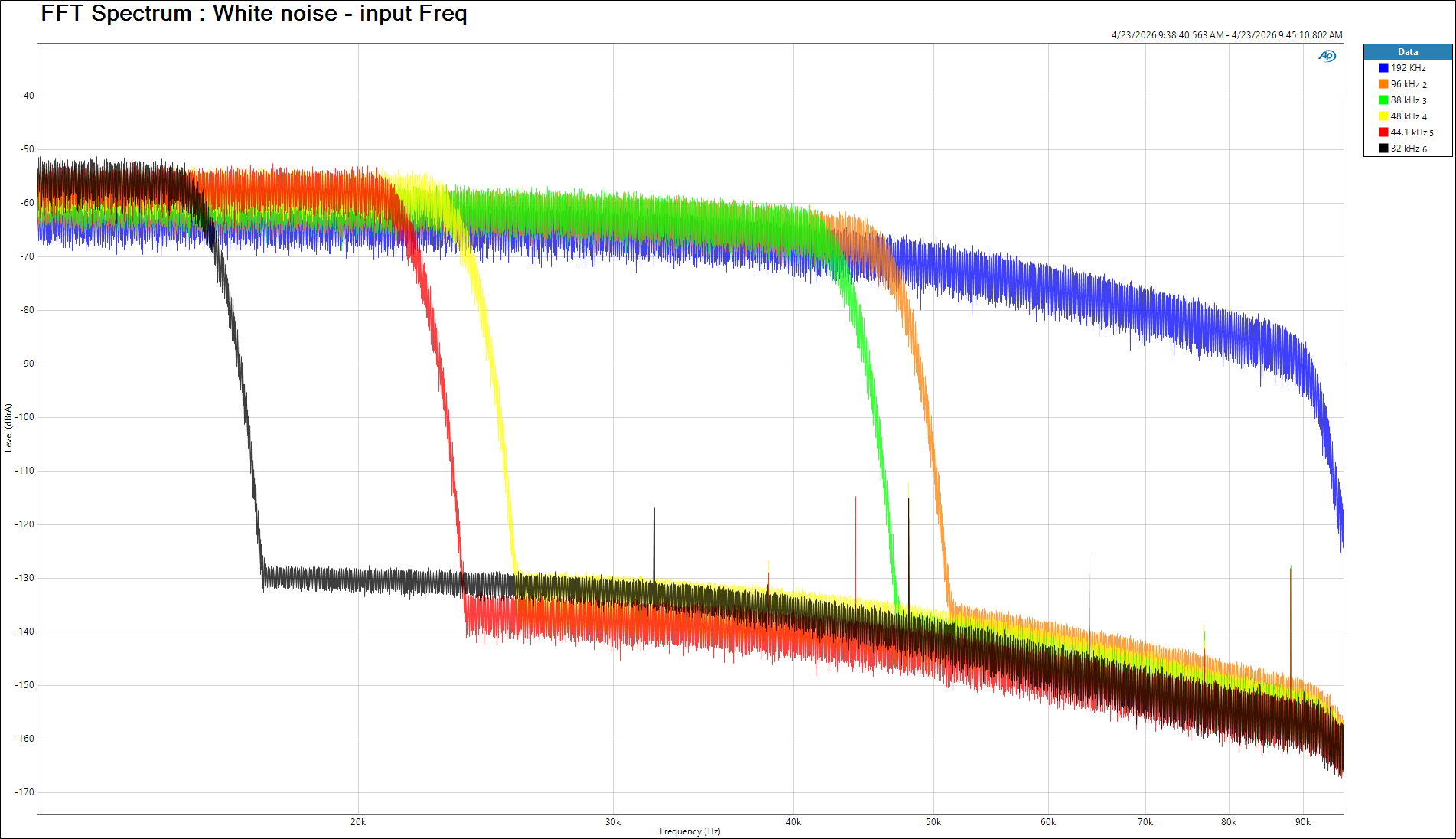

White Noise at different input frequencies  to 192 kHz , measured at CD player analog output

• Black : 32 kHz
• Red 44.1 kHz
• Yellow : 48 kHz
• Green 88 kHz
• Orange : 96 kHz
• Blue : 192 kHz

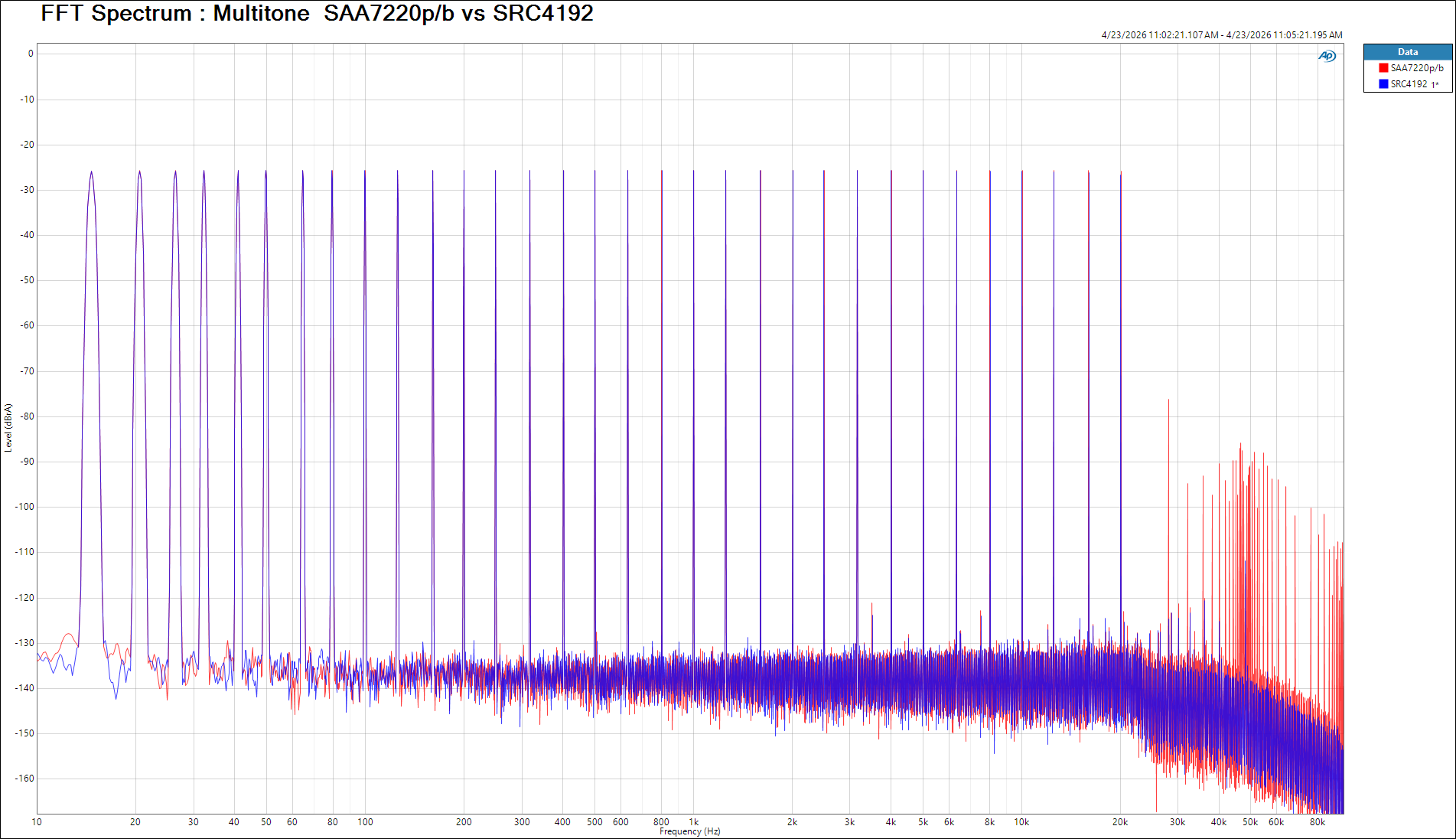

Multitone , Mulitone , measured at CD player analog output

• Red : SAA7220p/b
• Blue : SRC4192

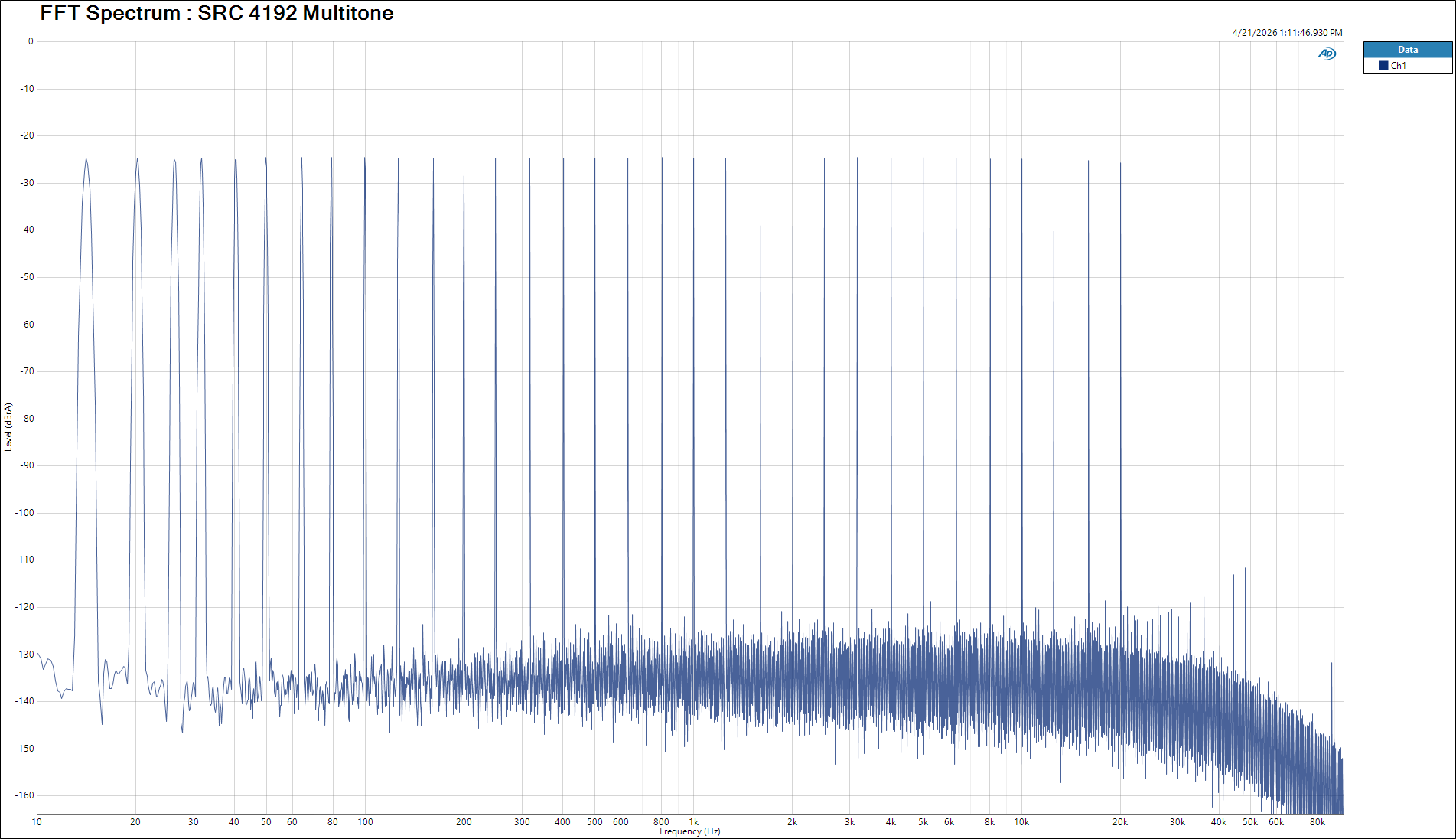

Multitone ,  measured at CD player analog output

• SRC4192

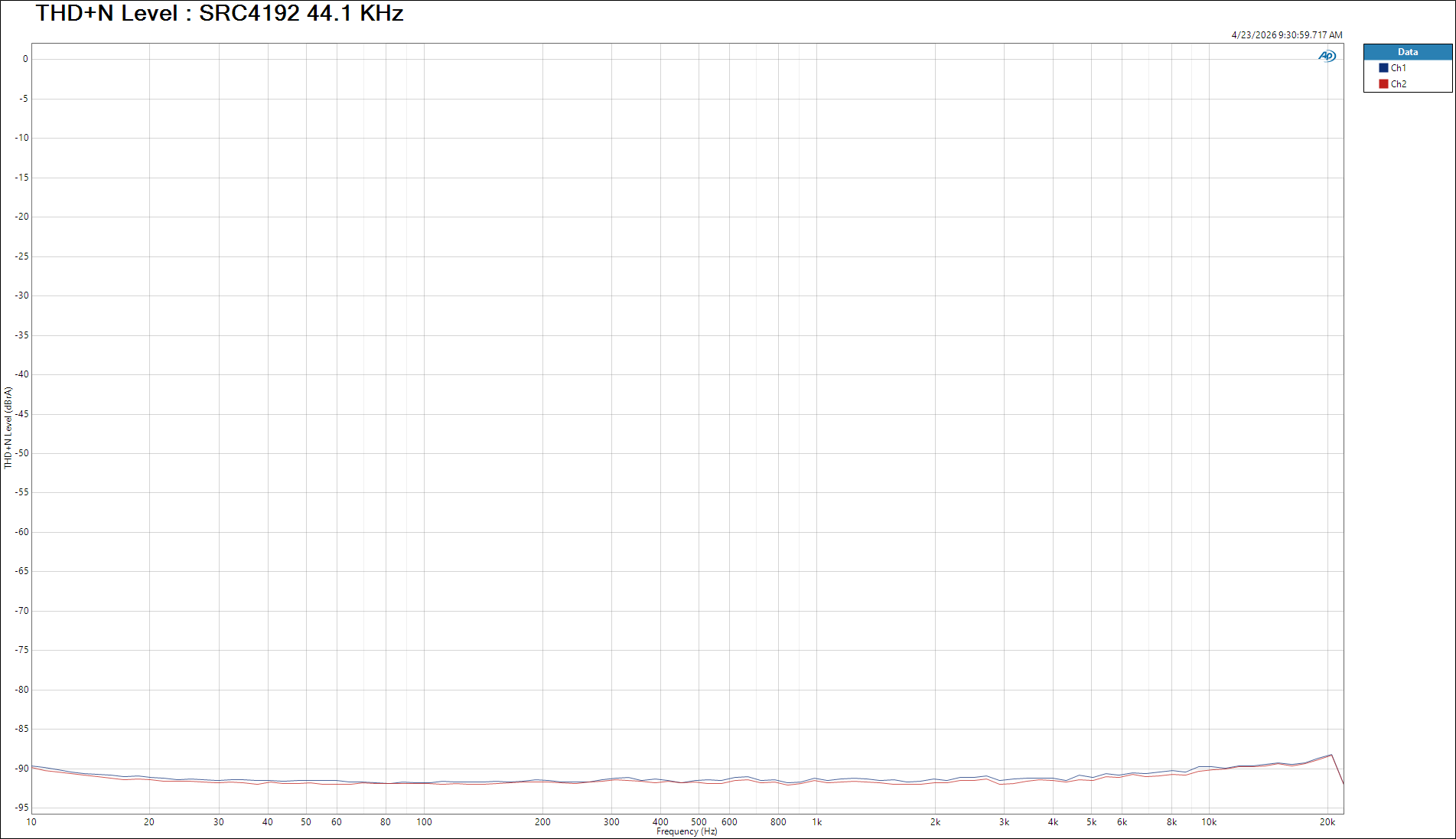

THD+N : measured at CD player analog output

• SRC4192

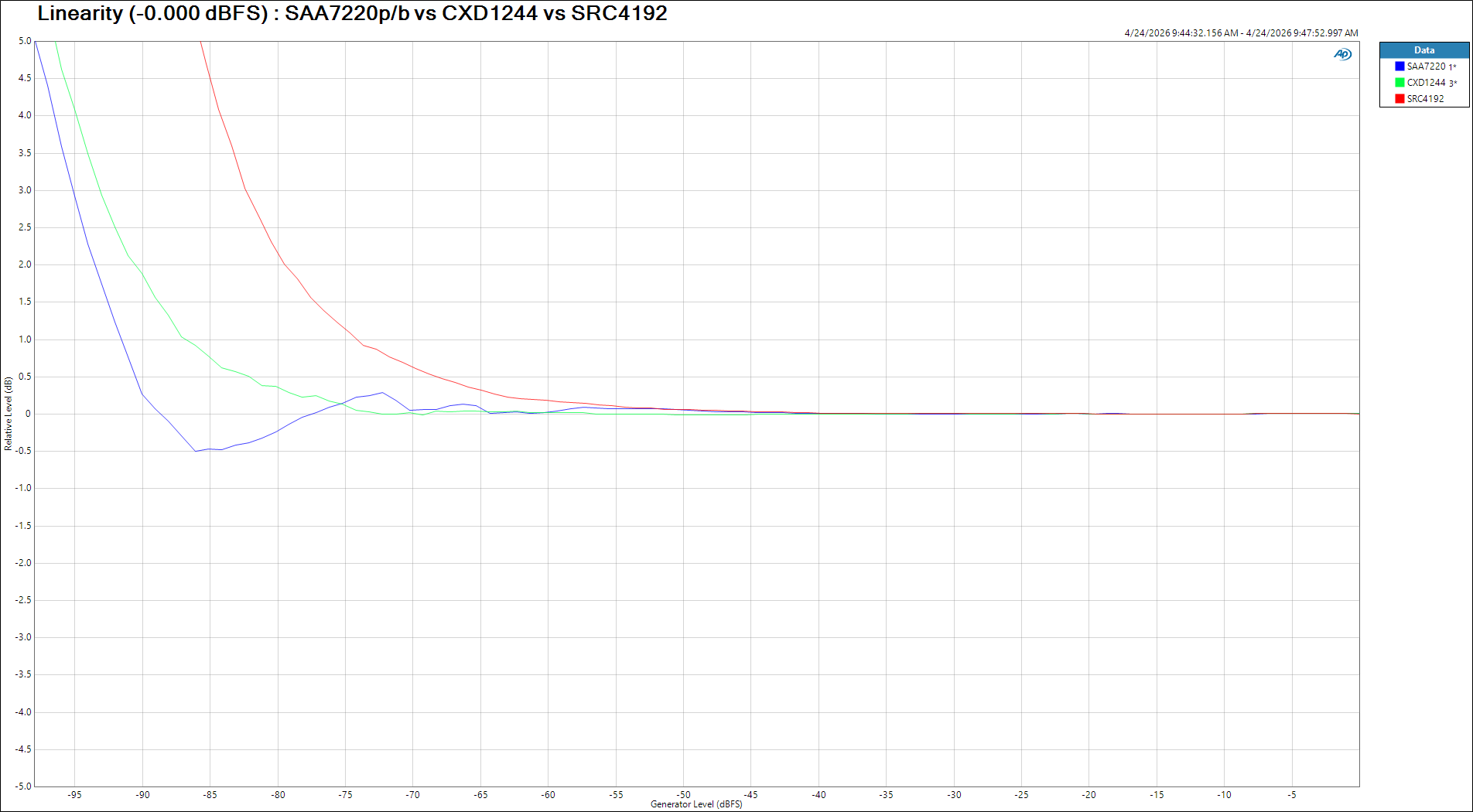

Linearity TDA1541a , measured at CD player analog output

• Blue : SAA7220p/b
• Green : Sony CXD1244
• Blue : SRC4192
