Repair and Refurbishing a used CD303

Repair and Refurbishing a used CD303 , takes some time to startup, won’t read disc

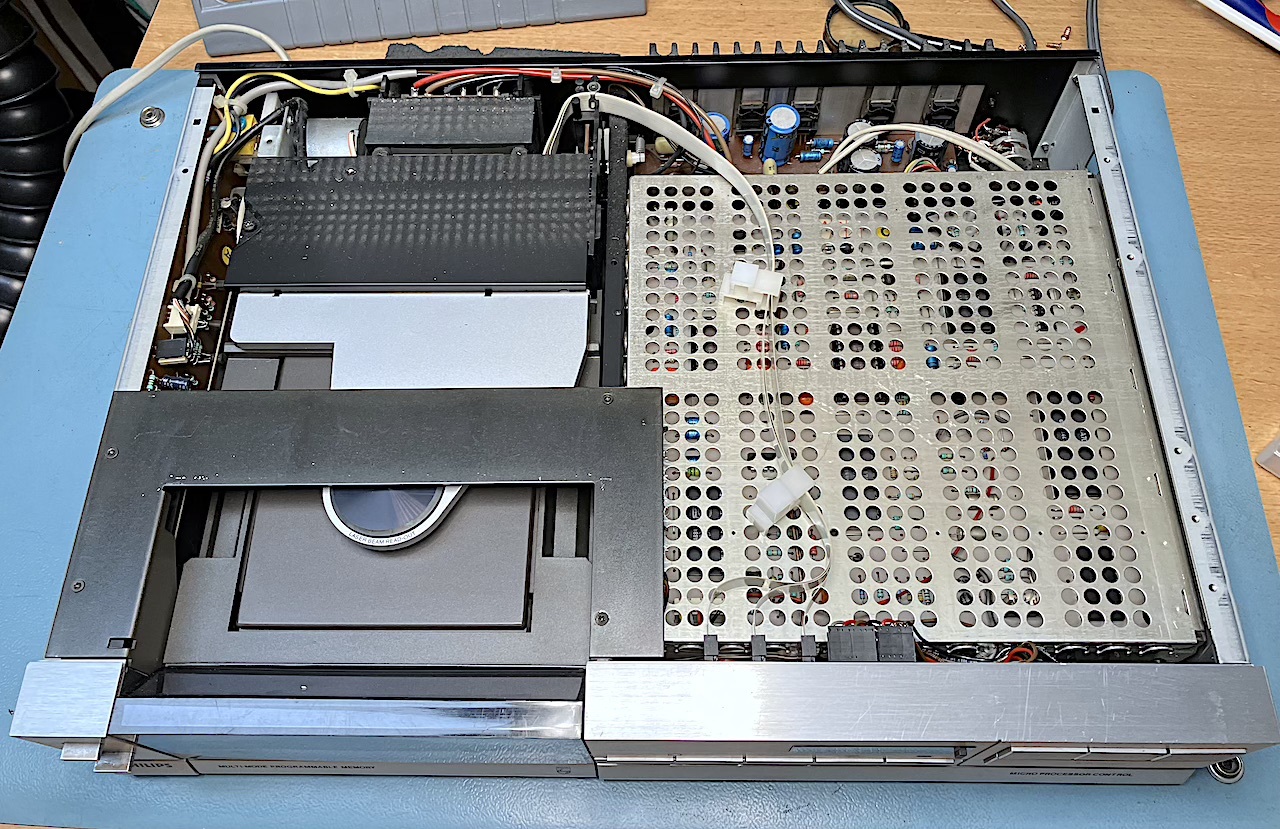

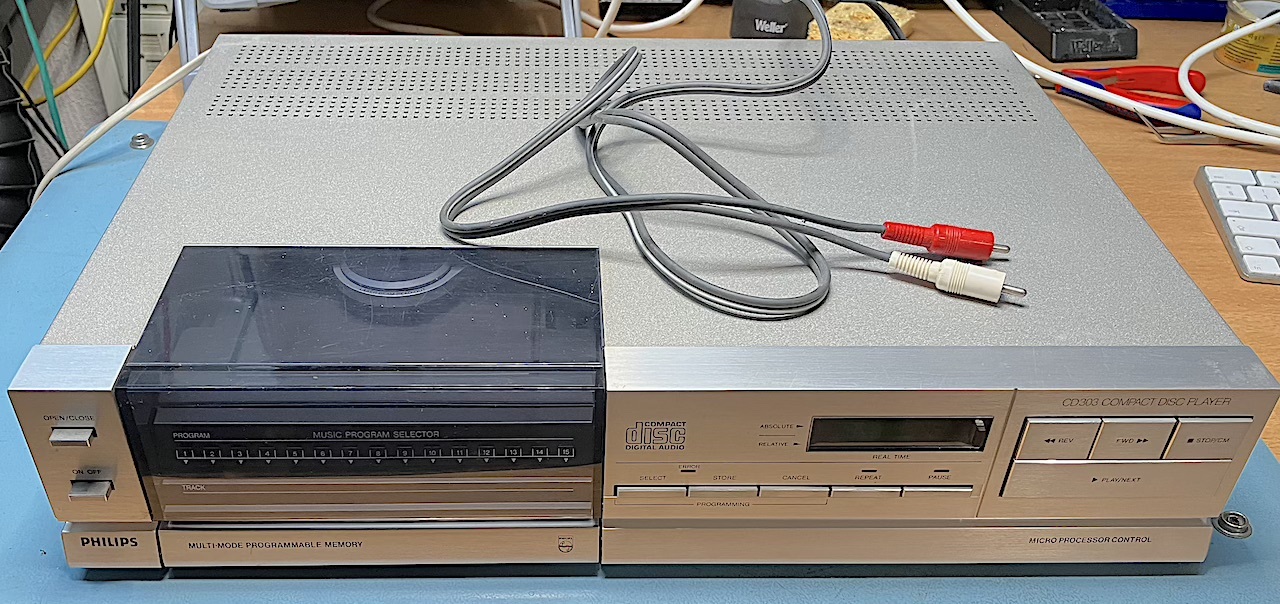

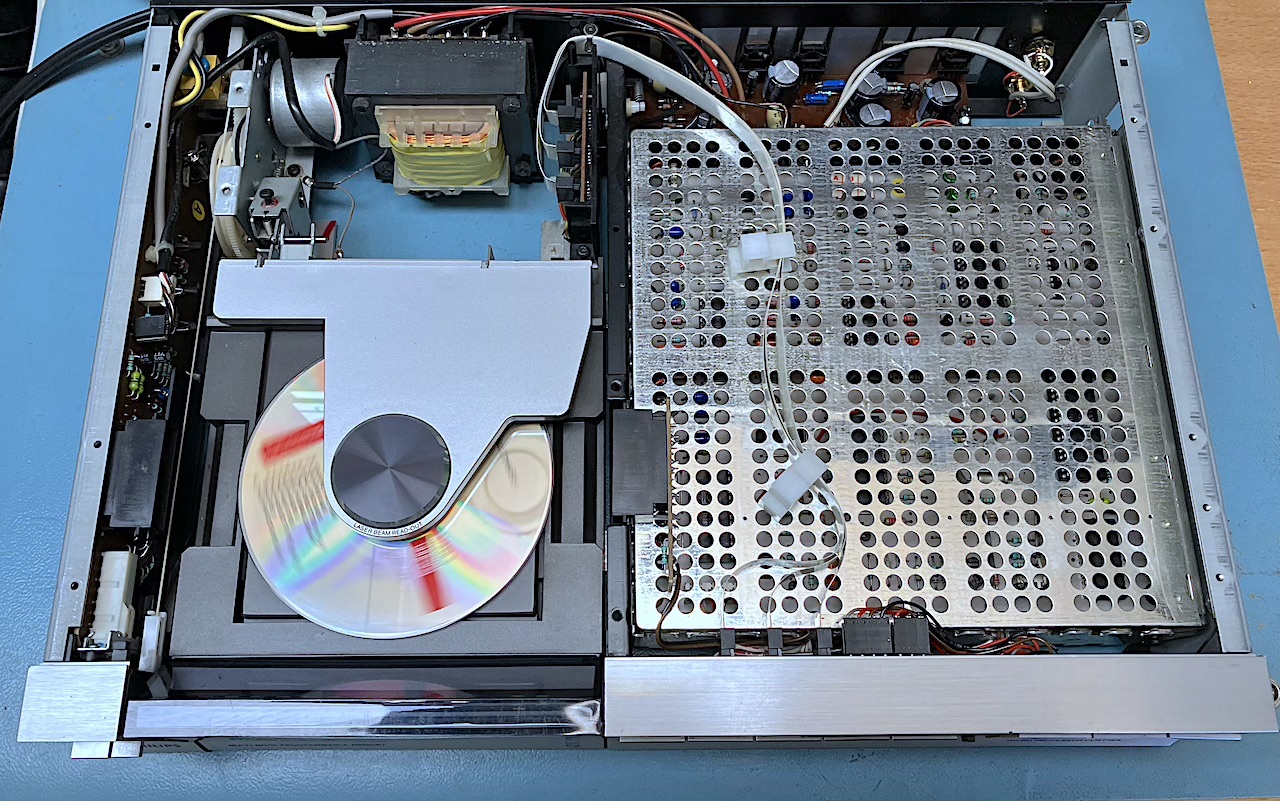

Sneak peek

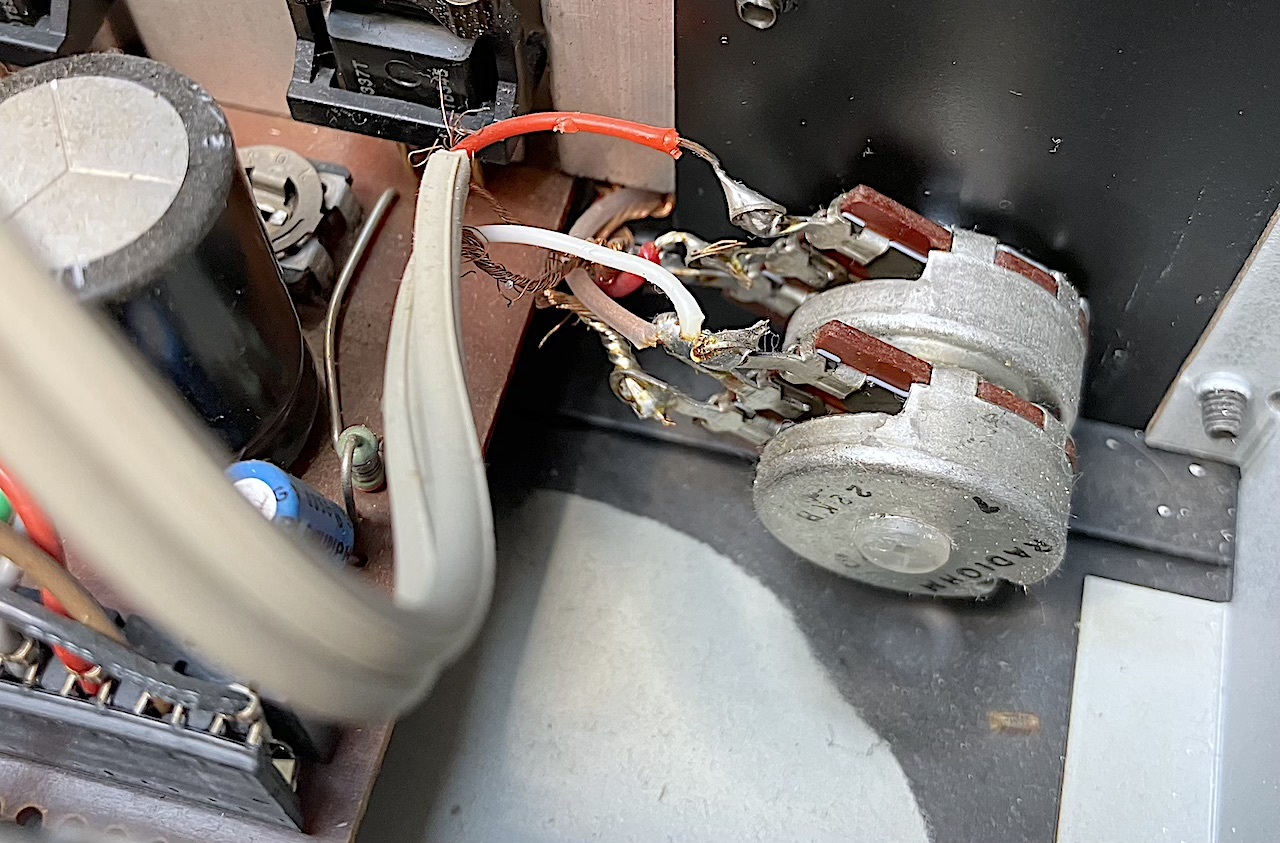

Audio level potmeter

22 KB = linear potentiometer  ? should have be a KA,  Logarithmic , anyway i will be placing cinch connectors

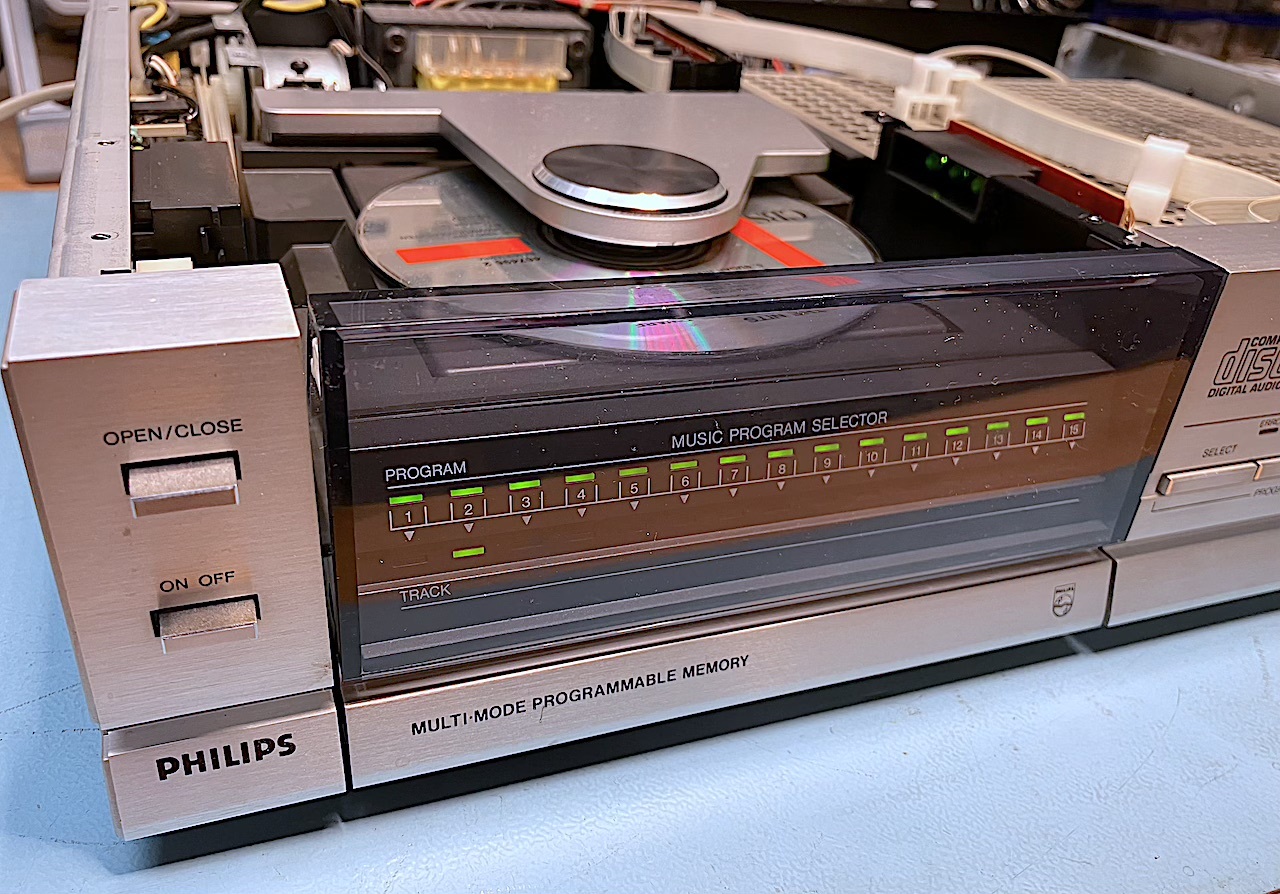

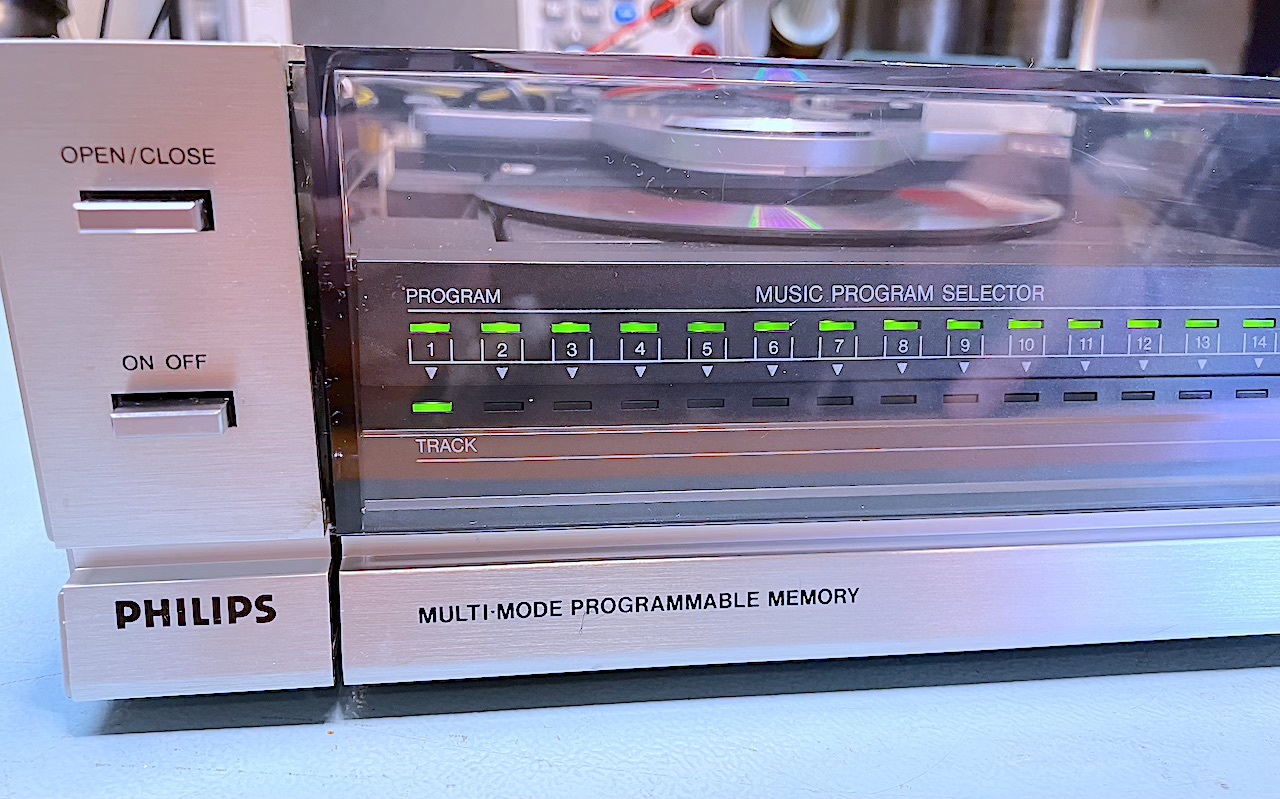

Reworked  the powersupply , player comes alive ,  First  track led is not working…bad solderjoint ?

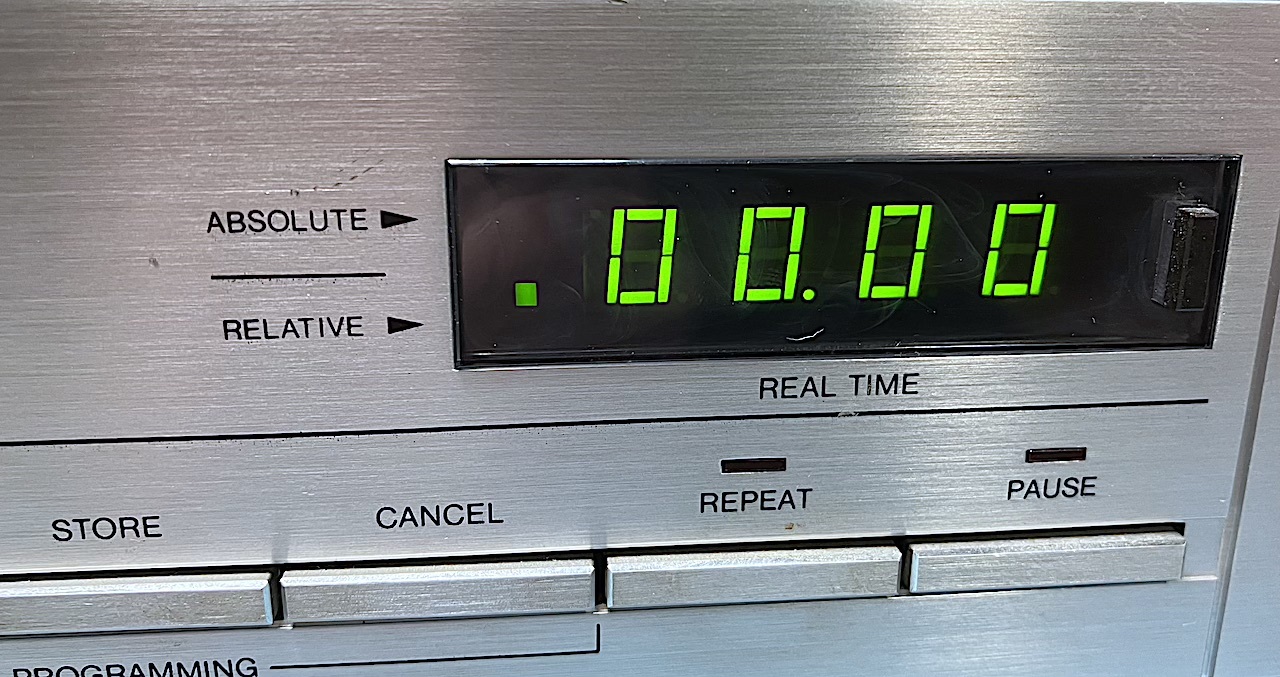

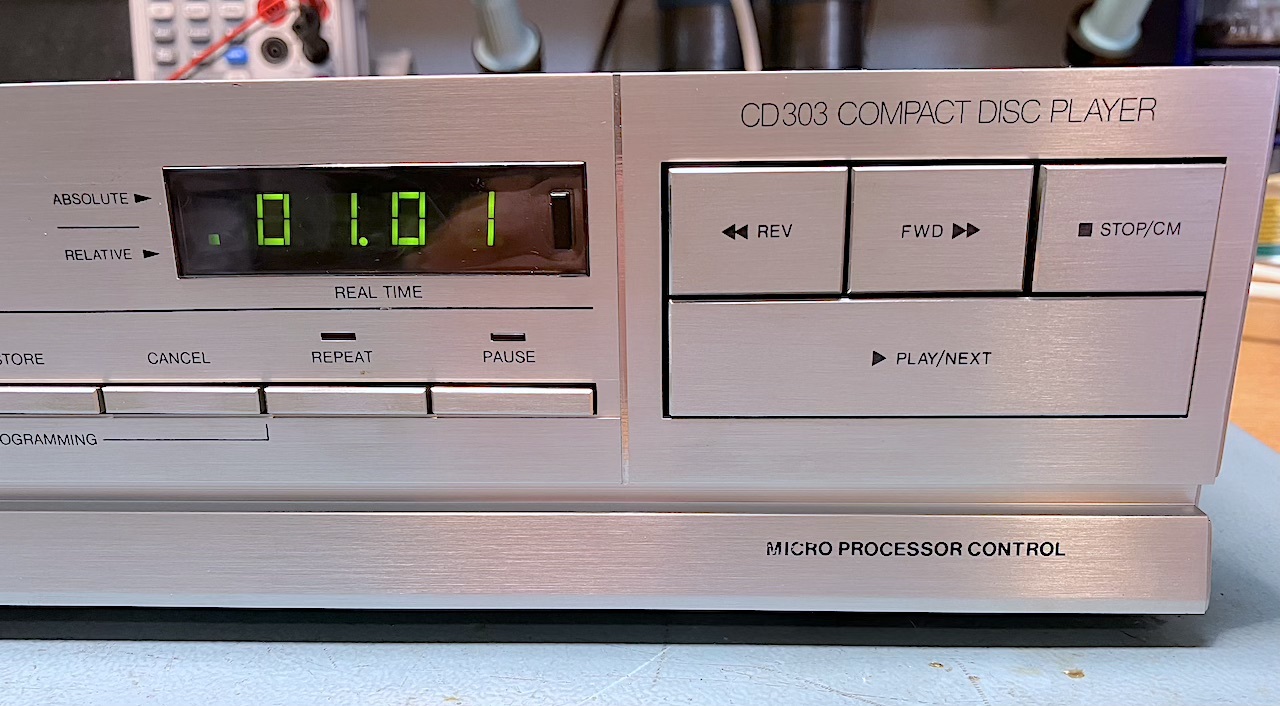

Display is working

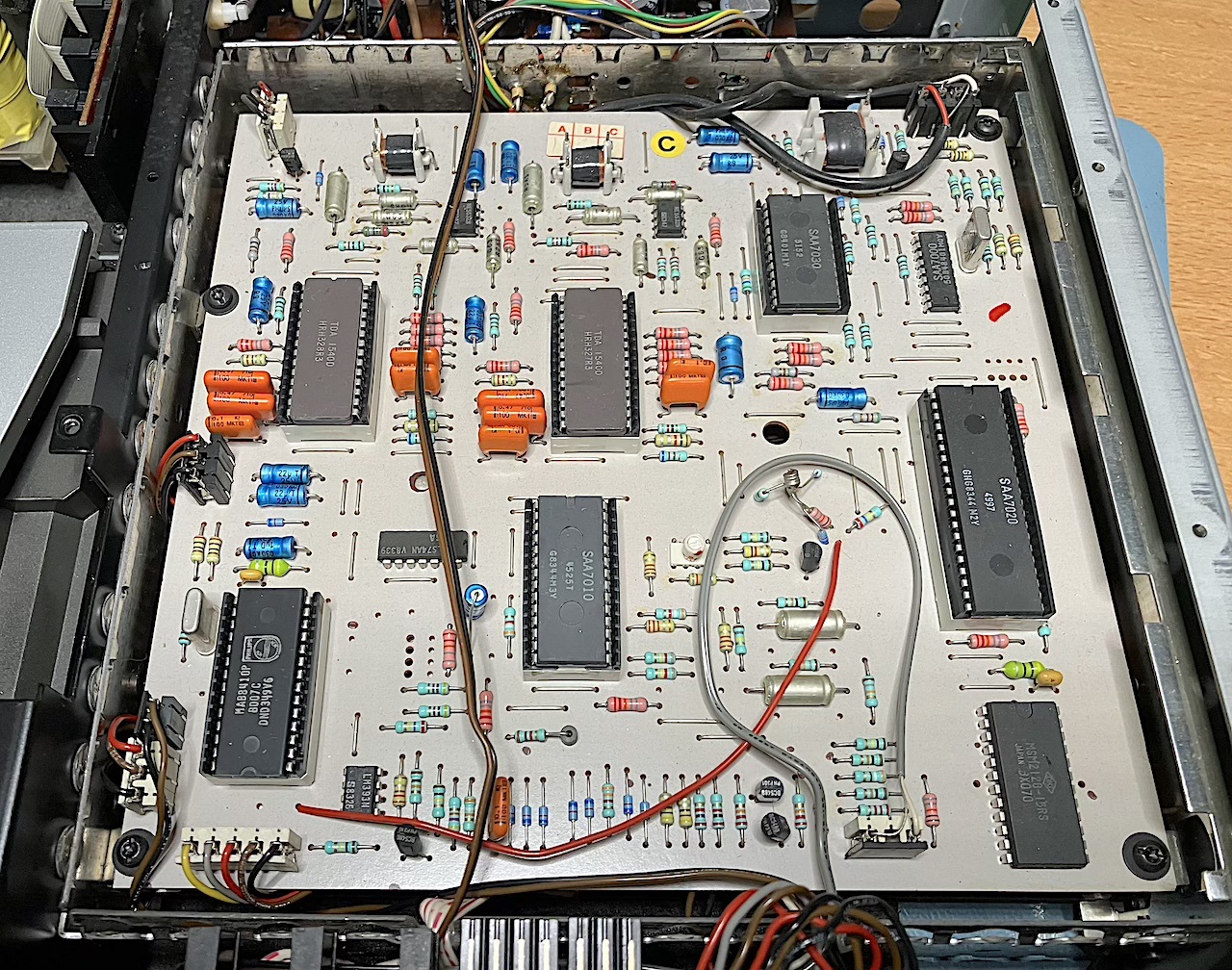

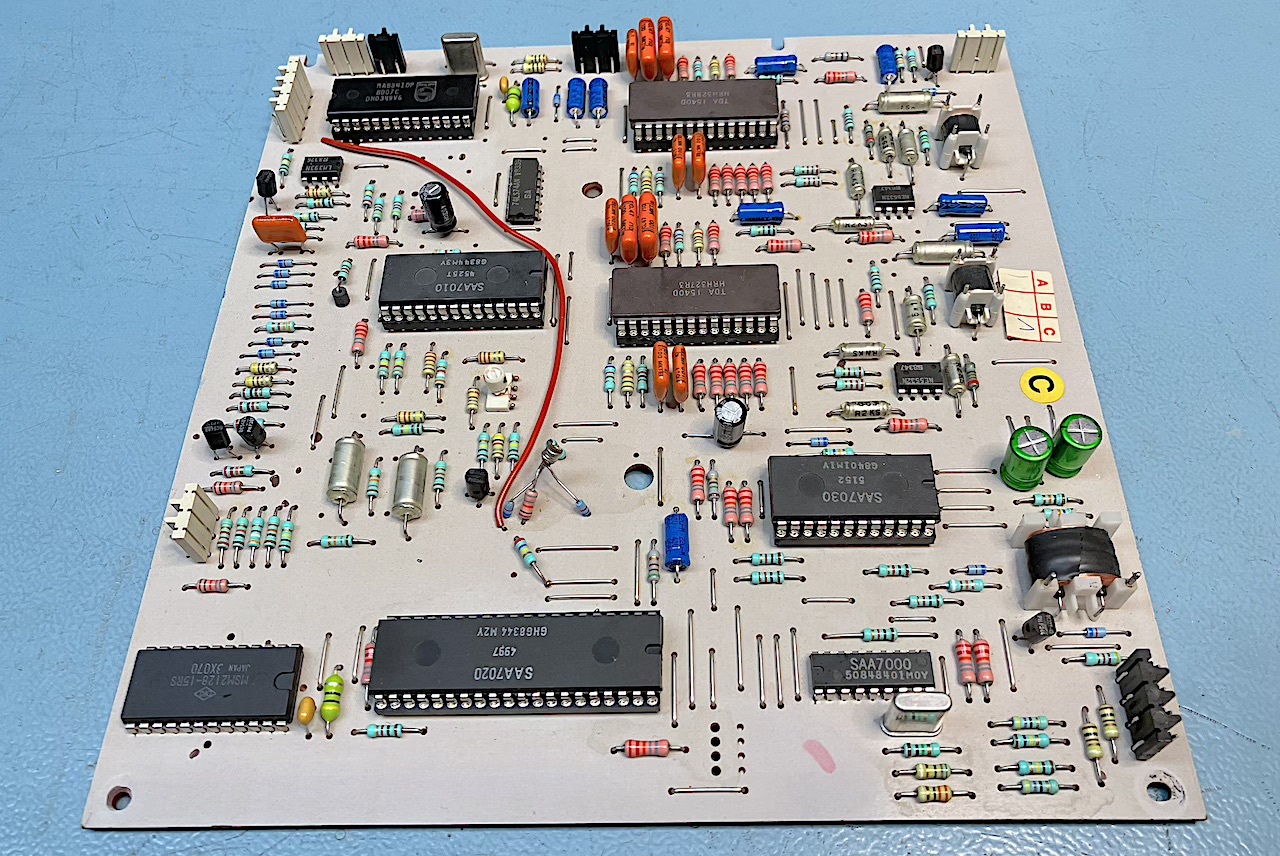

Nice, No Sophi Board on the decoder board

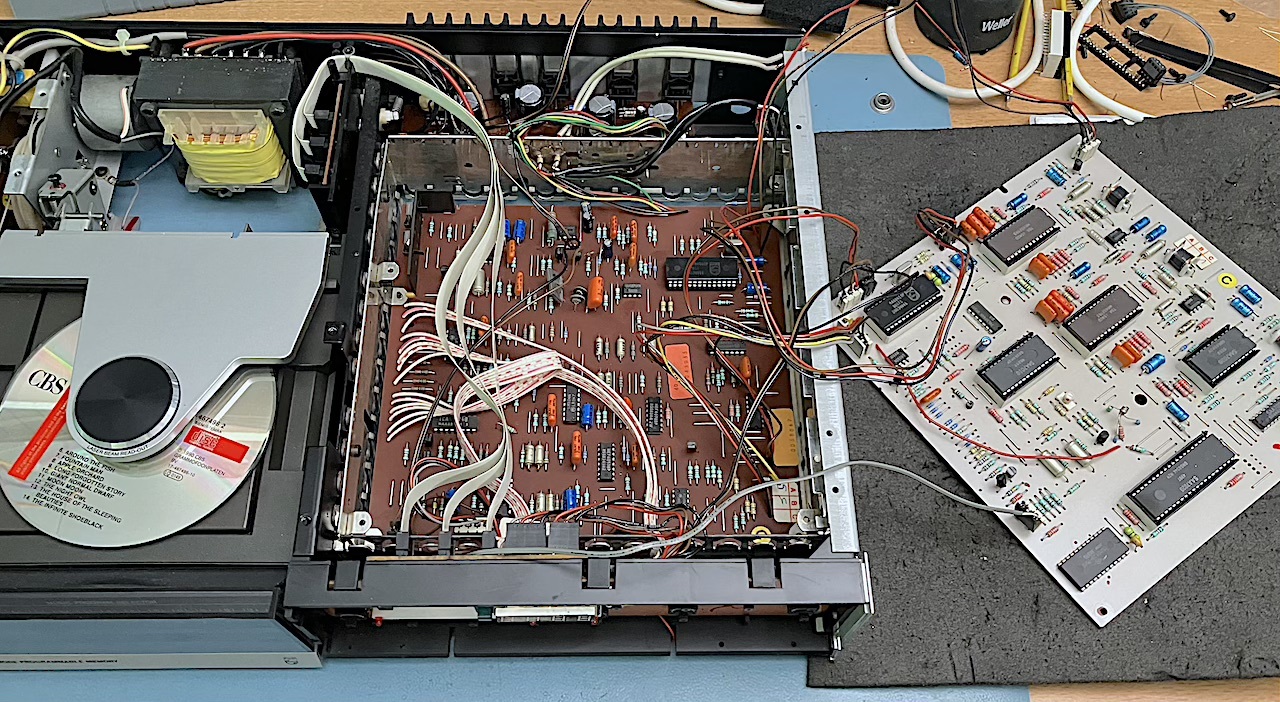

The servo board

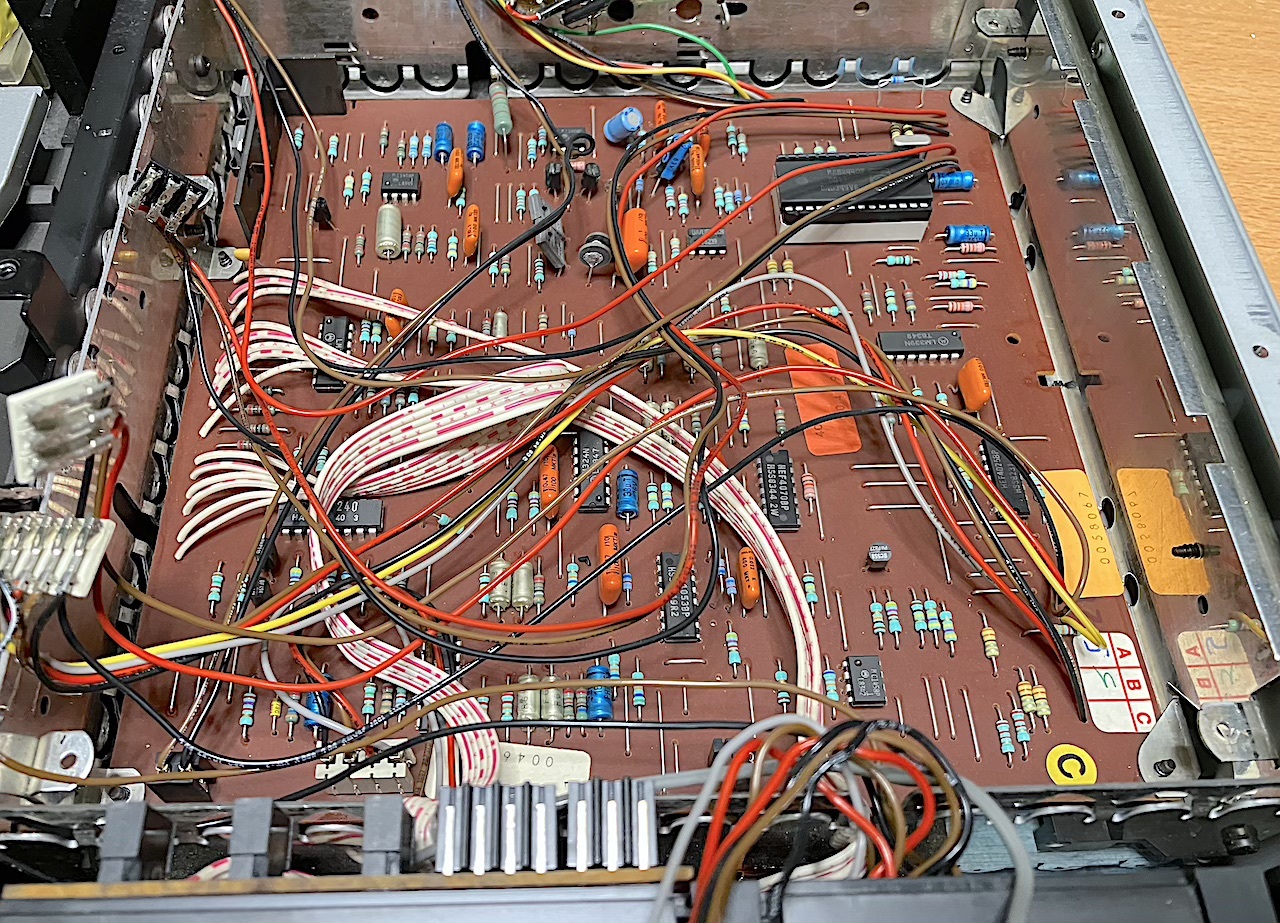

Did some rework on the Servo Board, quick check  , all fine.  Next the audio board

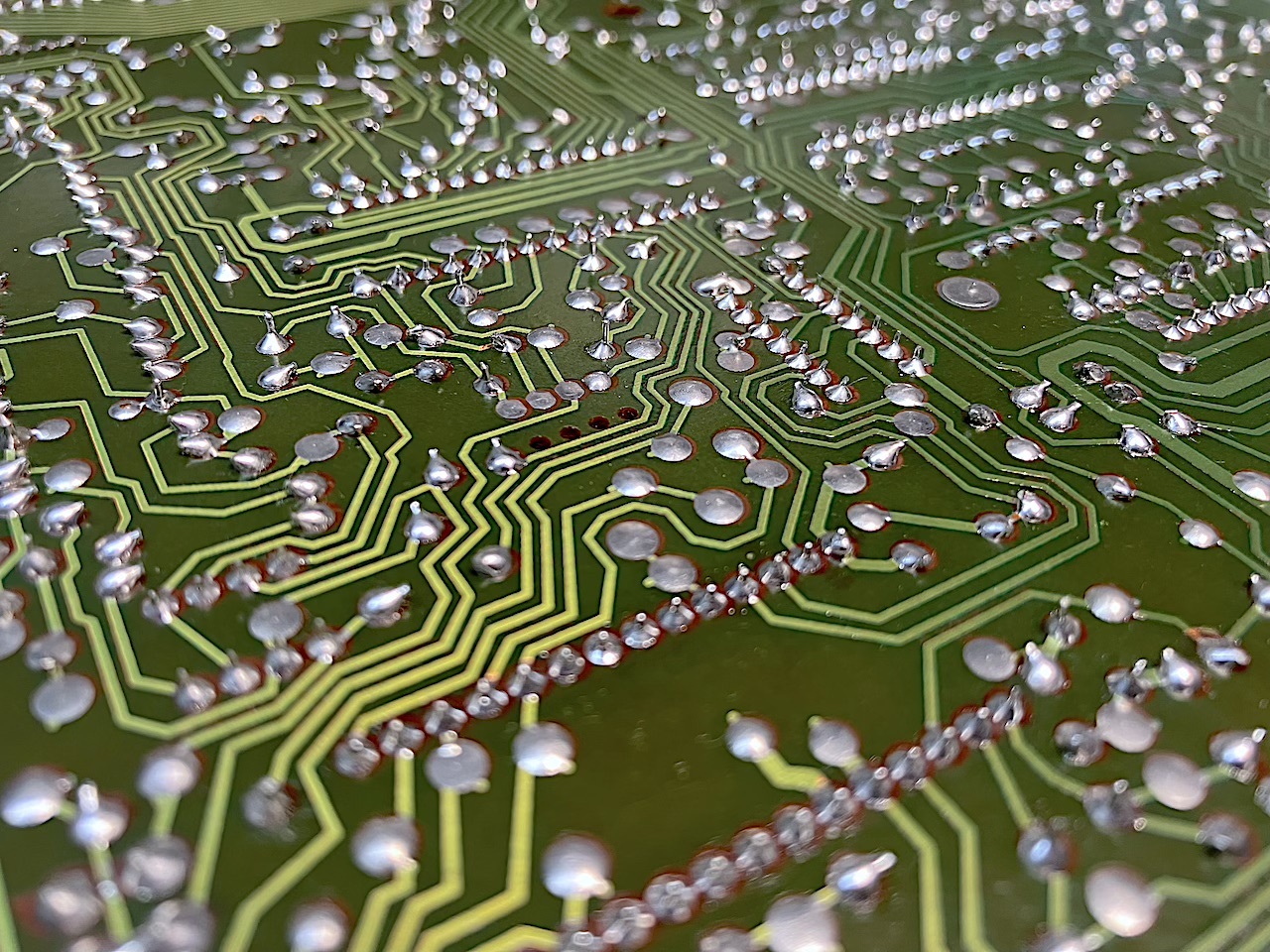

Resoldered the decoder board

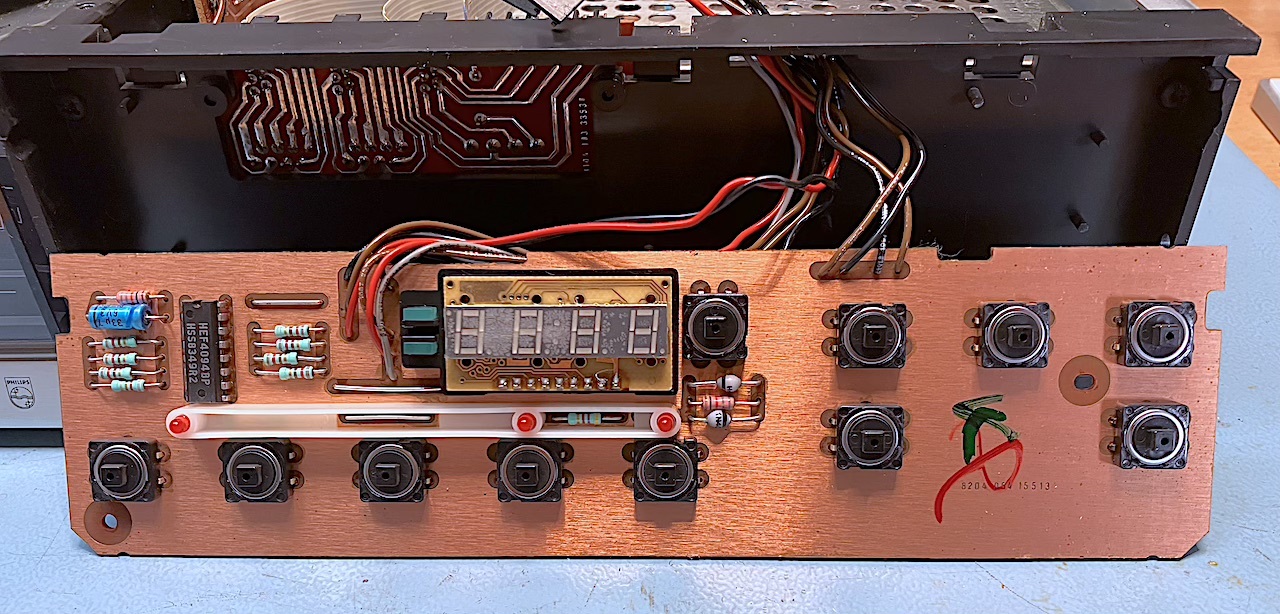

Placed new Tactile switches new Display

Reworked CDM-0 and resoldered Display LED’s

Resoldered Open/close circuit , resoldered interconnects,  some cleaning,  ect ect

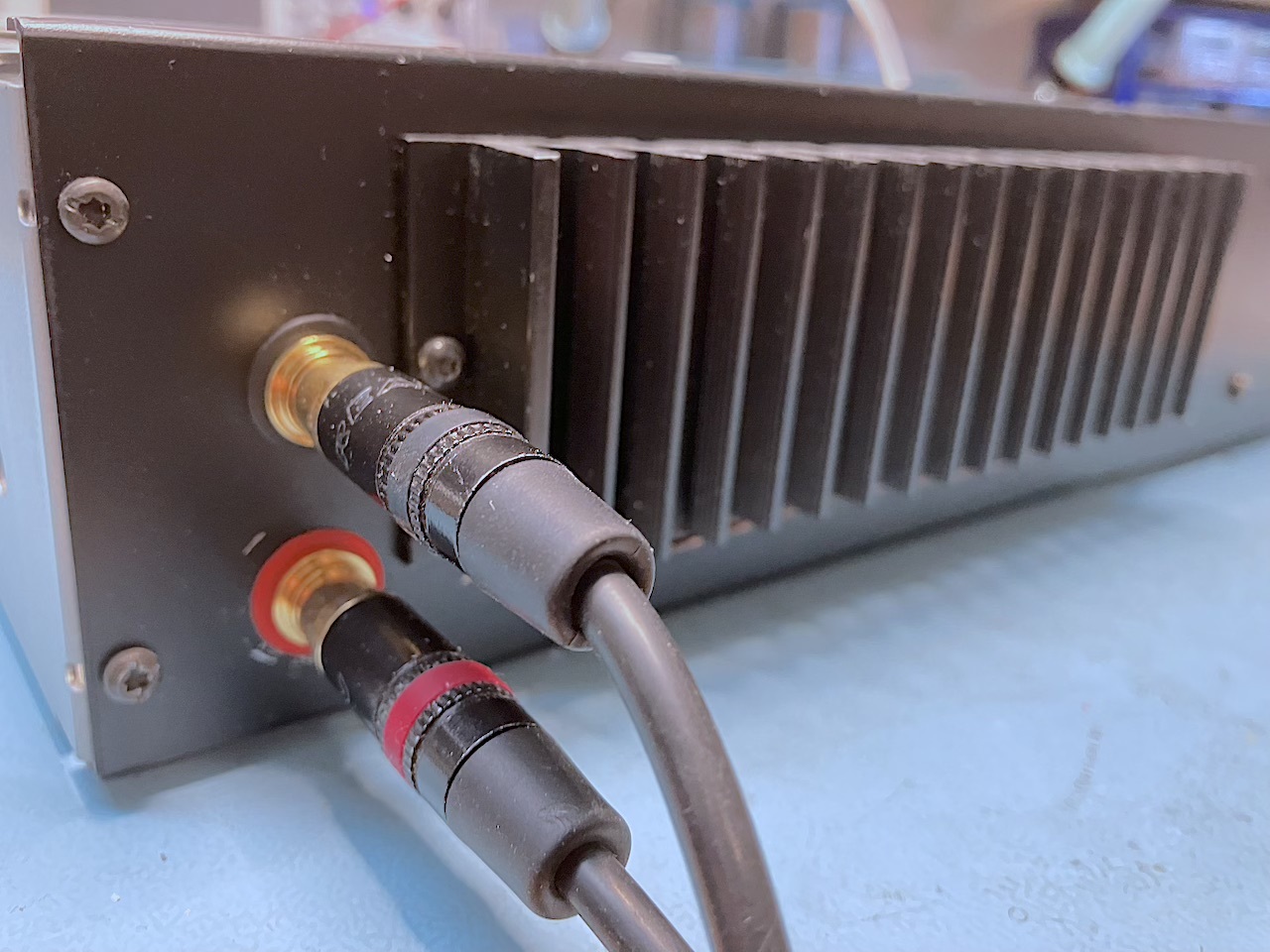

Added some nice profi cinch
