CD 100 plays only a few seconds

The table of contents is read normally, but playback lasts only a few seconds before stopping.

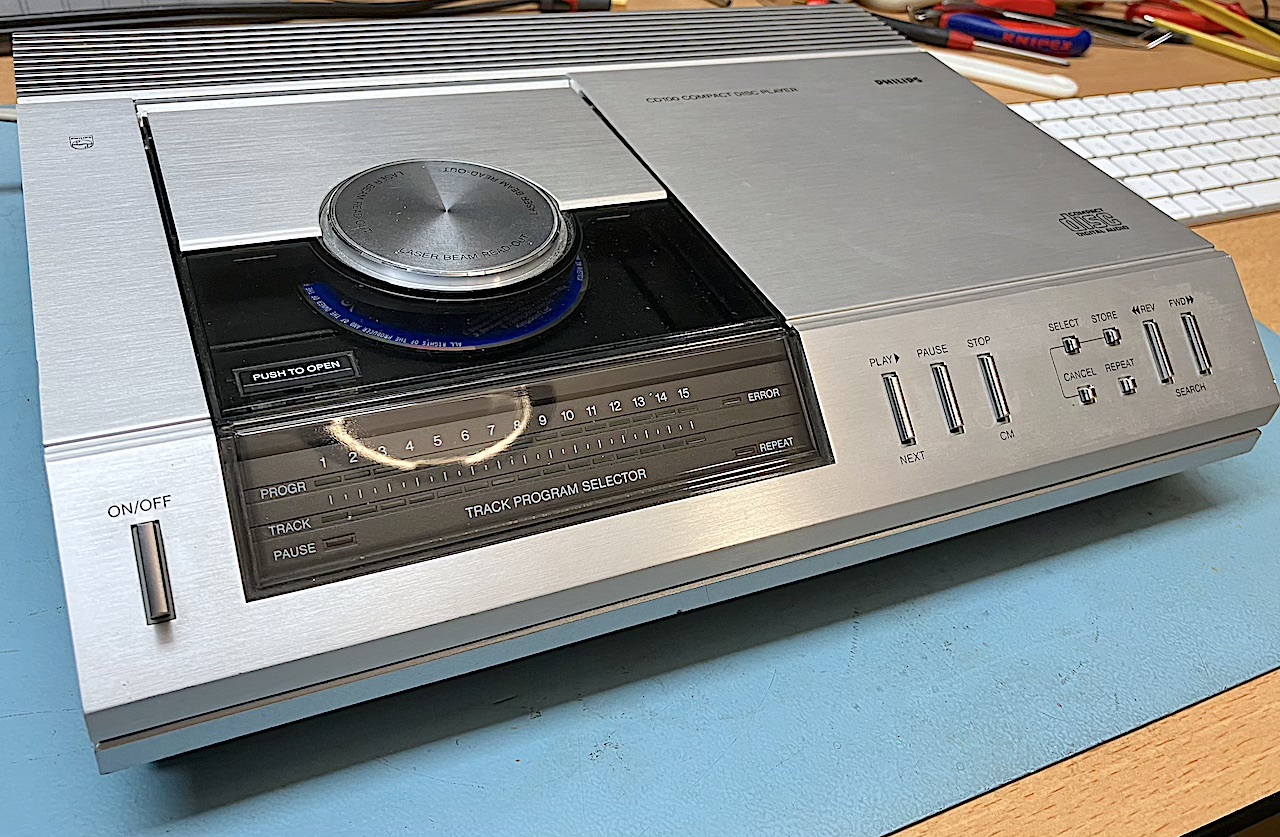

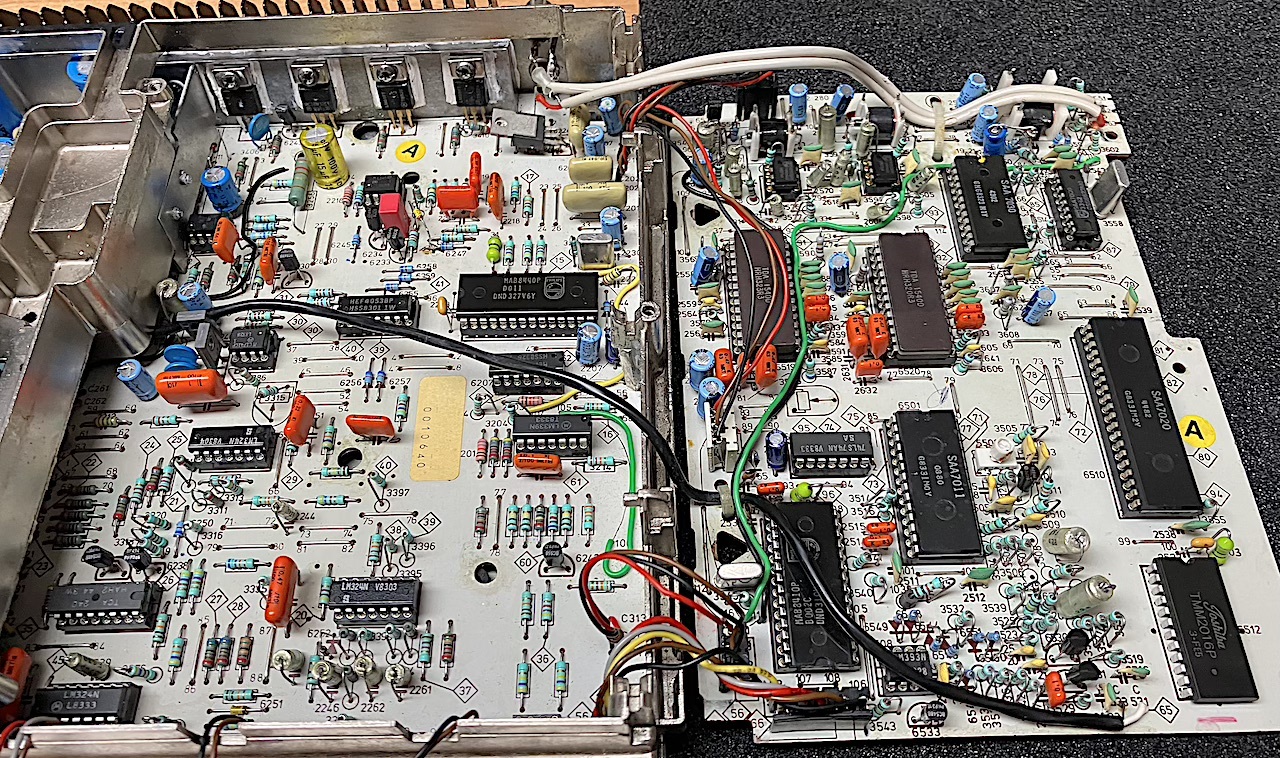

First Look



Okay what happend ..!?

Okay..!?

Okay..!?

Okay..!?

Okay..!?



Found first Problem , some strange behavior keyboard ,

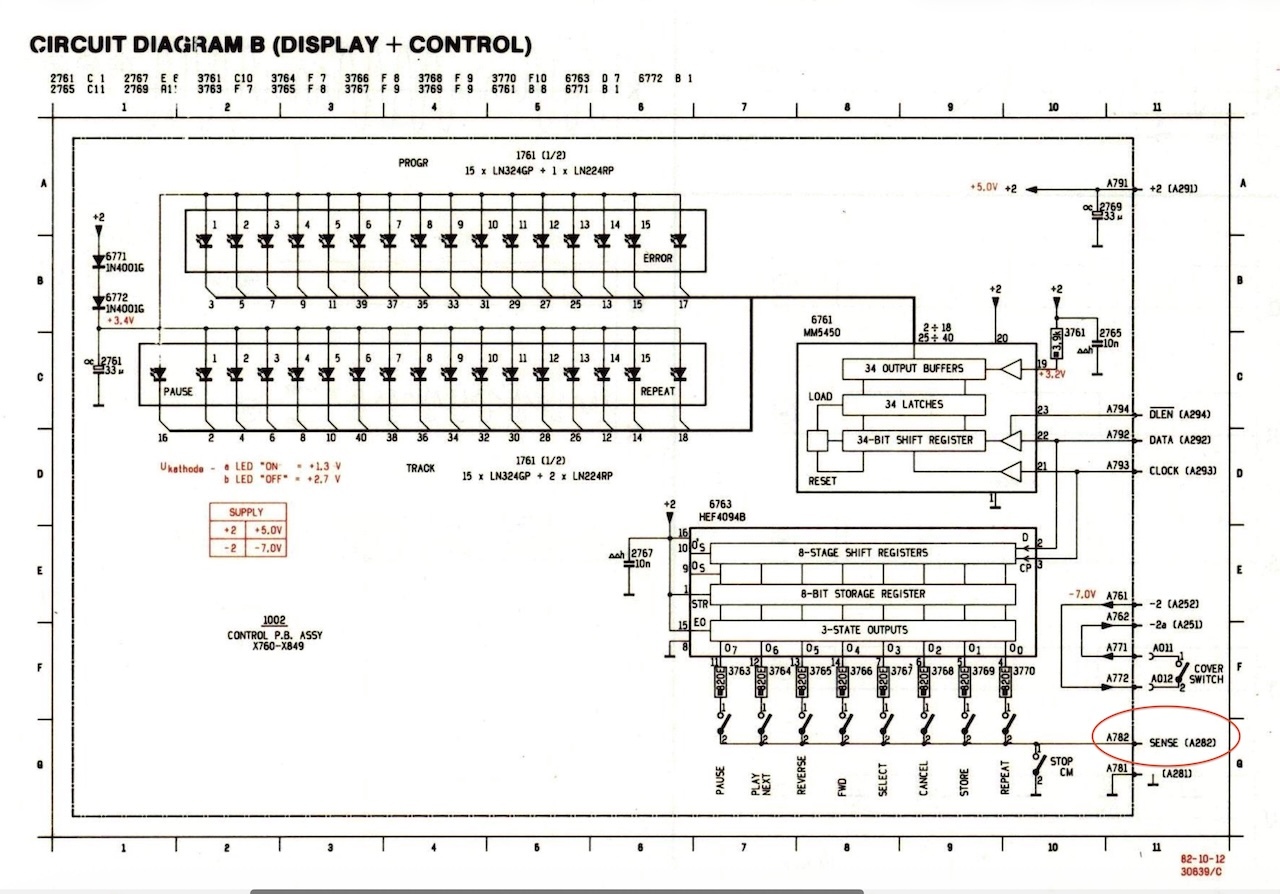

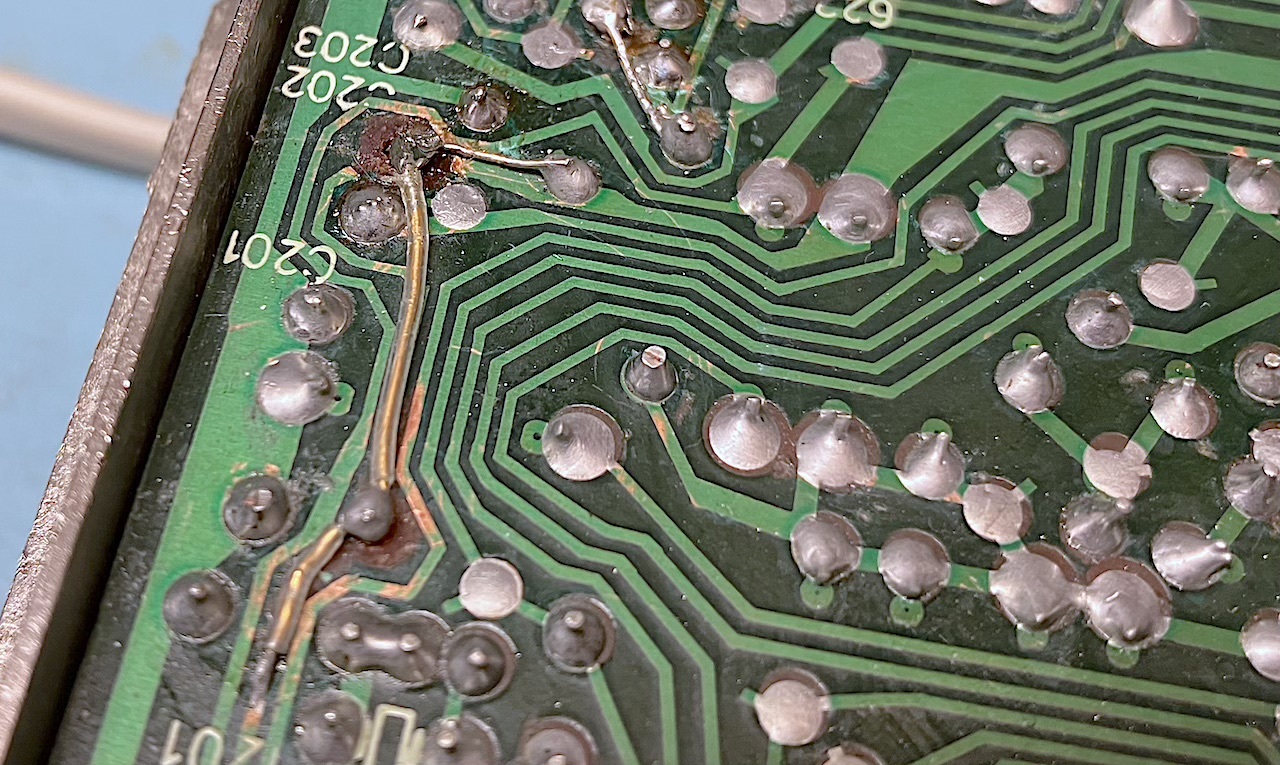

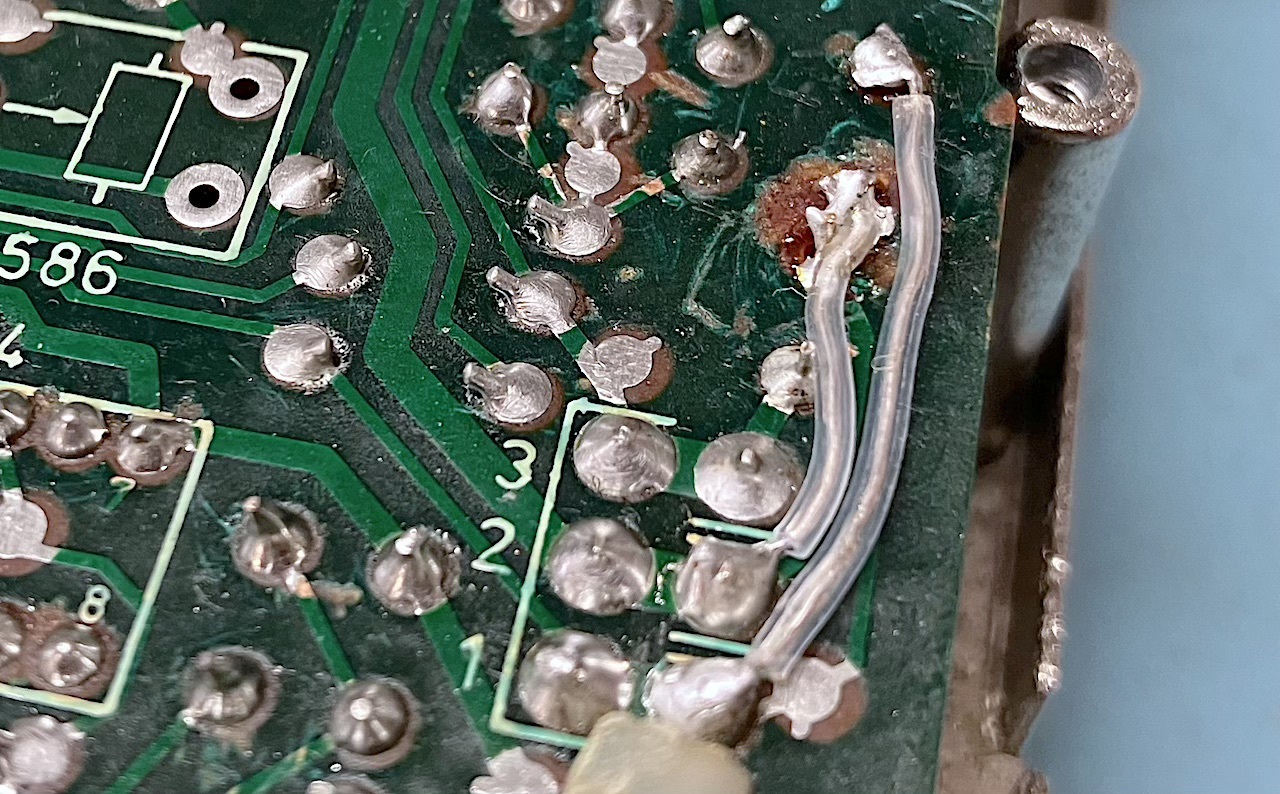

Keyboard Sense interconnect wire broken , sometimes no connection to Sense input processor

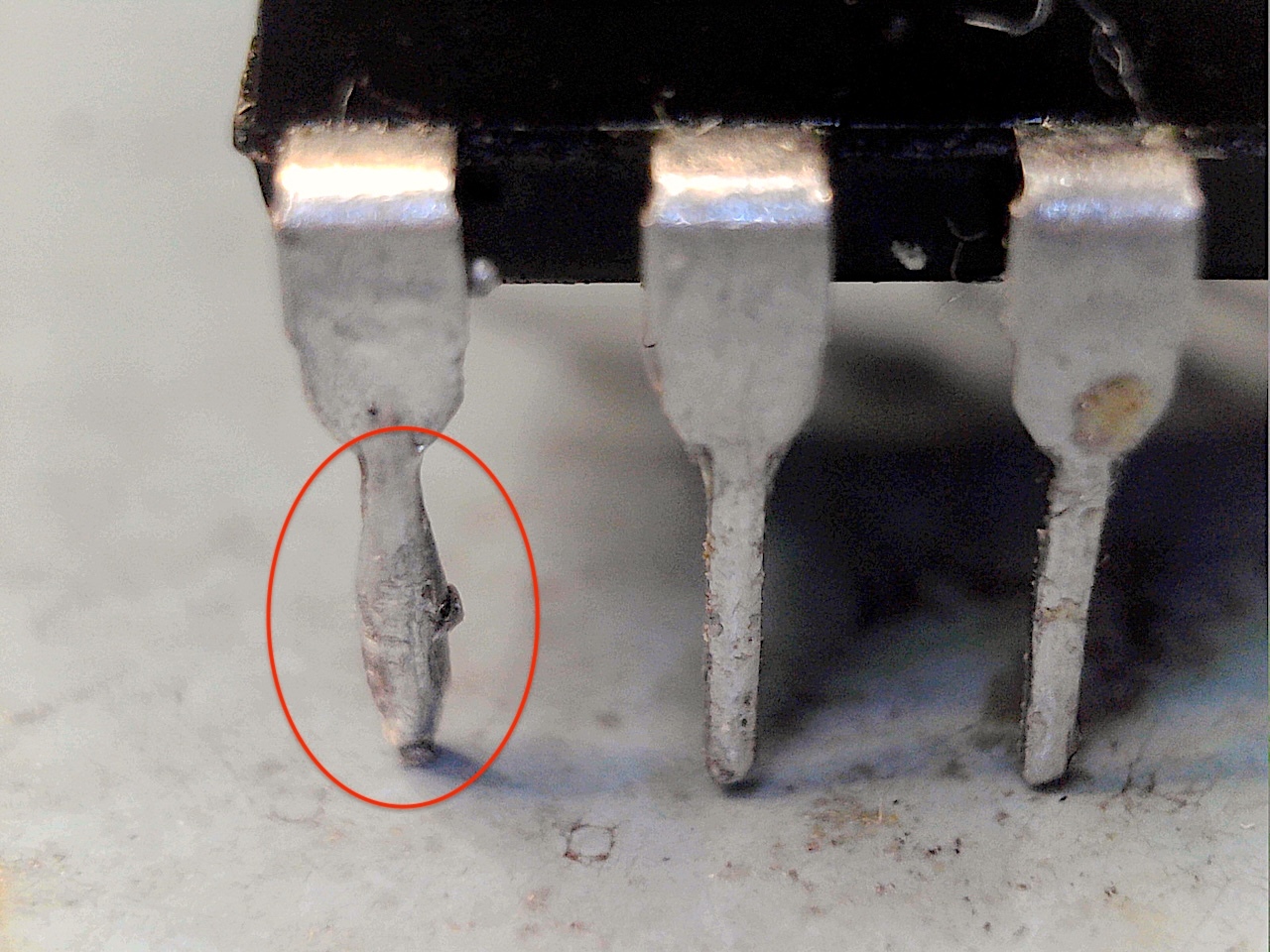

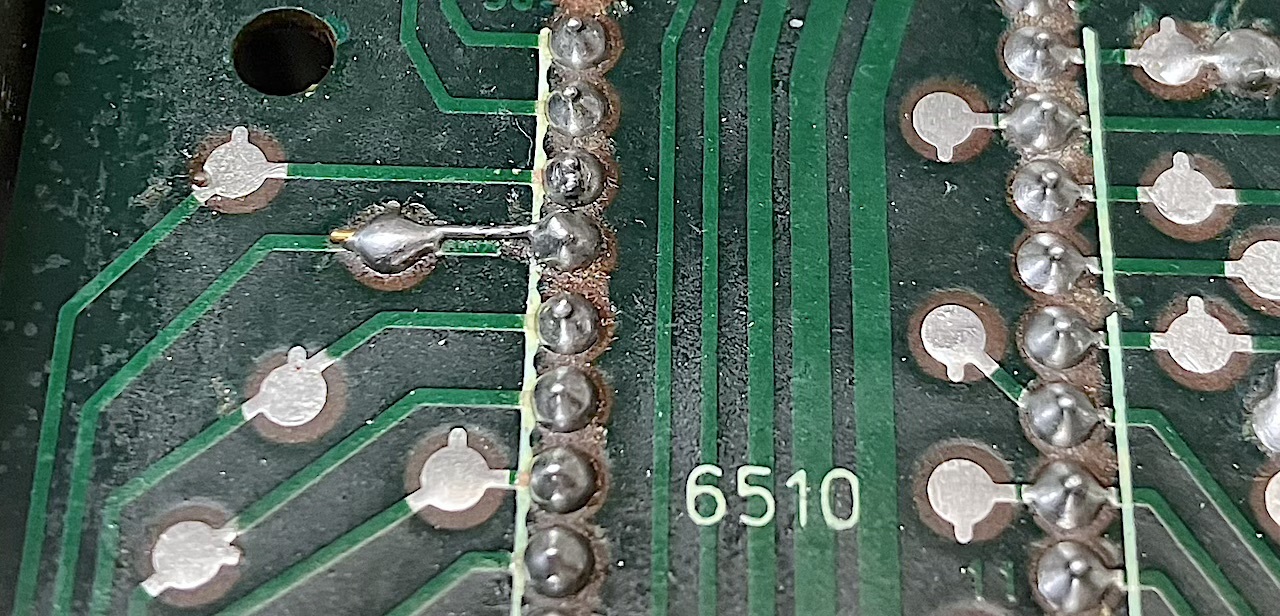

The Root cause , Pin 1 , of the IC pins has to much Solder left on

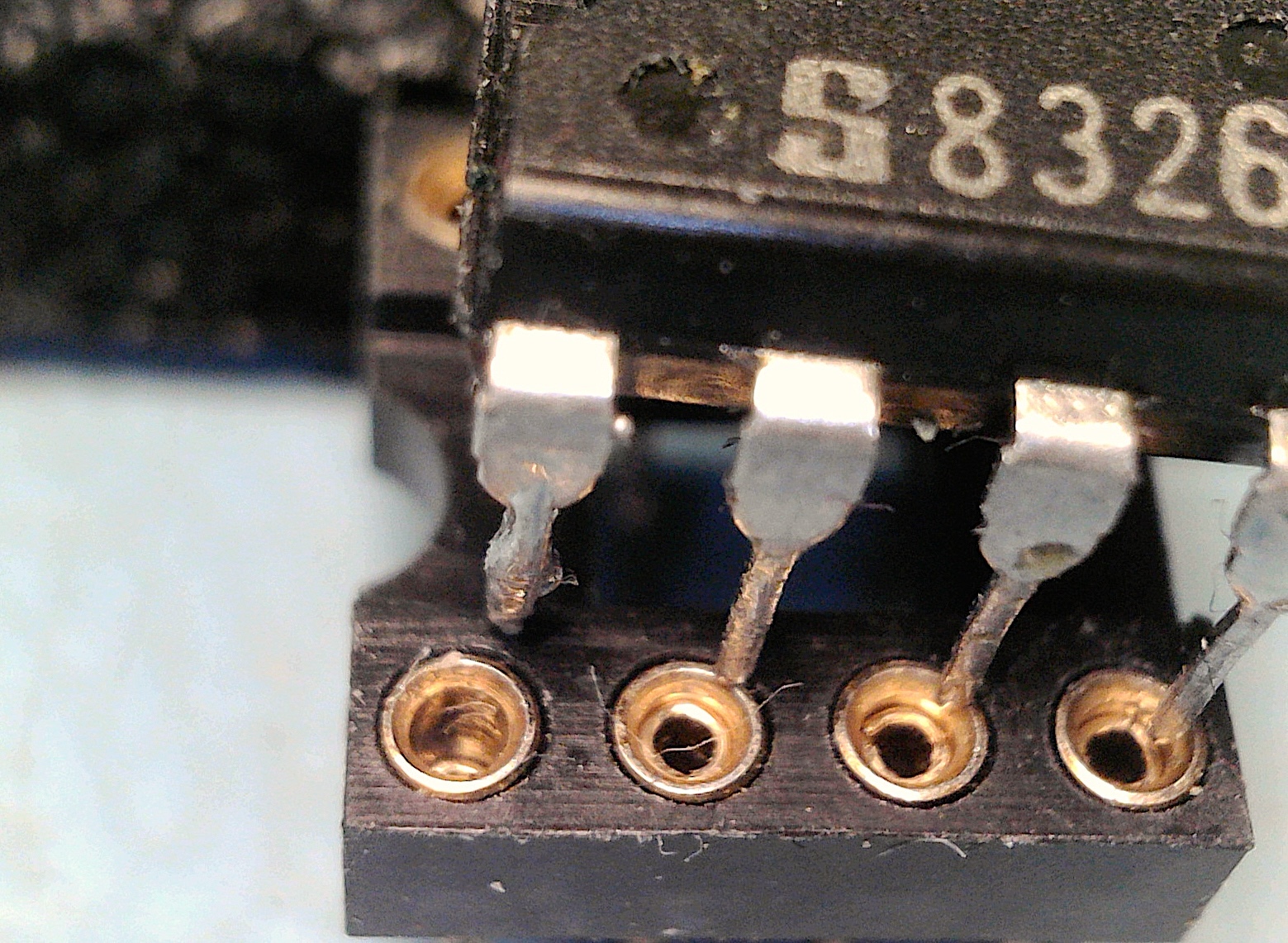

It damaged the IC-socket , not contact on PIN 1

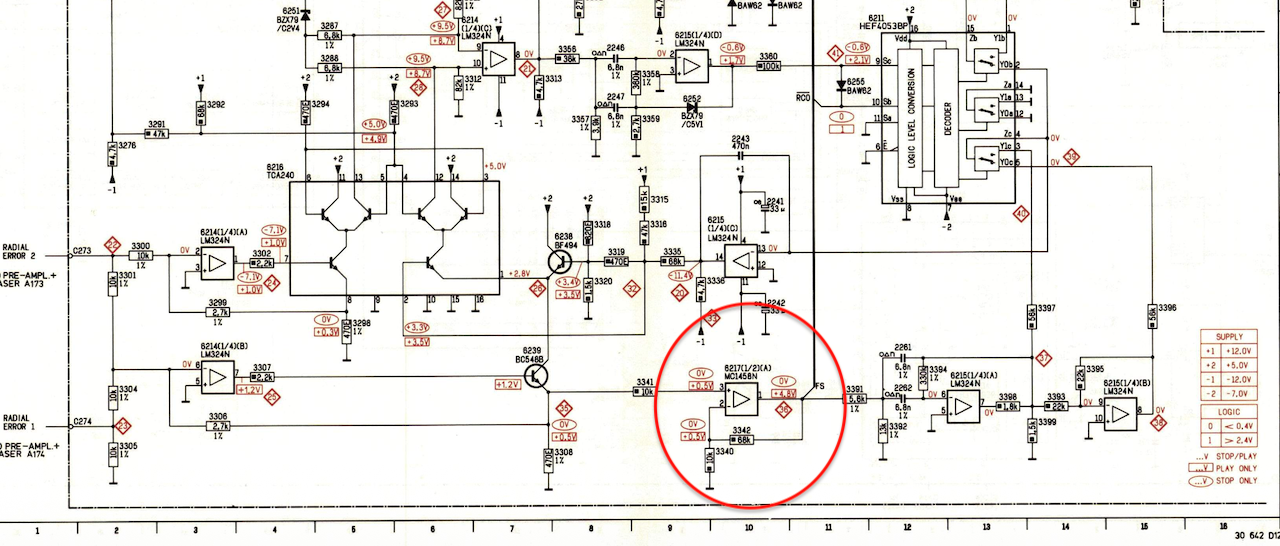

The FS signal was not present at the Track Loss Dectector

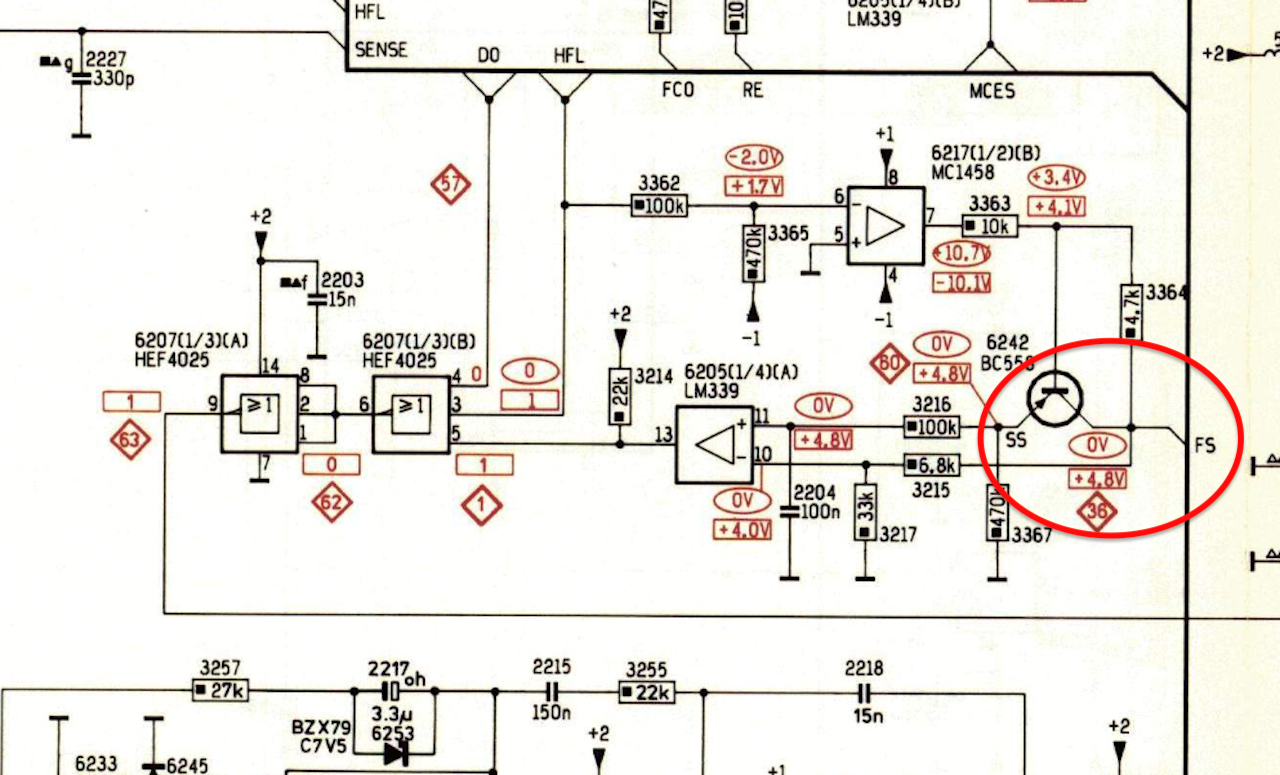

The Track Loss Detector missing the FS signal..
