CD 10

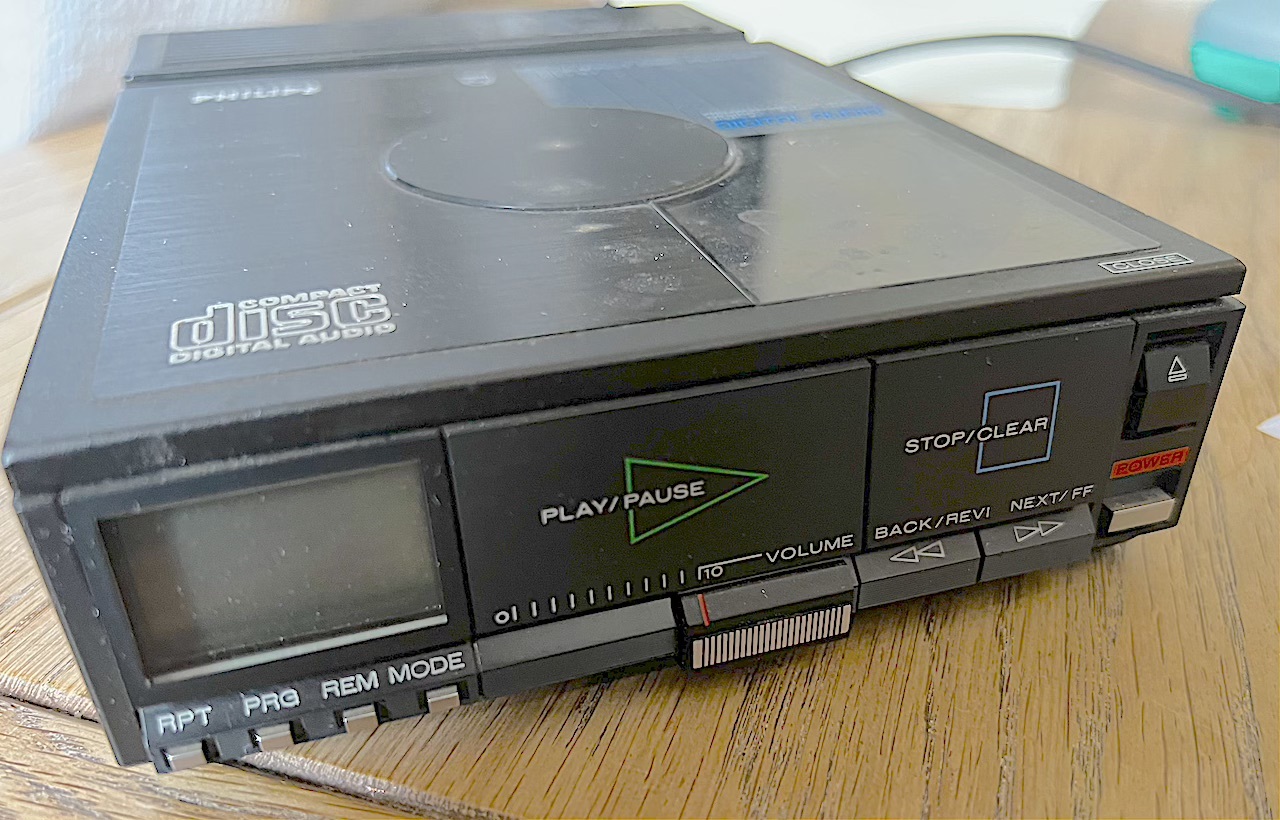

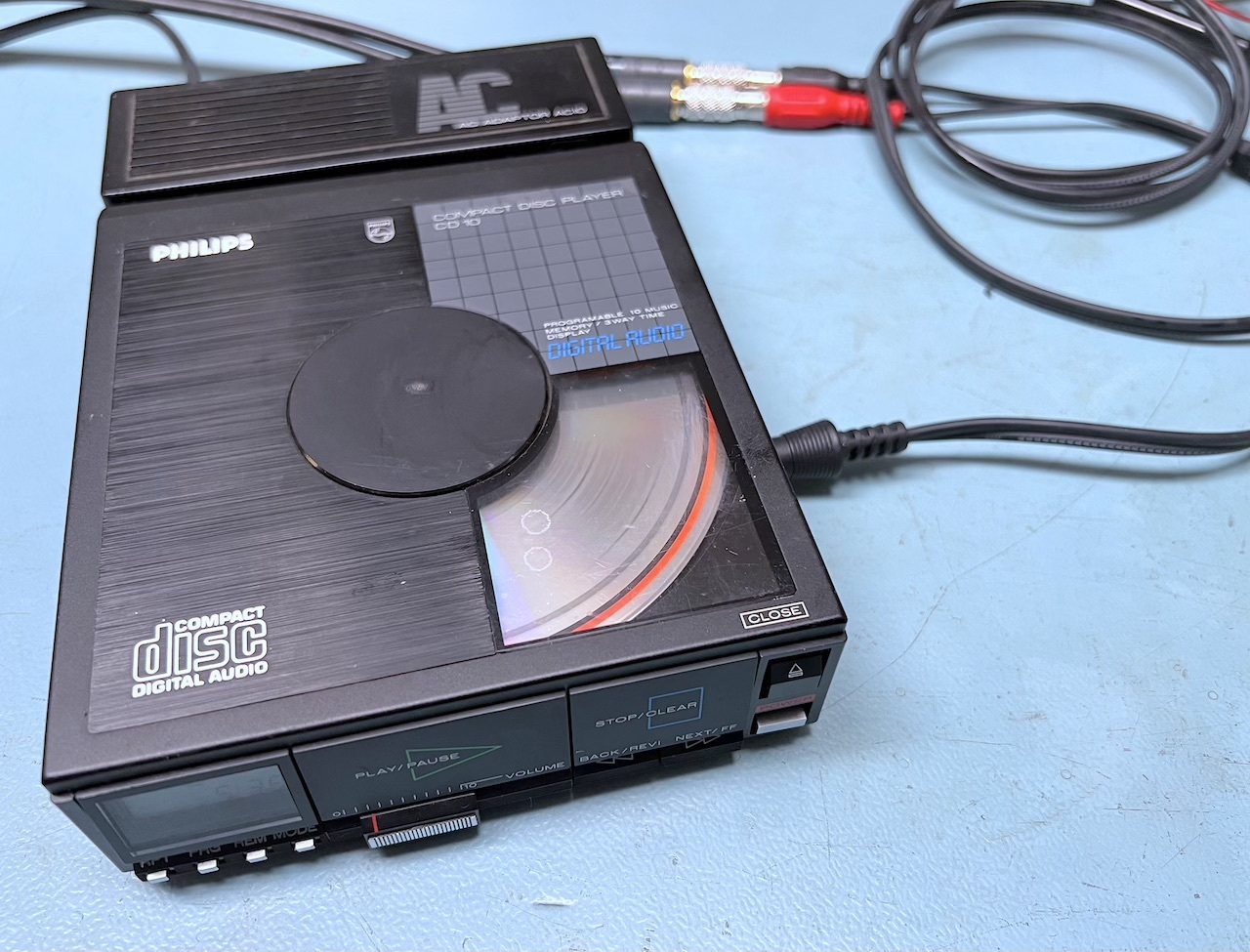

Philips CD 10 Portable





My CD 10  reeds  the  T.O.C.  quickly but the audio is distorted

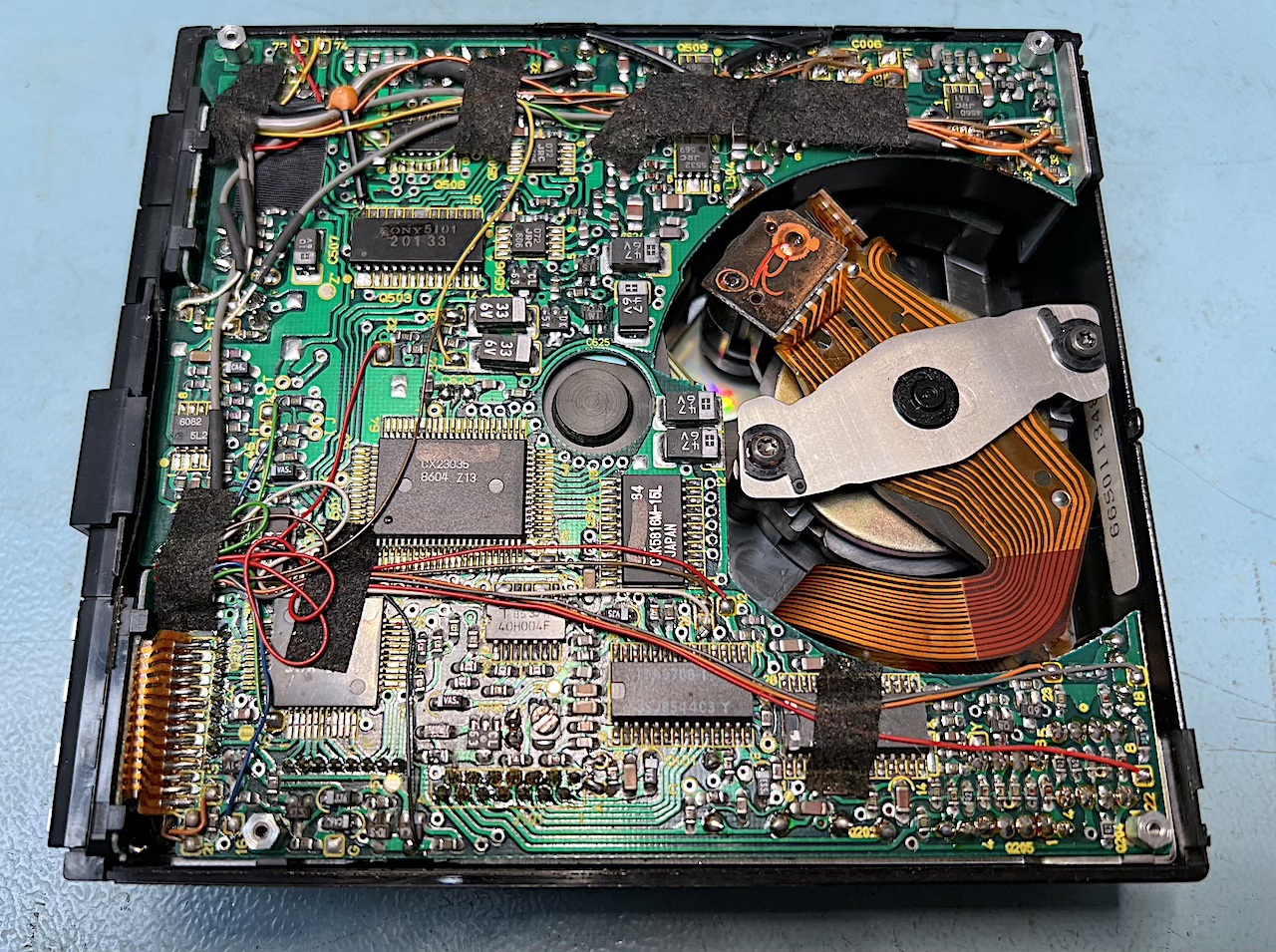

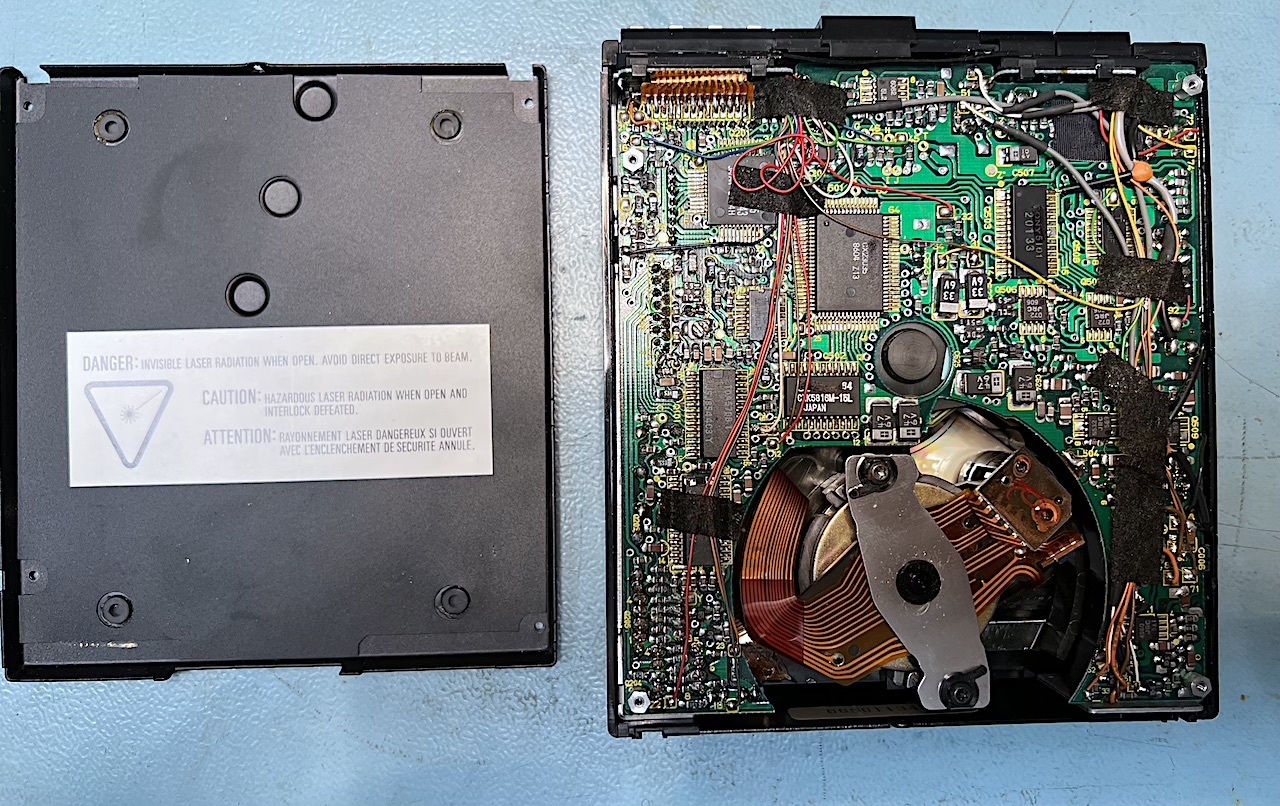

Whats inside

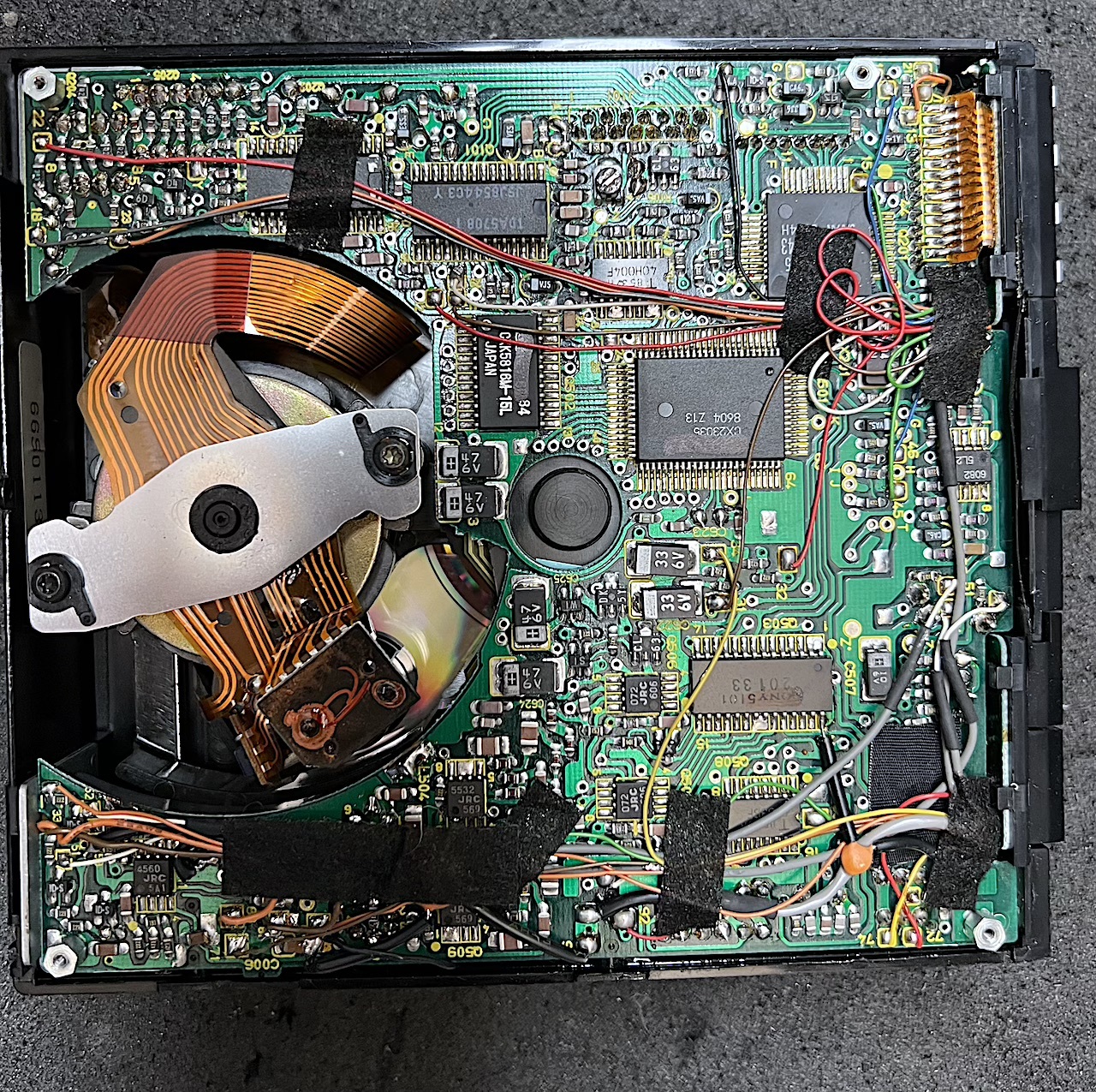

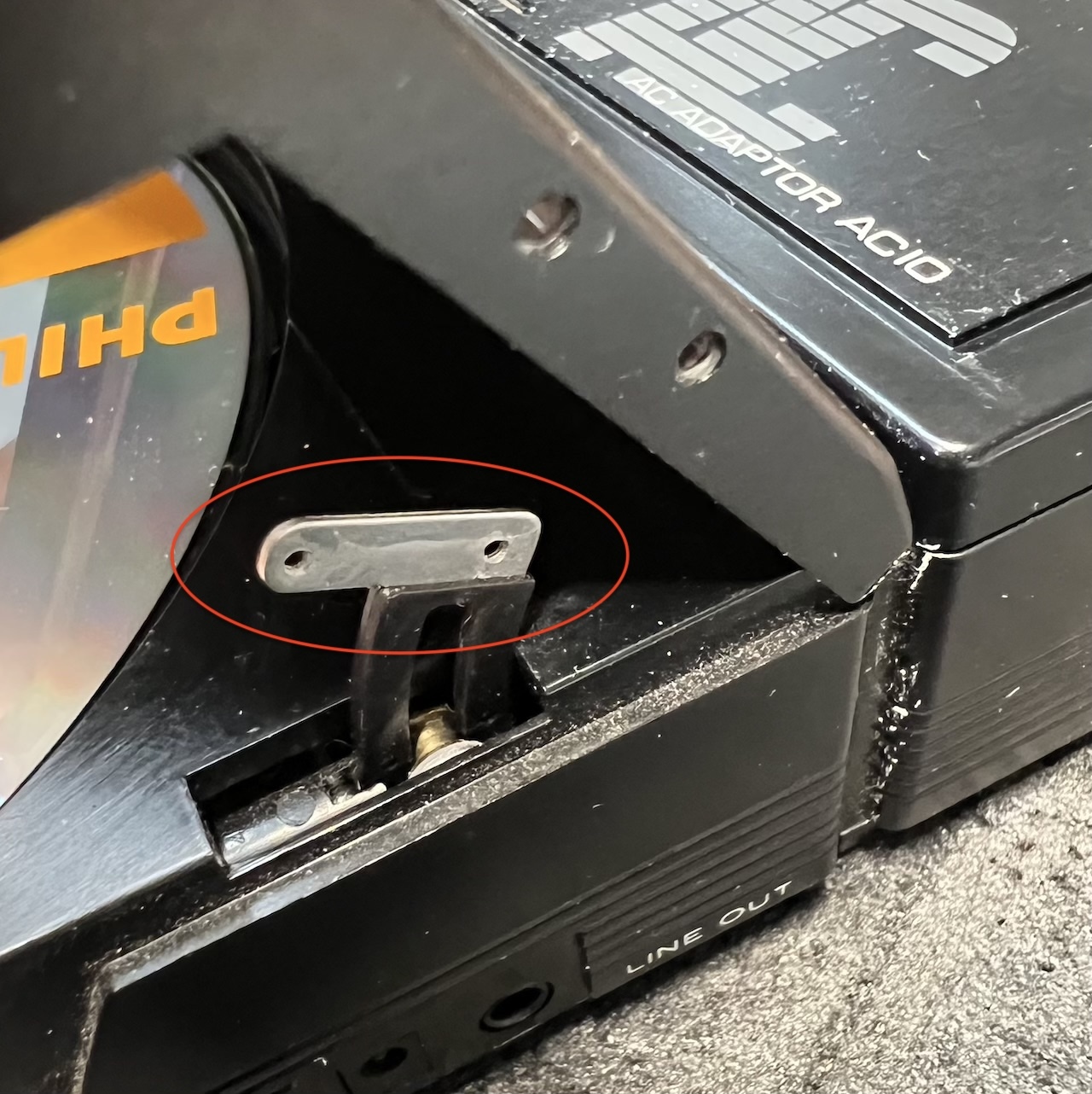

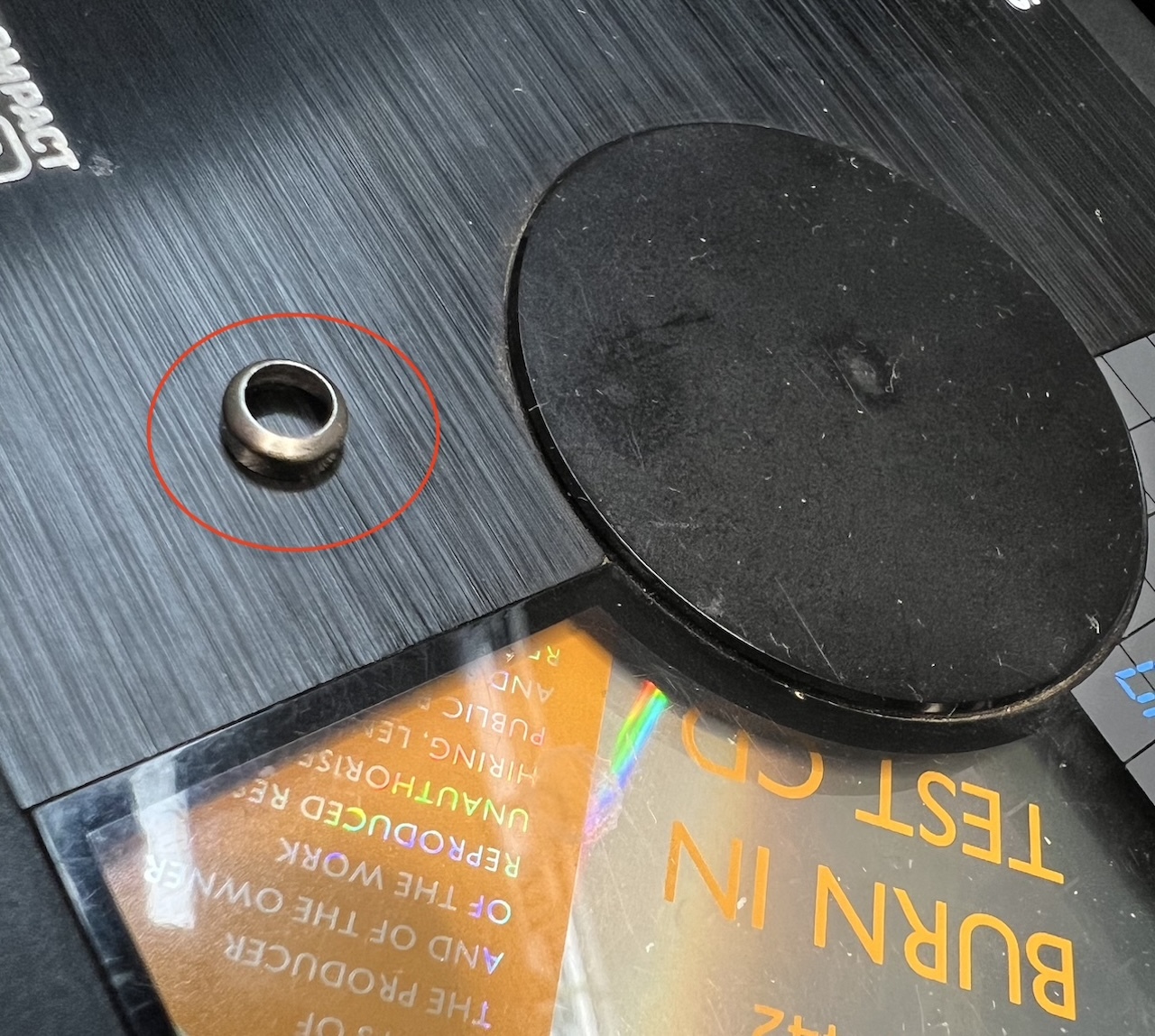

Someone has been here before missing M1.4

What is this for ?

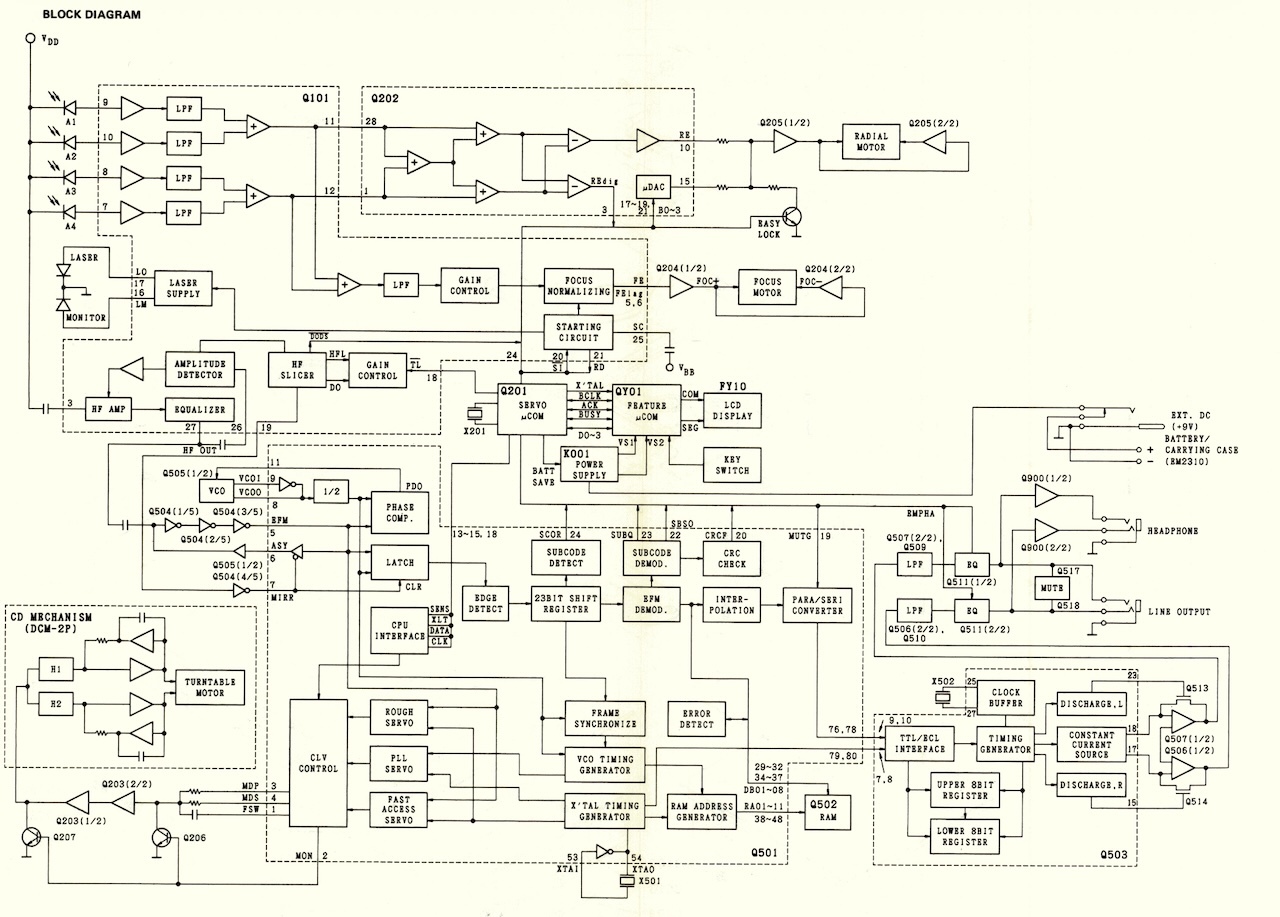

The Block diagram, is a CDM 2p player with TDA5708 and TDA5709 , the rest is Sony , its a “PhiSo” player 😉

Lets check some Signals

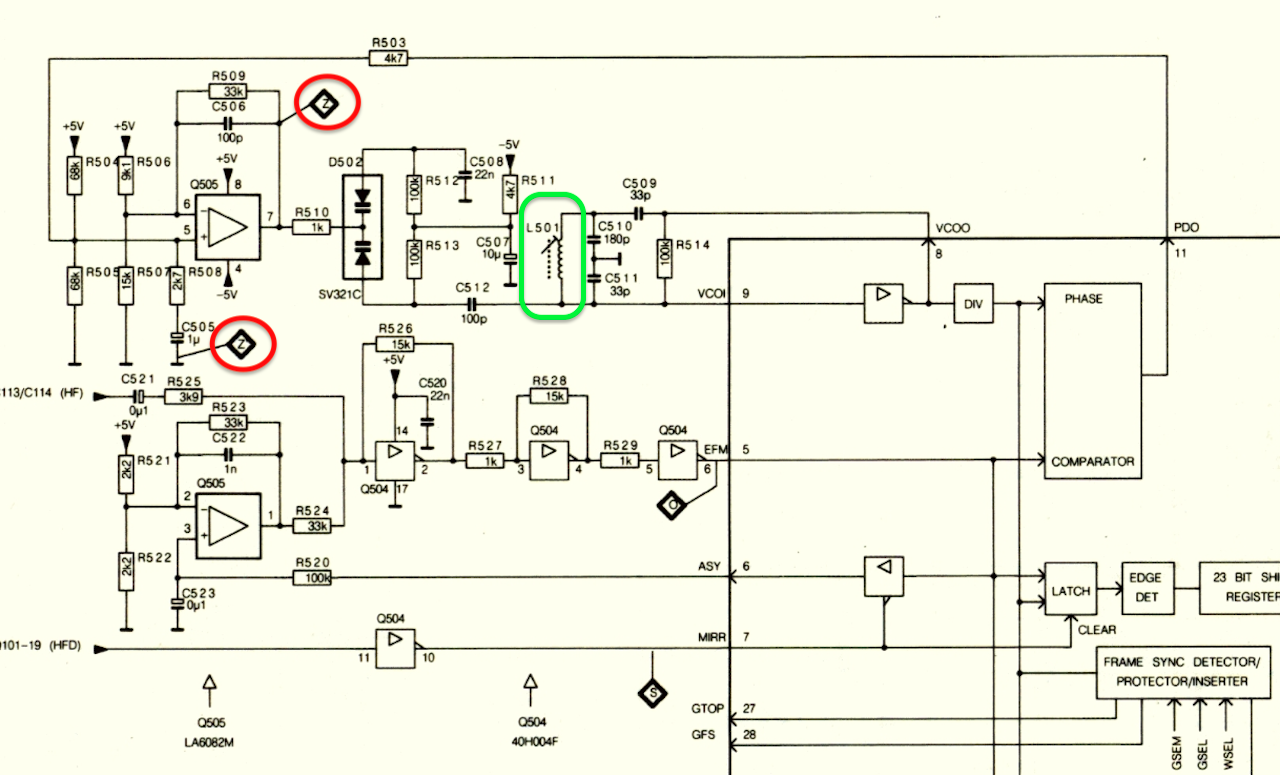

I don’t measure -0.4 ;-( its around 0.9 volt

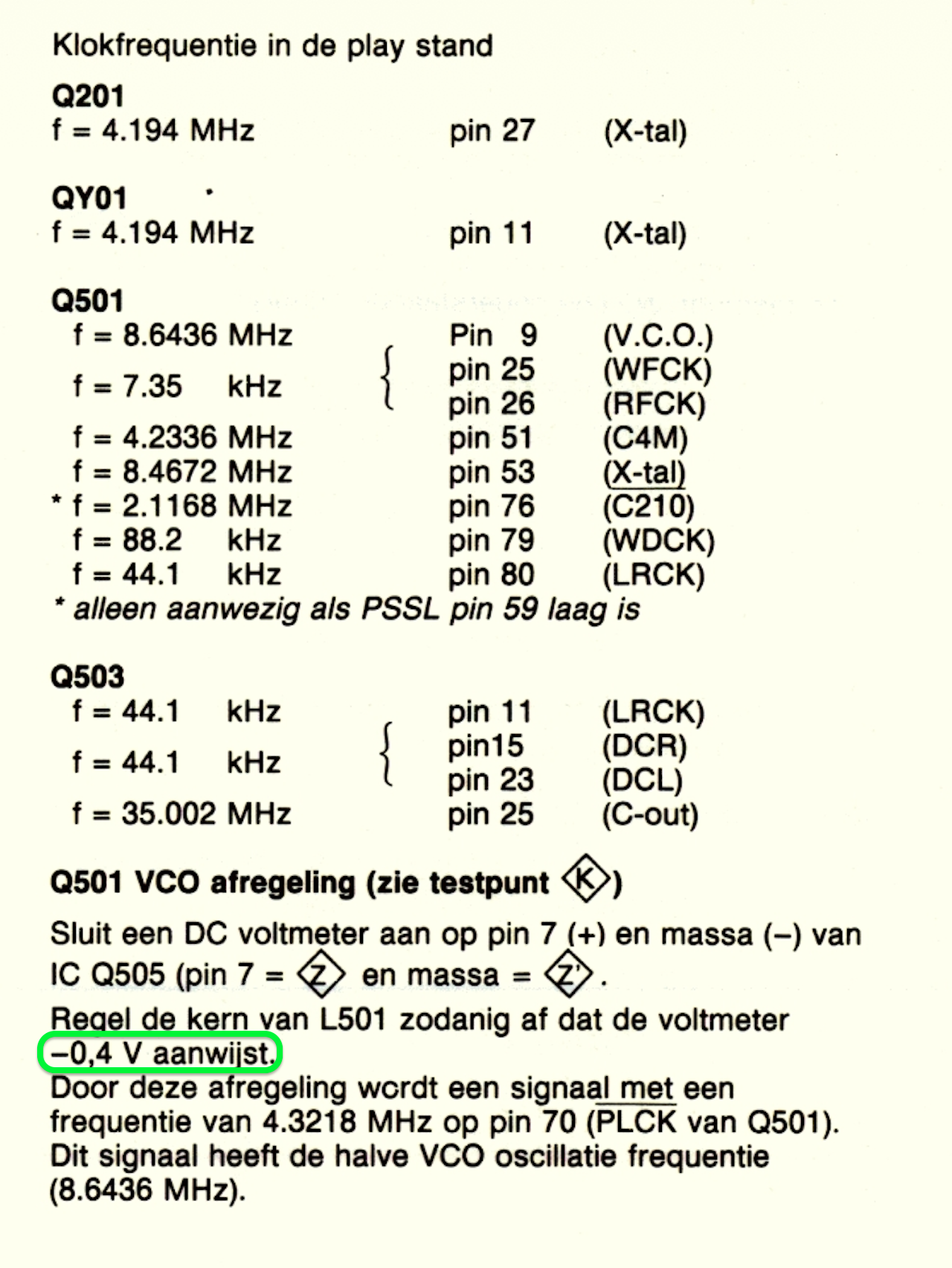

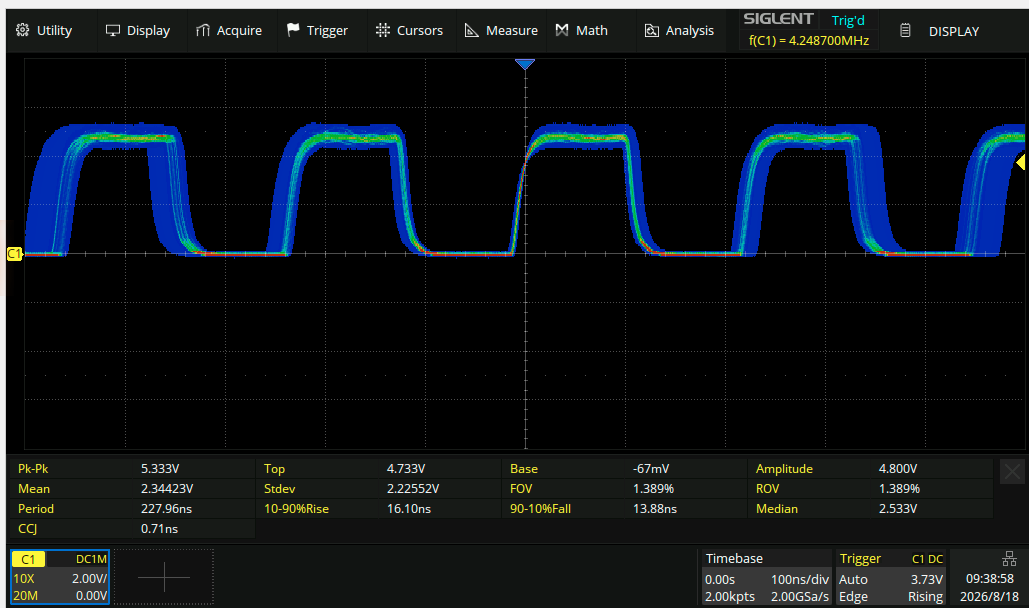

PLCK is not the 4,3218 MHz its 4.248 Mhz and not stabiel

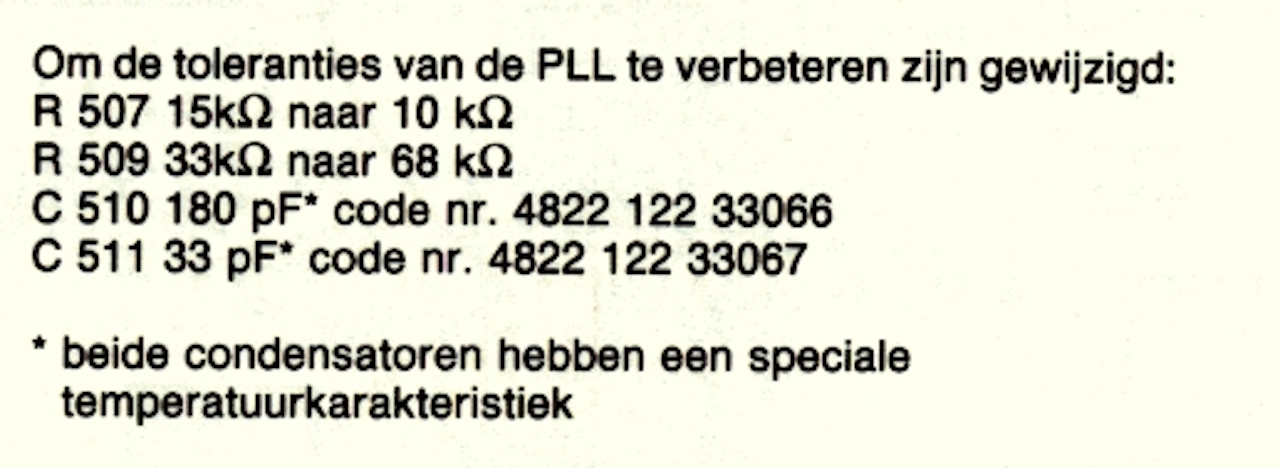

Some service notes i found

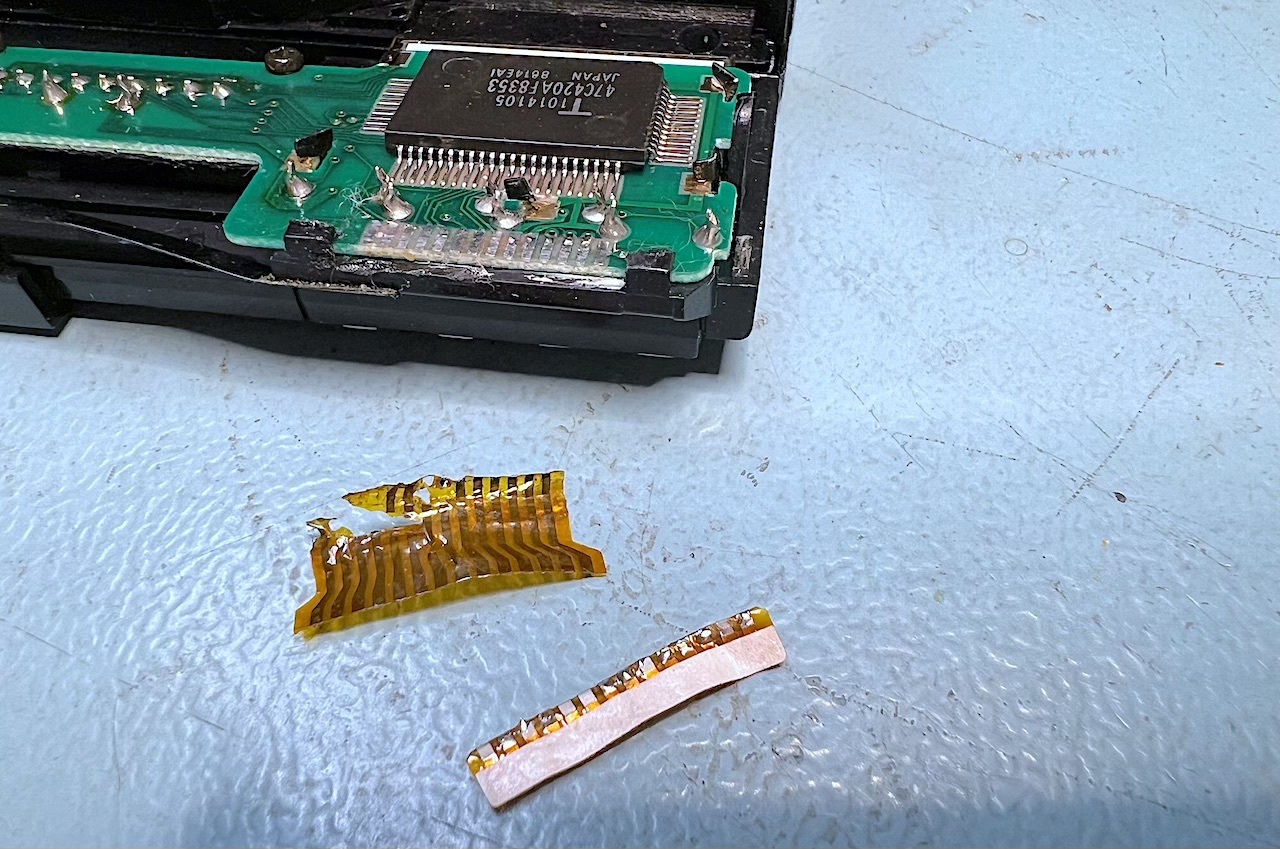

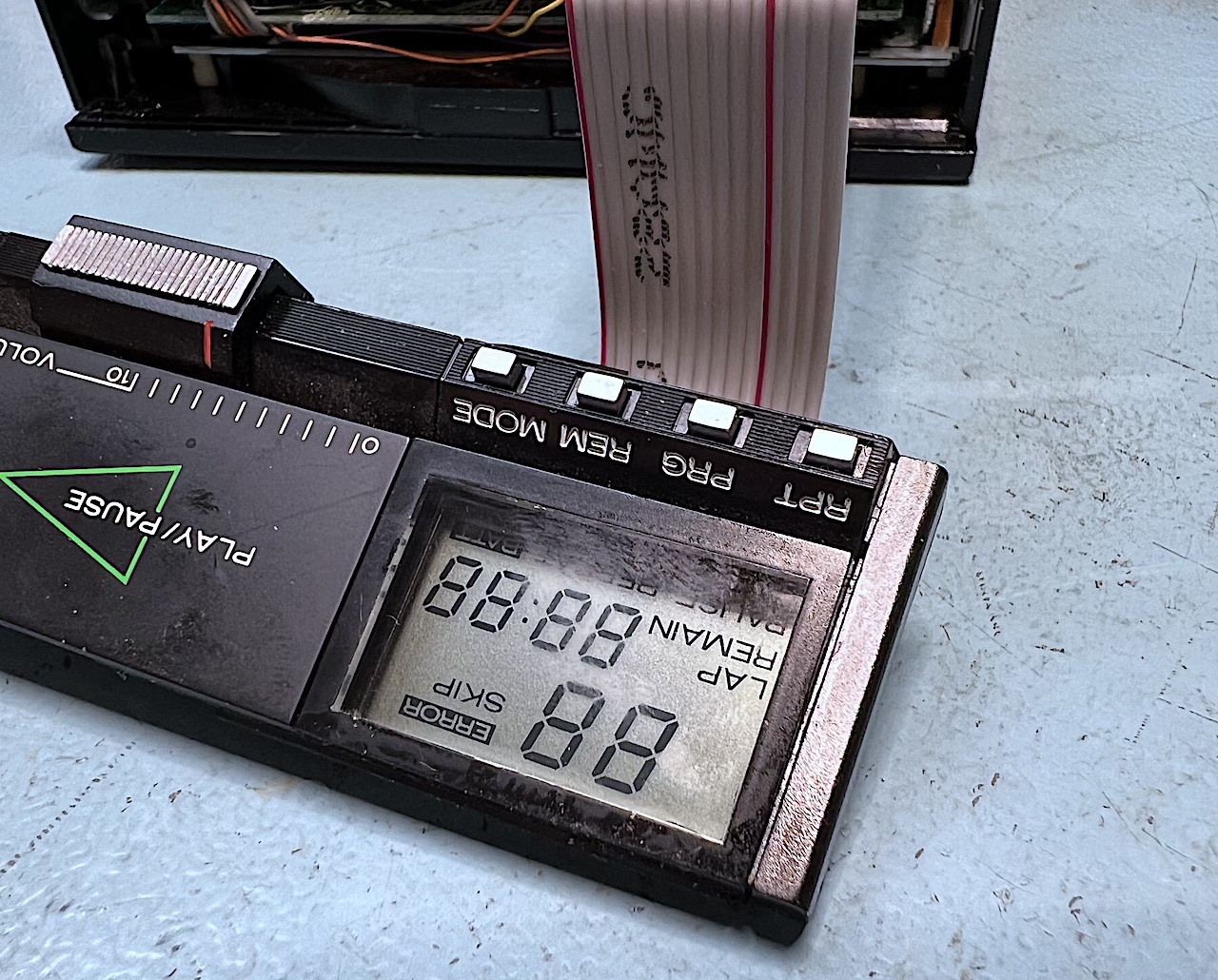

Oh no, Flexfoil traes apart ,;-(

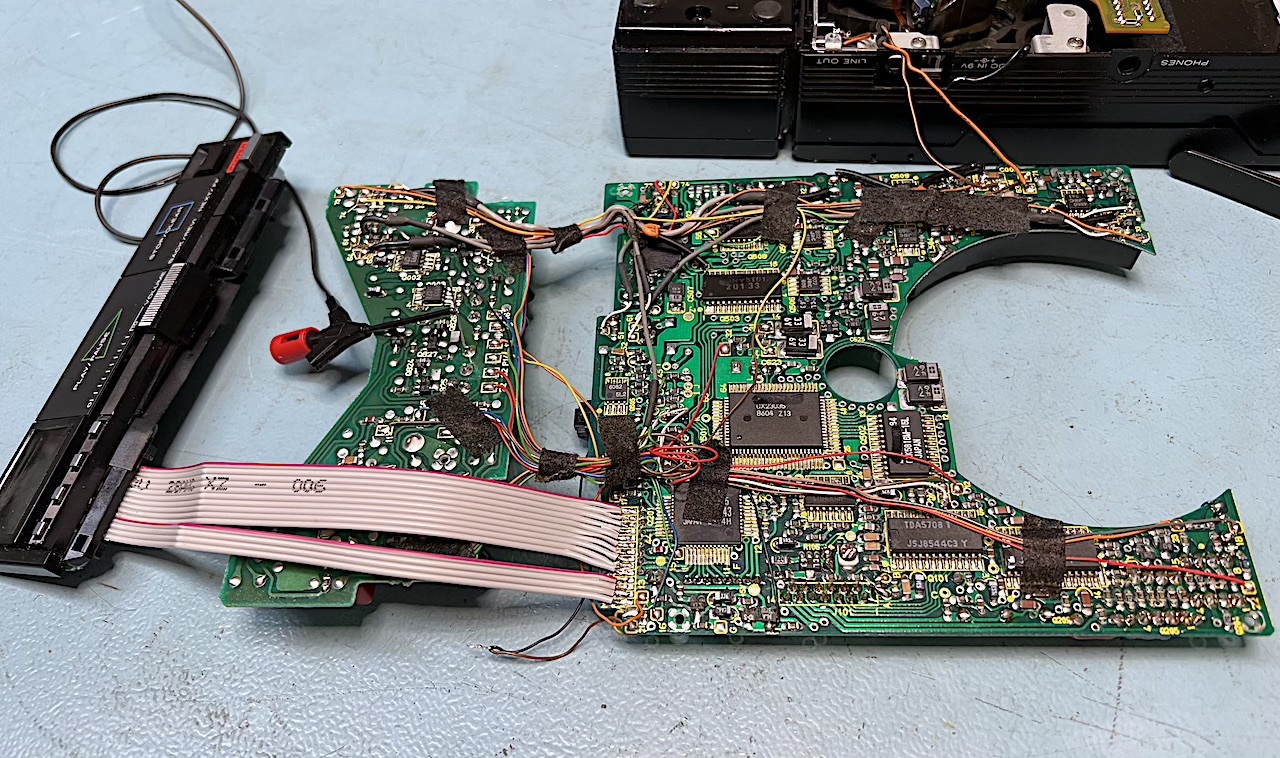

Quickfix

Troubleshooting

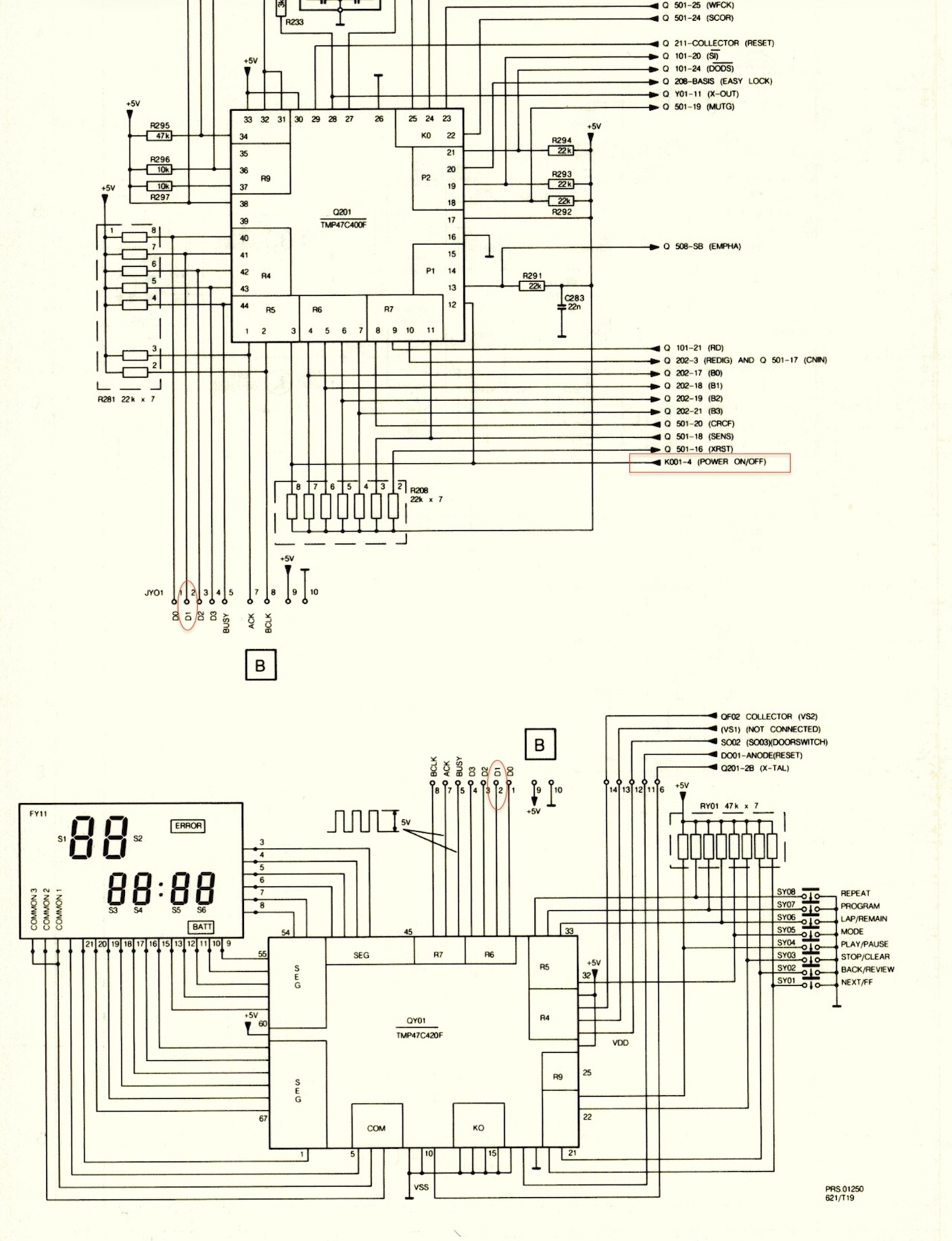

No connection between D1 of both processors , so no Power of/off to the powersupply

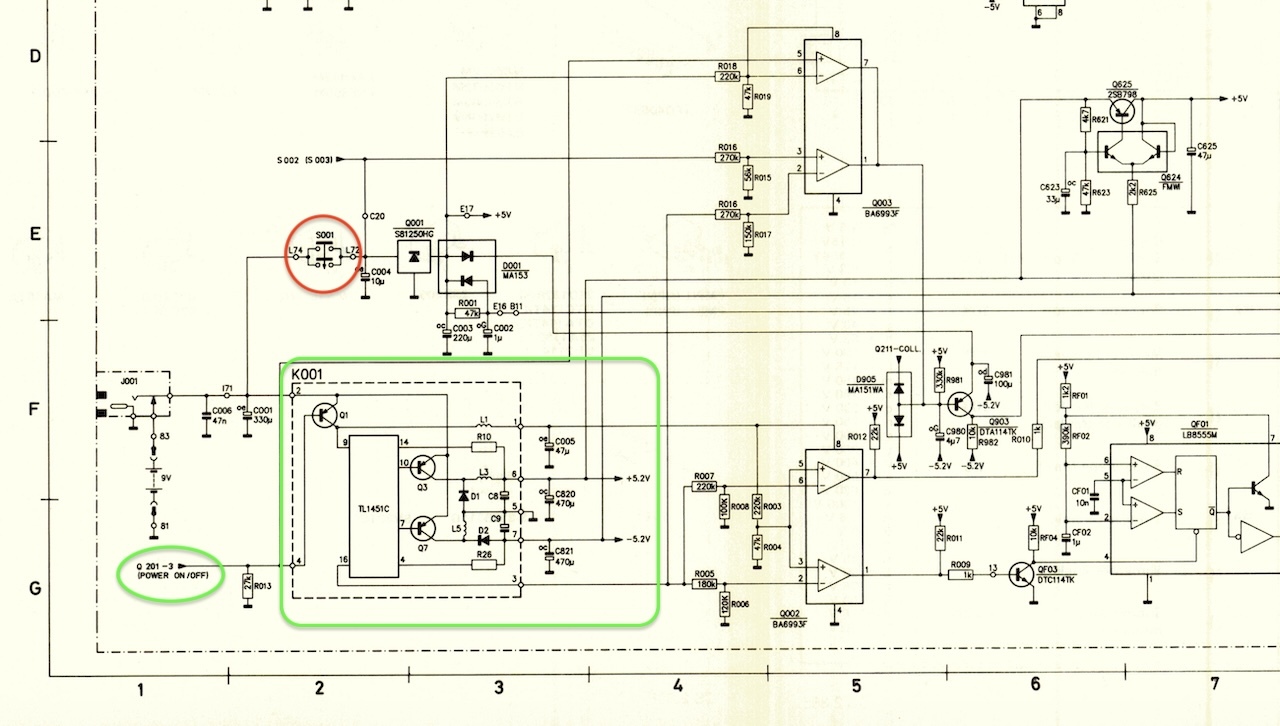

Mainswitch off the player , and processors controlled power on/off for +5.2 Volt en -5.2 Volt
