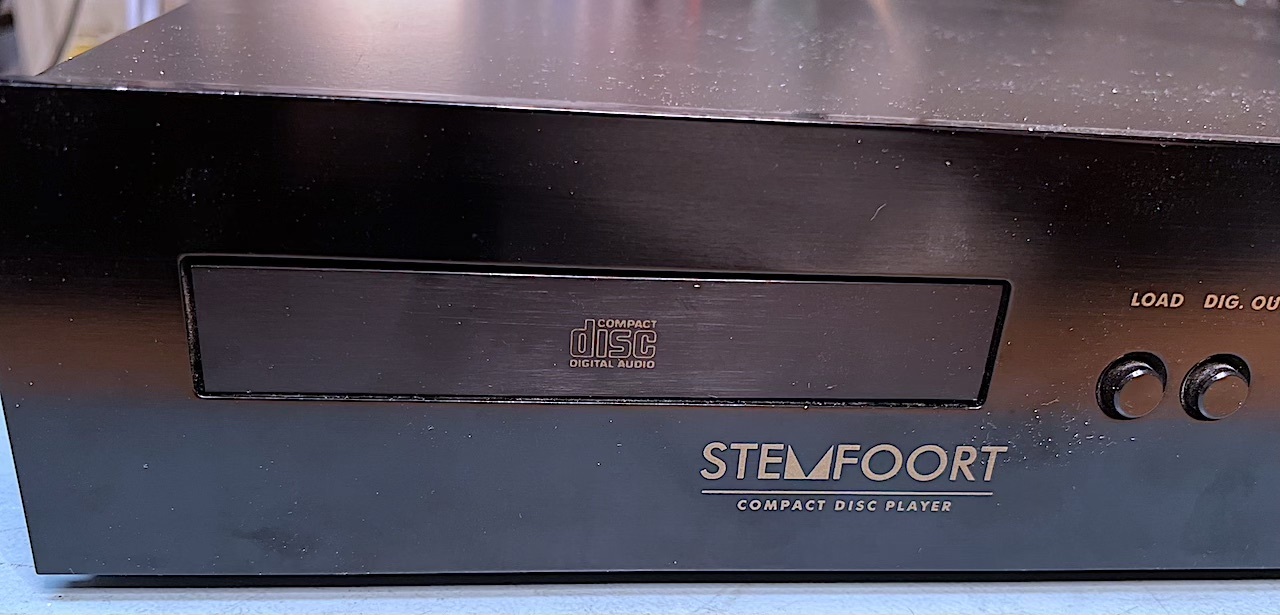

Stemfoort Compact Disc Player : no analog audio

The Stemfoort Compact Disc Player  is an Sugden SDT-1 copy

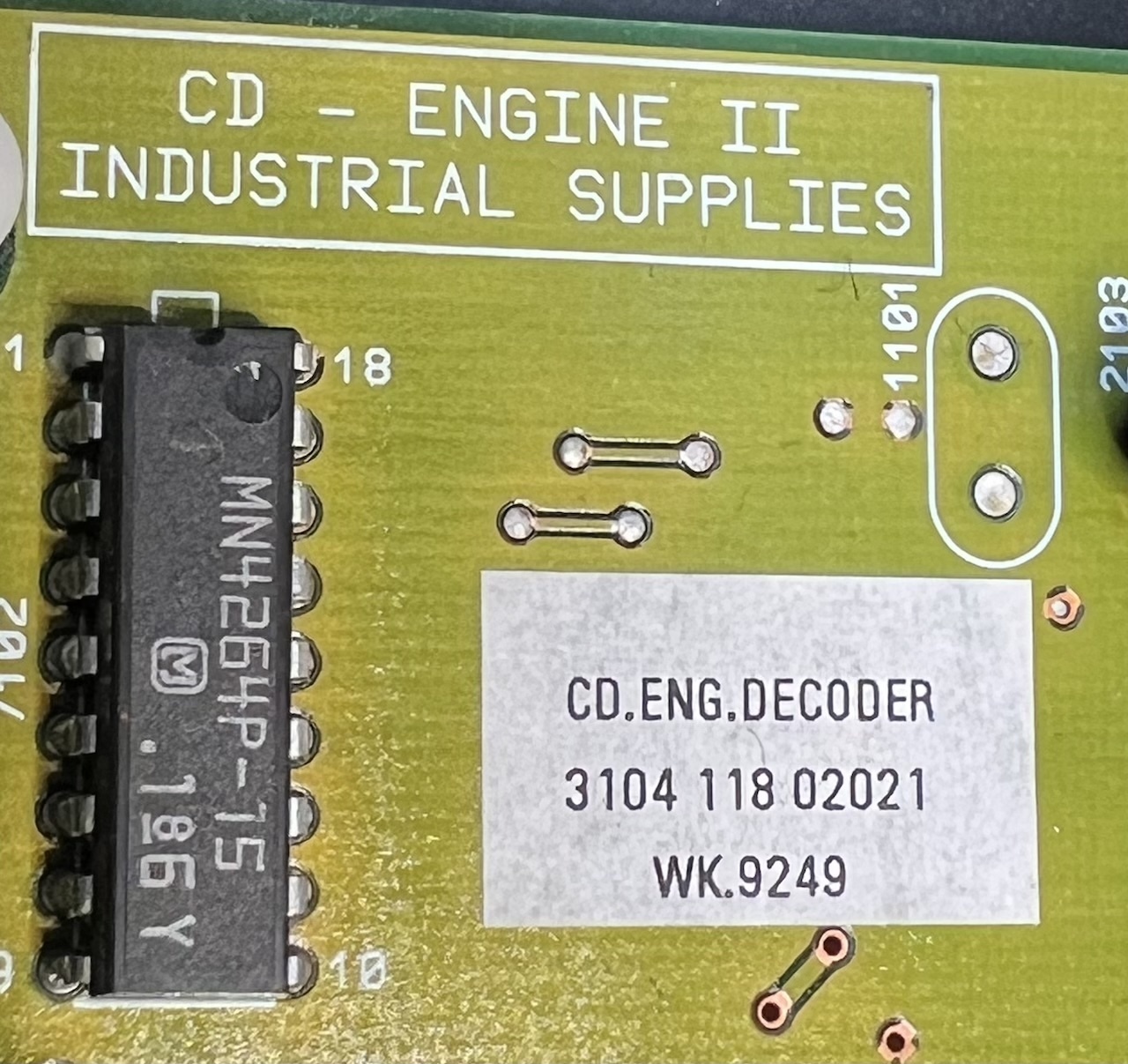

based on Philips “CD – ENGINE II INDUSTRIAL SUPPLIES”

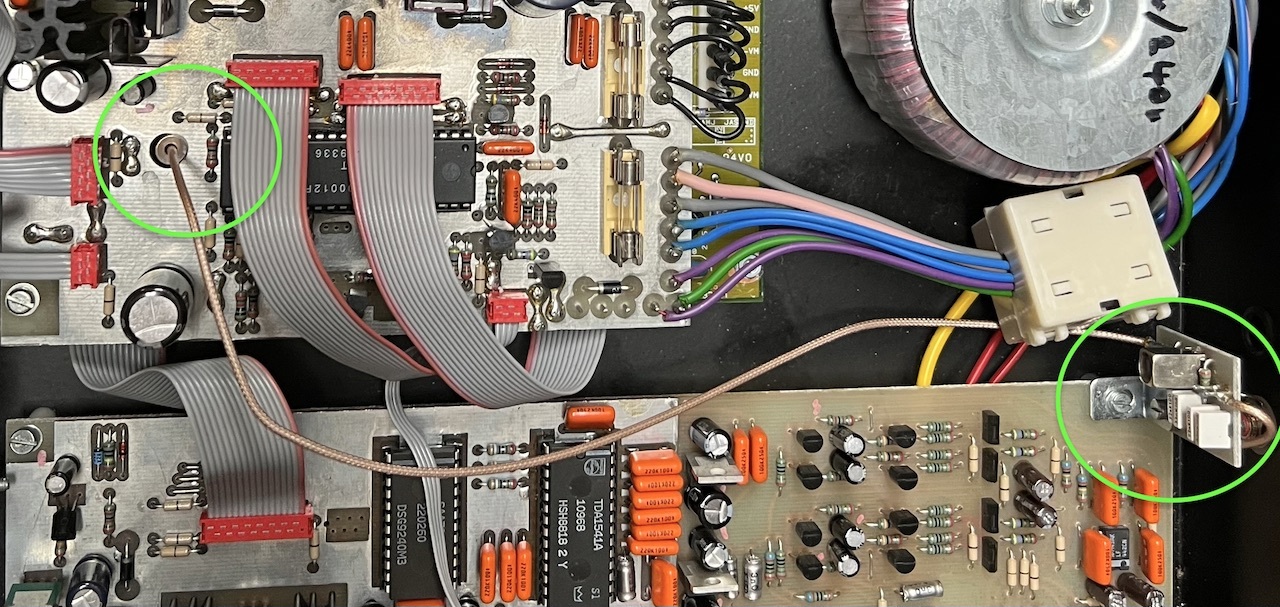

spdif connection ?!

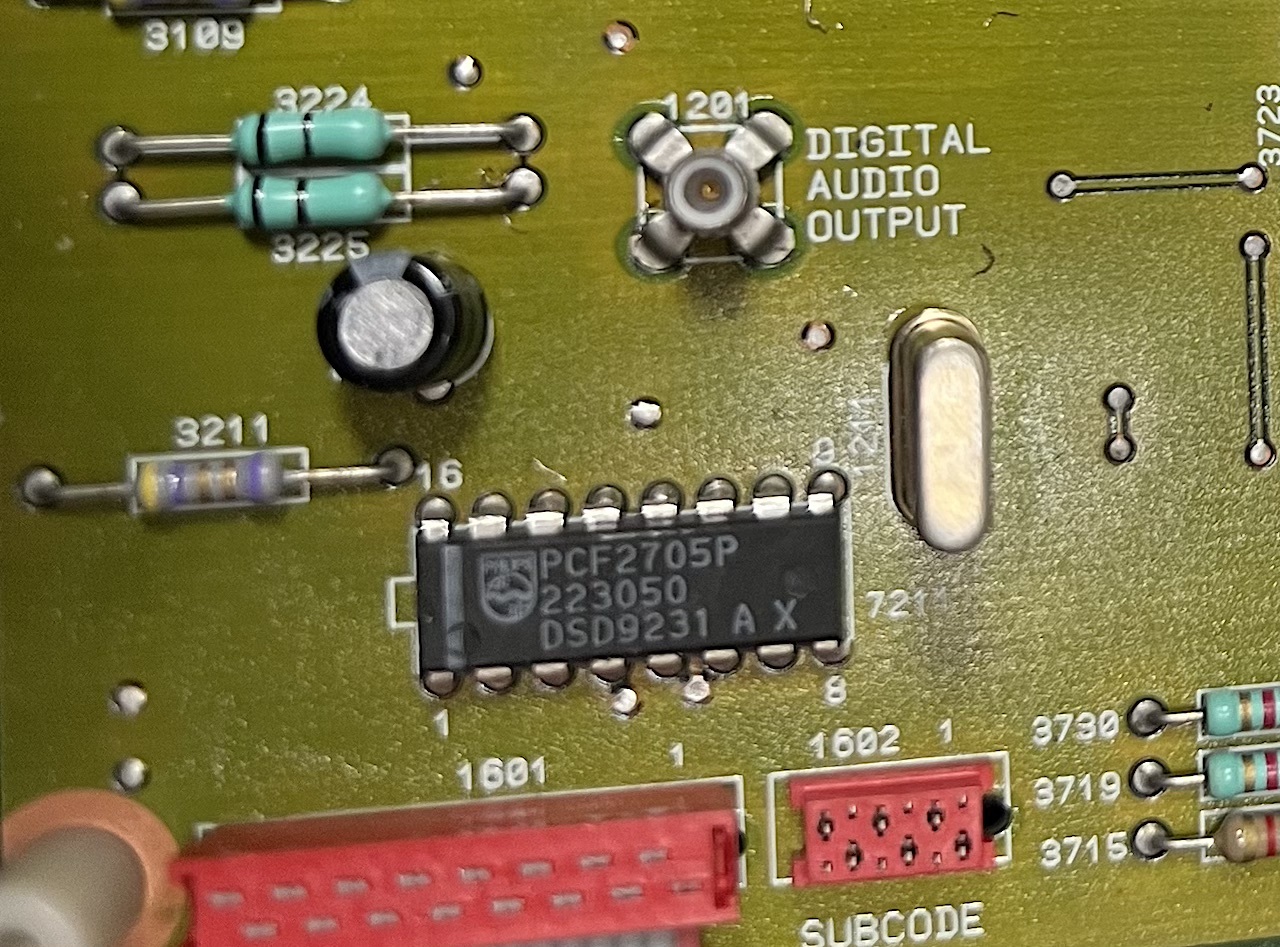

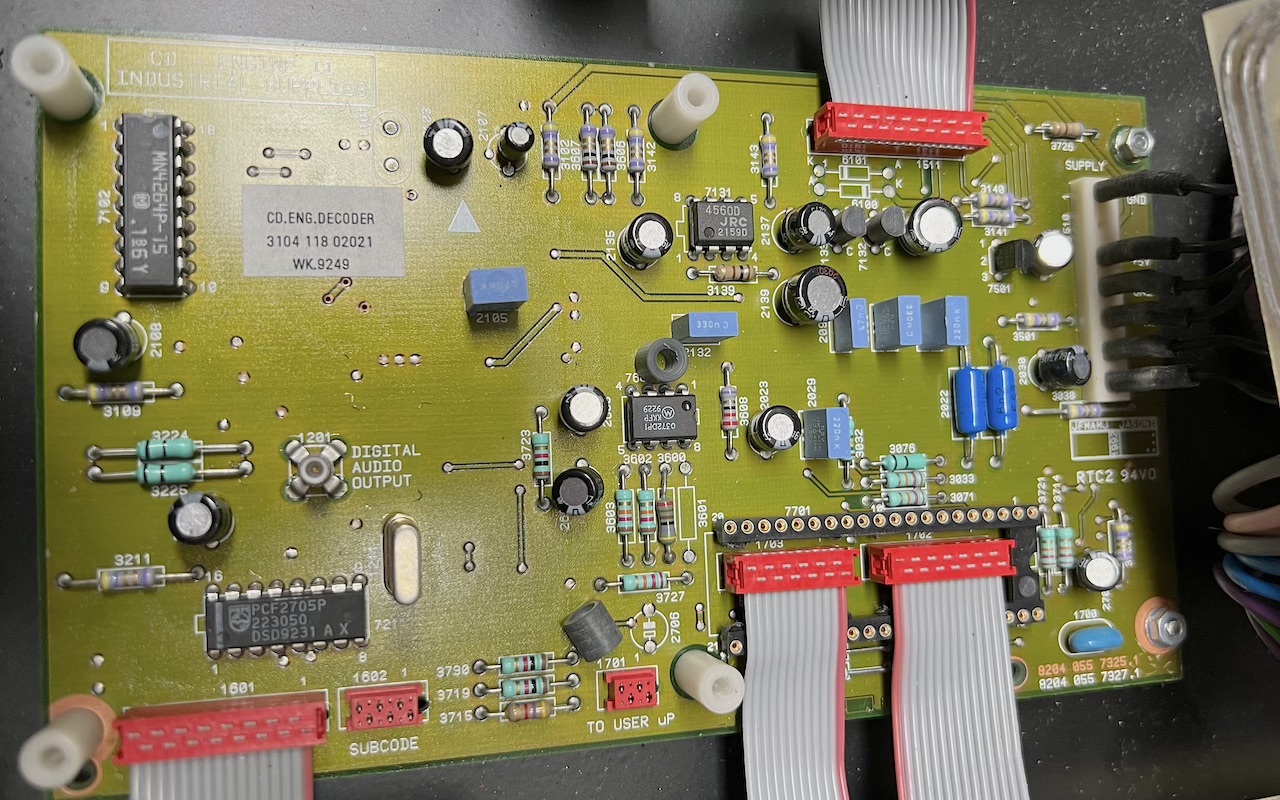

spdif from a PCF2705

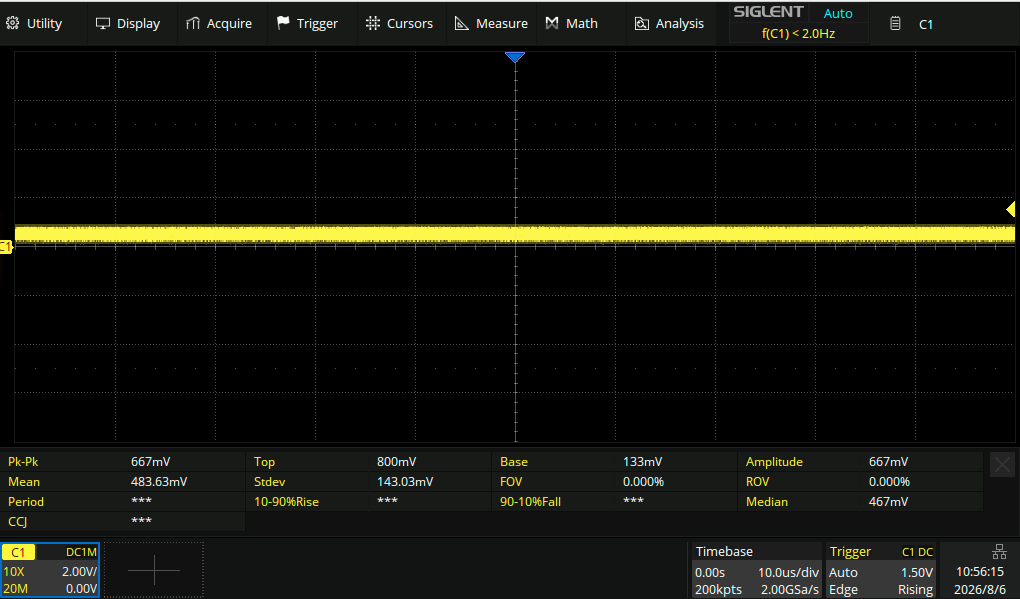

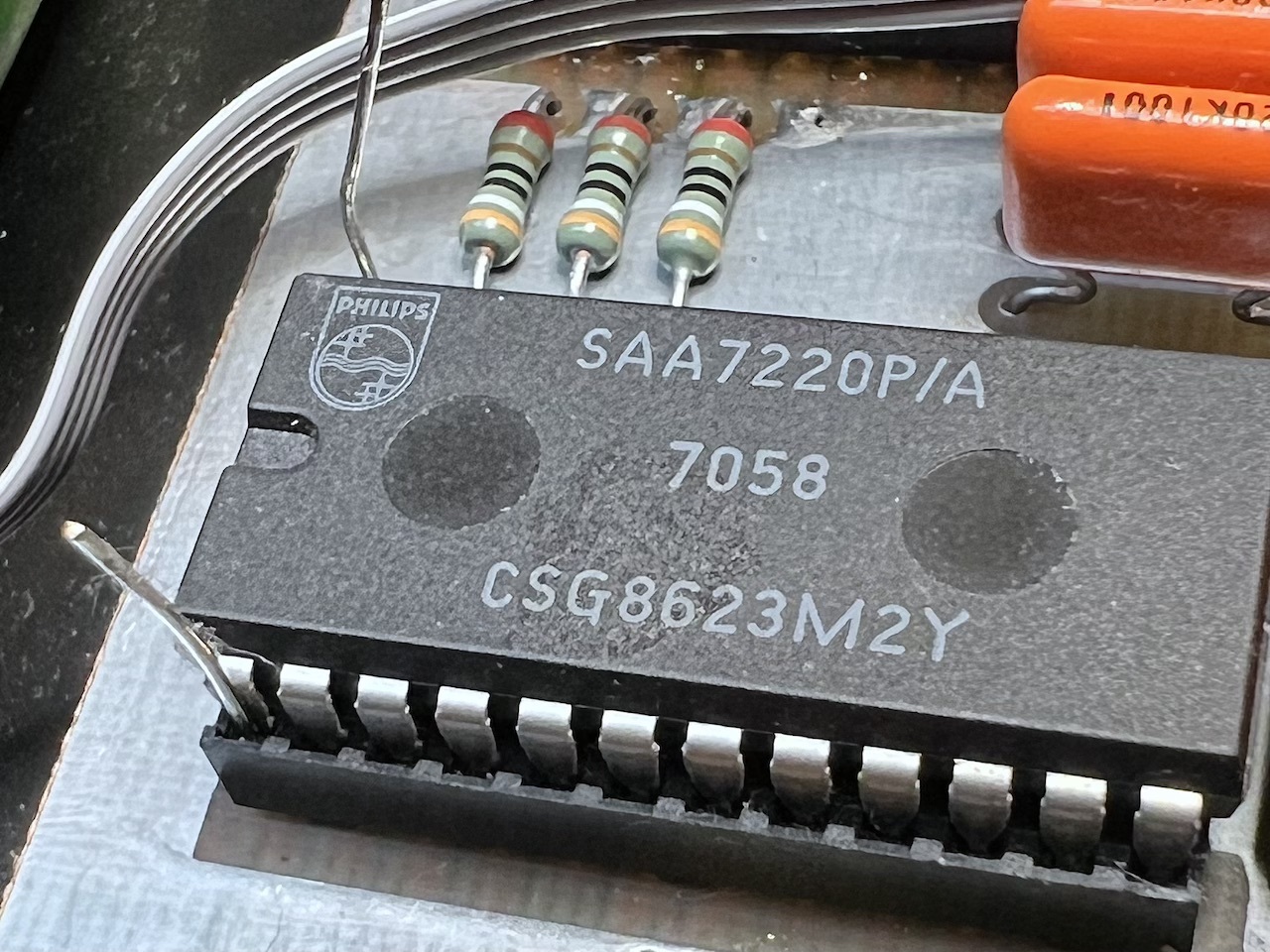

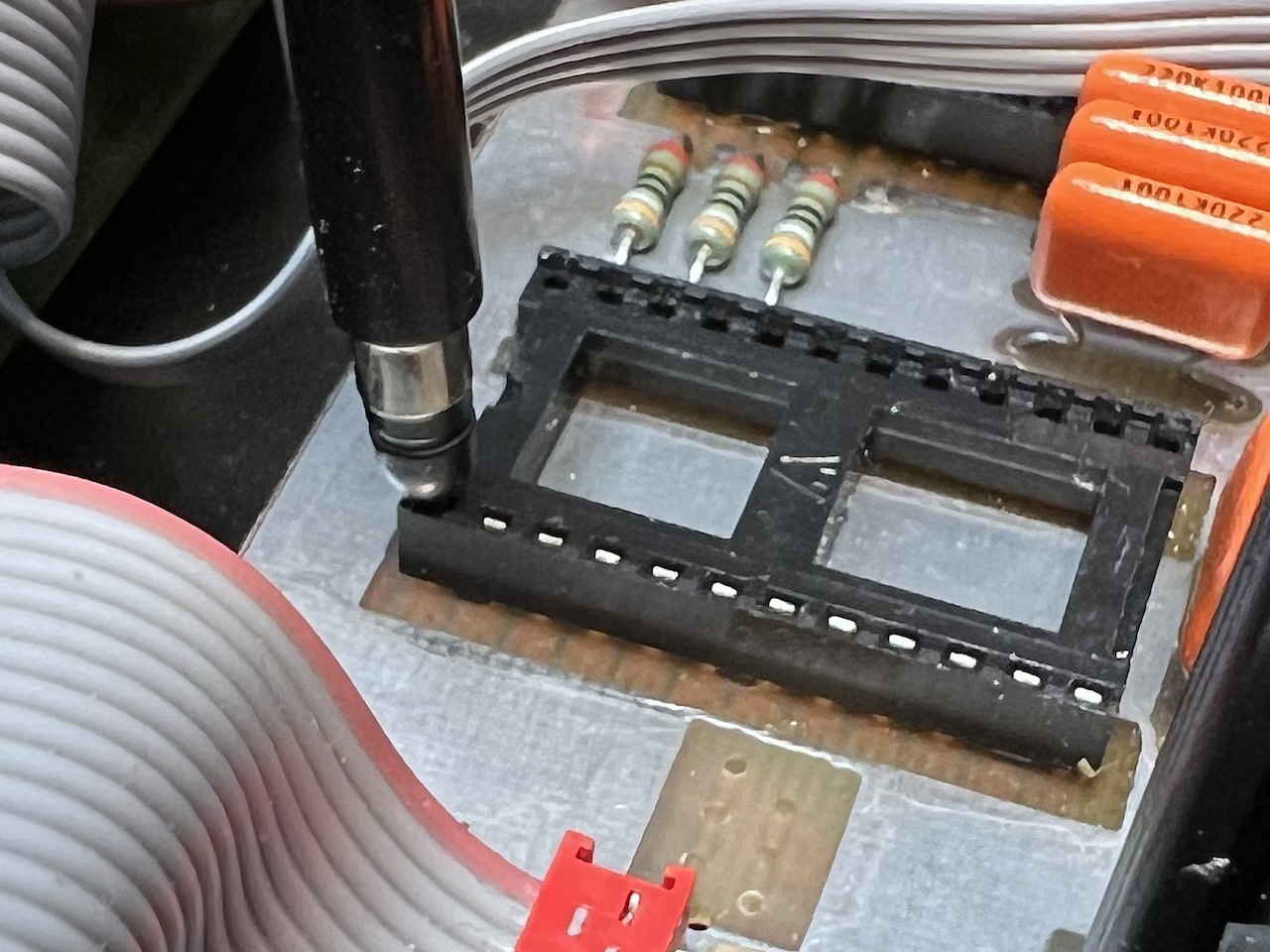

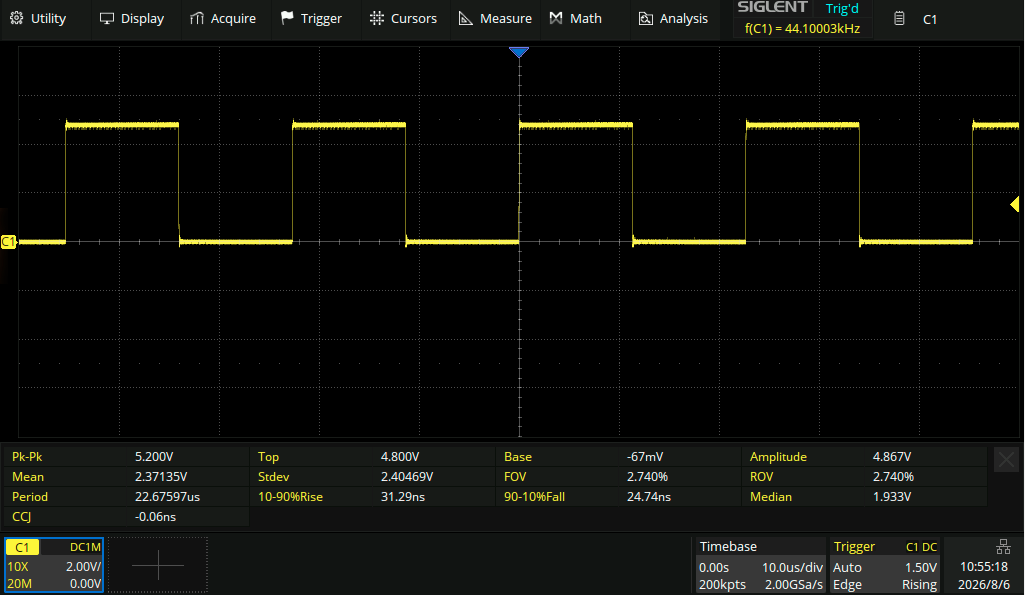

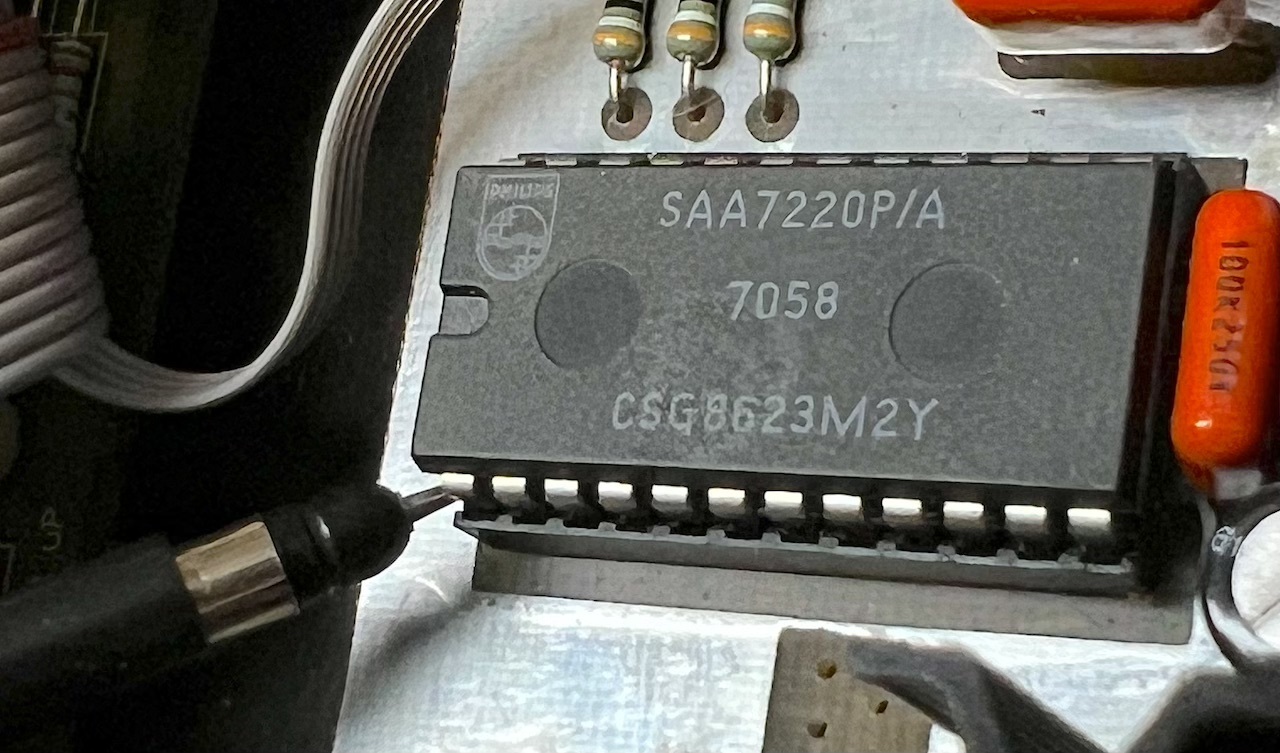

Lets check is there is signal going to the input of the SAA7220 on the Pins of the SAA7220 itself ?

No

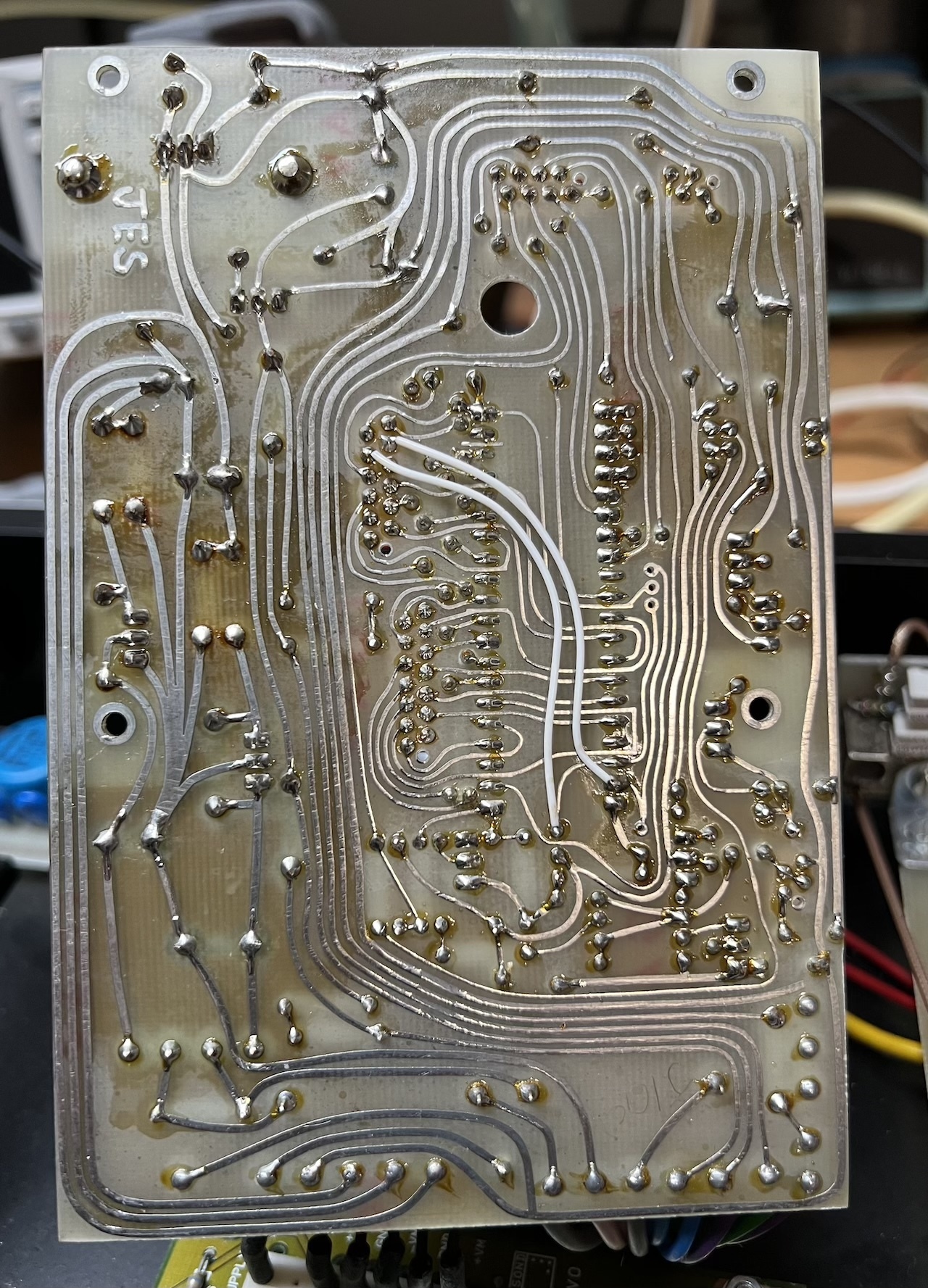

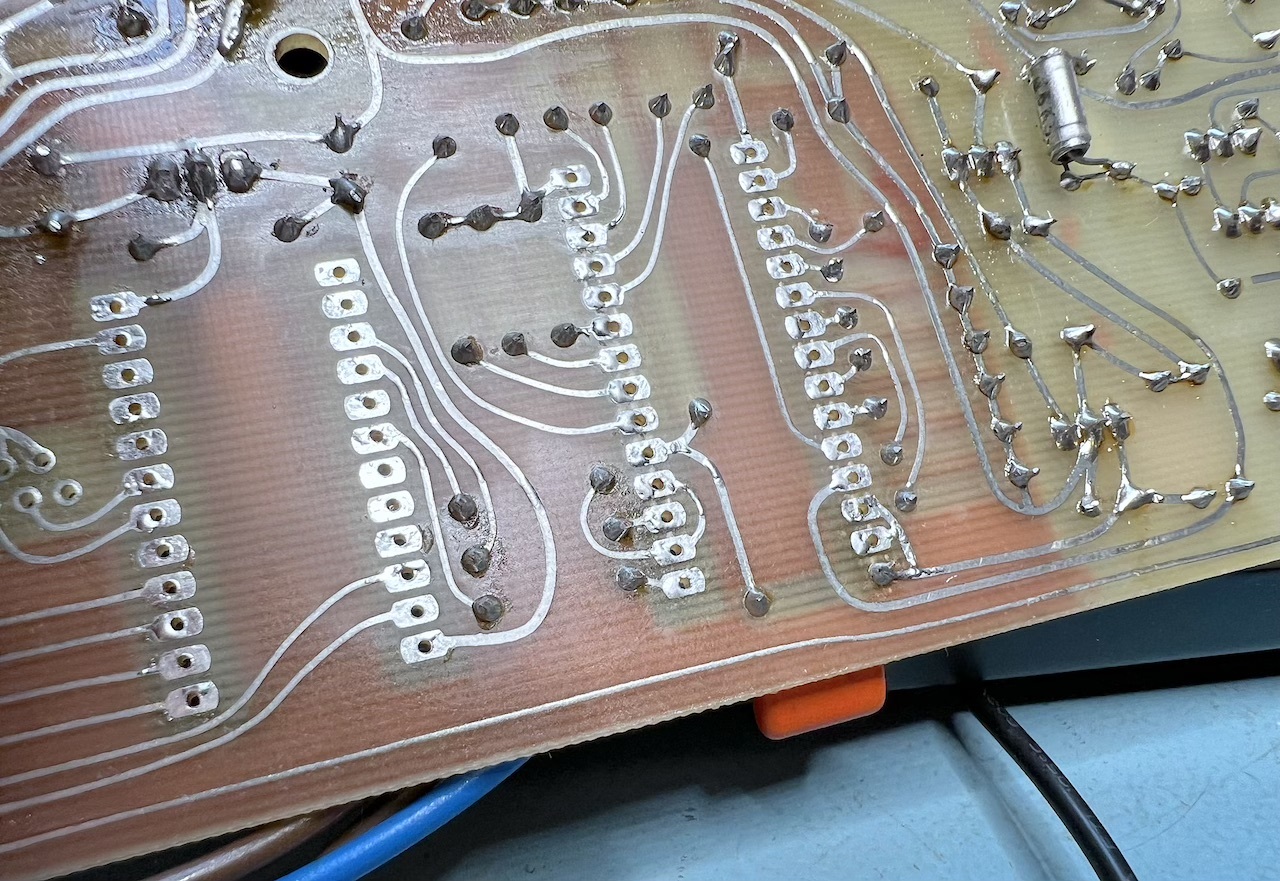

Bad connects ?!

Yes,  there it is

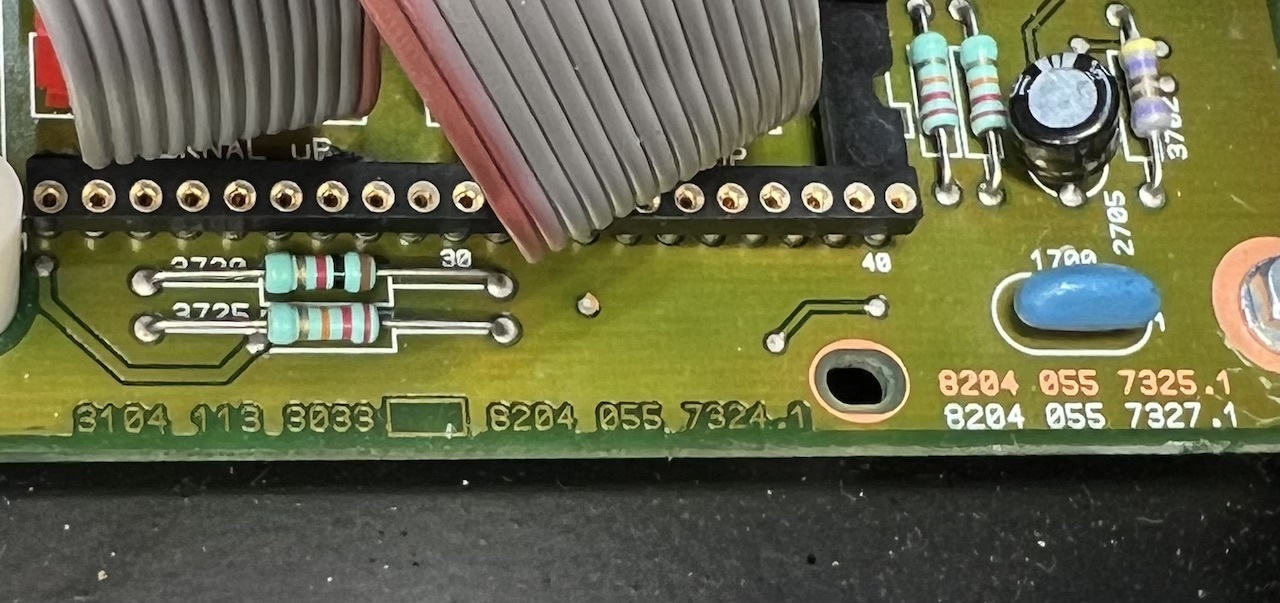

Had to add 5 pins to get signal to the TDA1541A 😉

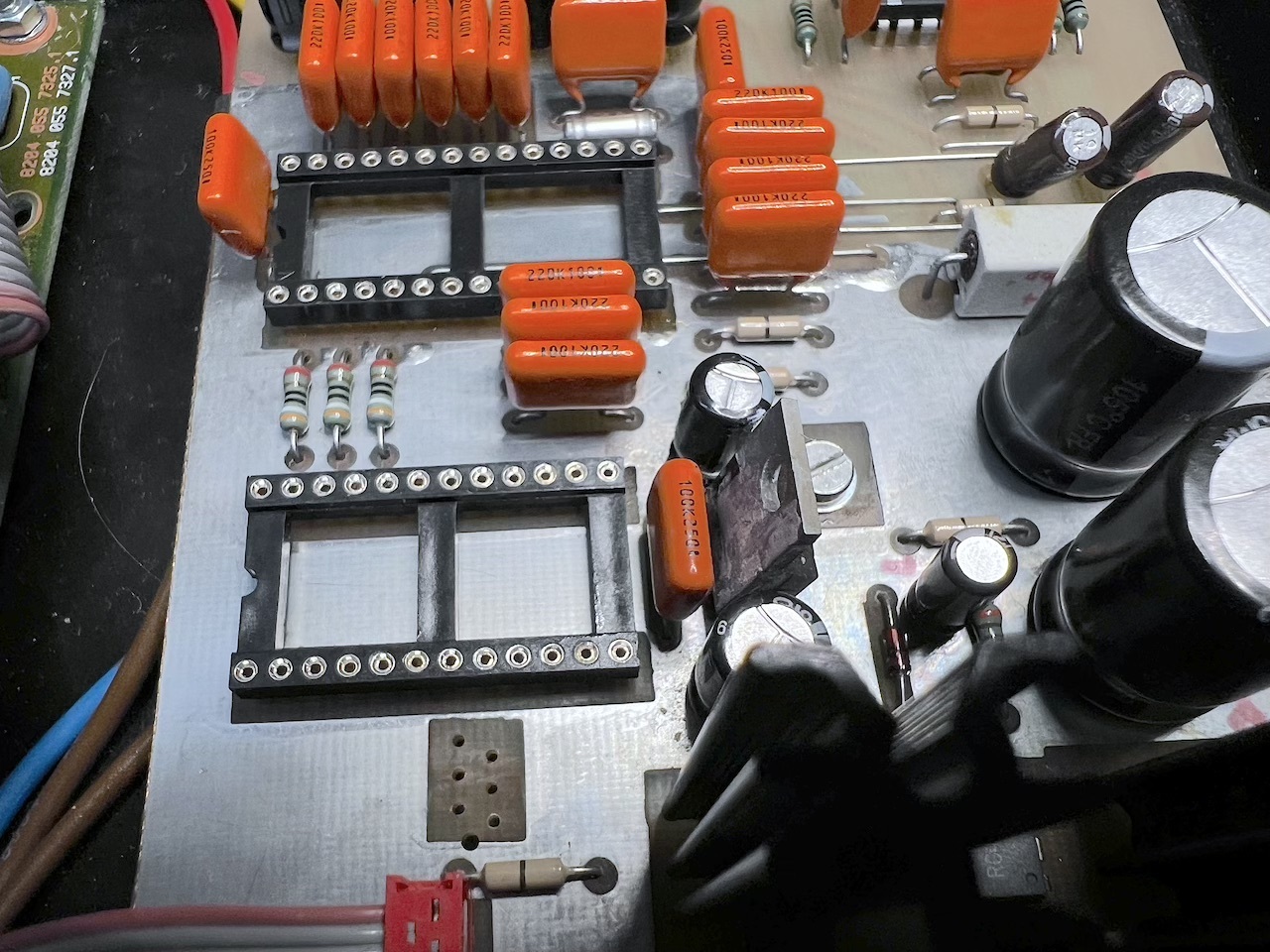

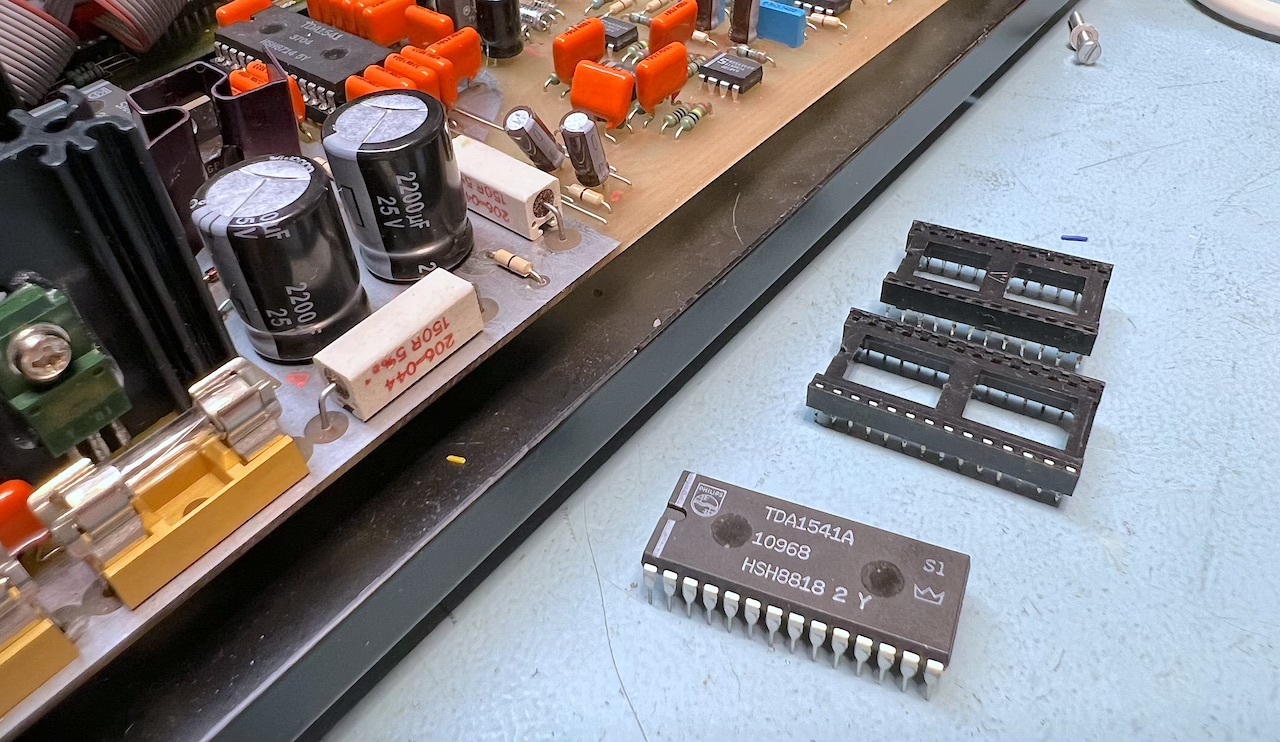

Replaces the IC-sockets

Better i think 😉

Also the TDA1541(A) S1  is faulty ;-(

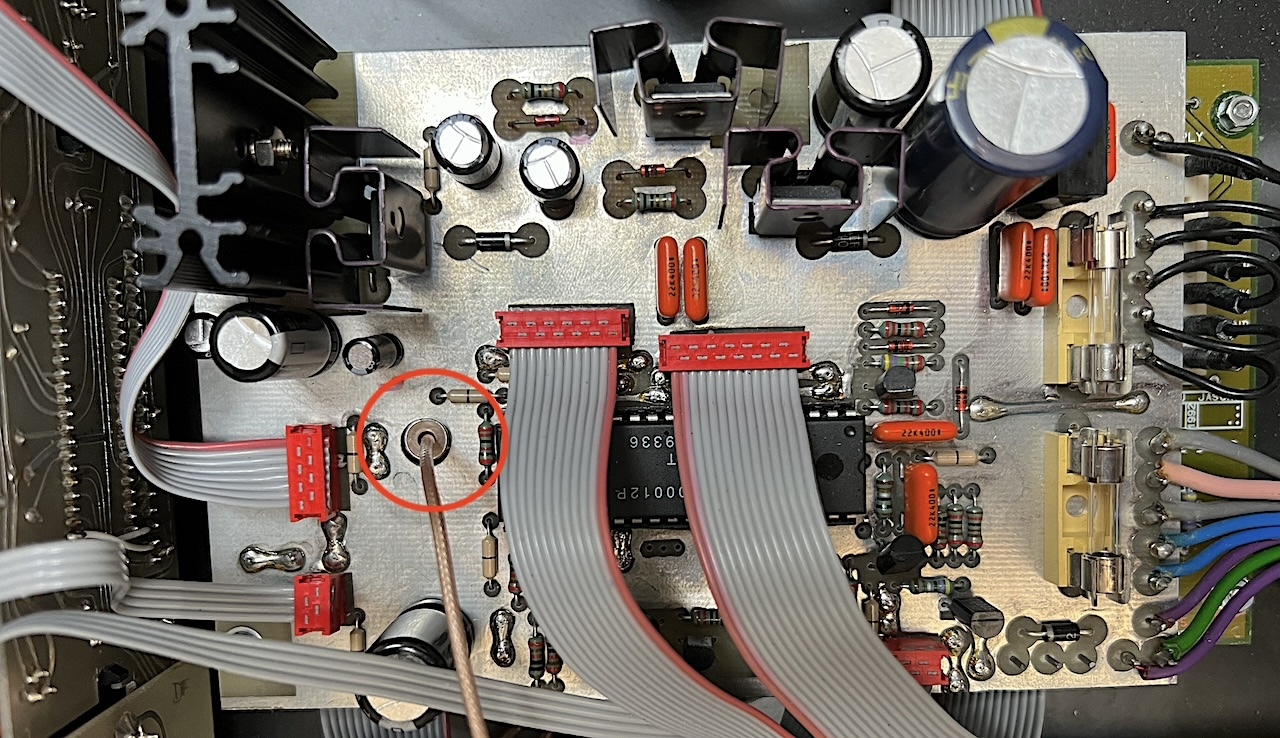

The spdif connector

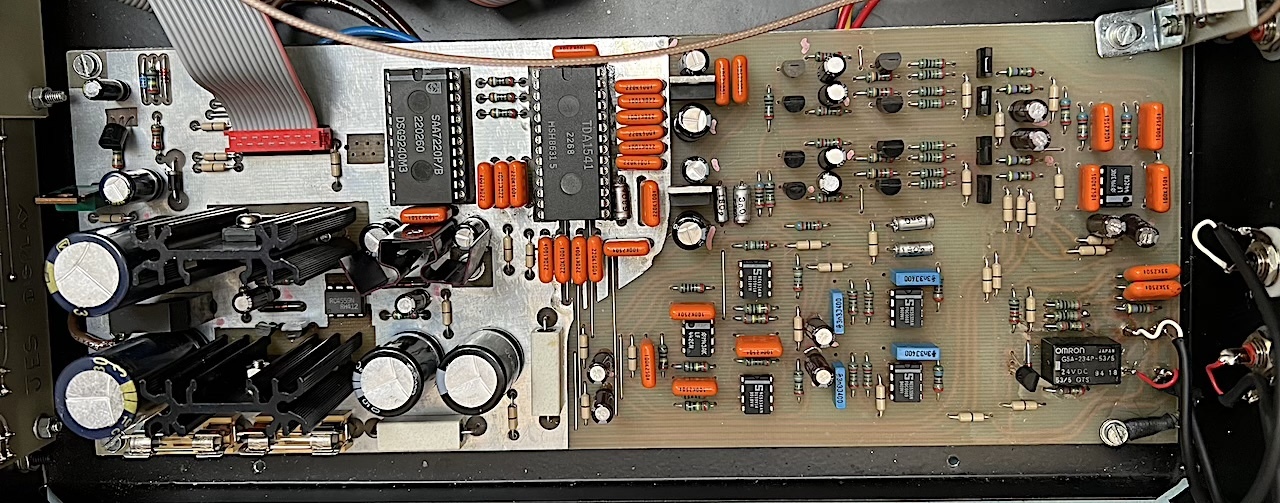

Working Board board with test TDA1541
