CD 16 Measurements

by · Published · Updated

Marantz CD 16 with 8x Oversampling SM5803 –>  SAA7350GP @384x FS  –> Dual  TDA1574  @384x FS

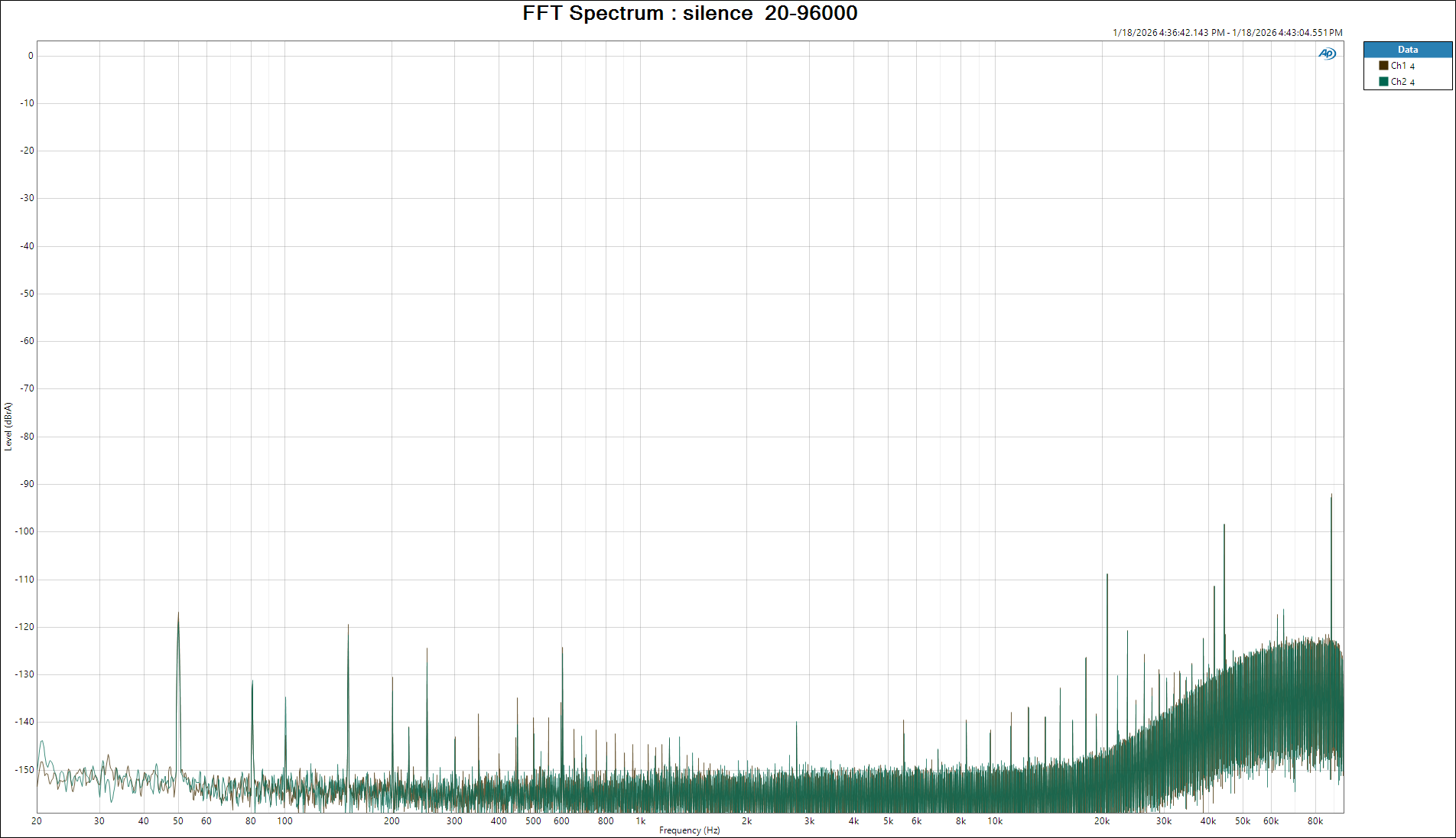

  • Player plays track with no audio

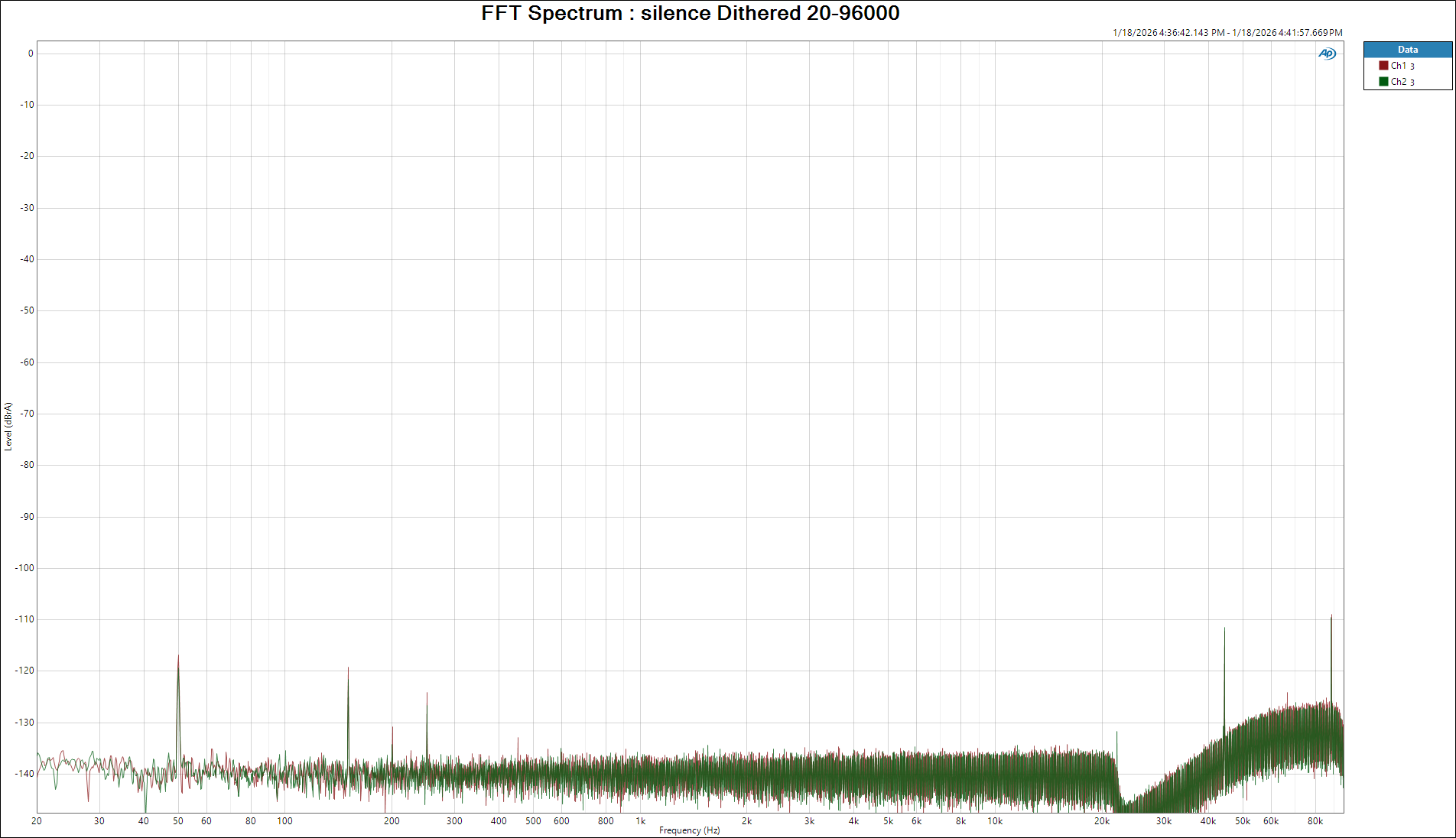

  • Player plays track with silence dithered

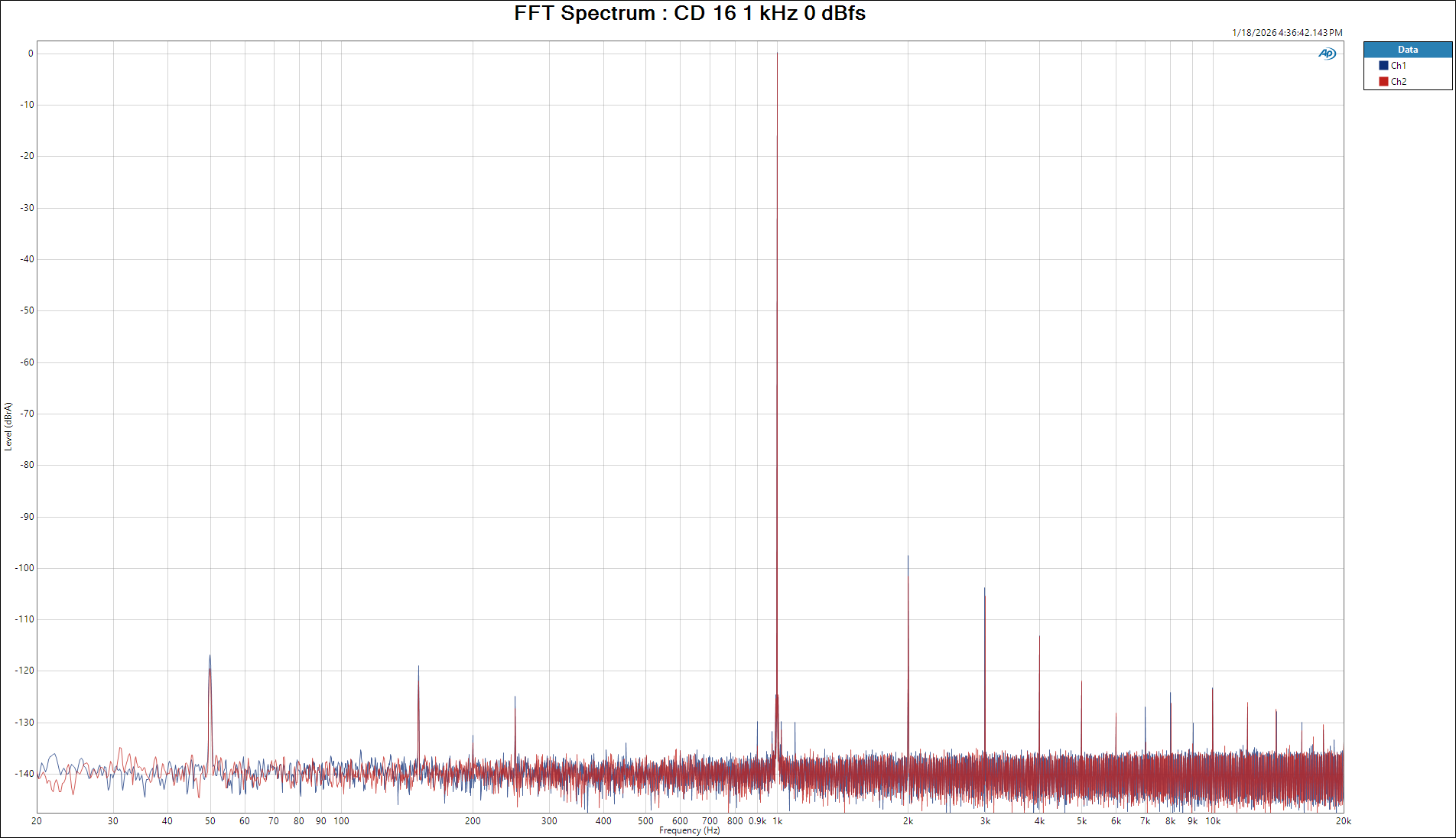

  • 1 kHz at 0 dB full scale

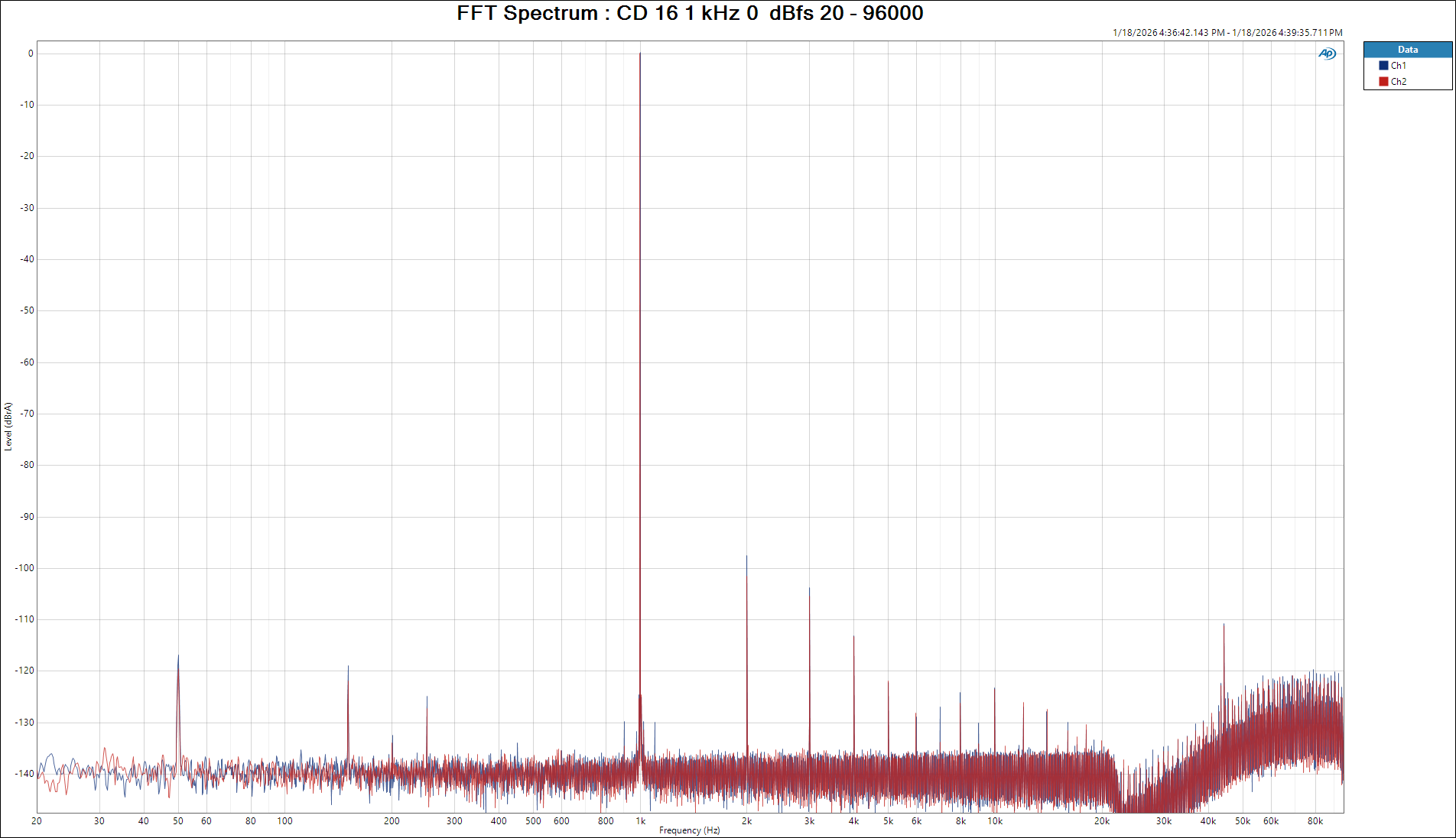

  • 1 kHz at 0 dB full scale

  • 1 kHz at 0 dB full scale

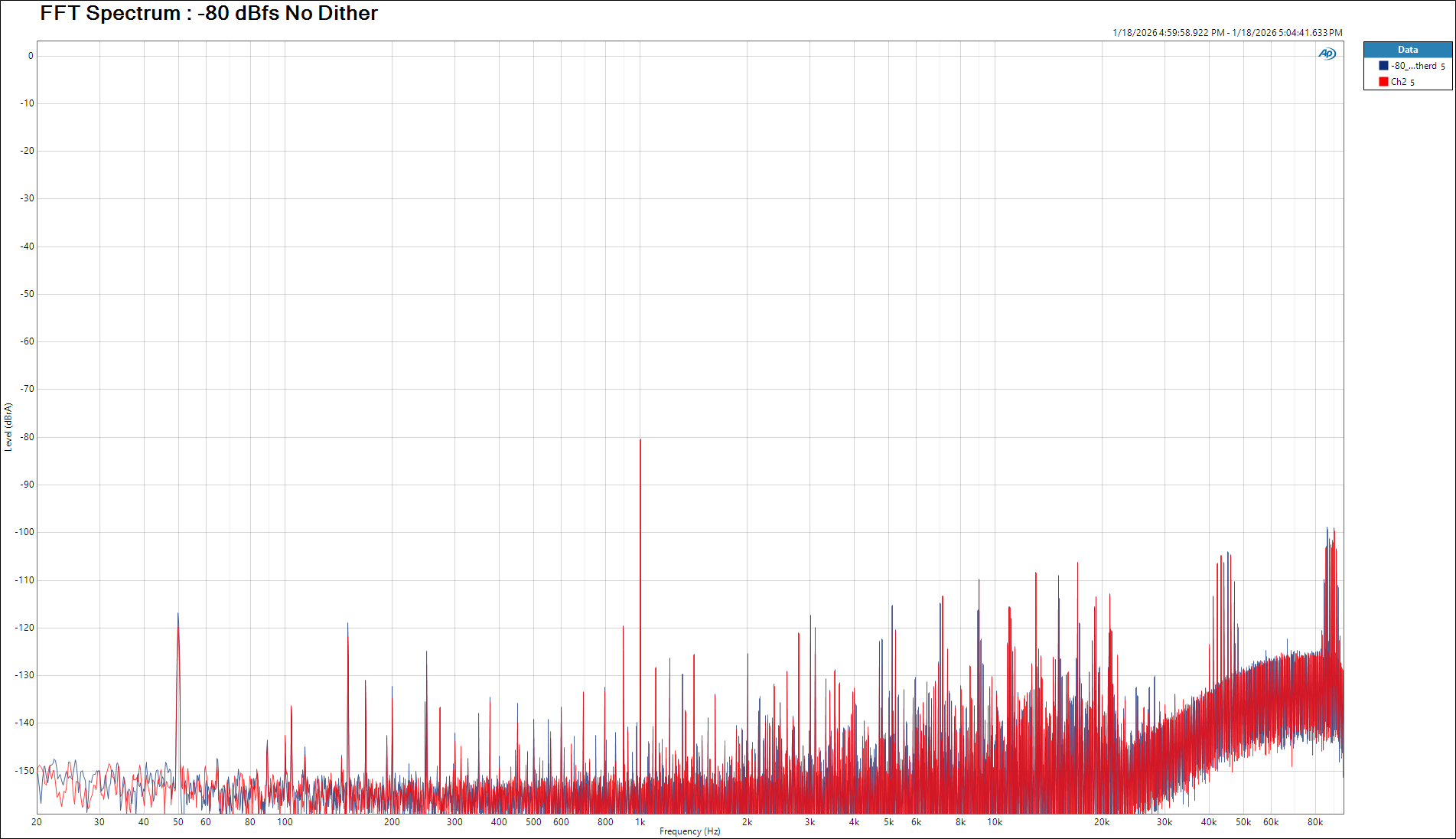

  • 1 kHz at -80 dB full scale no Dither

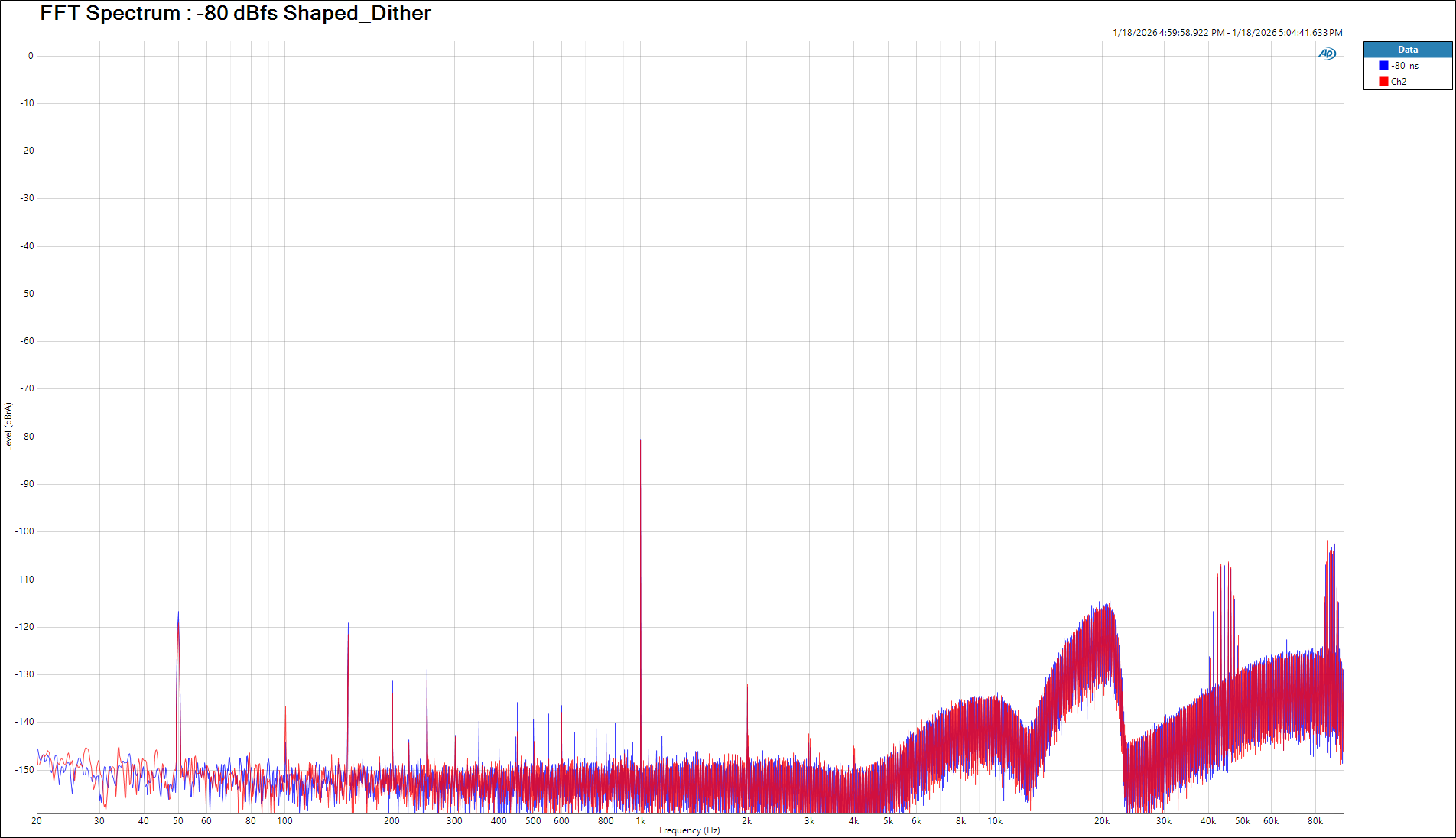

  • 1 kHz at -80 dB full scale shaped Dither

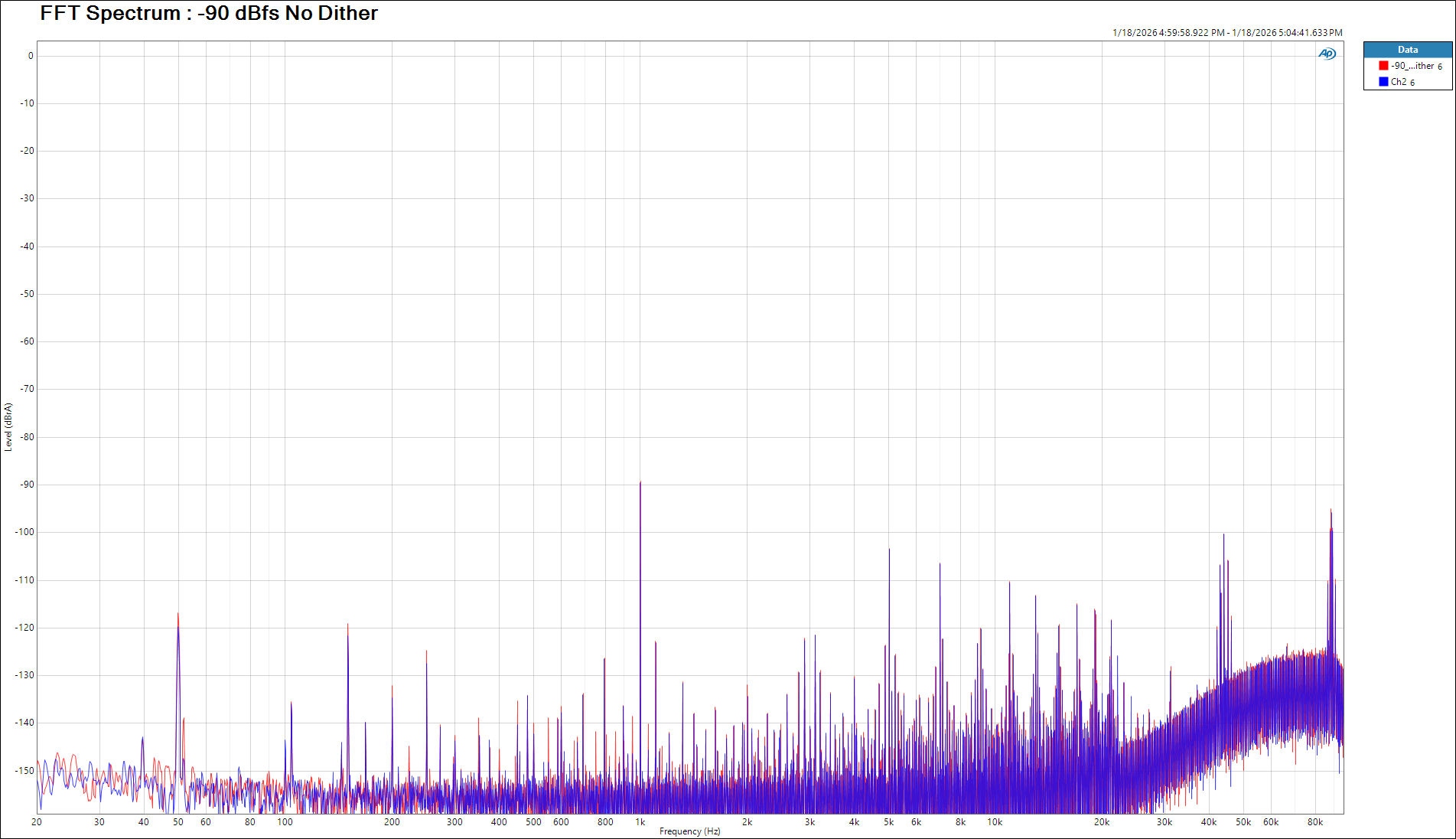

  • 1 kHz at -90 dB full scale no  Dither



  • 1 kHz at -90 dB full scale shaped Dither

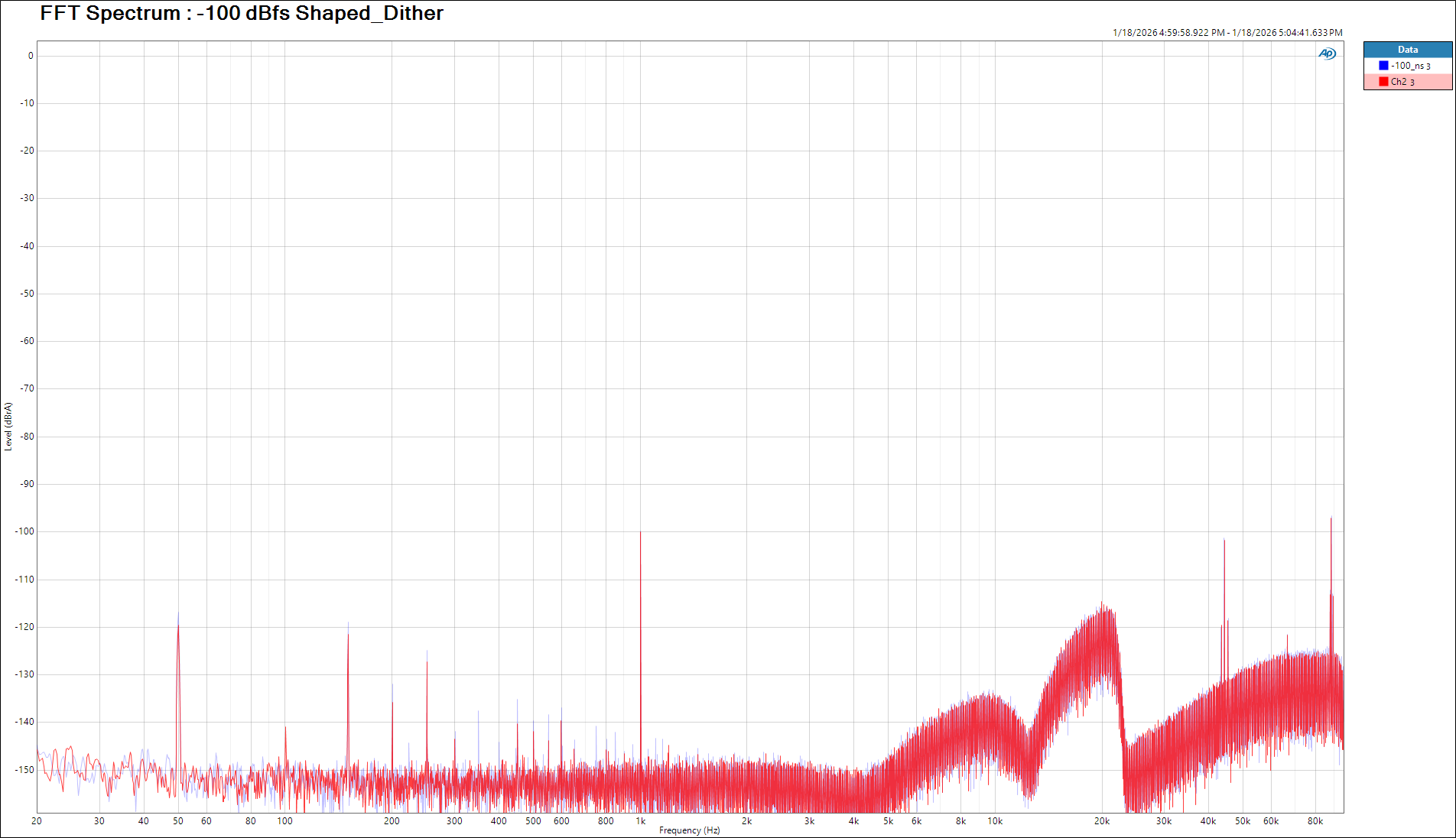

  • 1 kHz at -100 dB full scale shaped Dither

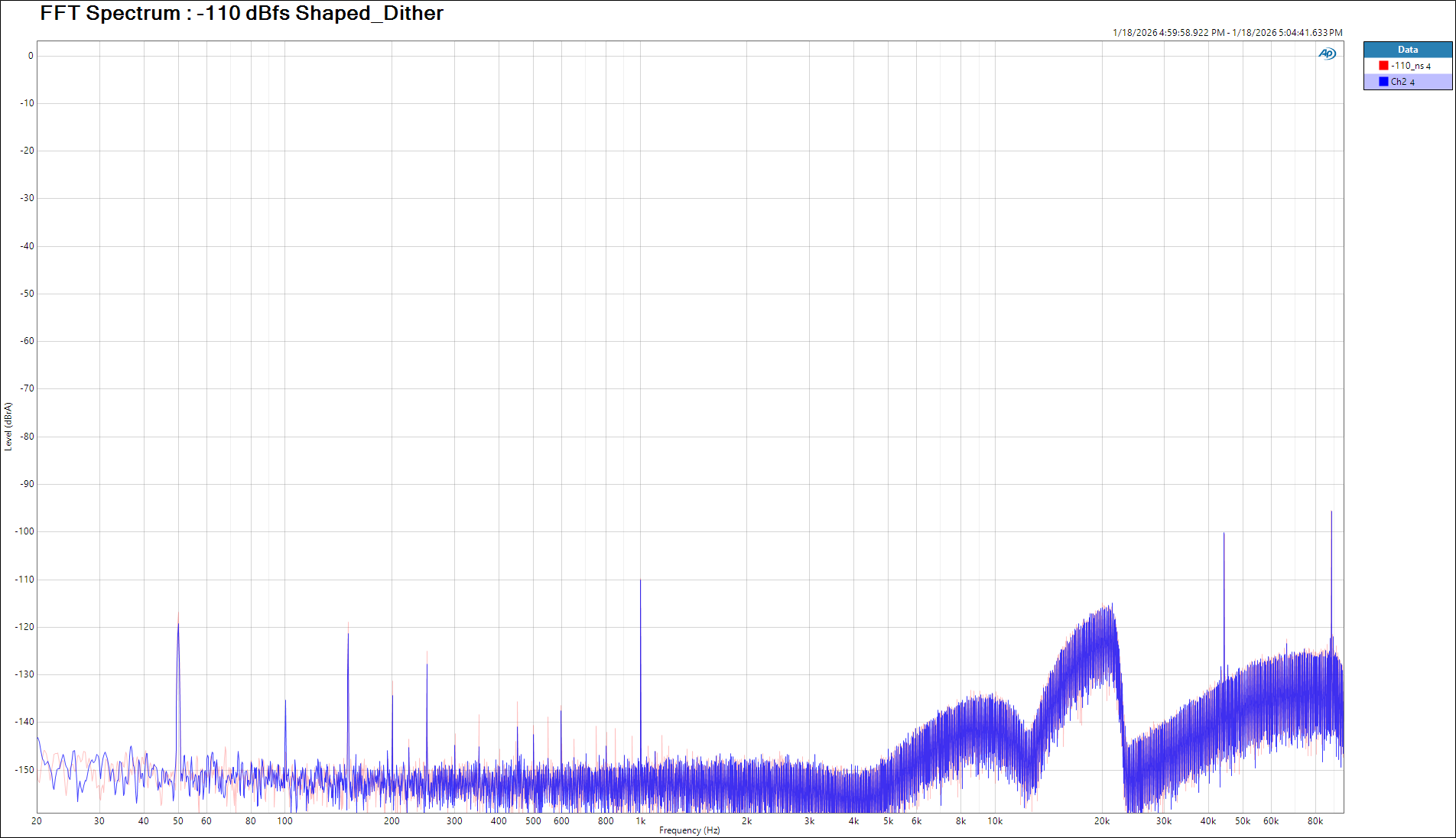

  • 1 kHz at -110 dB full scale shaped Dither

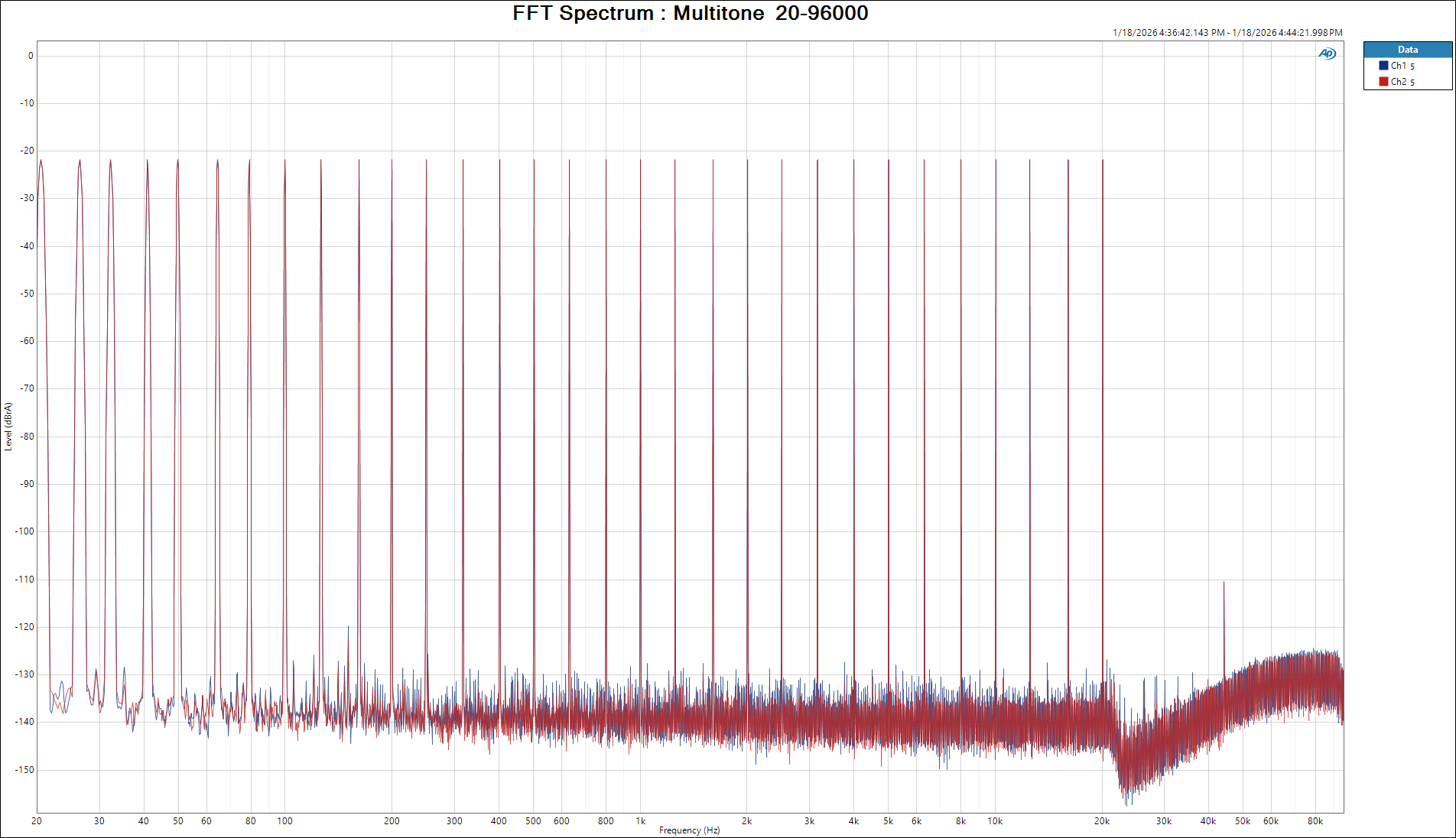

  • Multitone
