Sound Enhancer IS 5022 Mk ii + F3D Measurements

by · Published · Updated

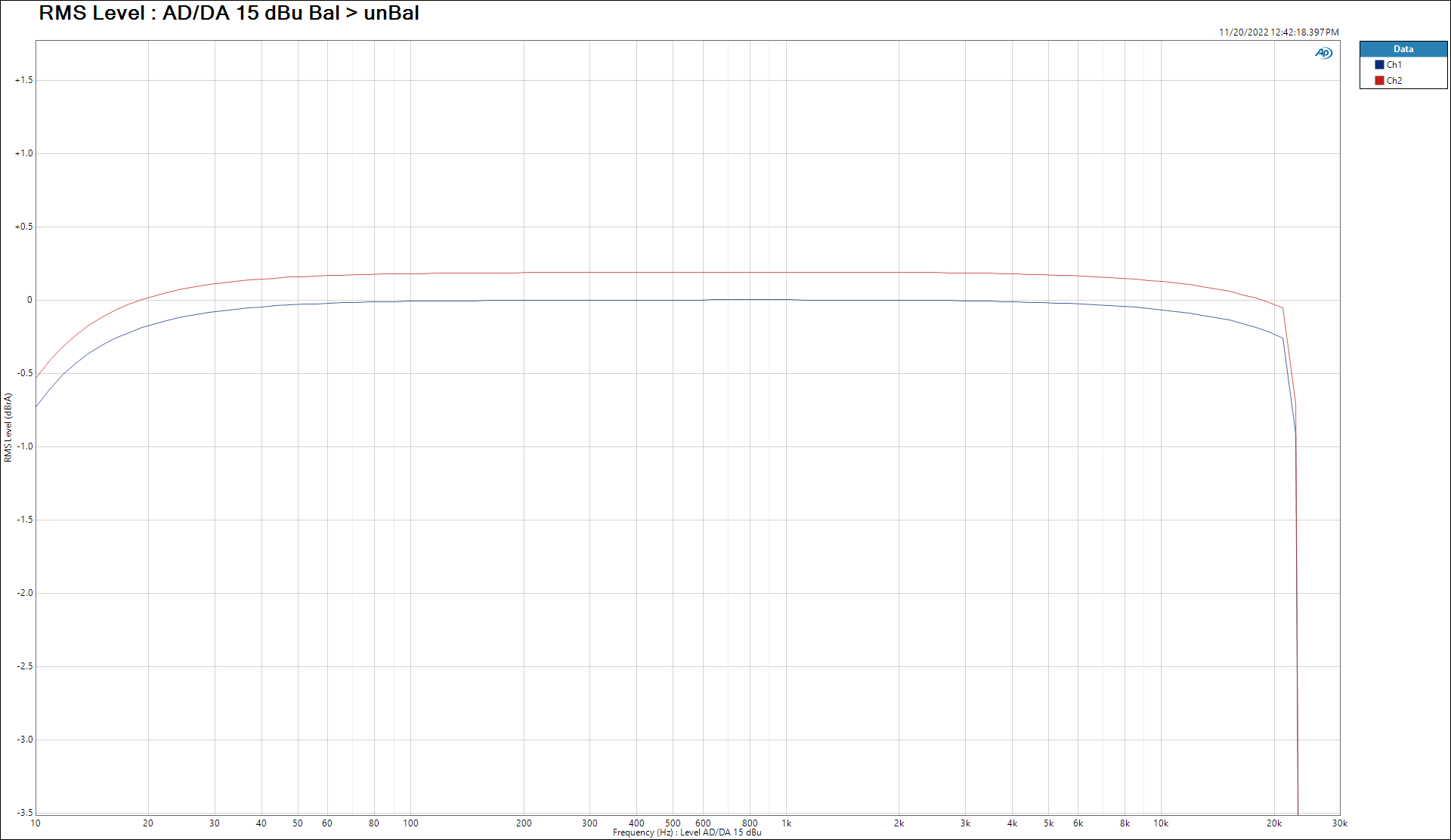

RMS Level : +15 dBu Balanced inputs to unbalanced out 48 kHz

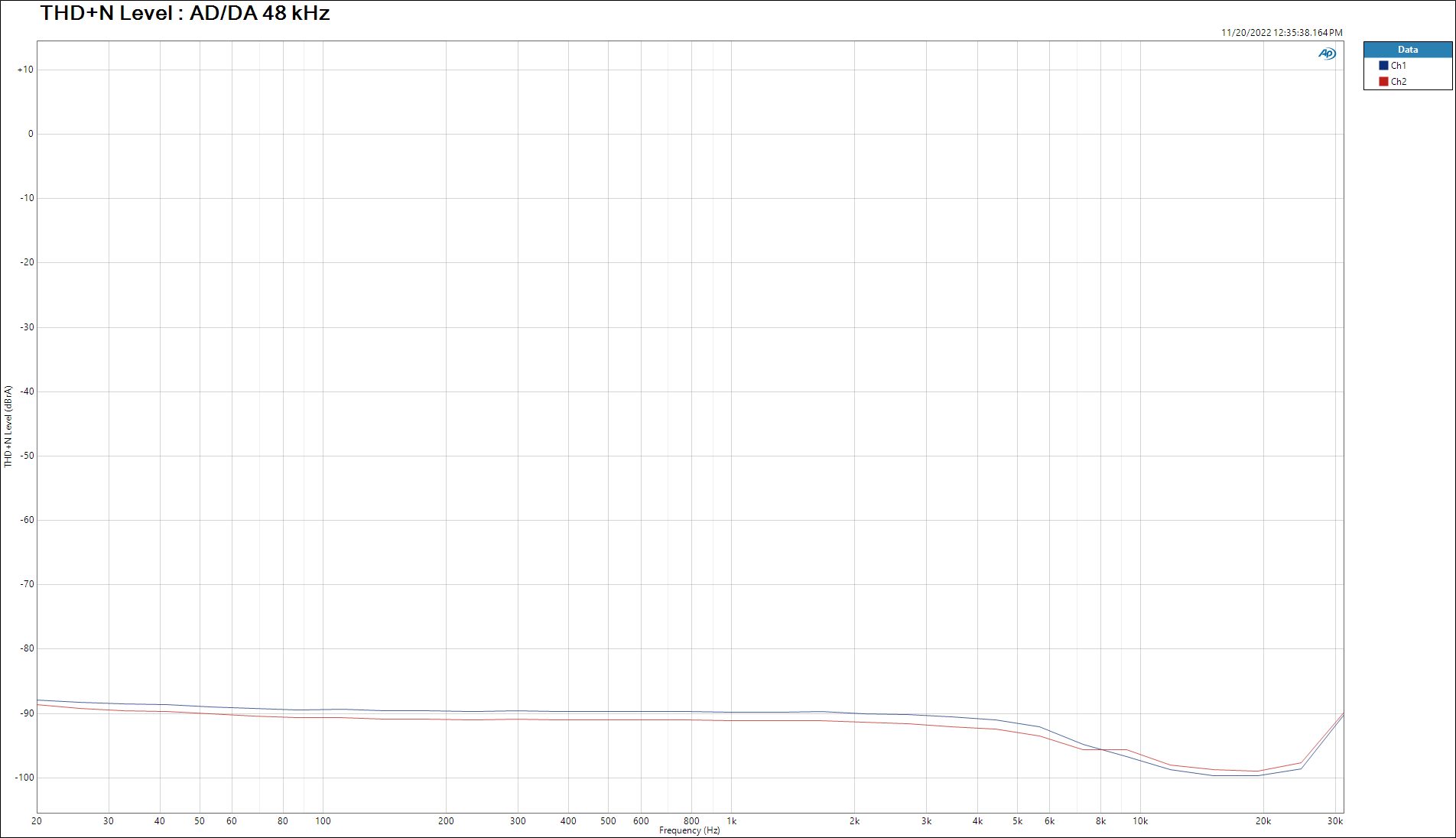

THD + Noise : +15 dBu Balanced inputs to unbalanced out 48 kHz

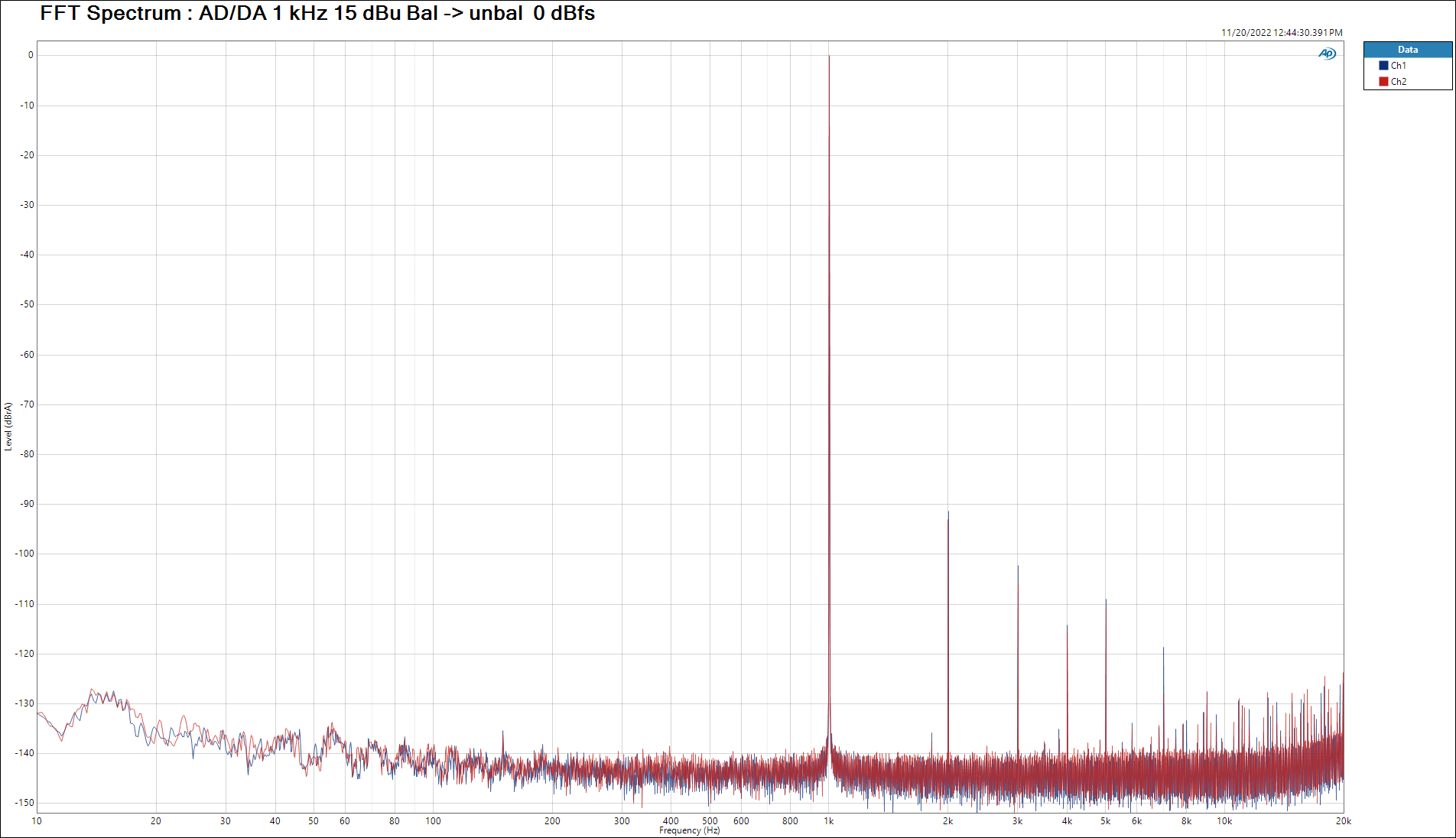

FFT 1 kHz : +15 dBu Balanced inputs to unbalanced out 48 kHz  – 20-20000hz

FFT 192 kHz sampling 8 x avg.

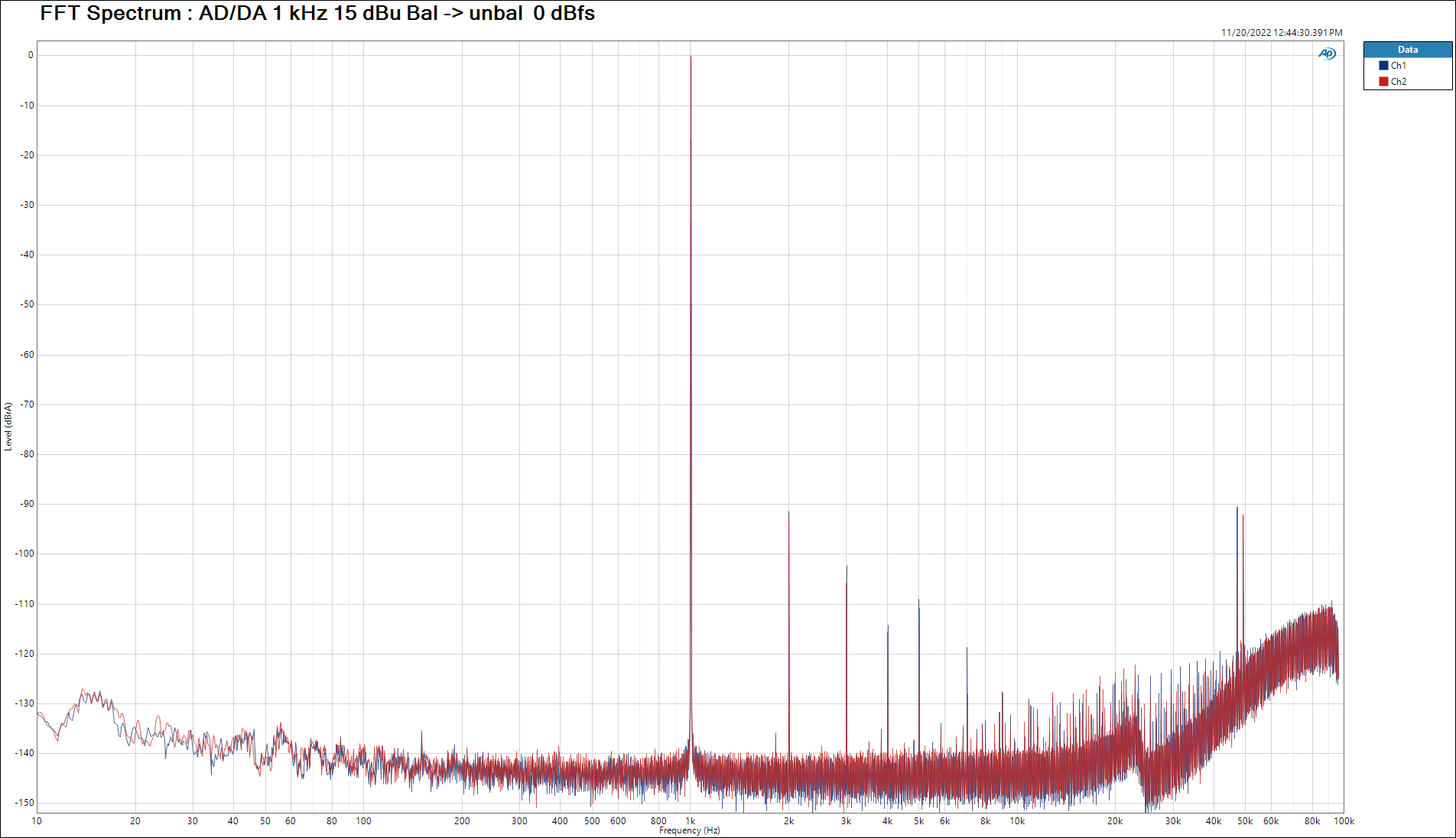

FFT 1 kHz : +15 dBu Balanced inputs to unbalanced out 48 kHz  – 20-100000hz

FFT 192 kHz sampling 8 x avg.

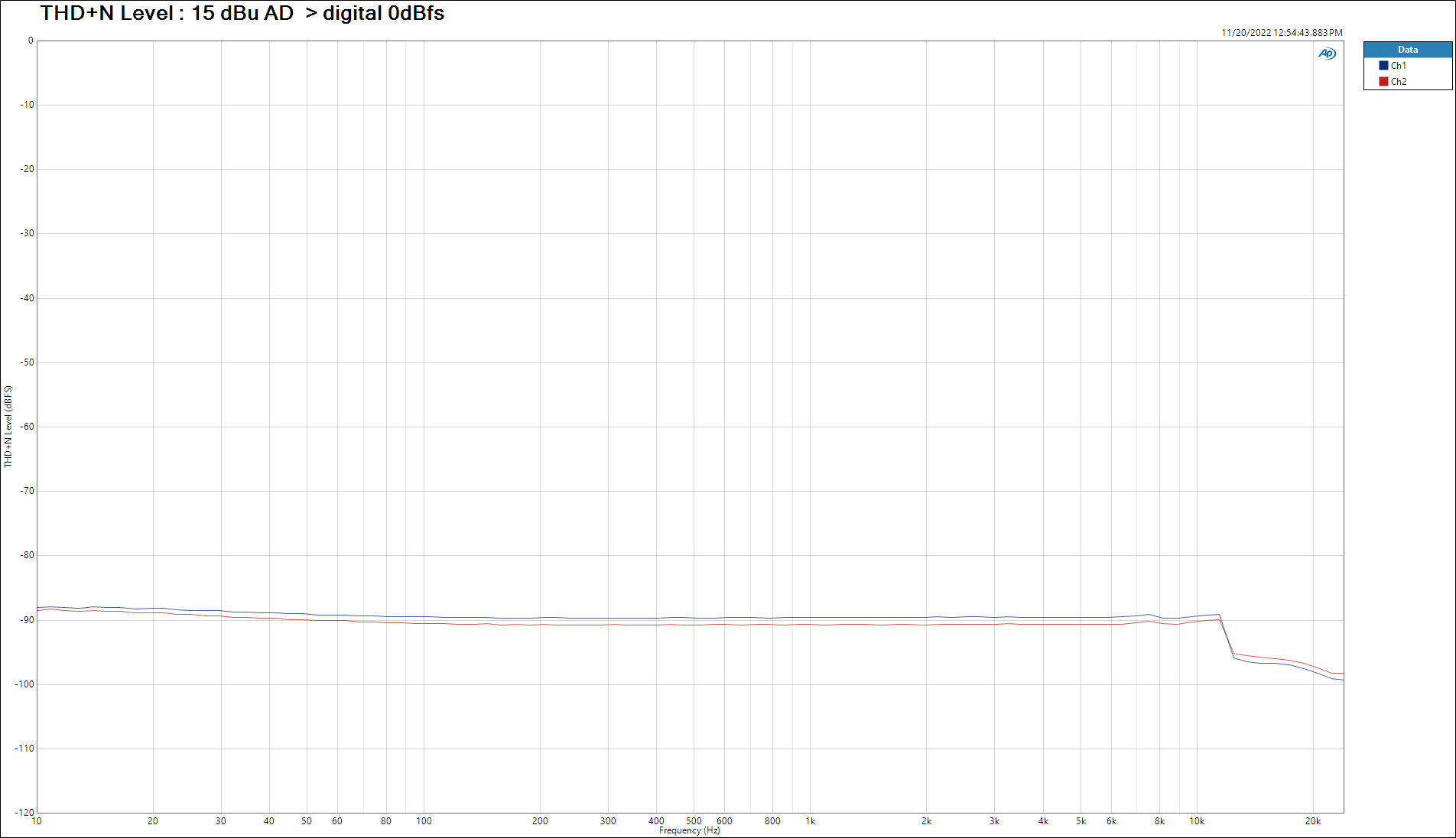

THD + noise : +15 dBu Balanced inputs to Digital Out 48 kHz

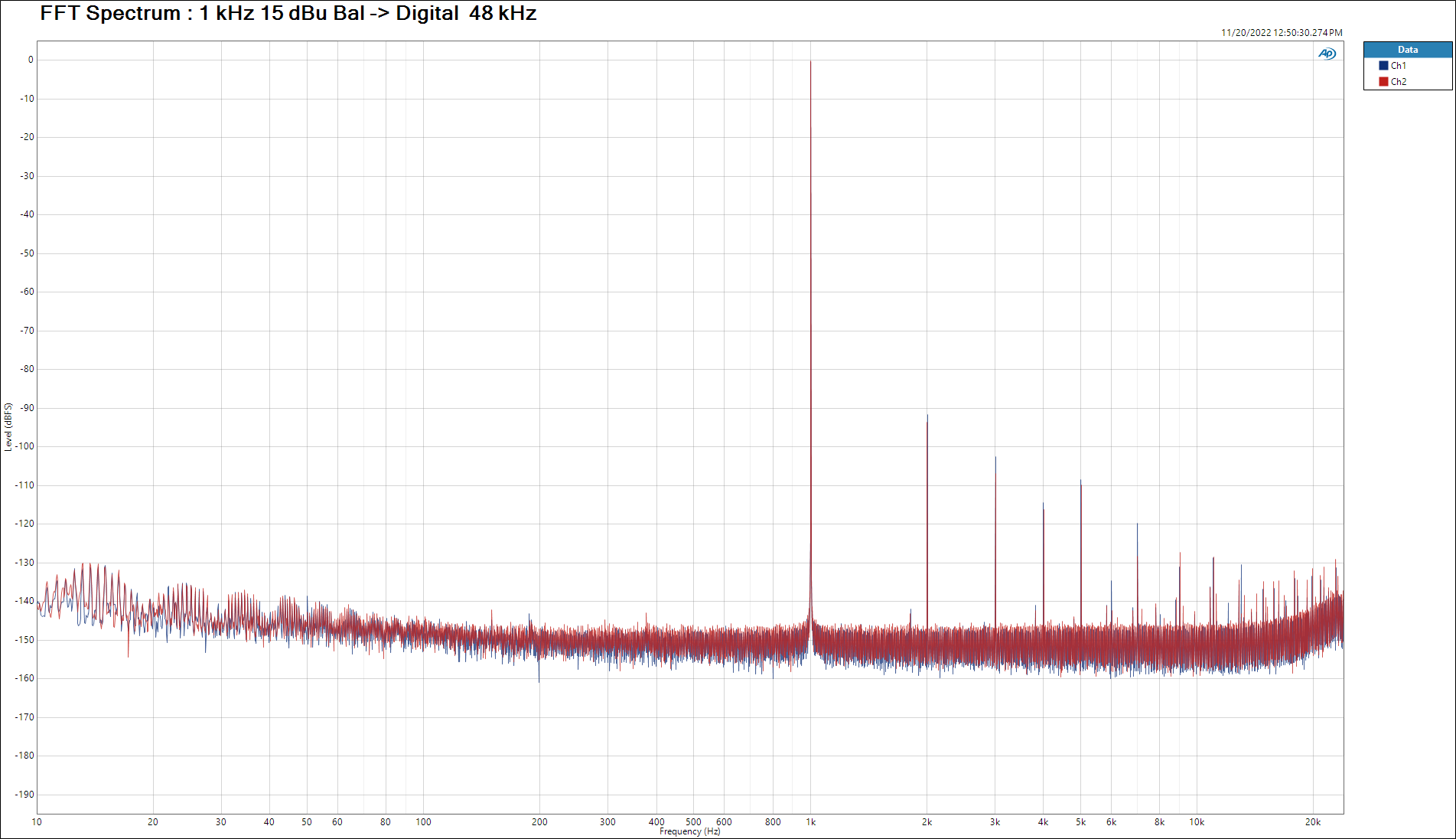

FFT 1 kHz : +15 dBu Balanced inputs to Digital Out 48 kHz  – 20-20000hz

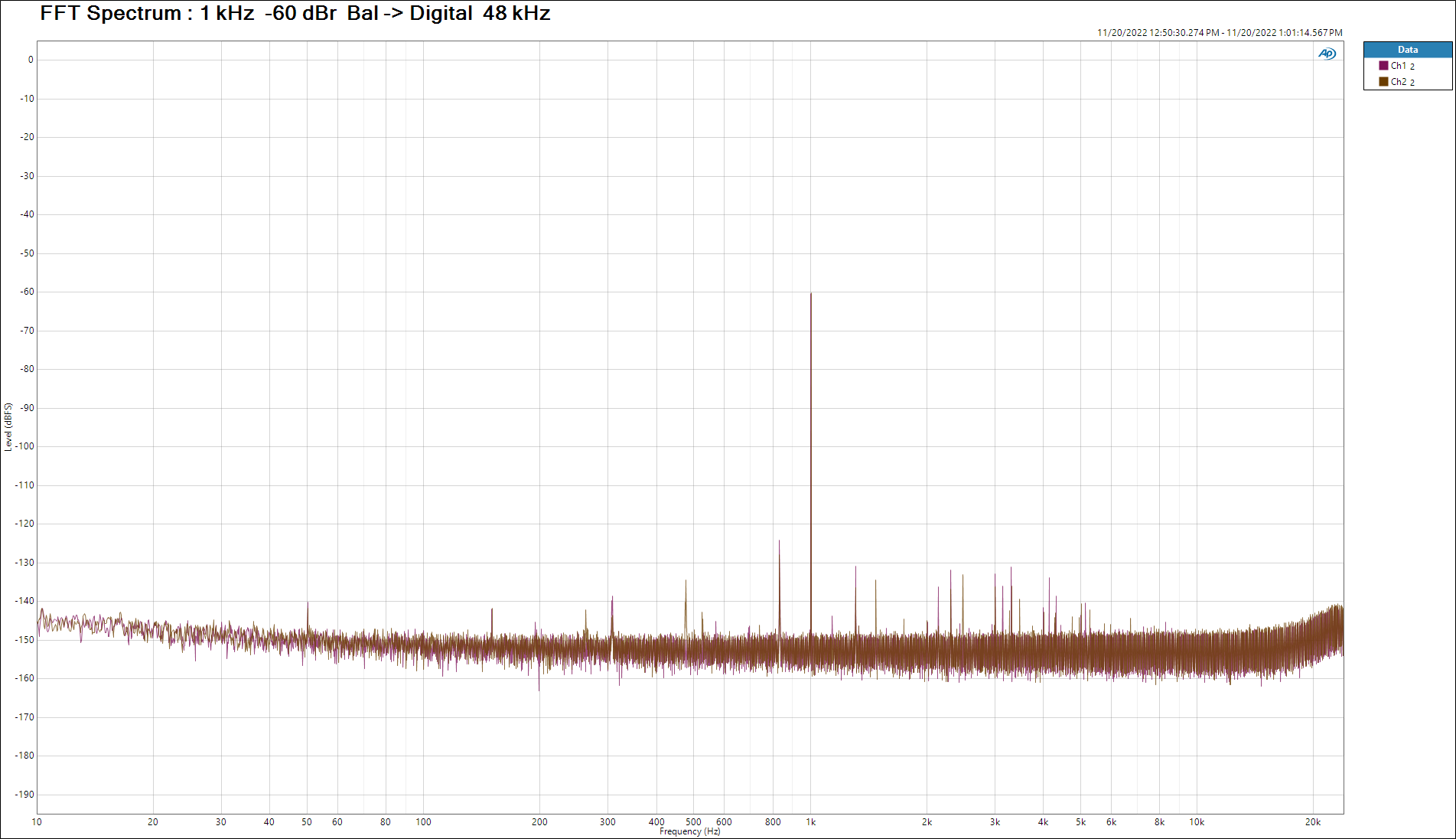

FFT 1 kHz : -60 dBr  Balanced inputs to Digital Out 48 kHz  – 20-20000hz
