Musical Fidelity – DIGILOG DAC

Musical Fidelity – Digilog with high pitch noise when there is no valid spdif signal.

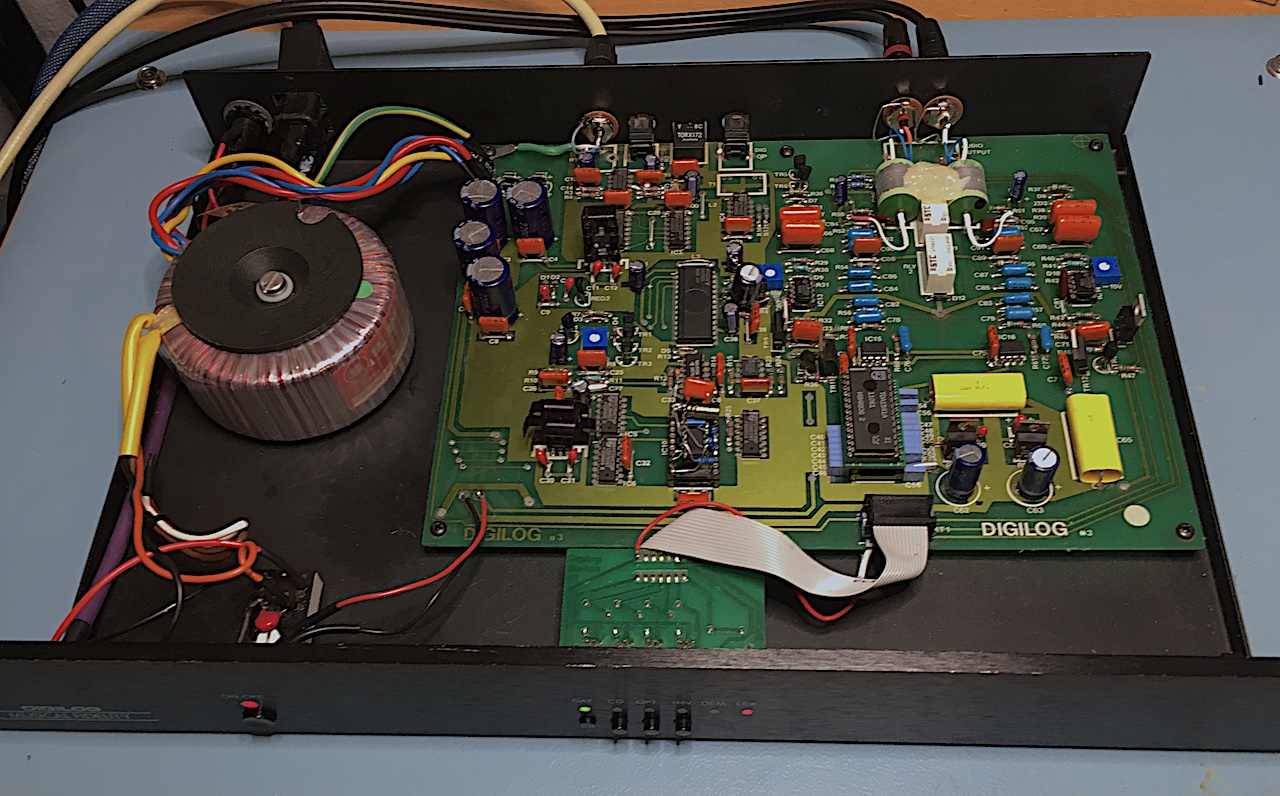

First look ,

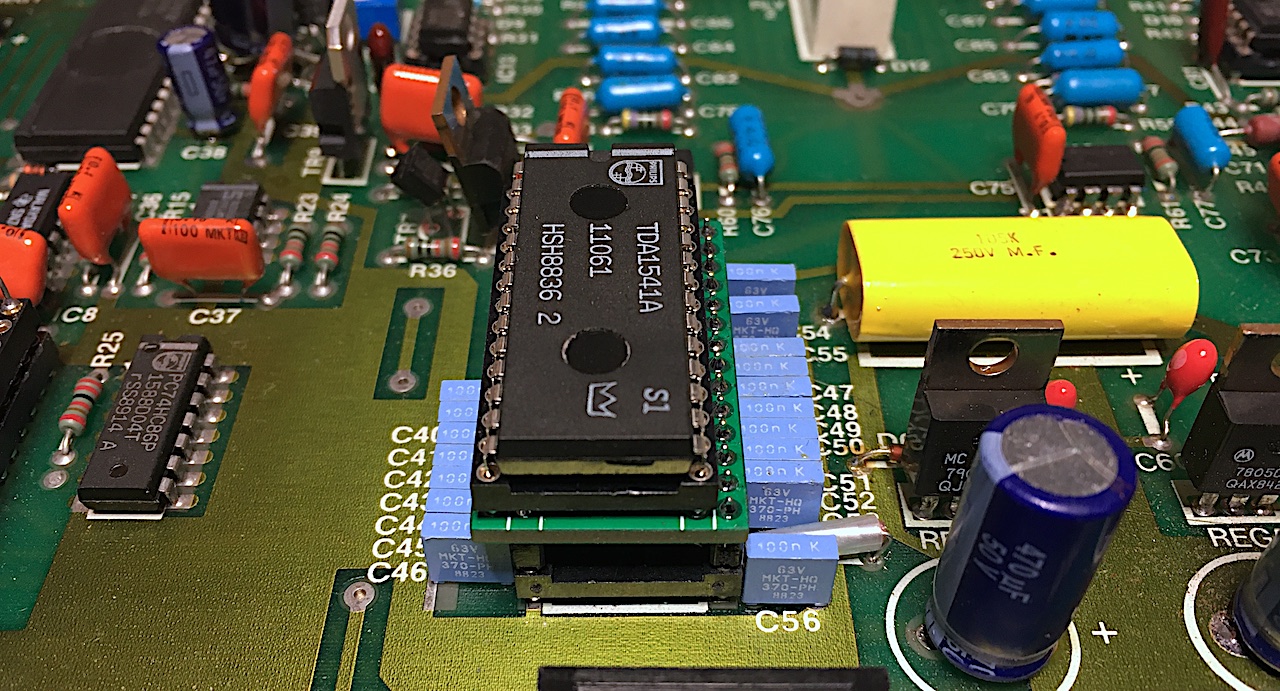

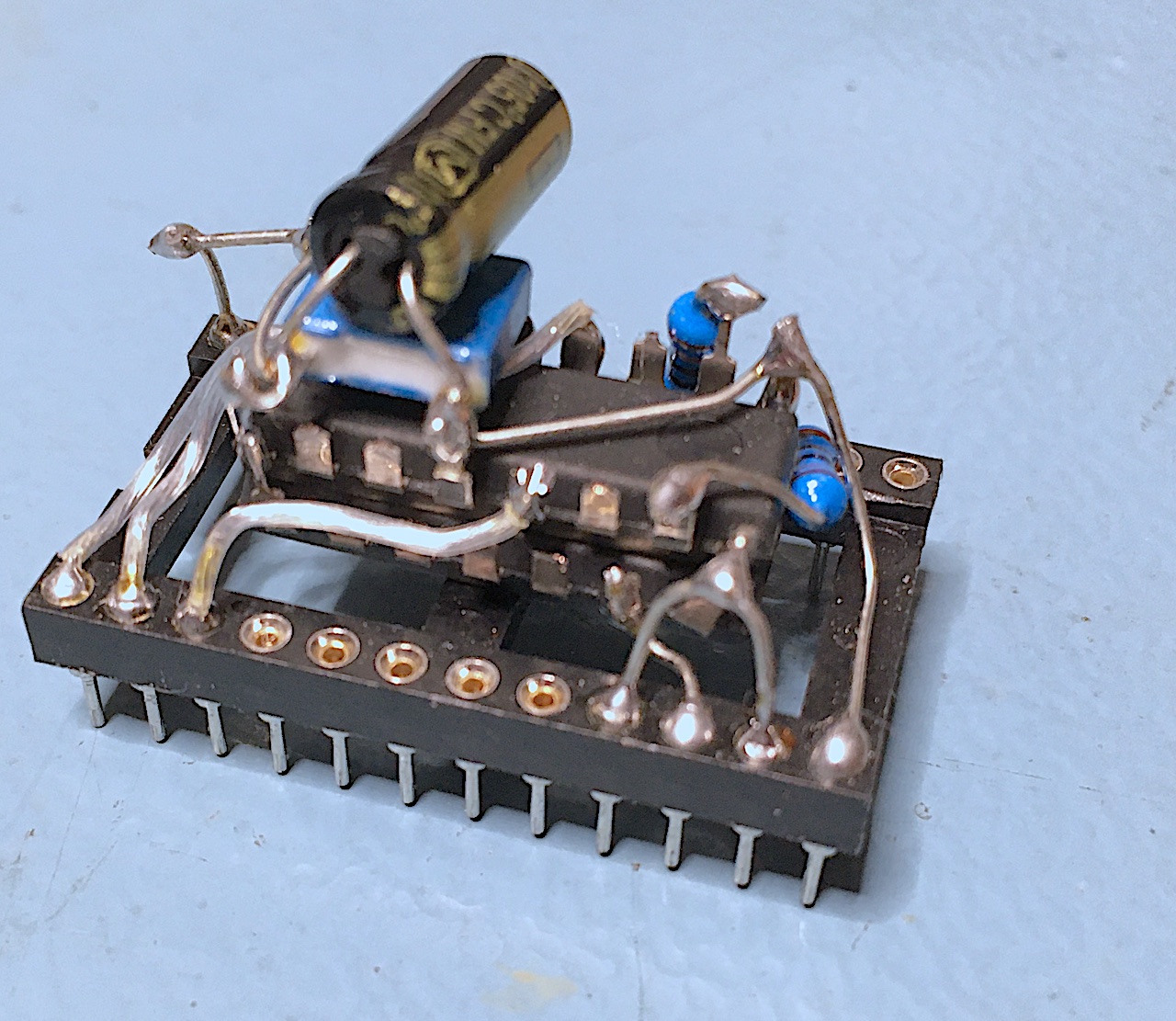

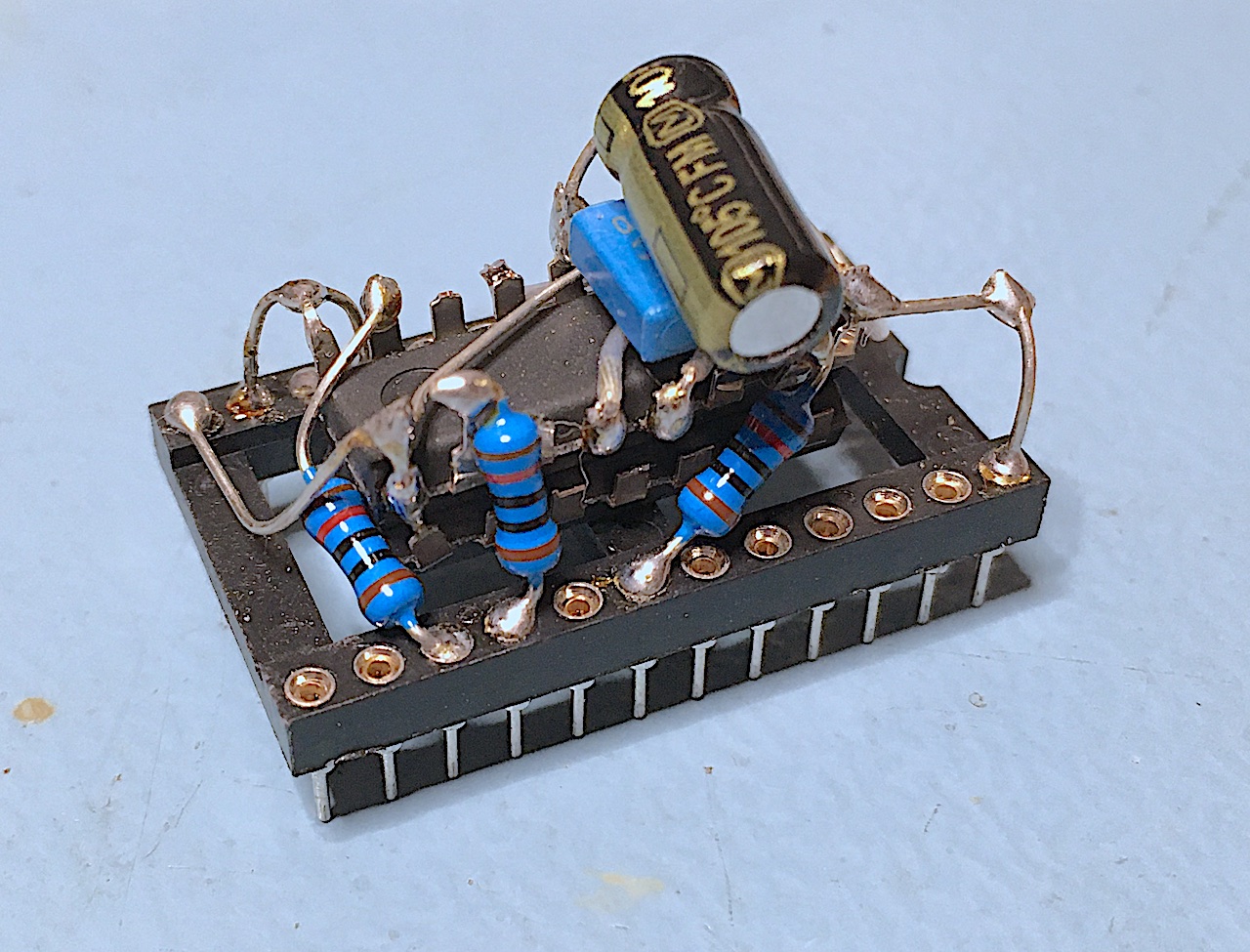

Grundig DEM modification board , there is also a NOS reclocker

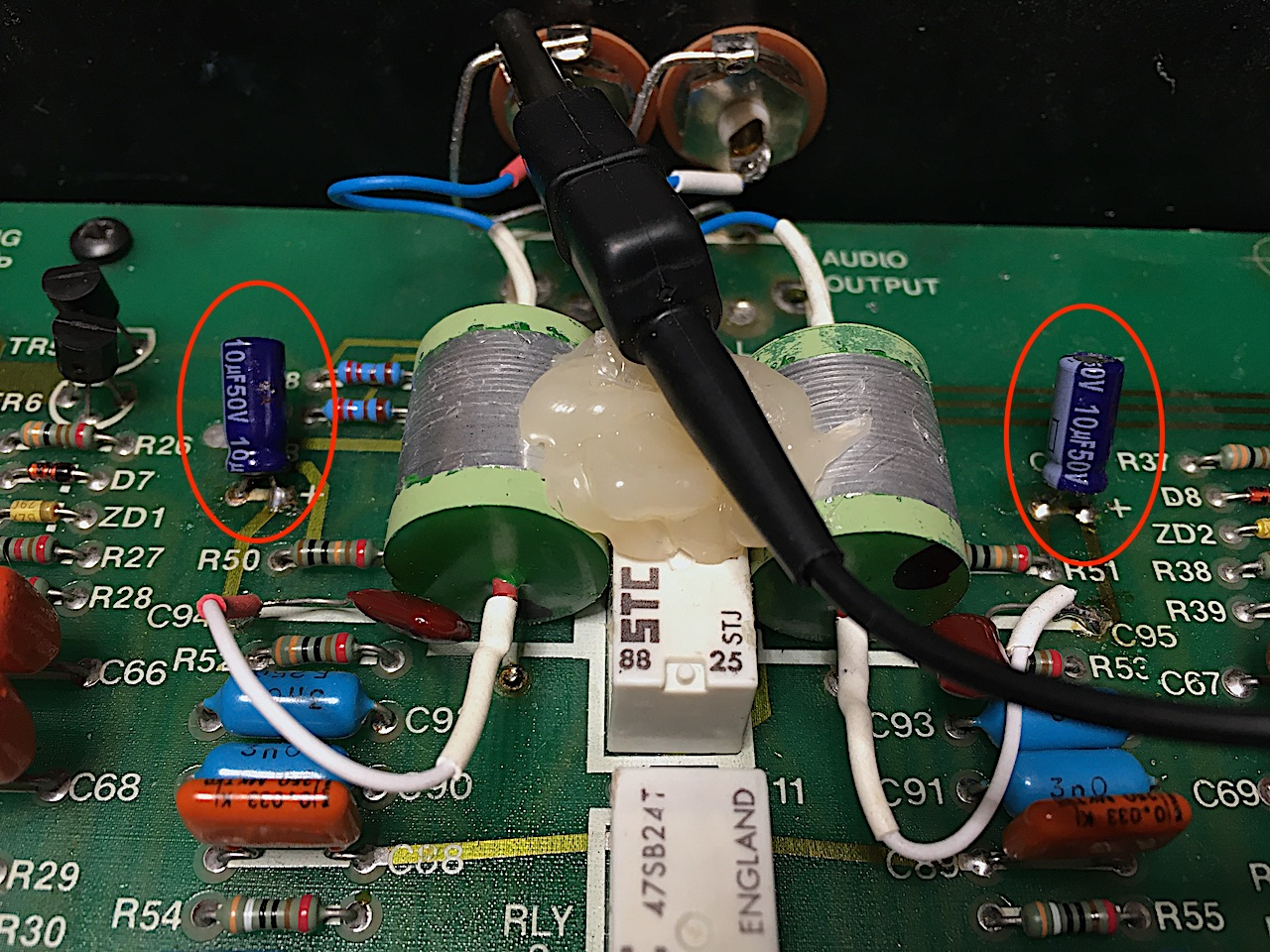

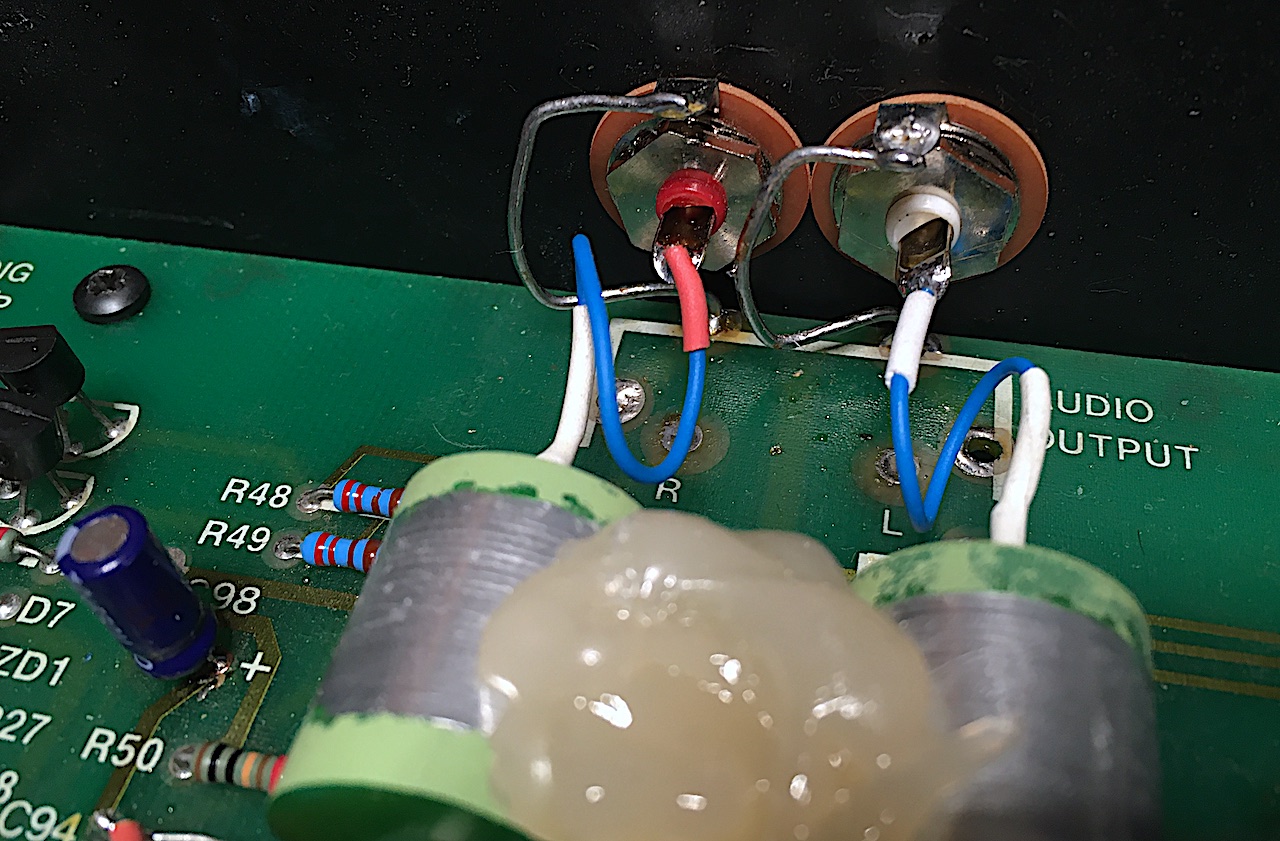

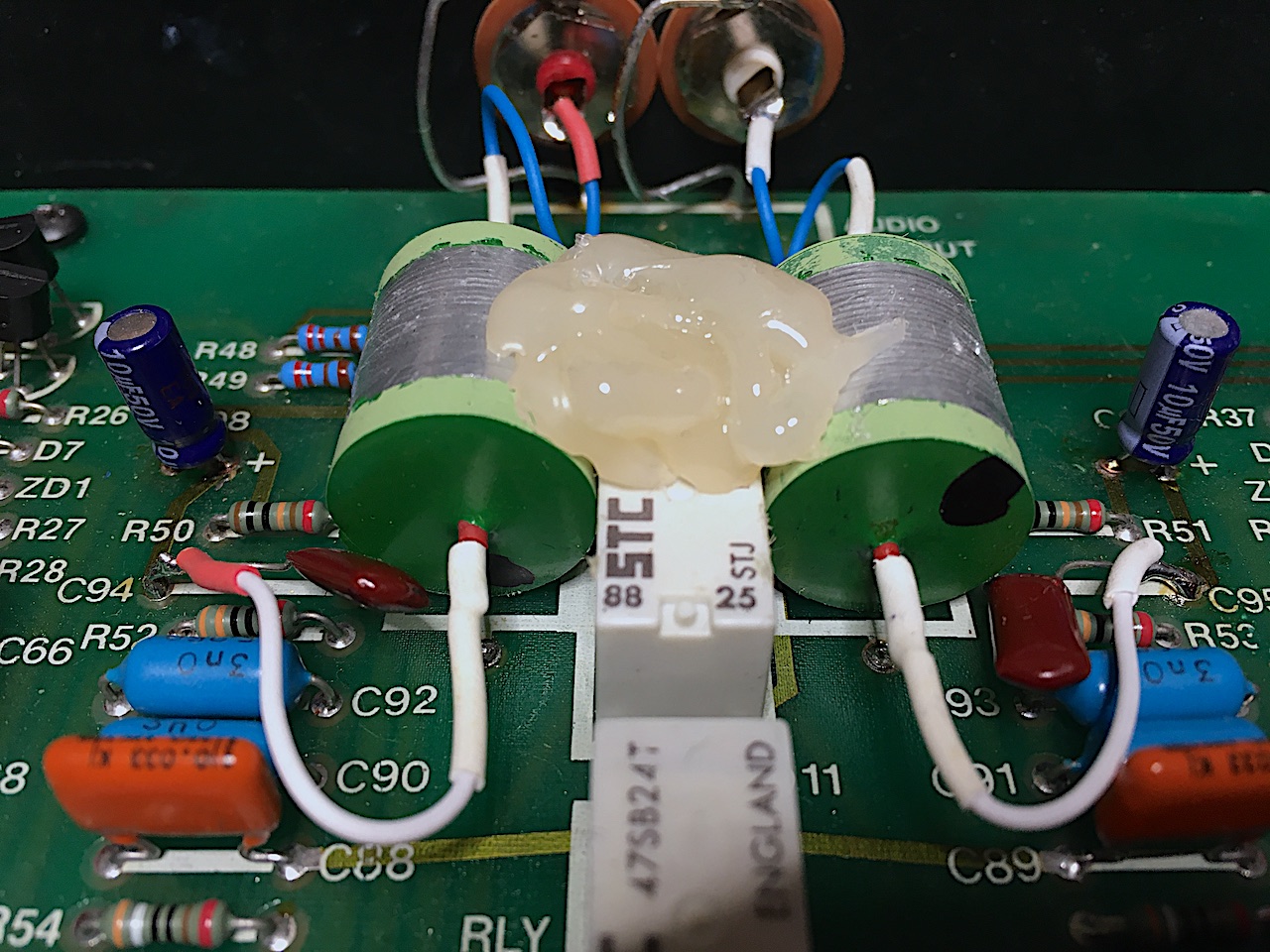

Output modification

New chinch busses

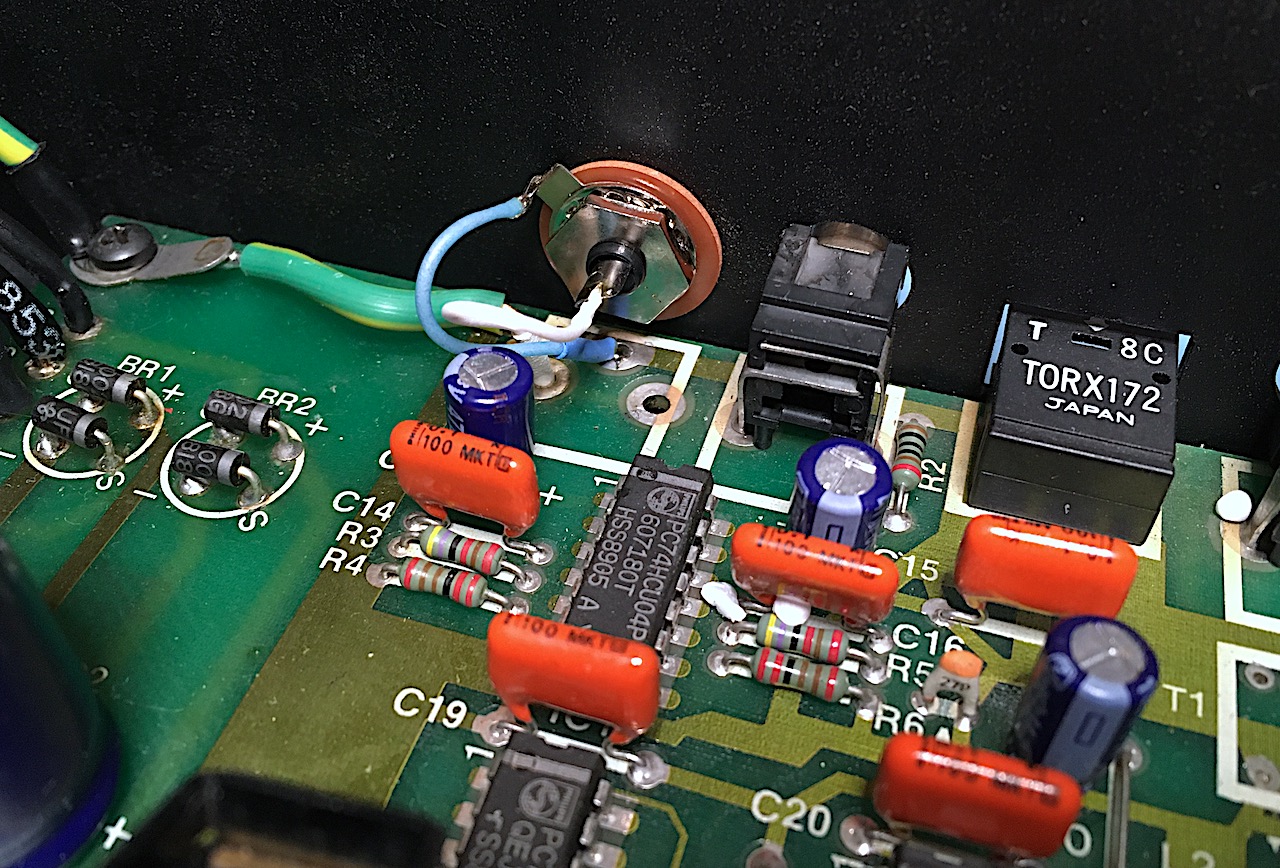

Spdif input section

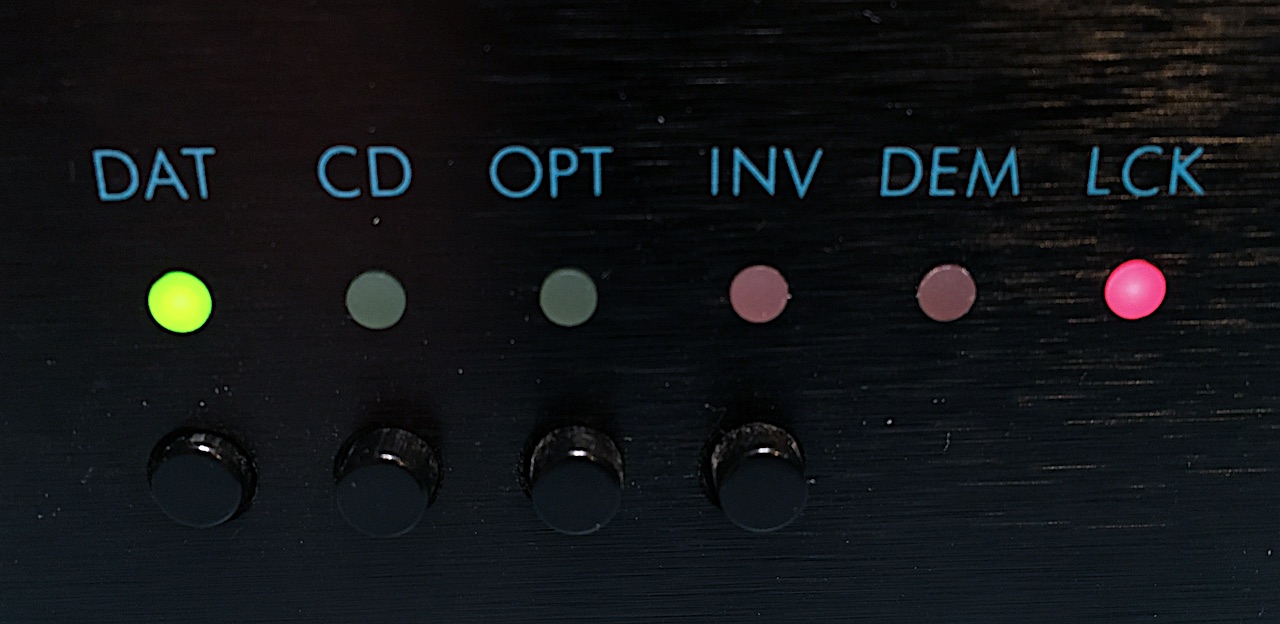

Input selection

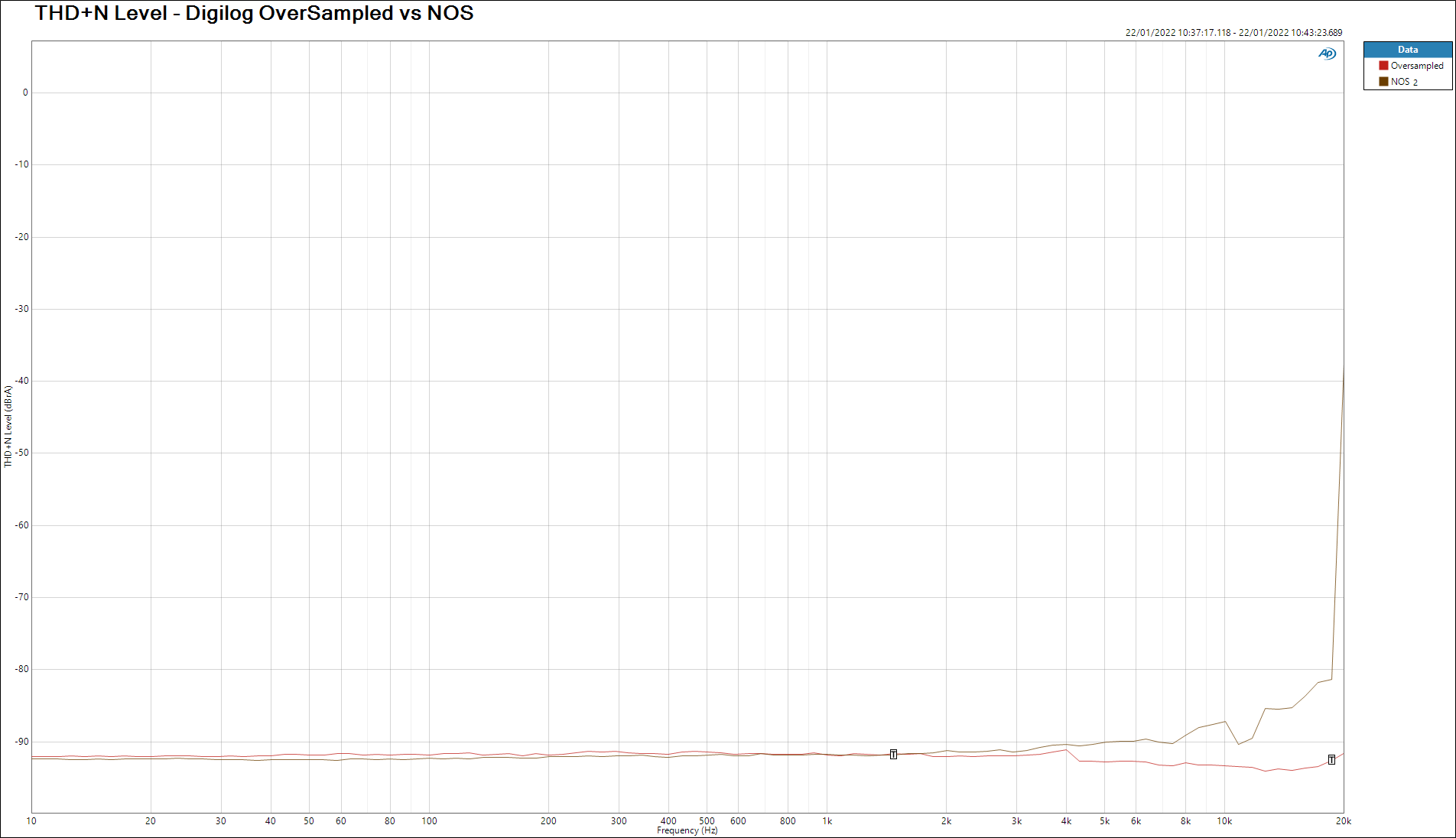

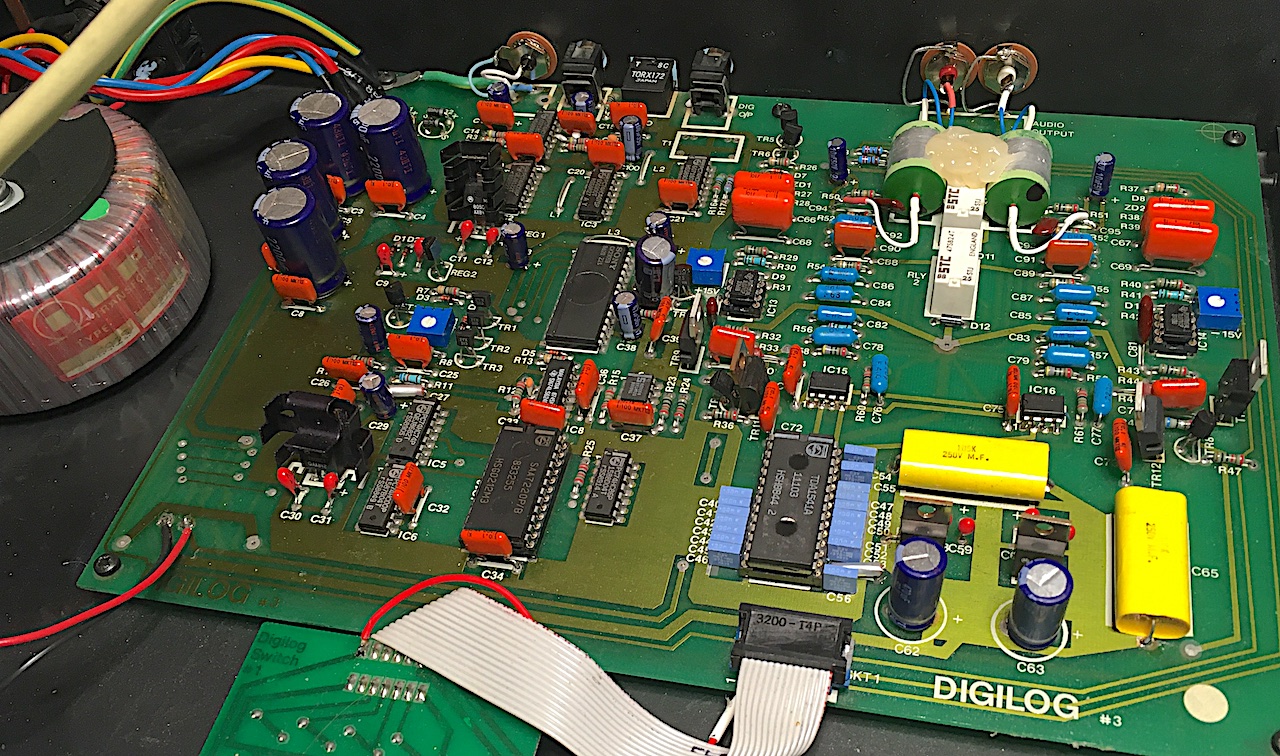

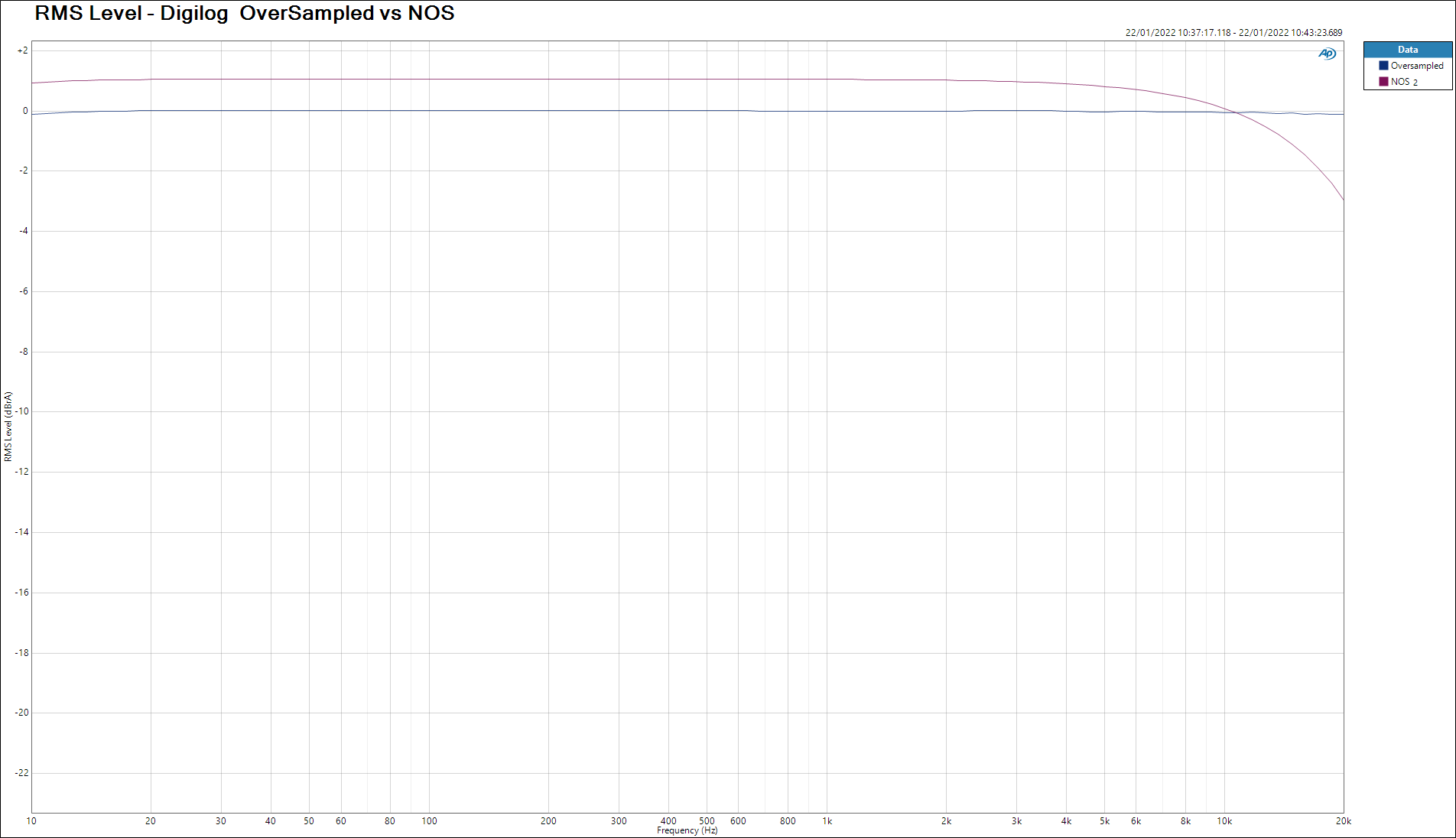

Testing without DEM and NOS modification..

Testing with alternative spdif input bypassing SONY CX23053 spdif receiver

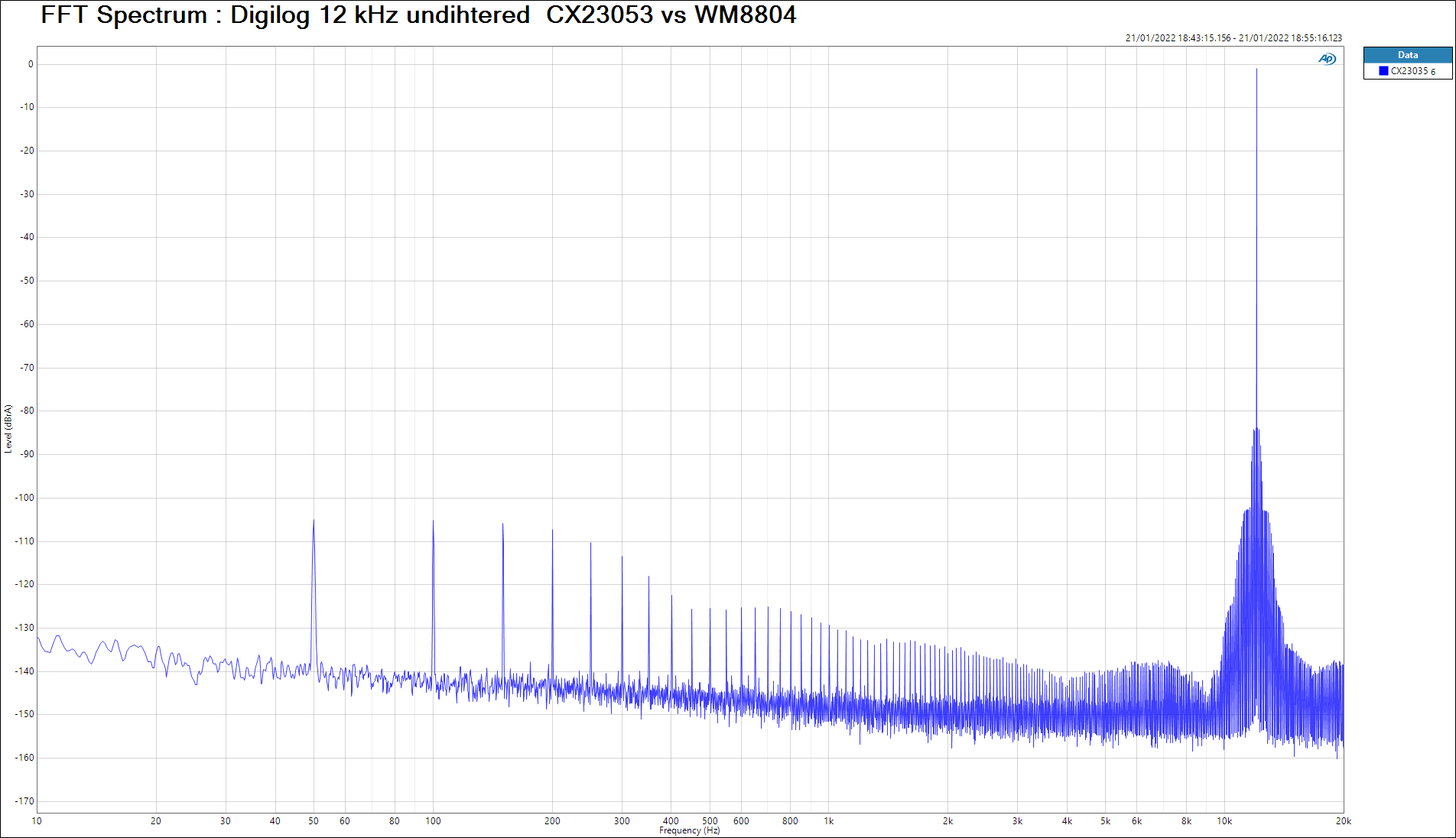

FFT Sony CX23053 48 kHz 24 bits

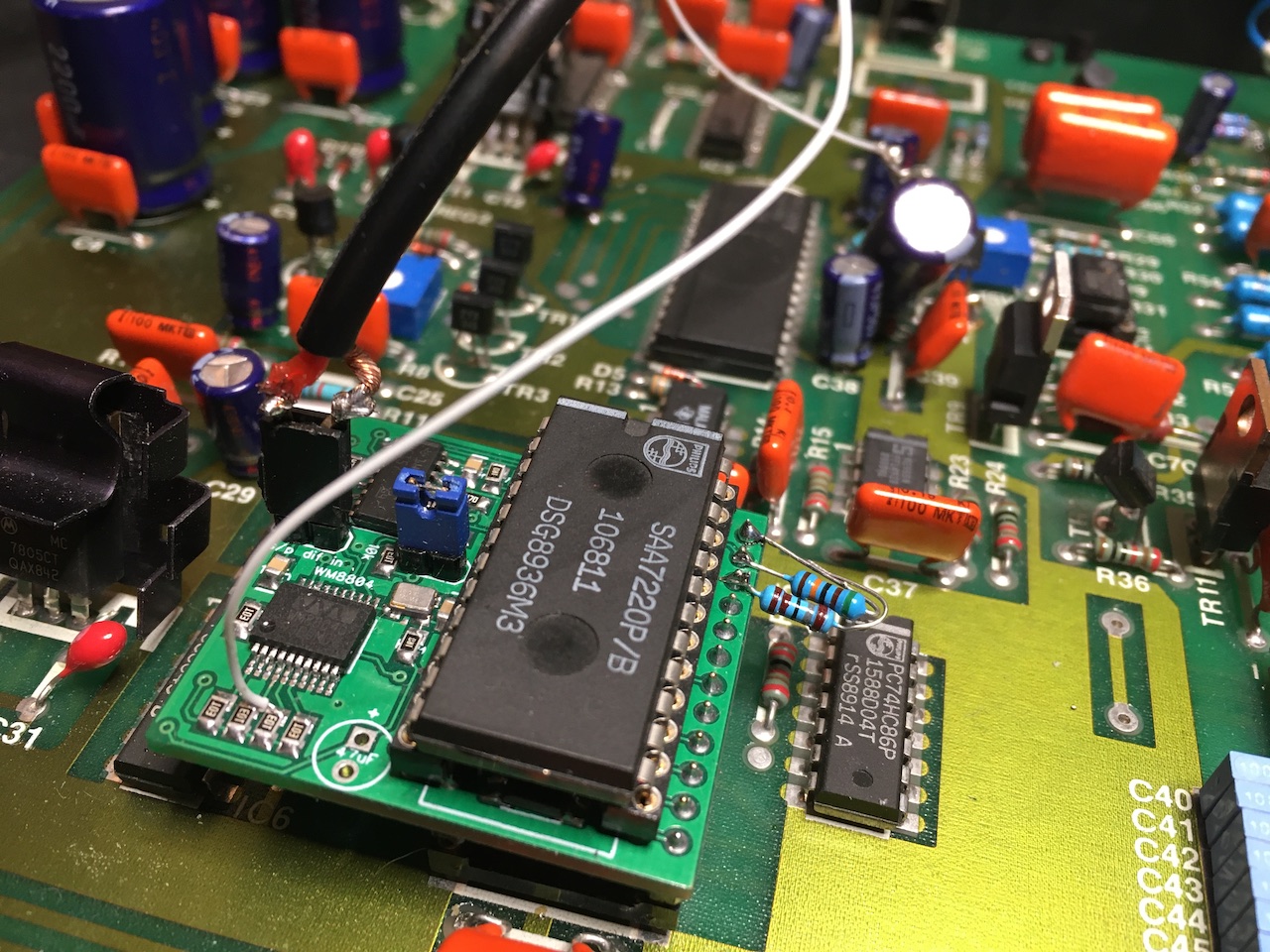

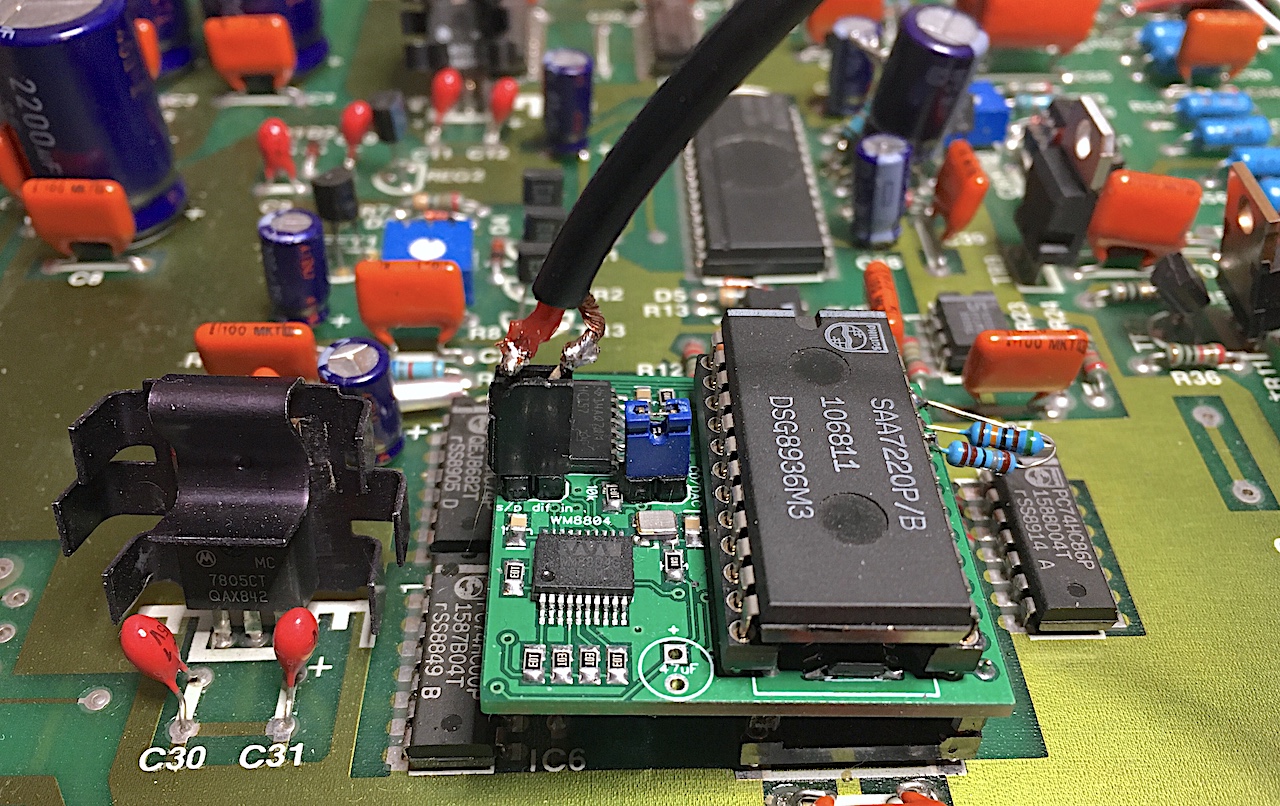

“CD as a DAC board”  WM8804

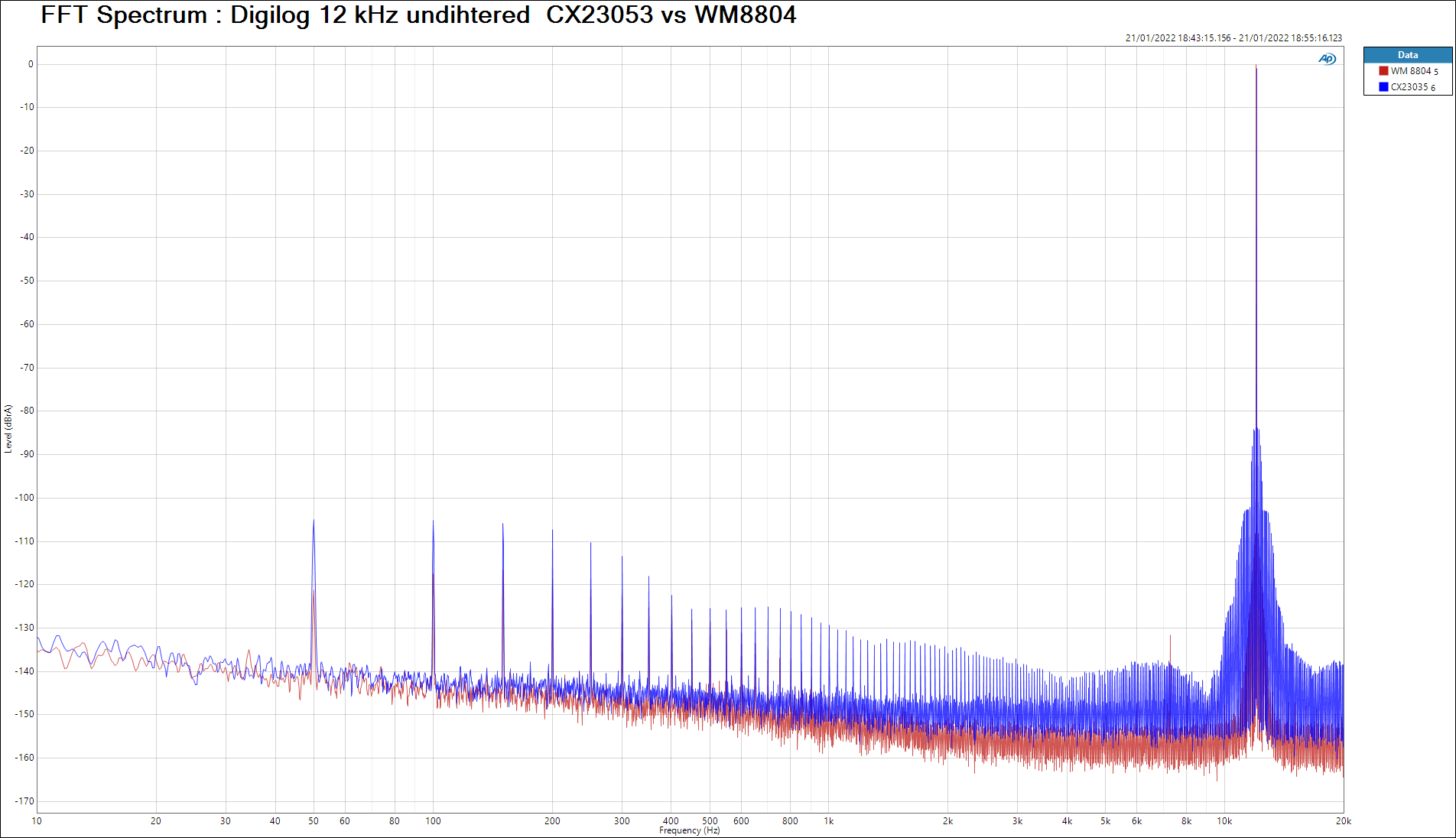

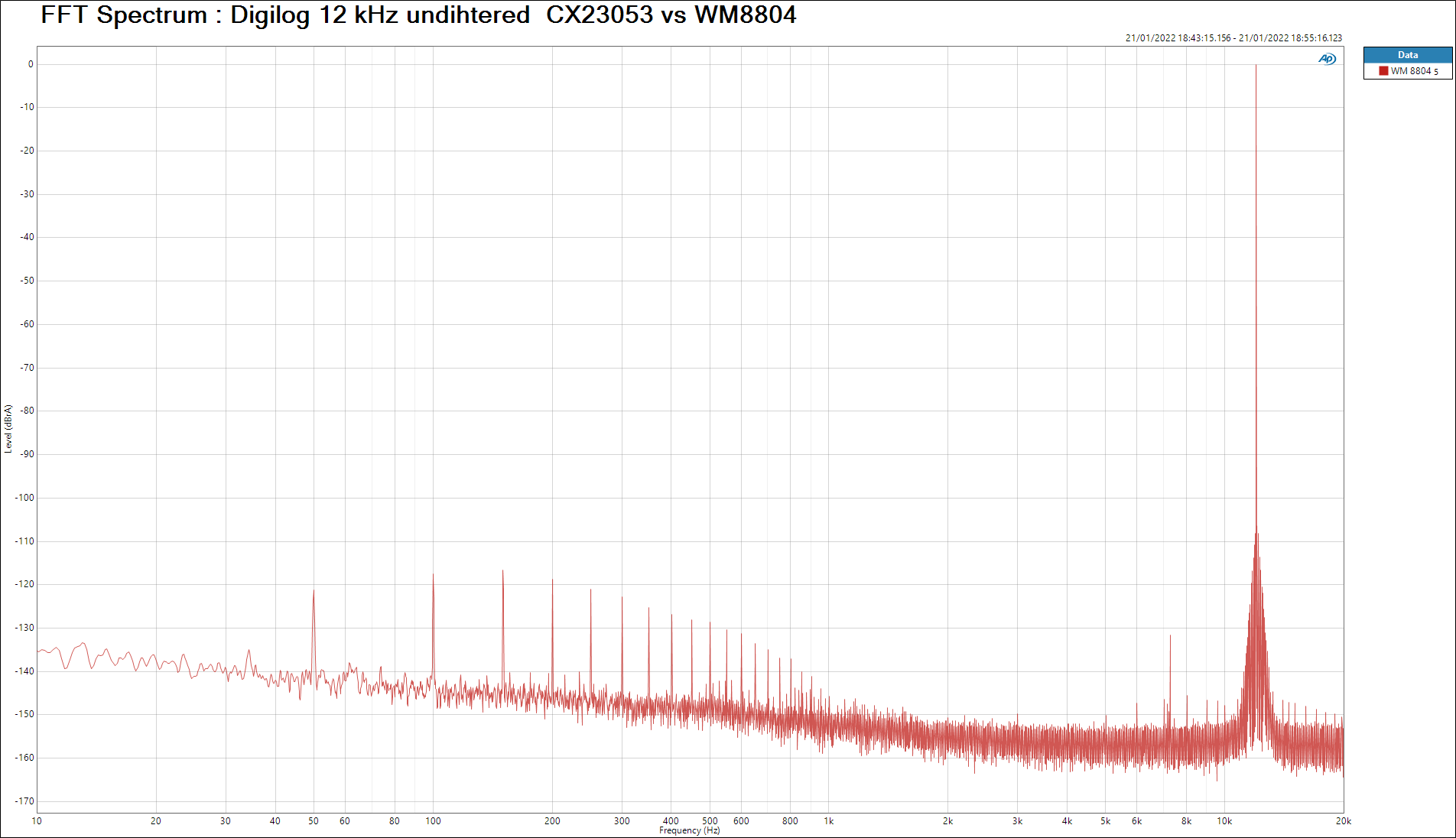

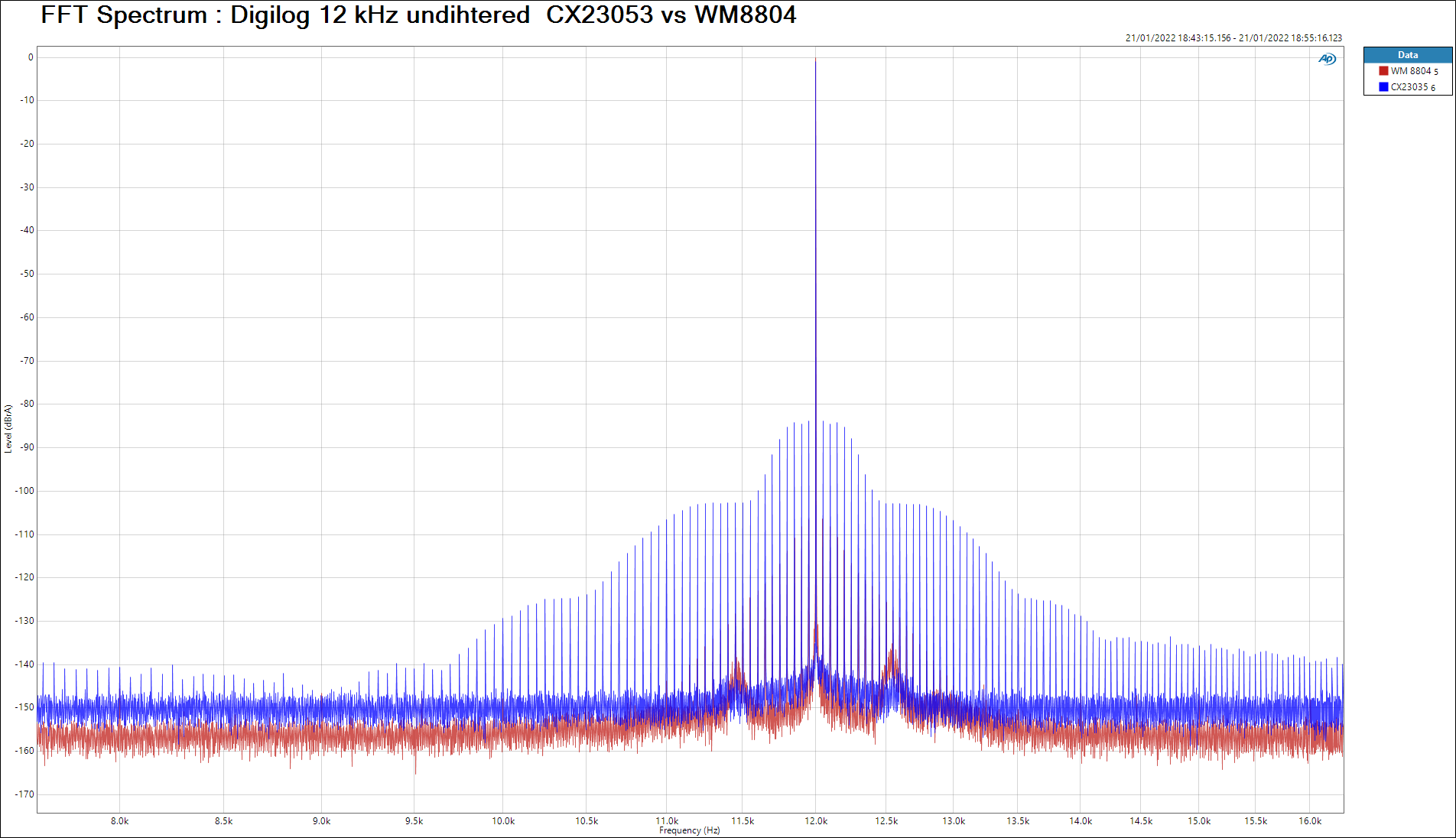

FFT Sony WM8804 48 kHz 24 bits









“Bram, he has improved quite a bit. It is very nice that he is dead silent when there is no lock. And I think I can get used to that Wolfson S/PDIF receiver. It has become a different DAC, but a very good one. I think in any case a lot better than with that Sony chip. I am happy with it. Thanks Bram.”

“Bram, hij is er nogal op vooruit gegaan zeg. Heel fijn dat hij dood stil is wanneer er geen lock is. En ik geloof dat ik wel kan wennen aan die Wolfson S/PDIF receiver. Het is een andere DAC geworden, maar wel een hele goeie. Ik denk in elk geval een stuk beter dan met die Sony chip. Ik ben er blij mee. Bedankt Bram.”
