CDD 882 Won’t read Compact Disc

Testing the CCD 882 with test CDM 2 , and that is working fine

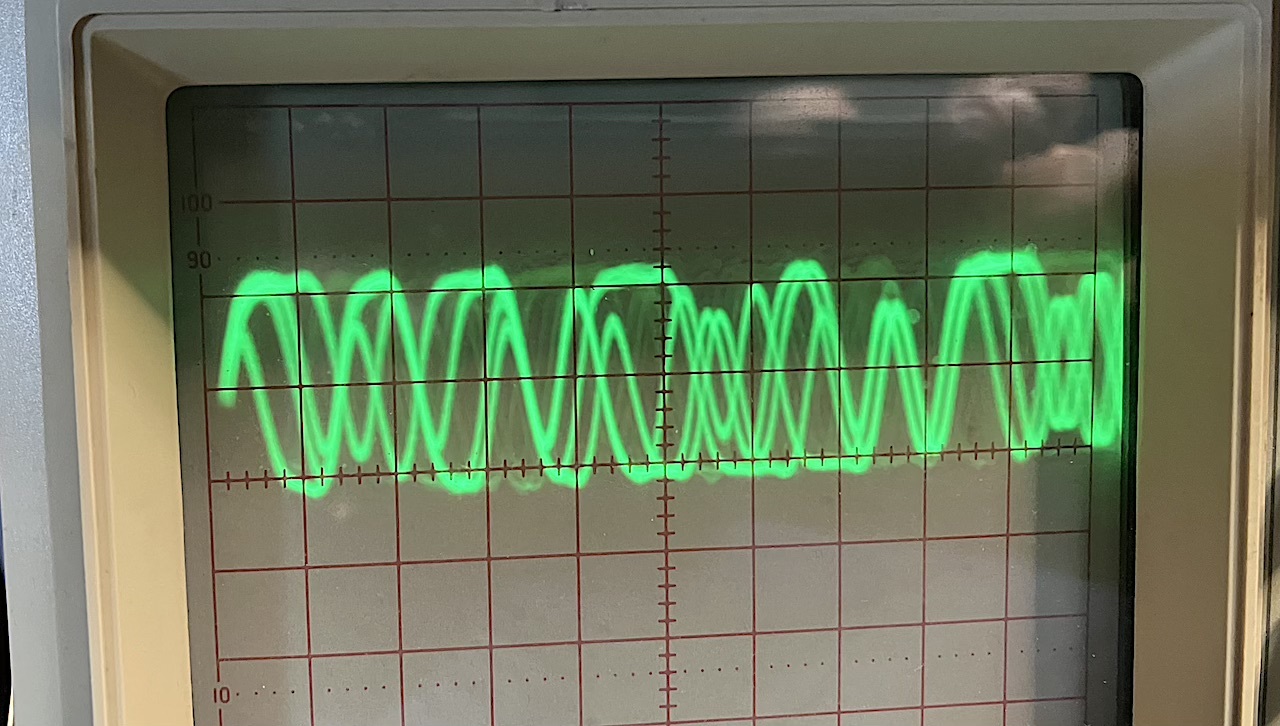

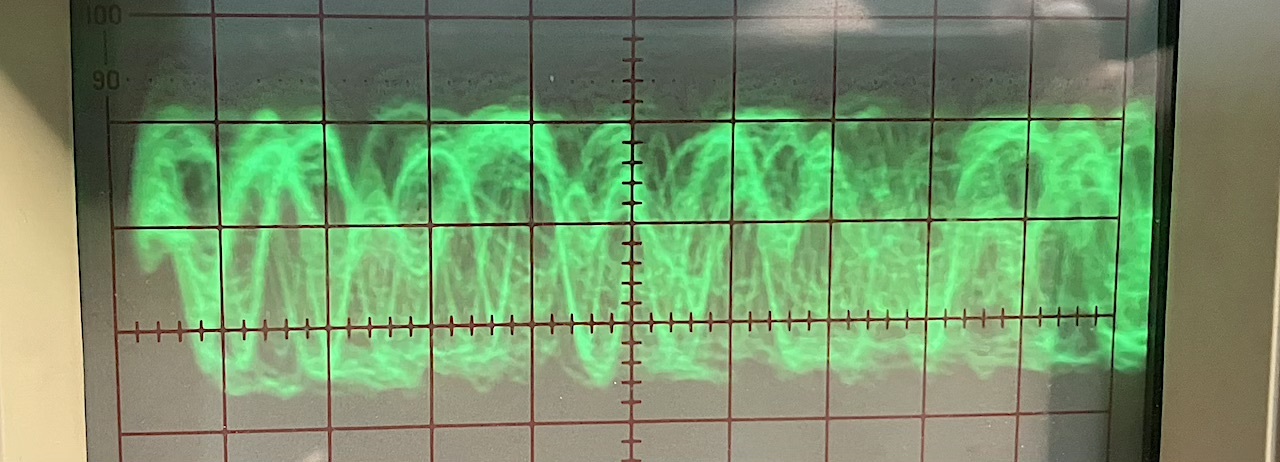

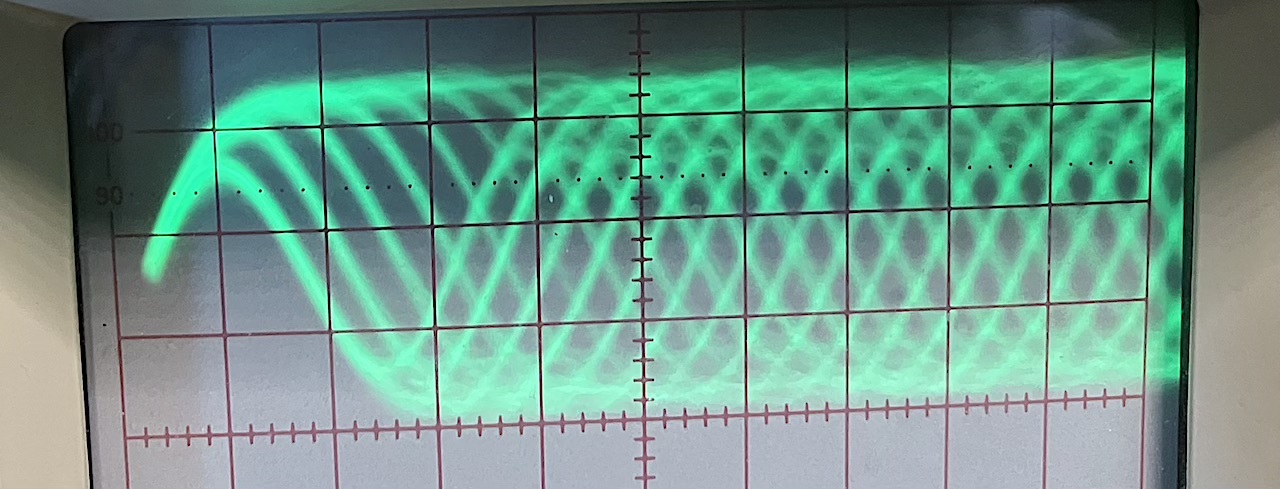

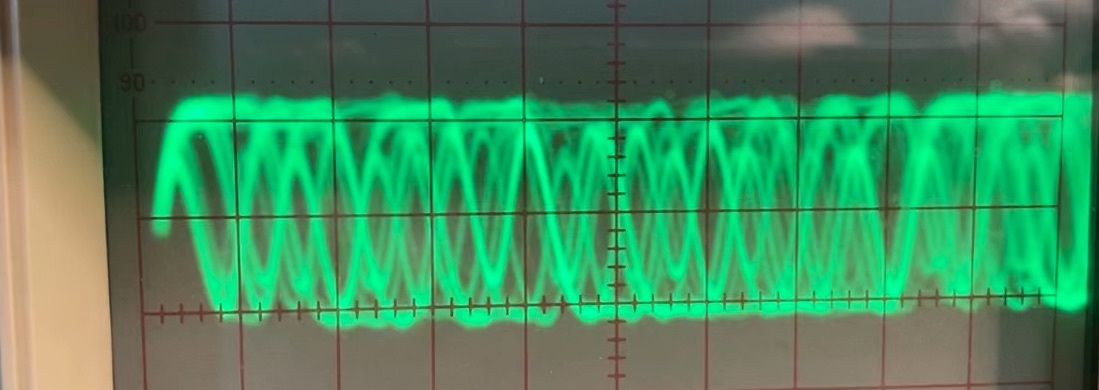

The Eye pattern look strange with the CDM-1 Mk2 , looks like Astigma as with this CD 304

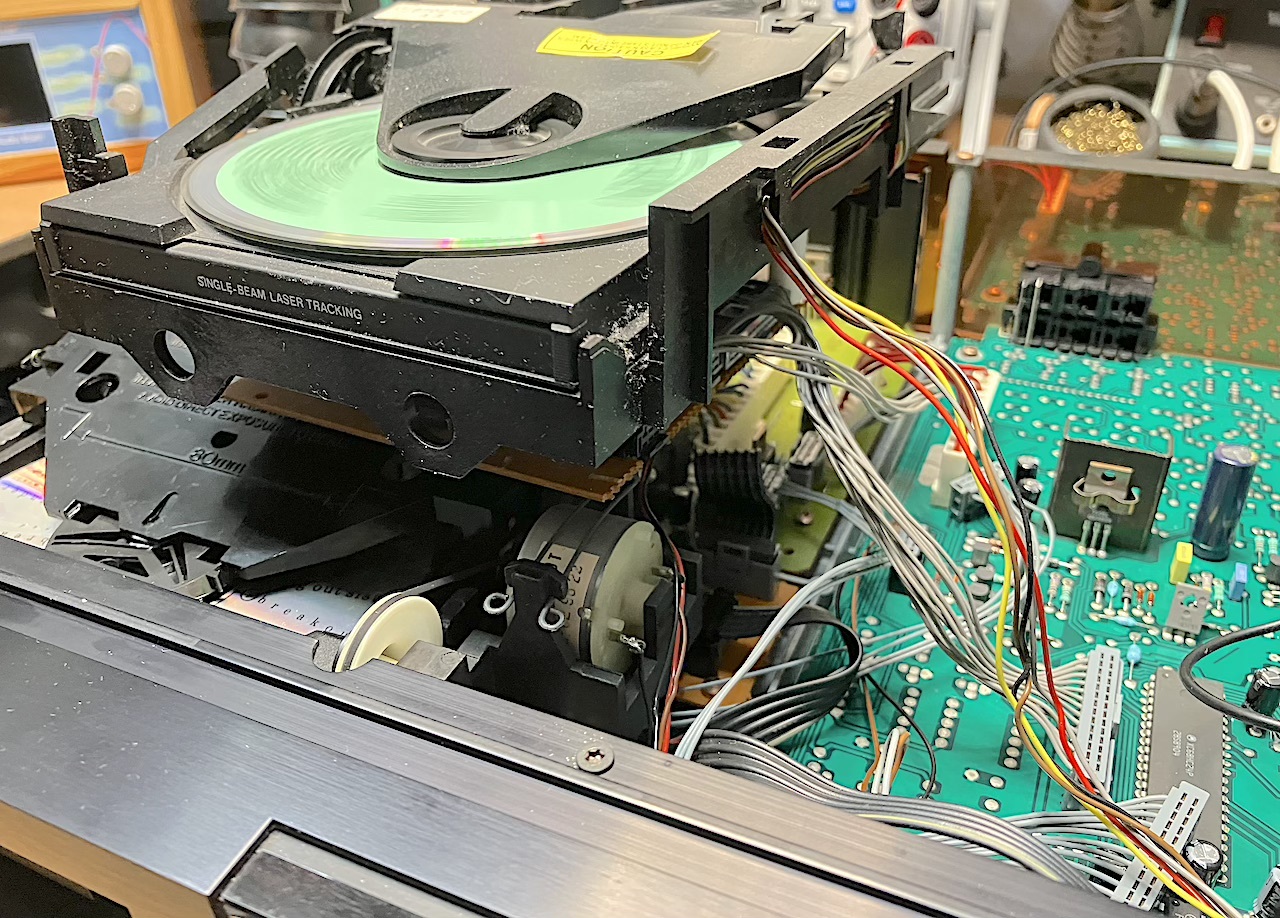

After Replacing Swing Arm and Laser all look good again

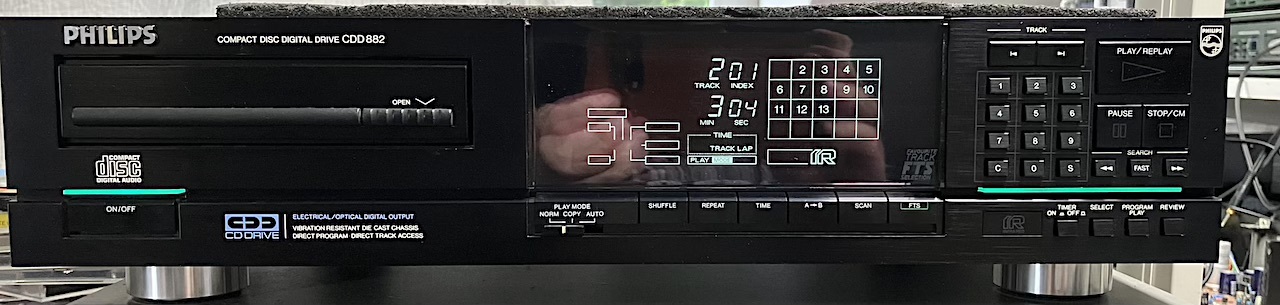

Happy CDD 882
