CD80 Repair

Repair Marantz CD80

  • Bad switches
  • Headphone 1 channel not working



backside front

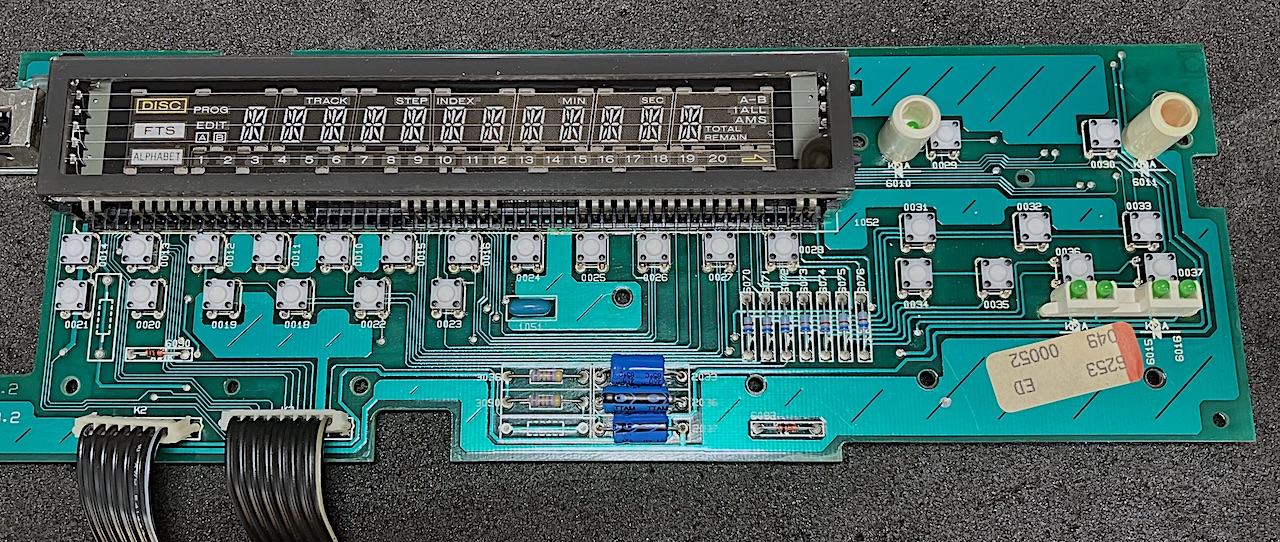

Lots of bad tactile switches some over 200 Ohms when pressed

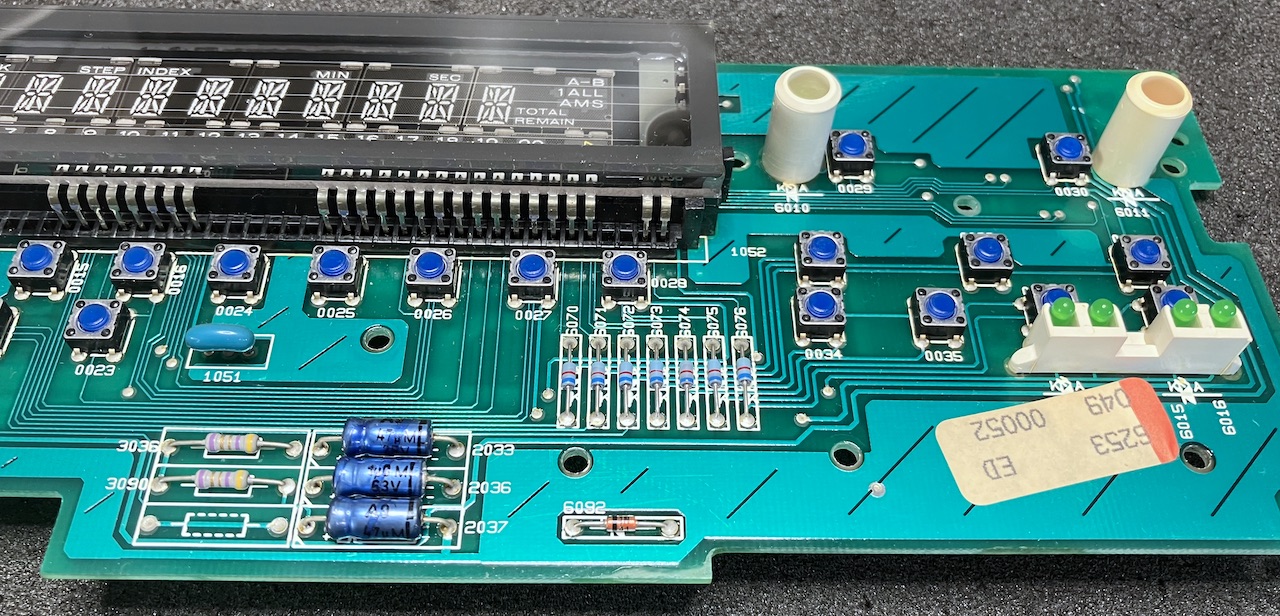

Replaced all switches and 3 bleu axial caps, 47 µf only 25 µf

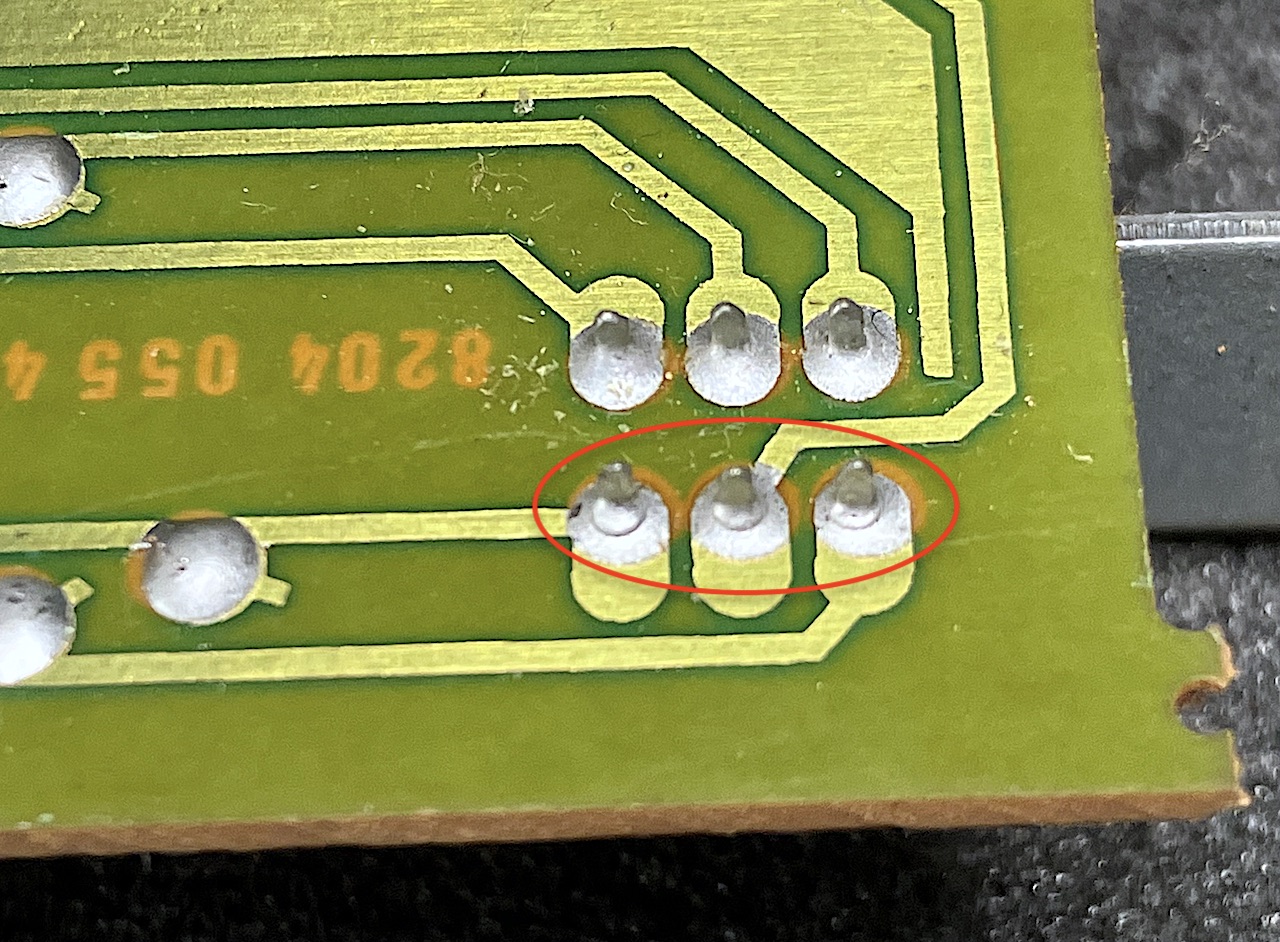

Dry solderjoint on the Headphone potentiometer

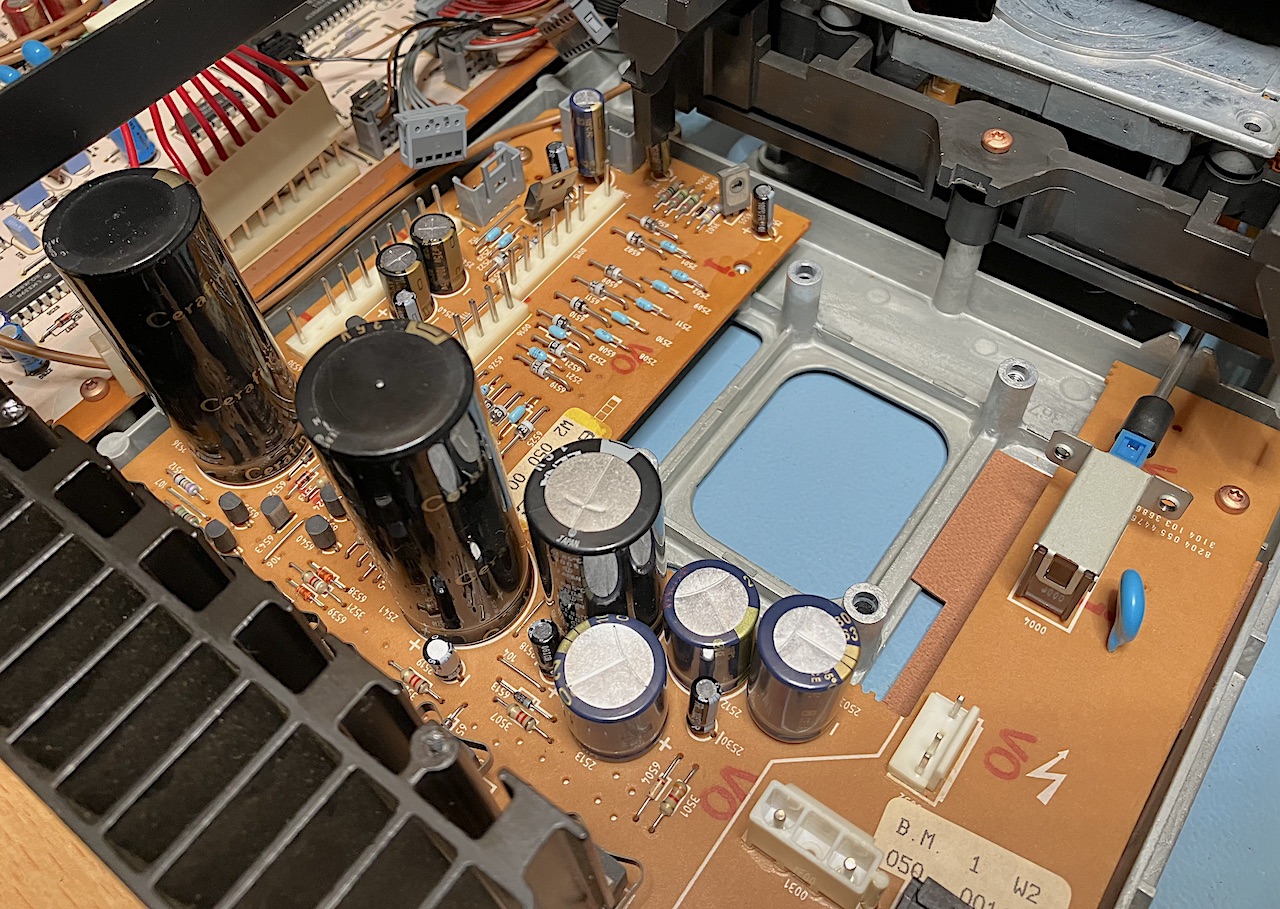

Recapped and desoldered the powersupply

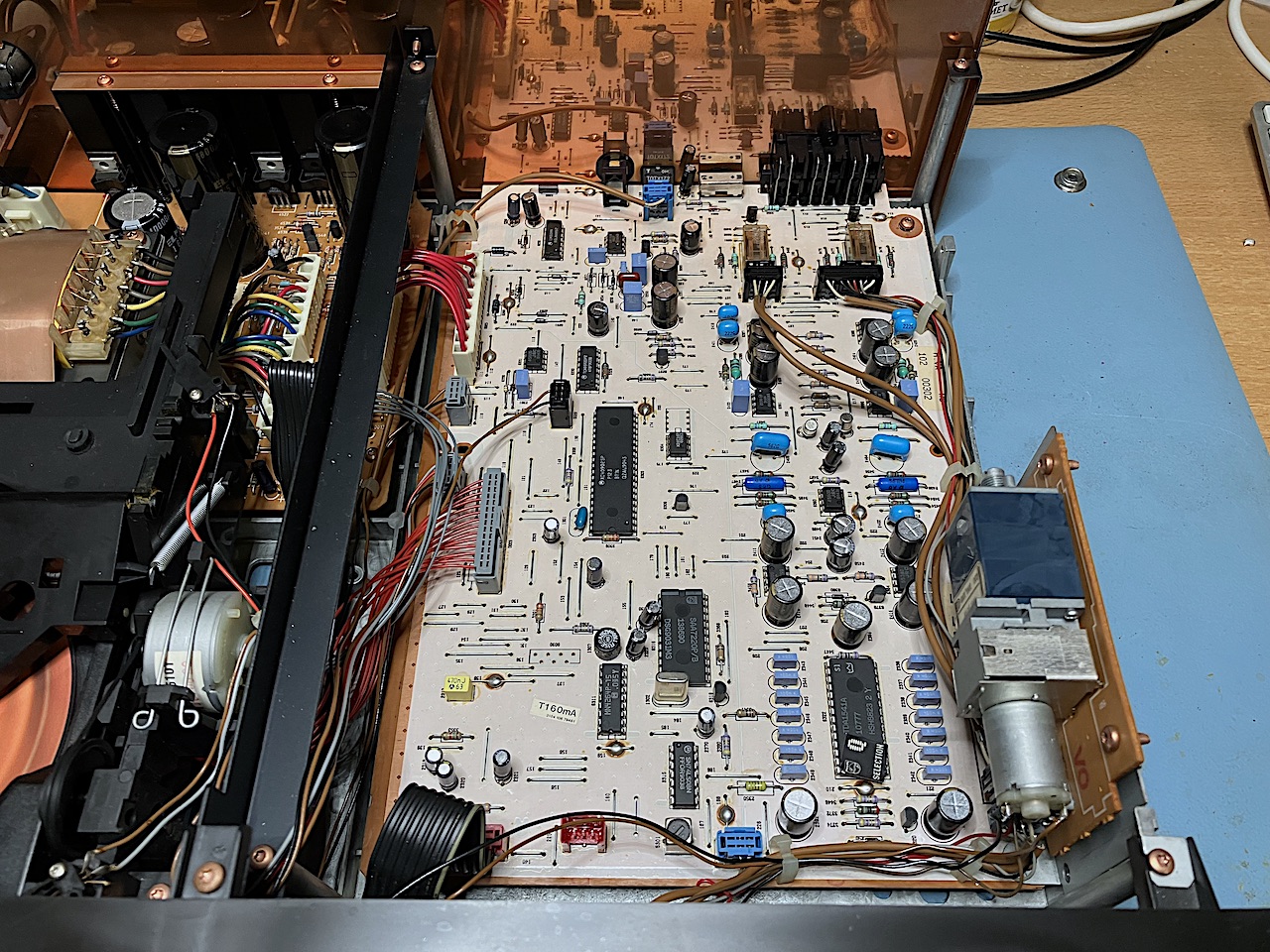

Recapped

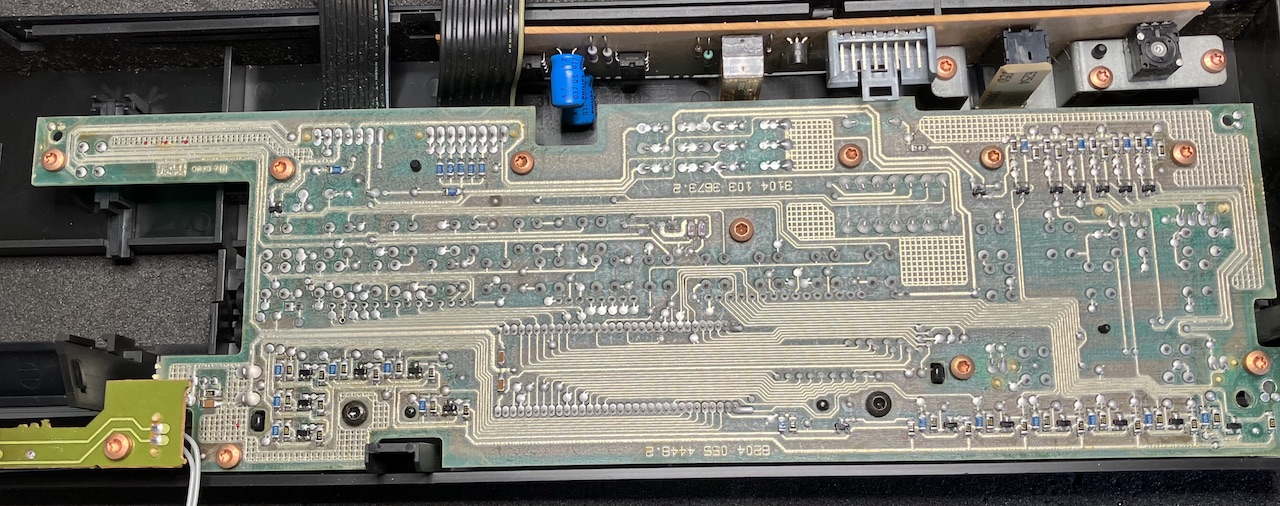

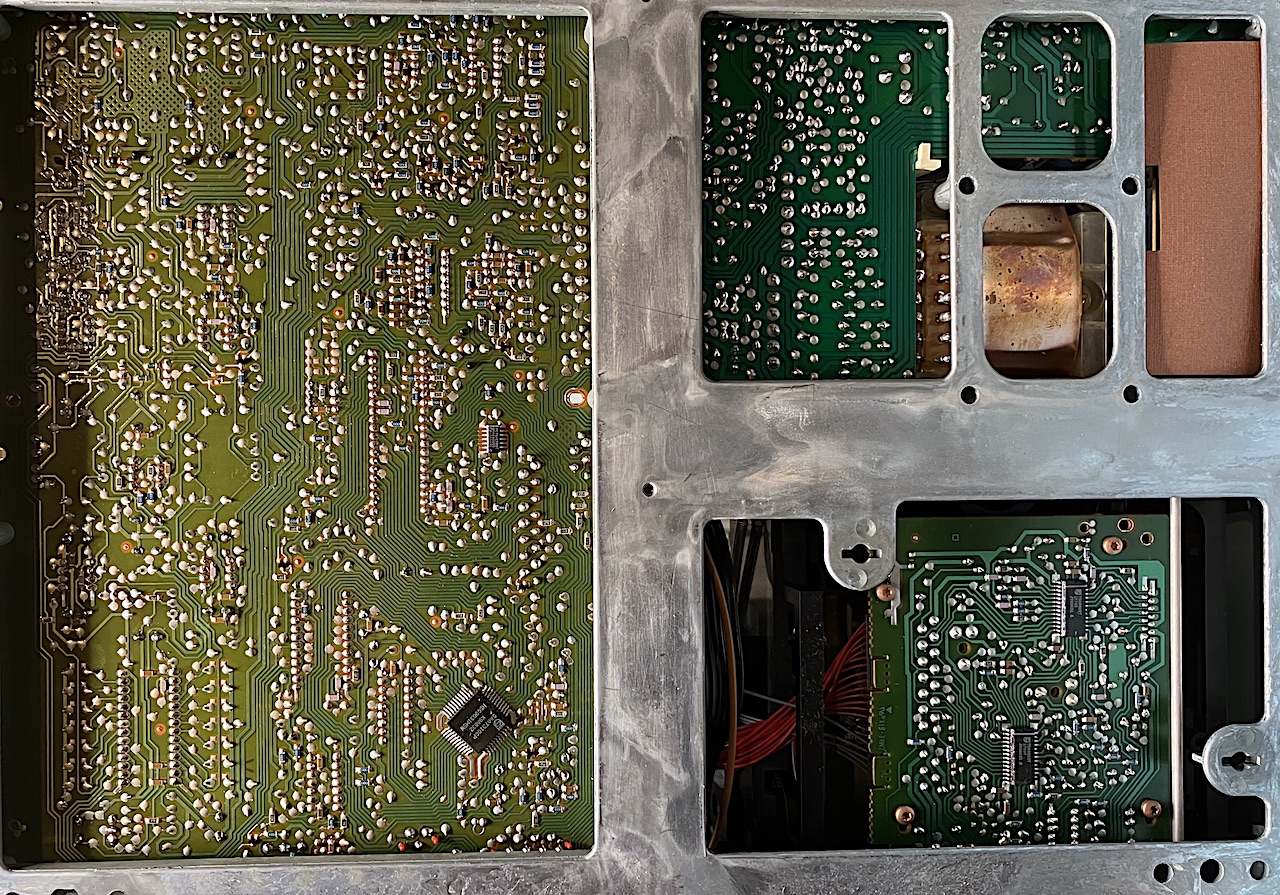

Underside

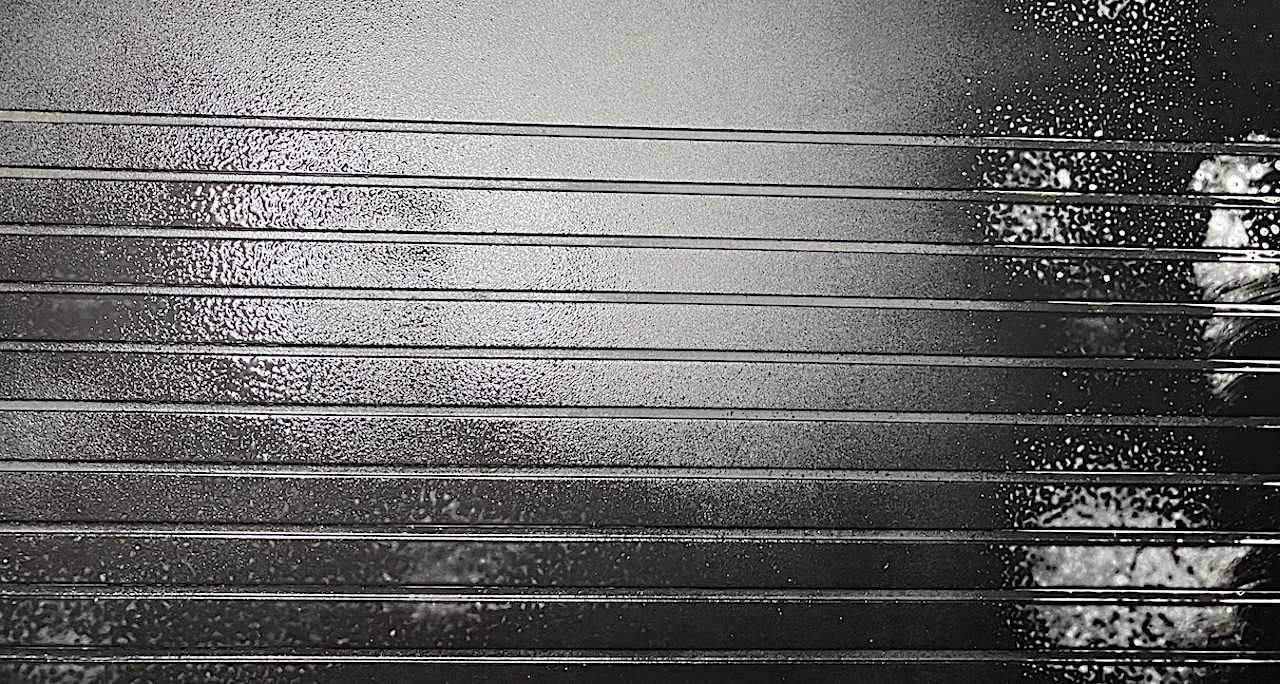

Cleaning

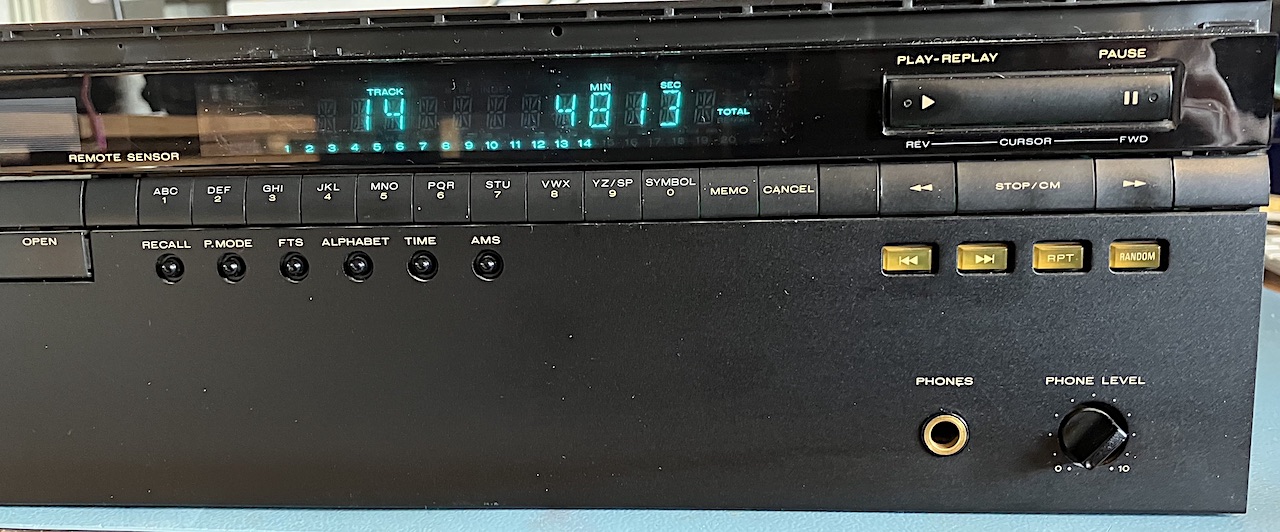

Ready to go

“De Marantz staat weer prima te spelen. Bedankt!”
