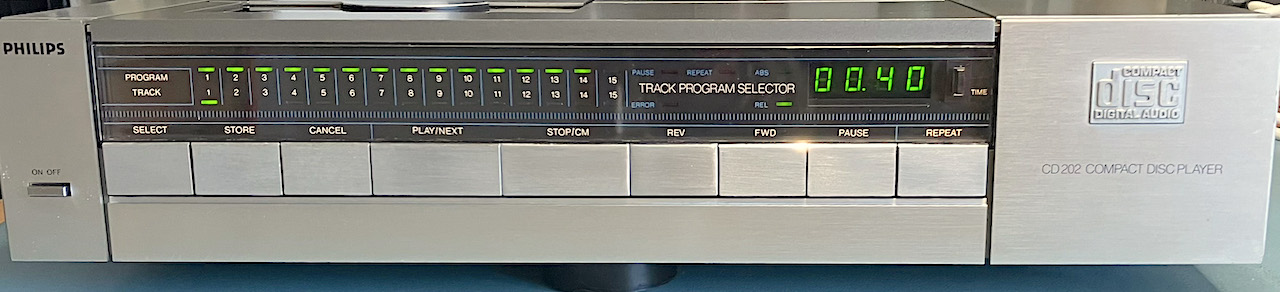

CD 202 project

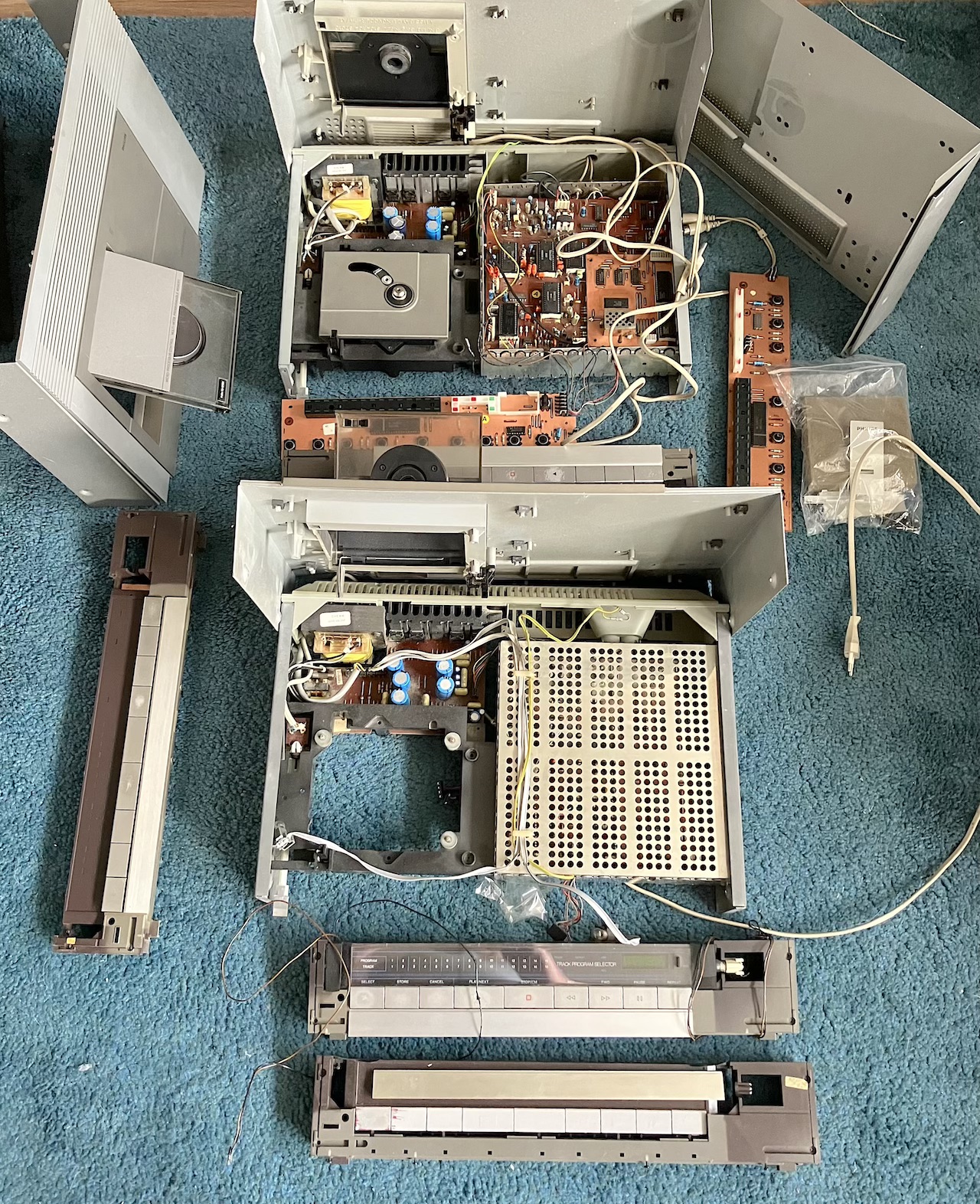

New Project , Lets make a CD 202, from these CD 200 & CD 202 parts  🙂 , I started with a  Dead CD 202 that needed a little TLC

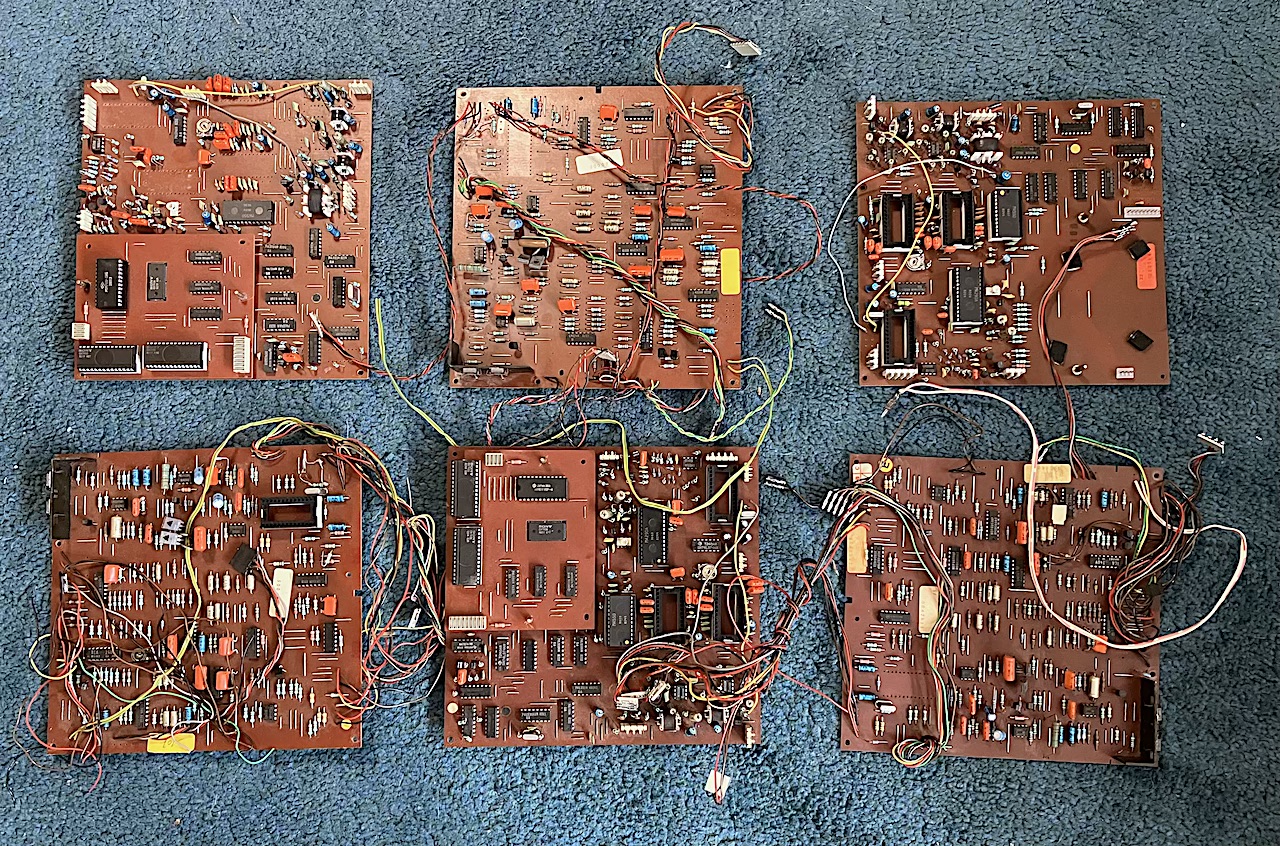

Some incomplete Servo and Decoder PCB’s

The Front panel,  we need

  • tactile switches
  • Capicitors
  • A New Display

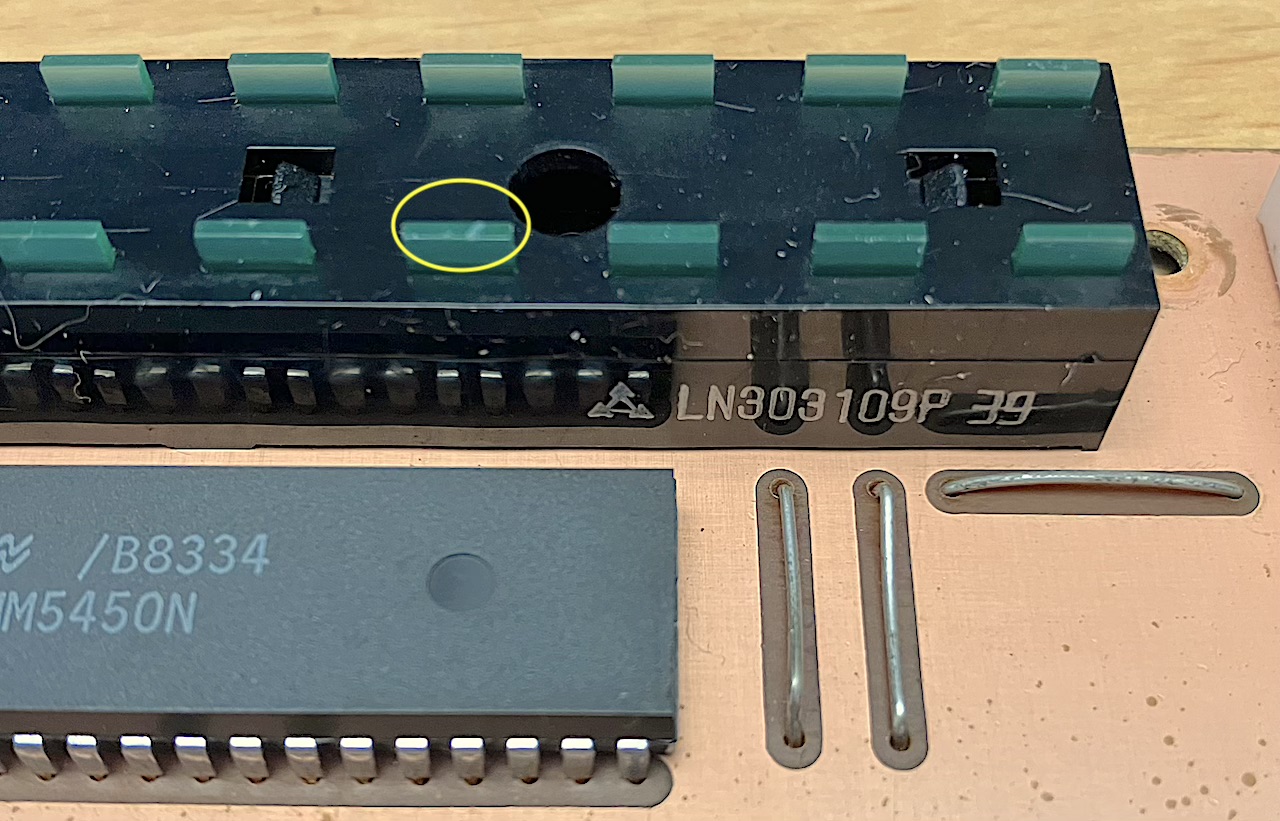

A new LED without scratch

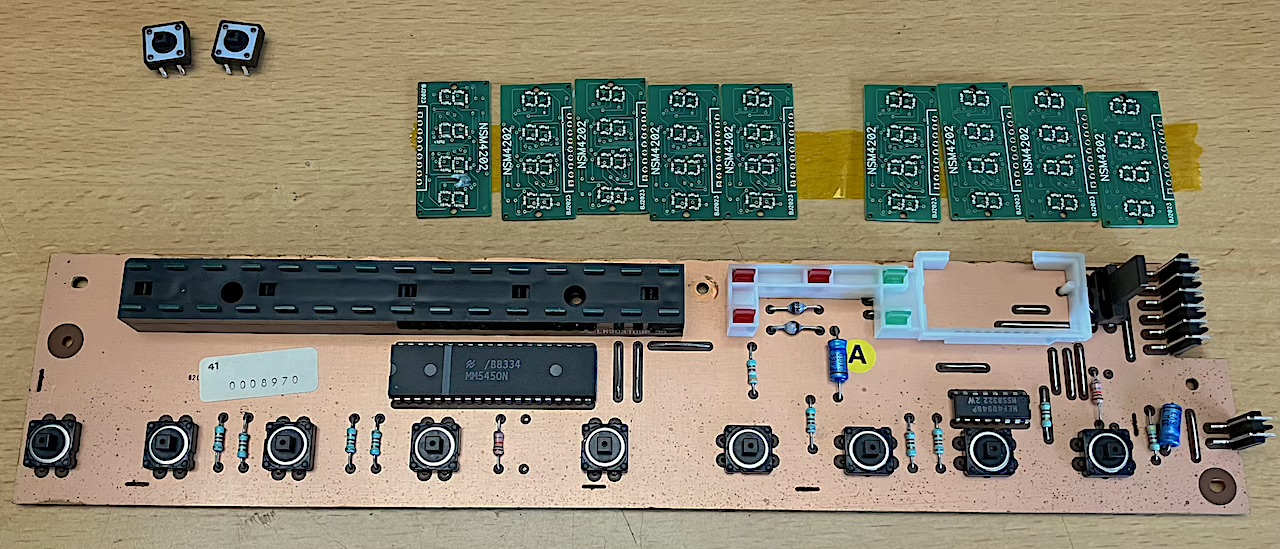

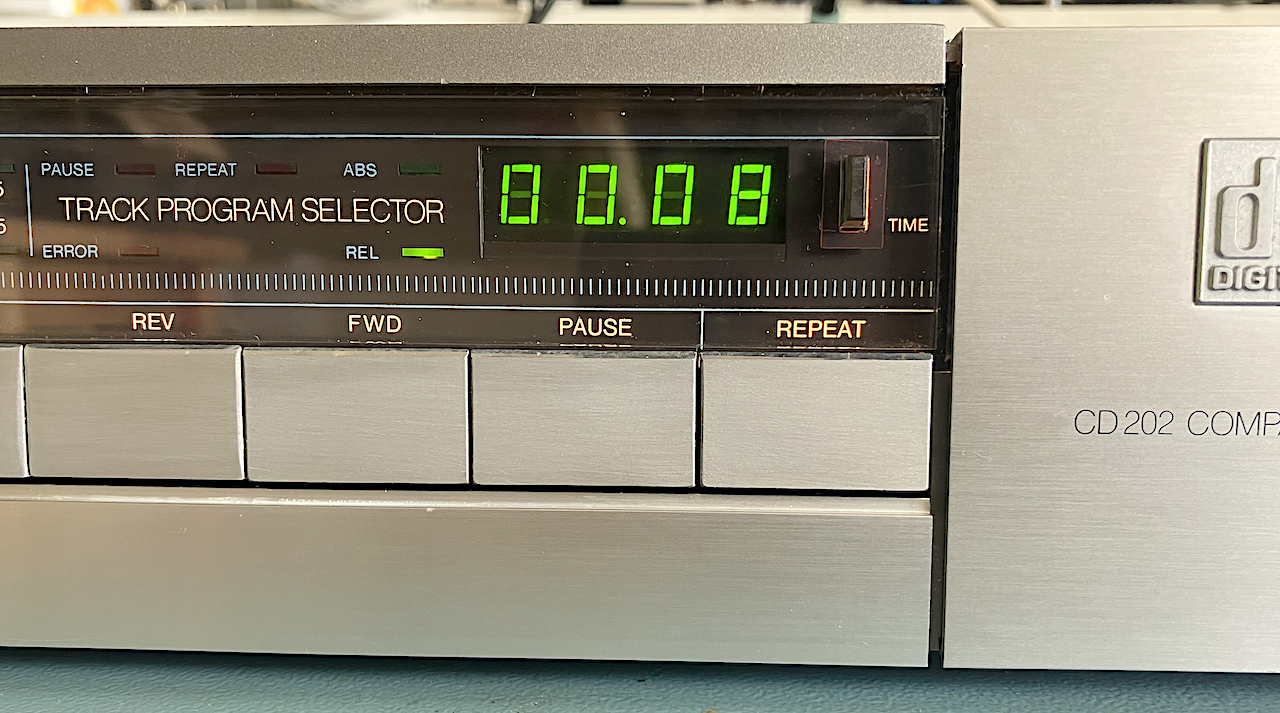

Made a new NSM4202 display , tweaking some resistors , the SMD segments are very bright

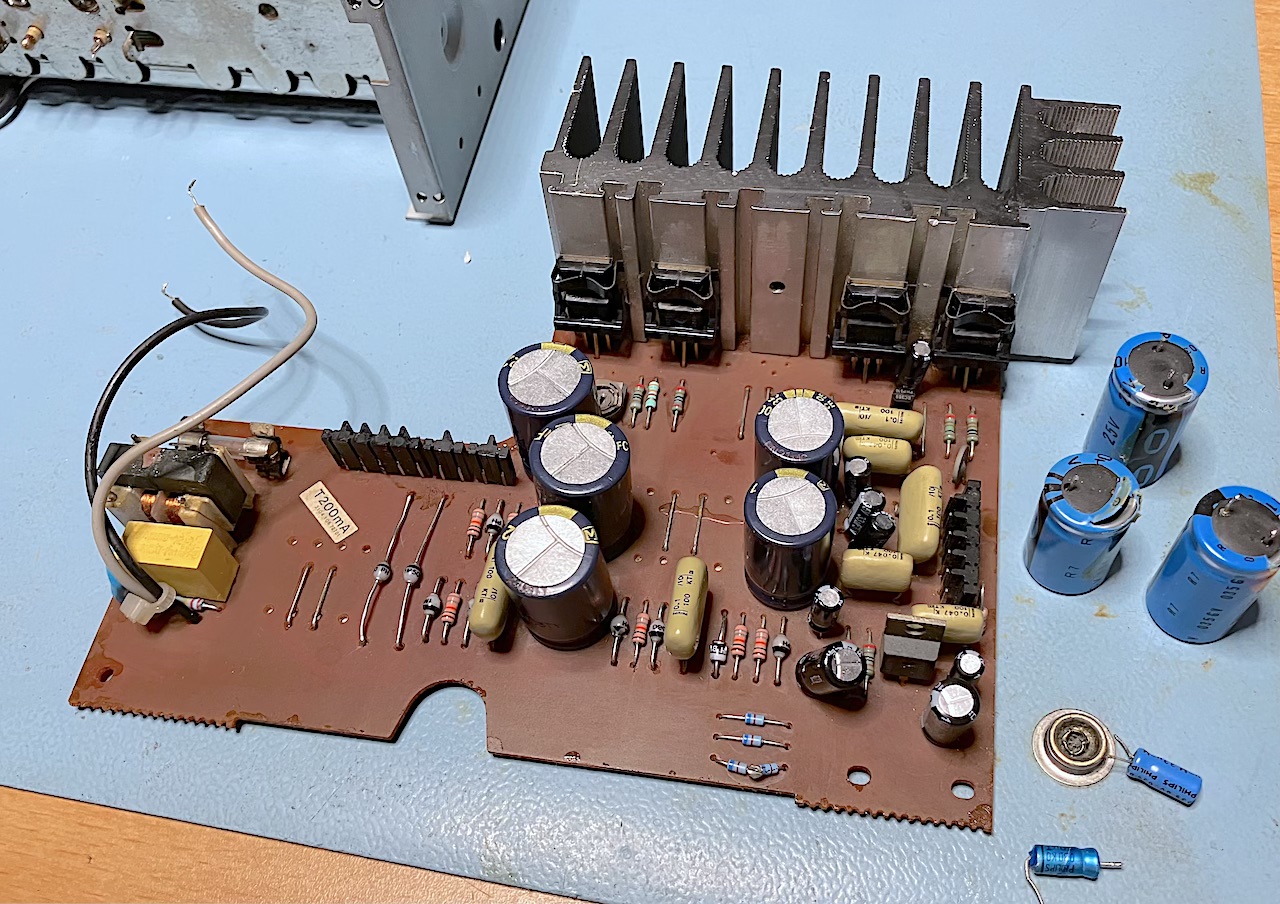

Rebuilding the powersupply

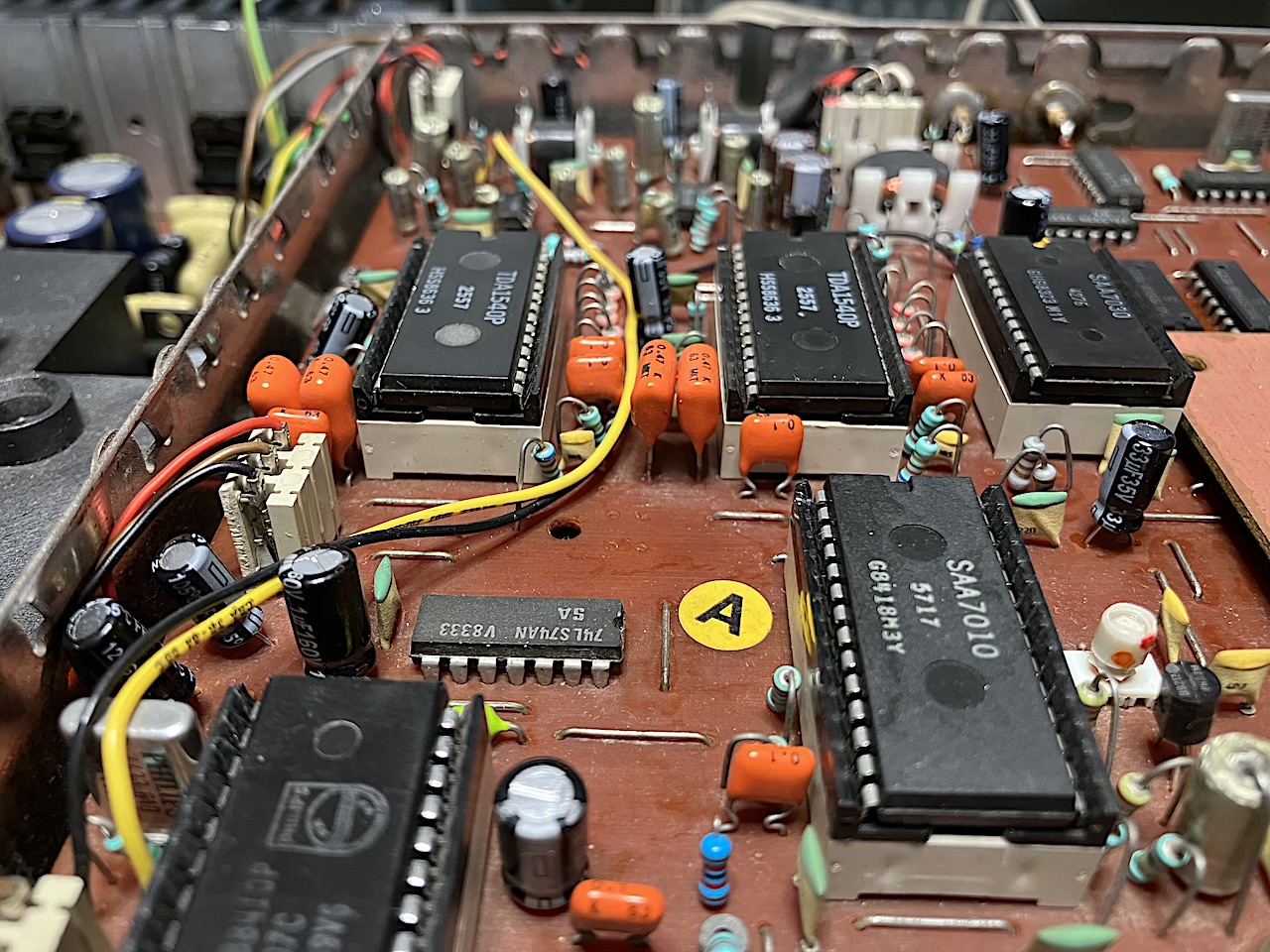

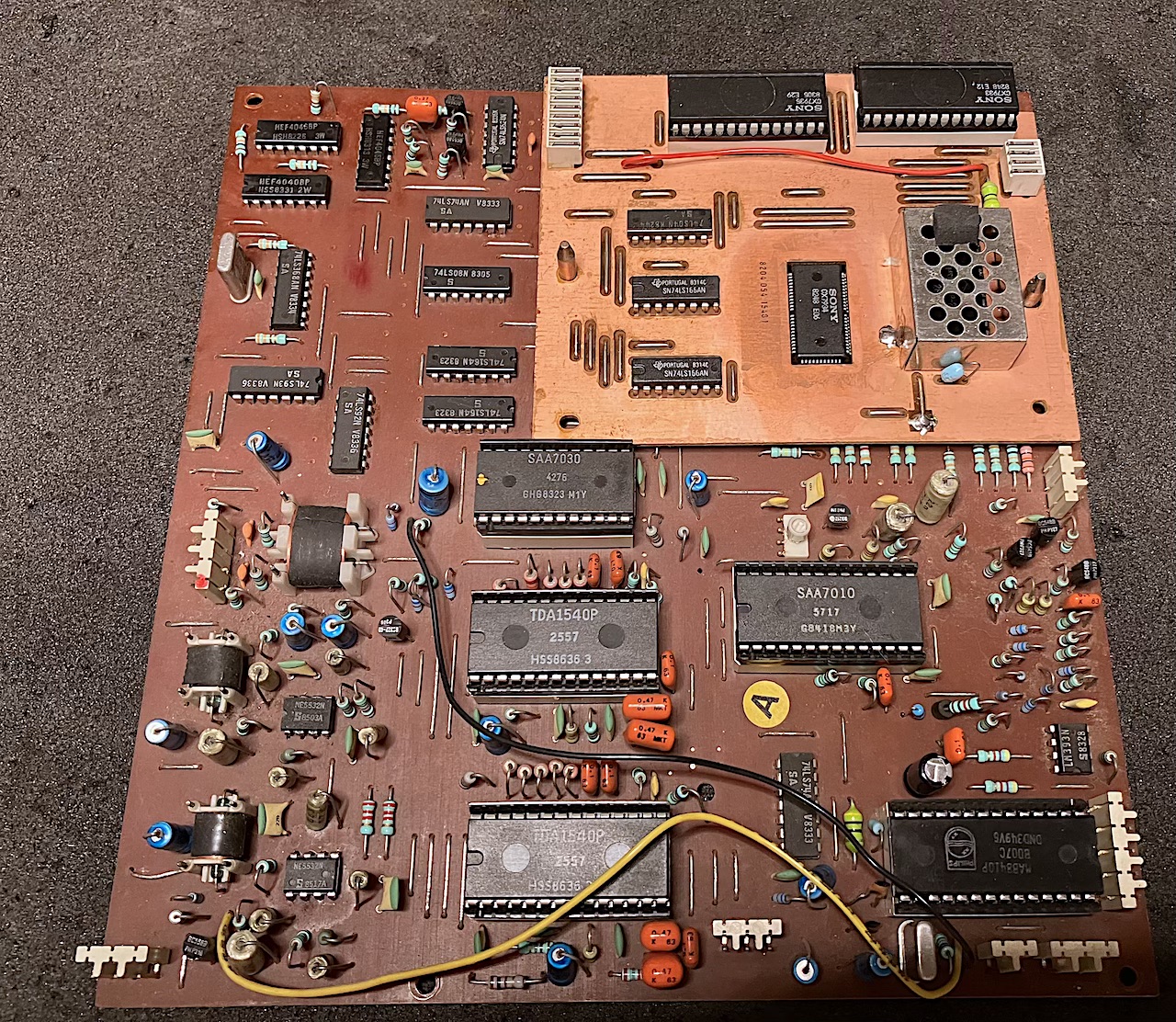

cleaning the decoderboard and replace the blue caps

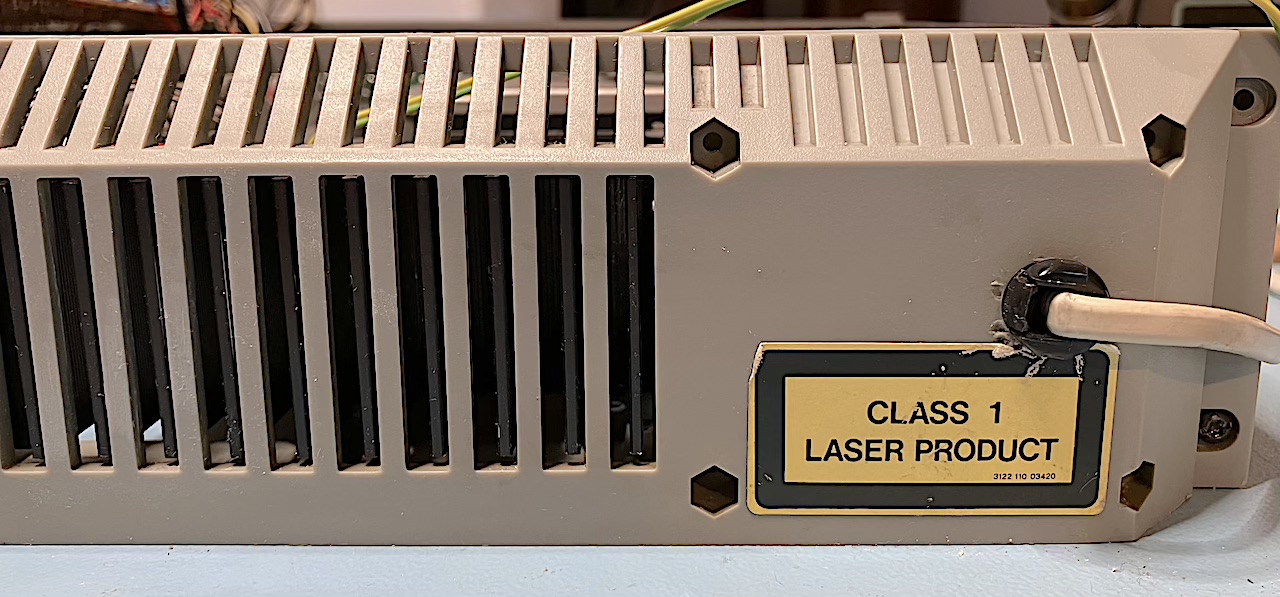

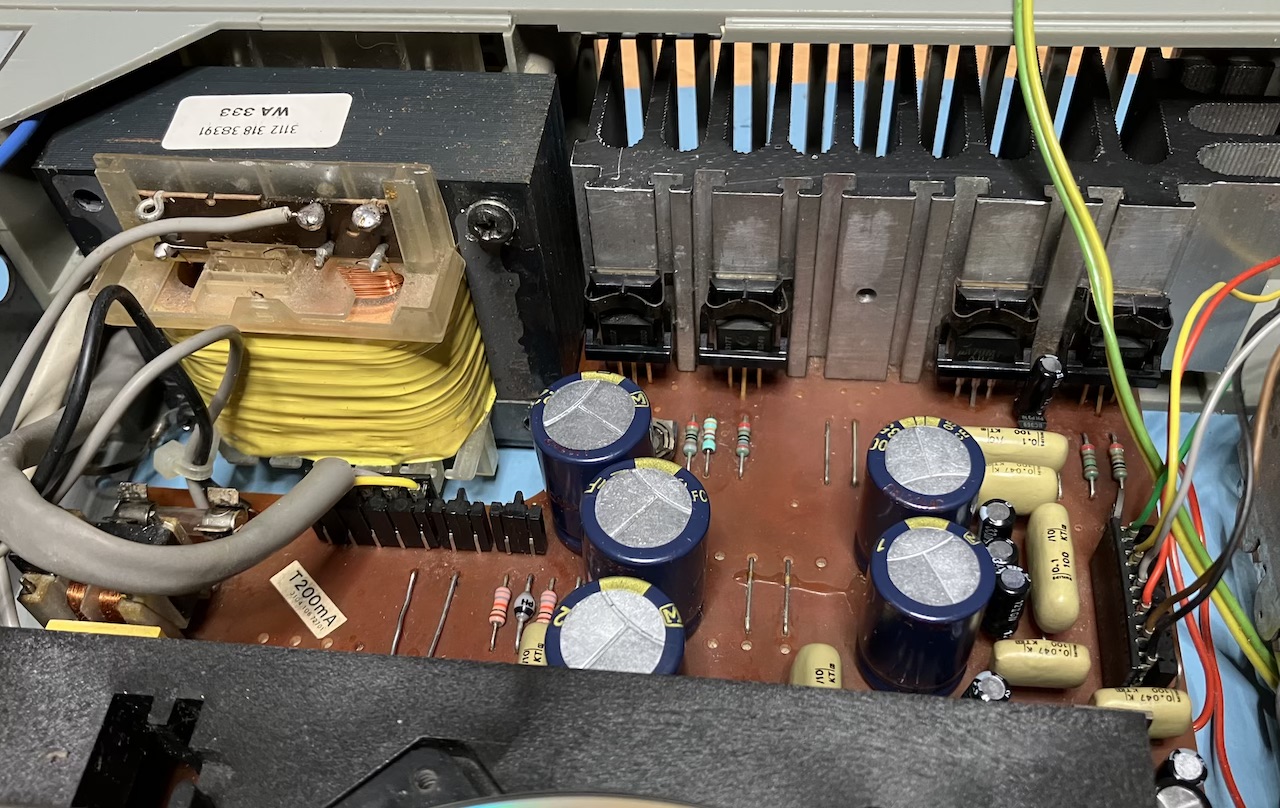

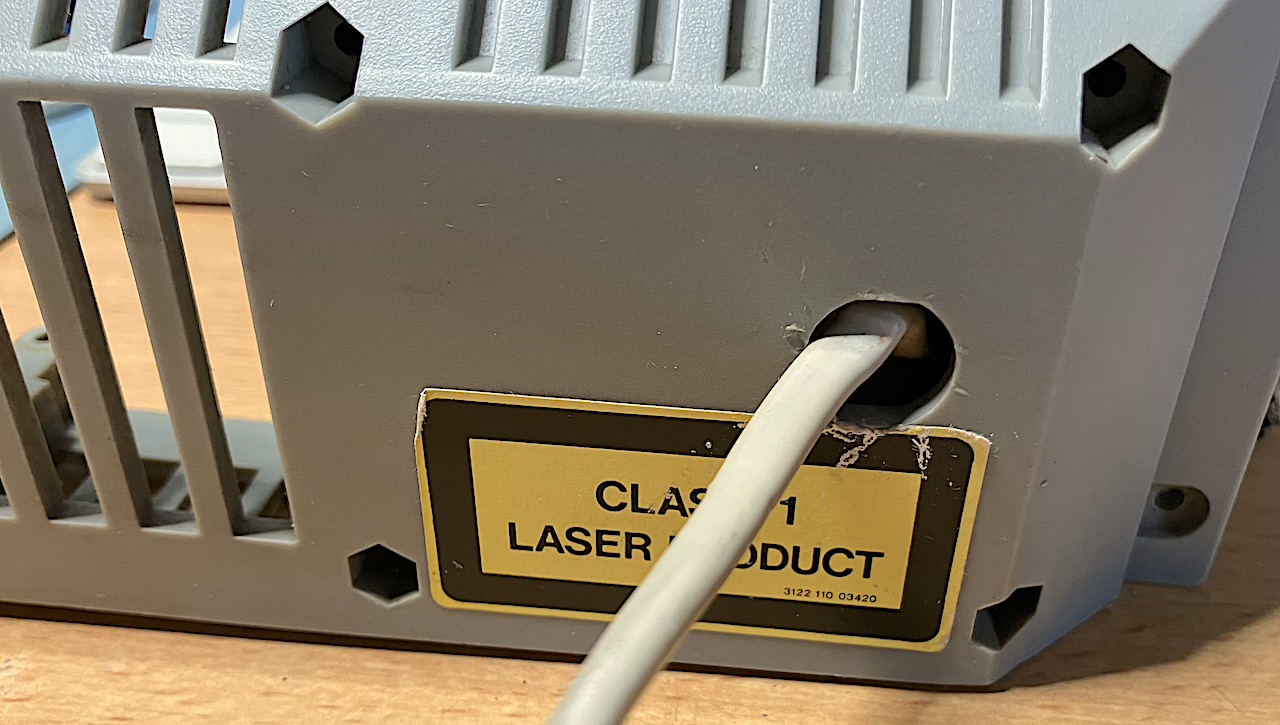

Rewiring the transformer to 240 volts and build power supply in frame

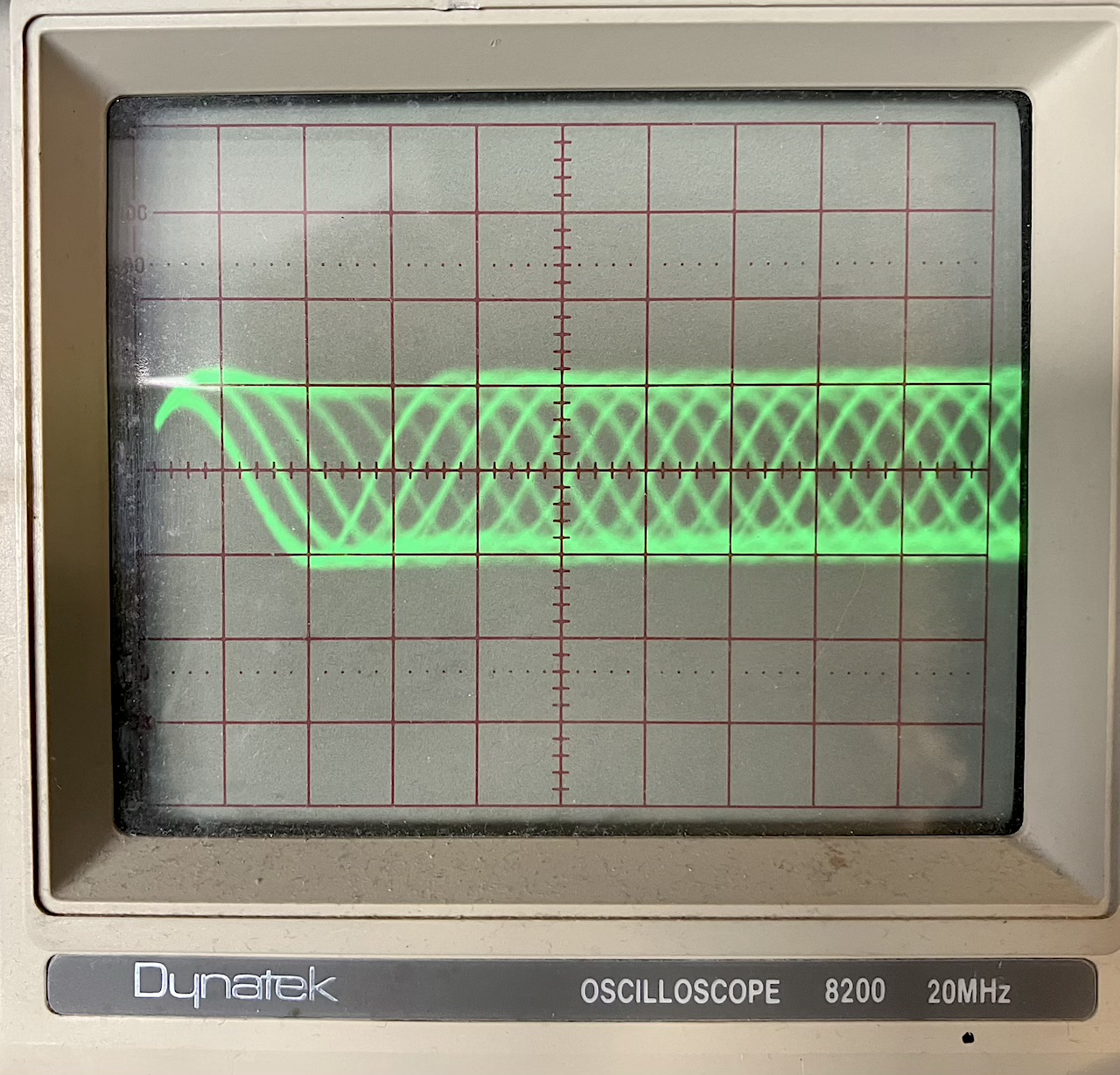

really nice and clear eye pattern after recaping and resoldering and cleaning  all circuits boards

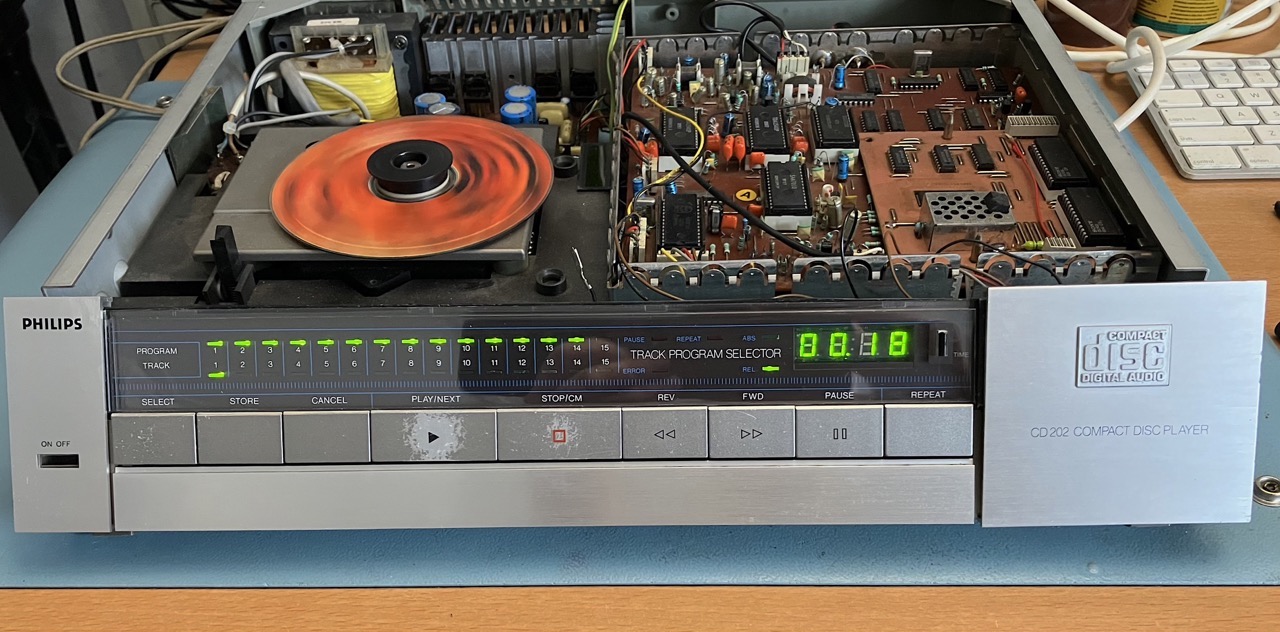

Overview

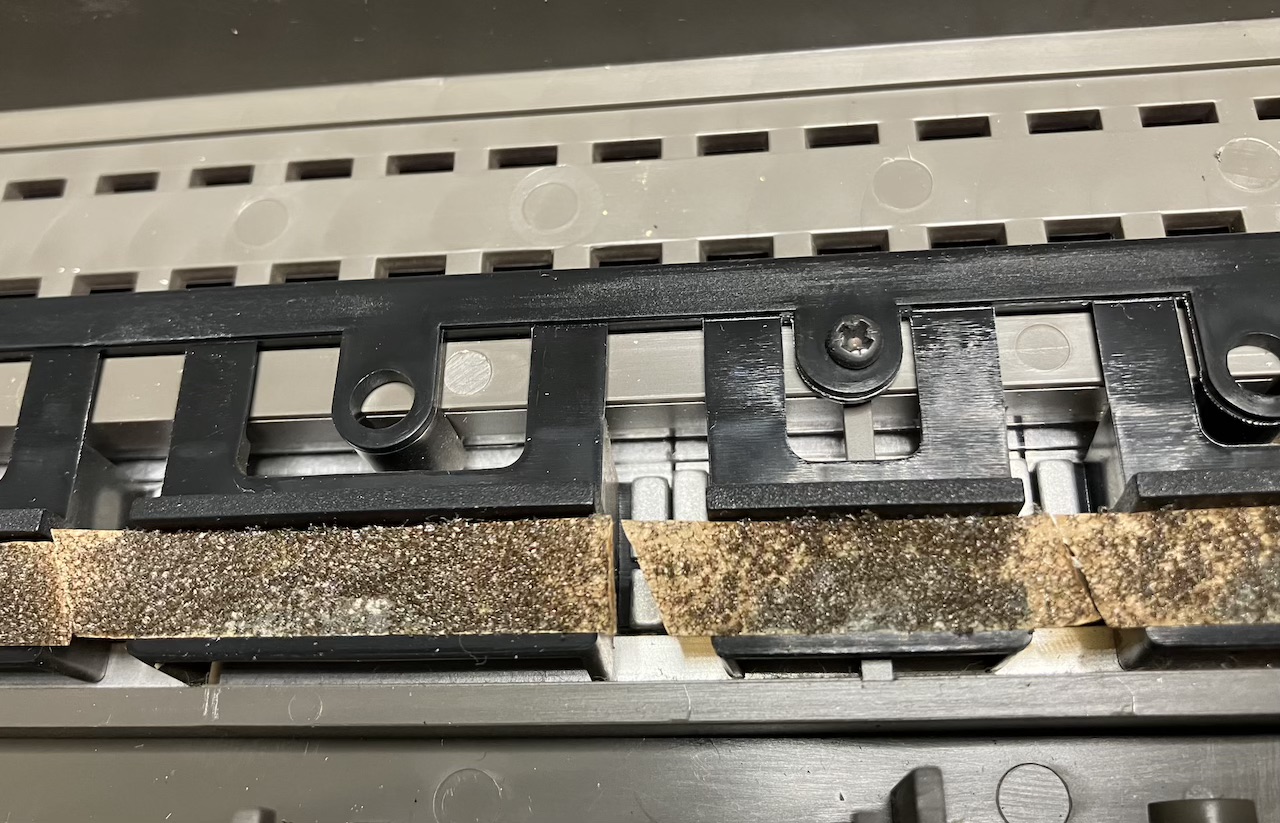

We need to replace some foam behind the keys

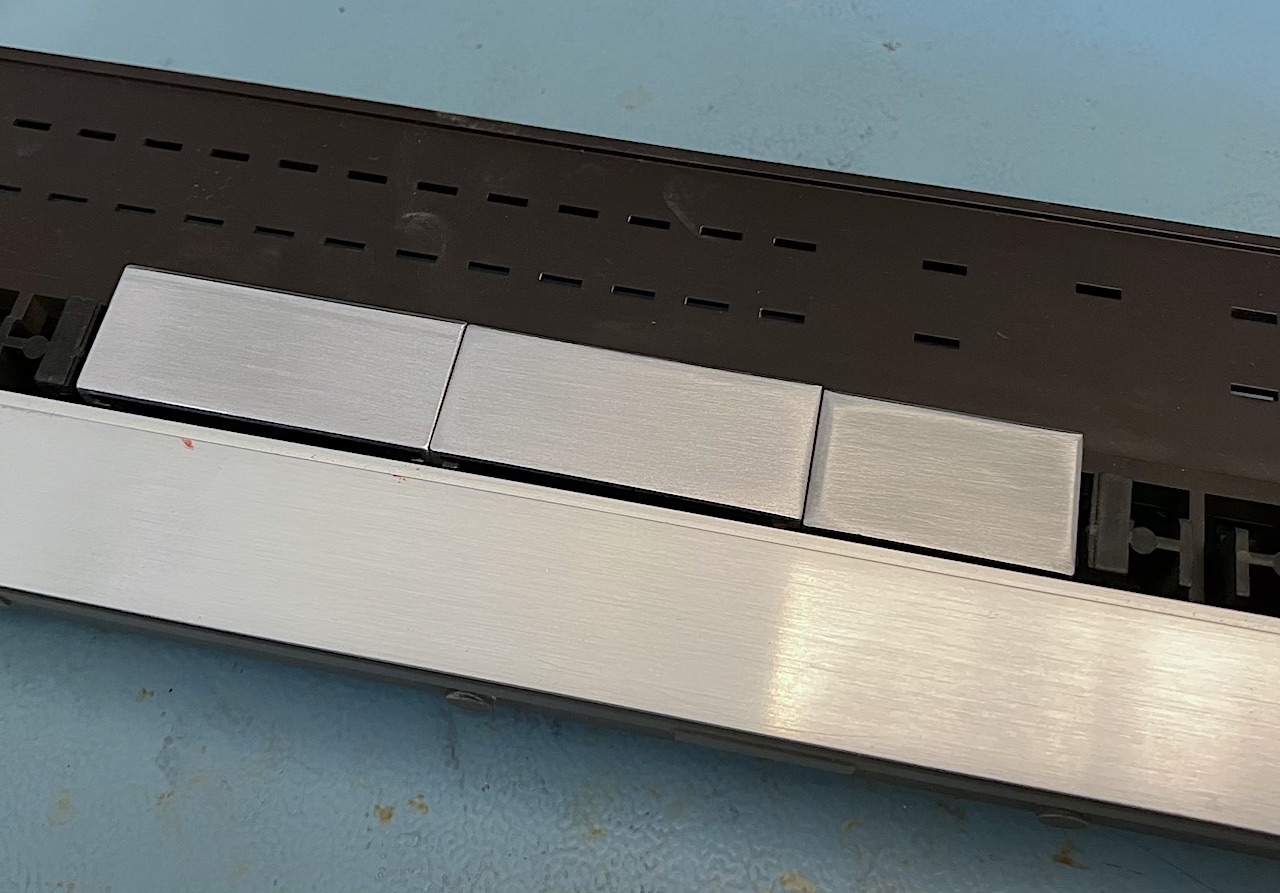

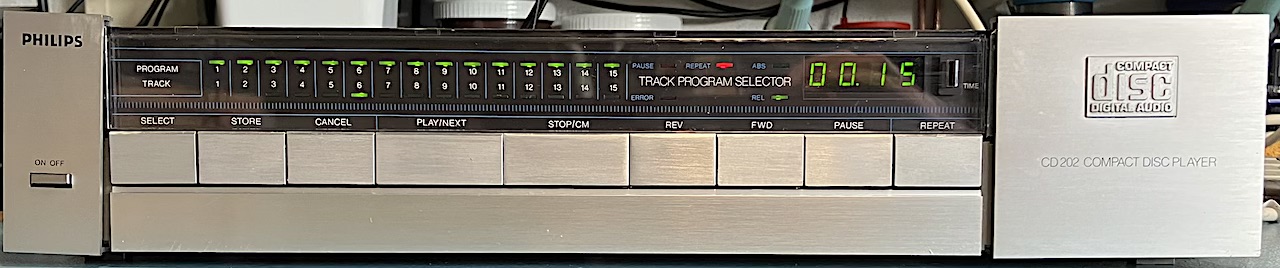

brushed the aluminium buttons

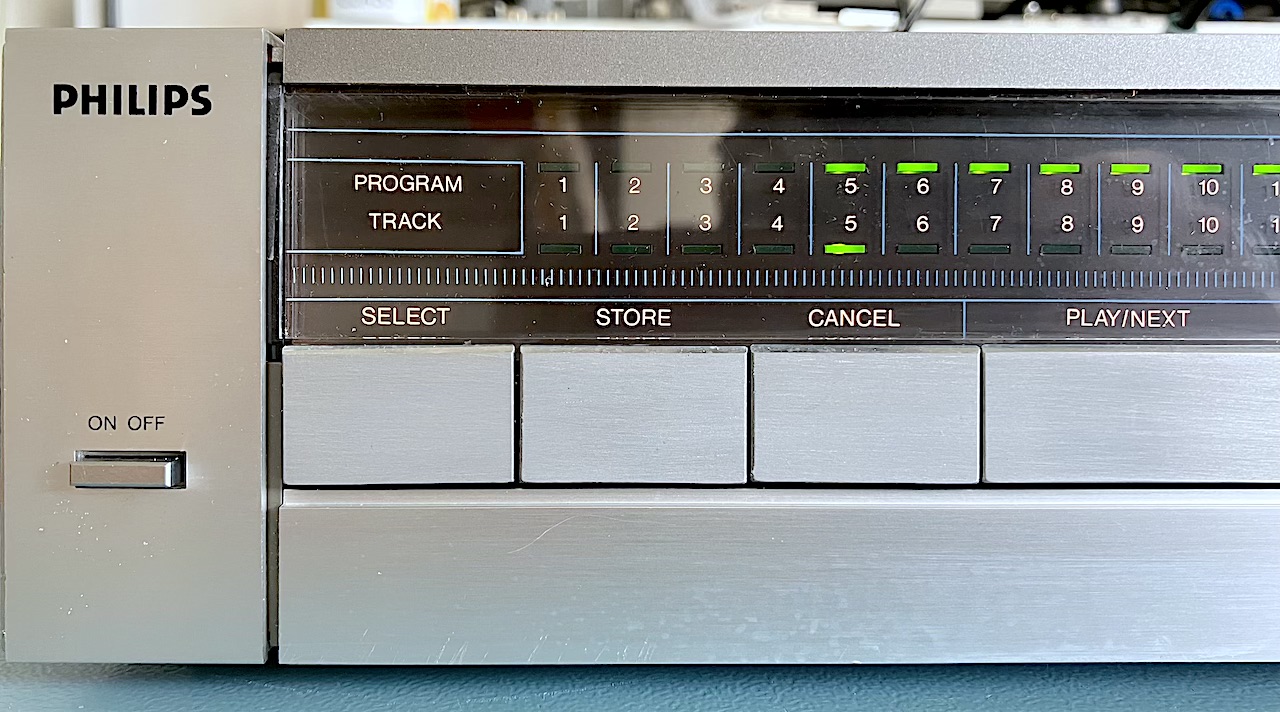

Look betters

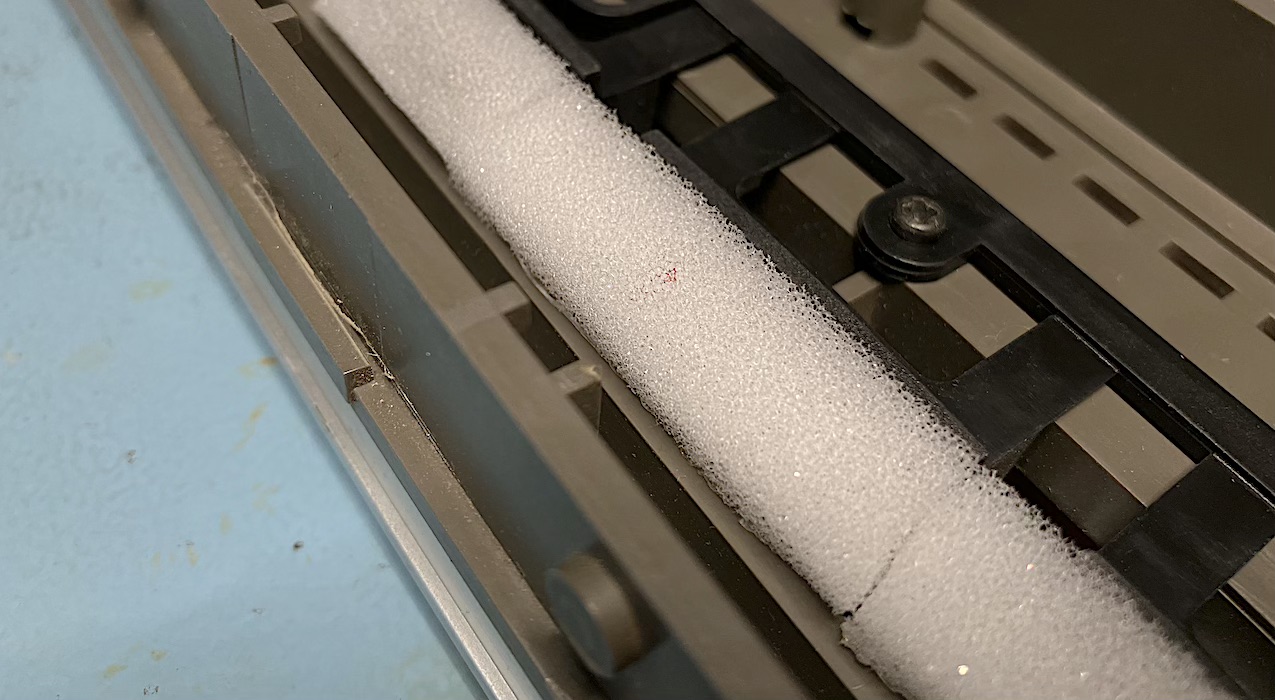

Refoaming 🙂

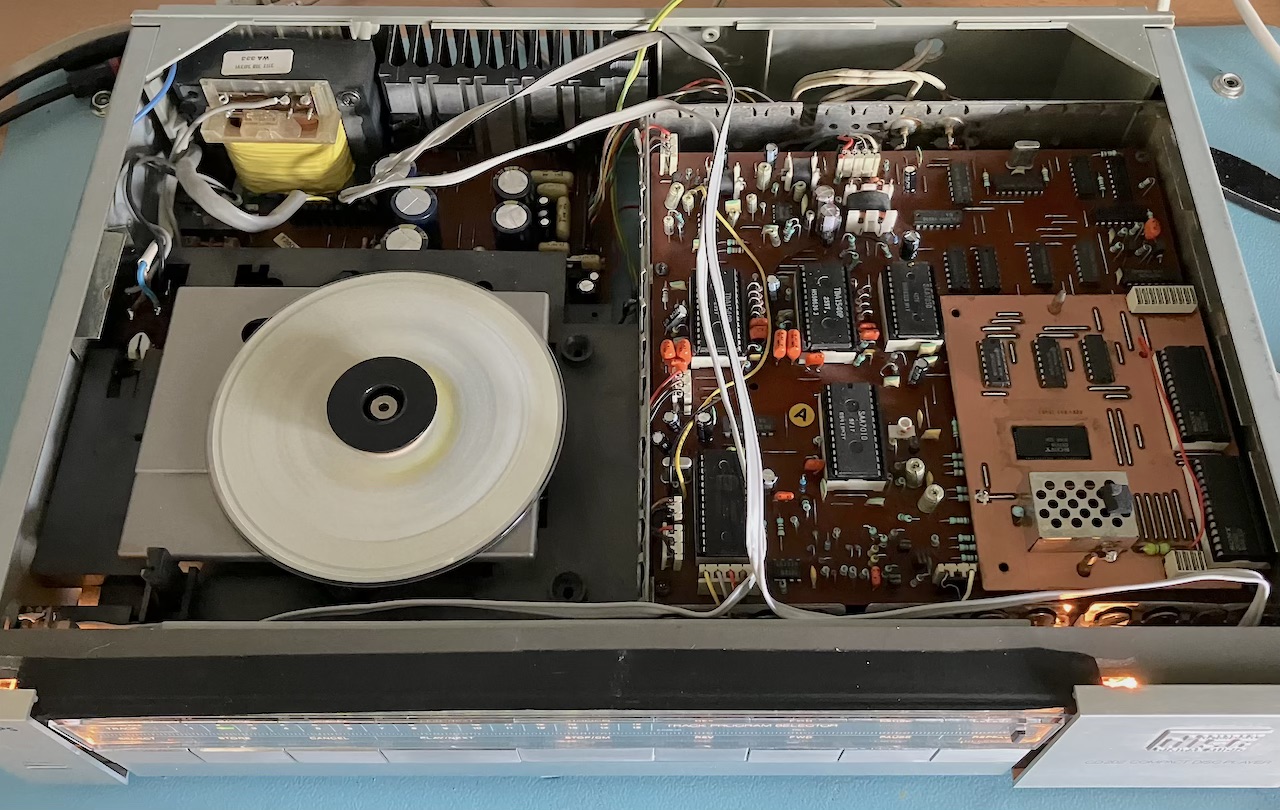

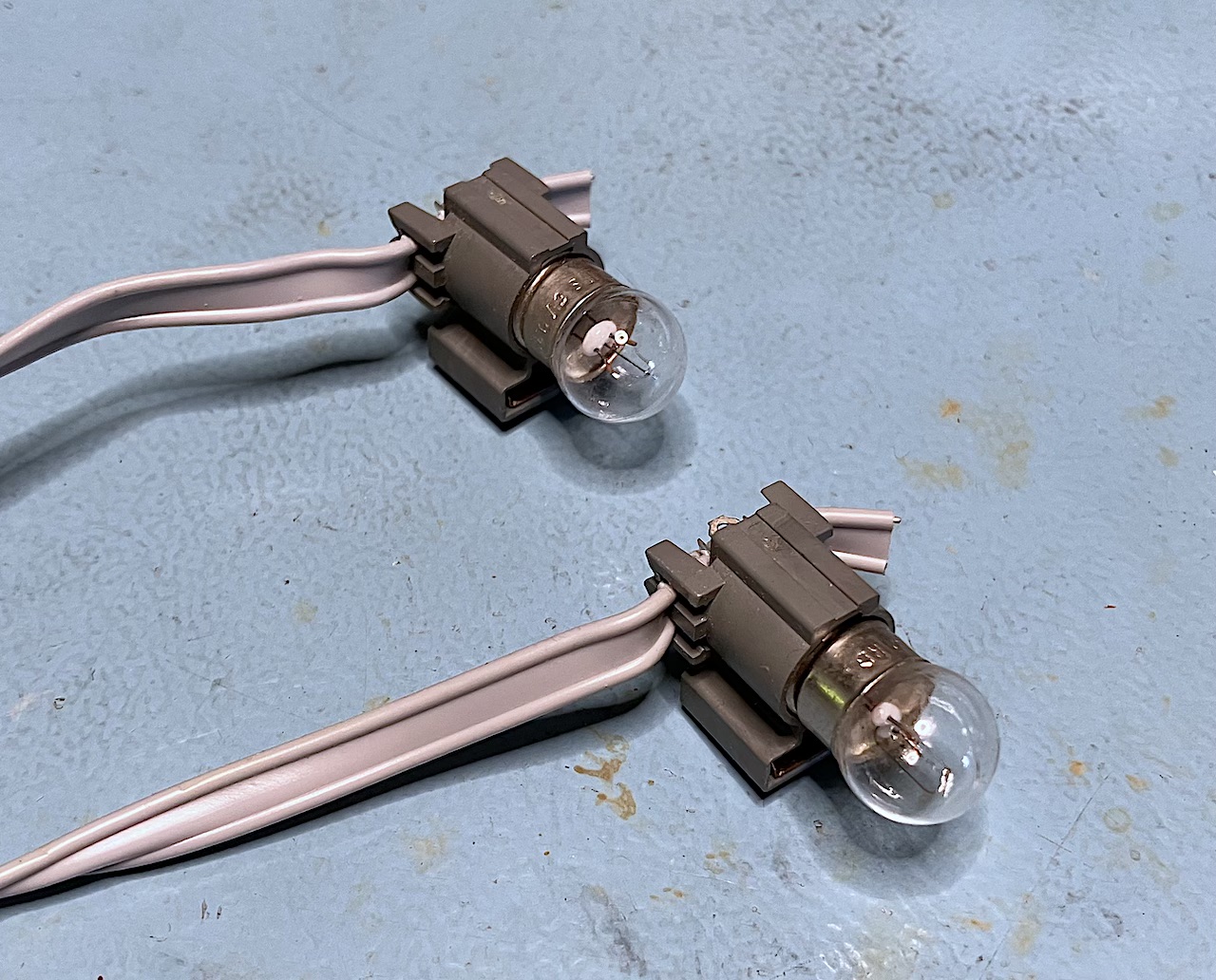

Found some bulblights

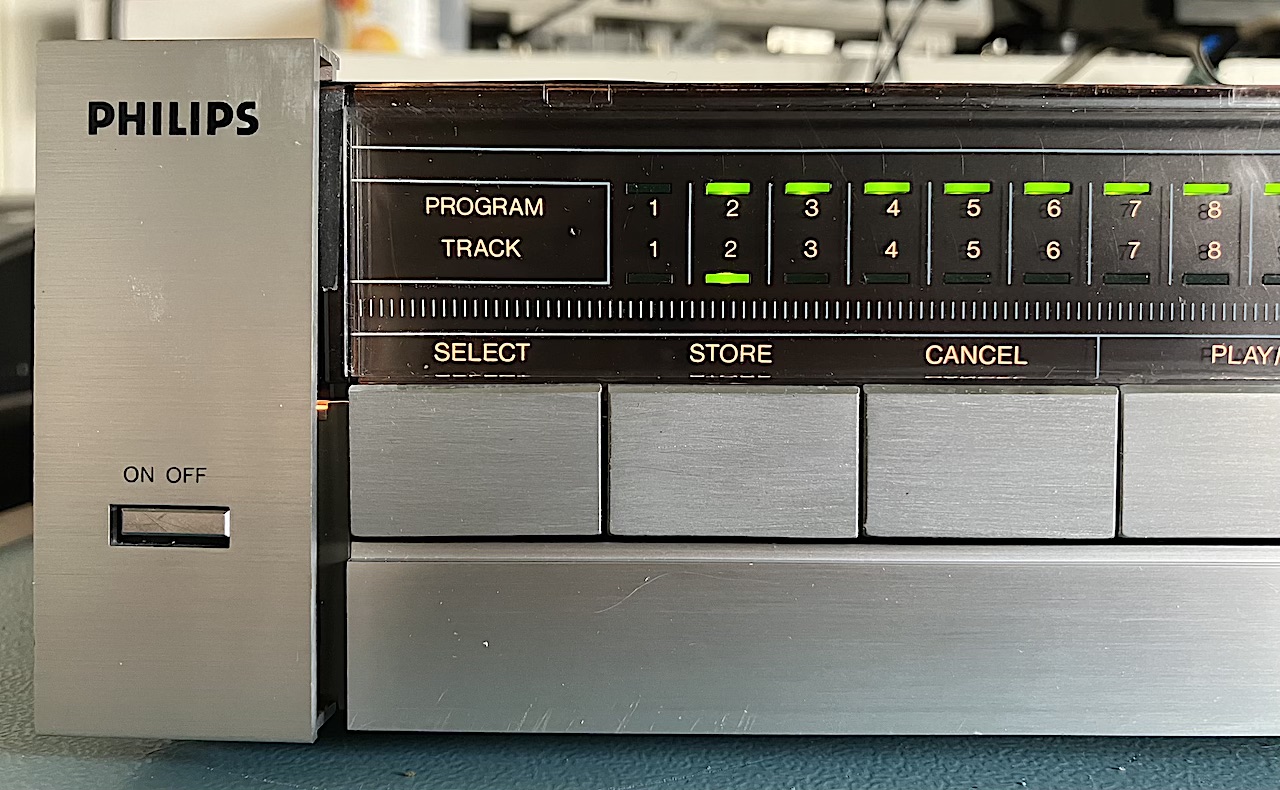

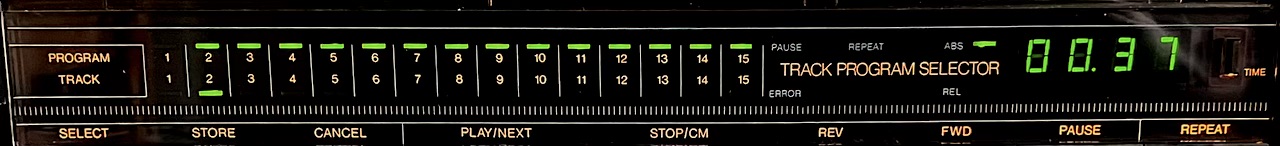

More rebuilding and testing lights

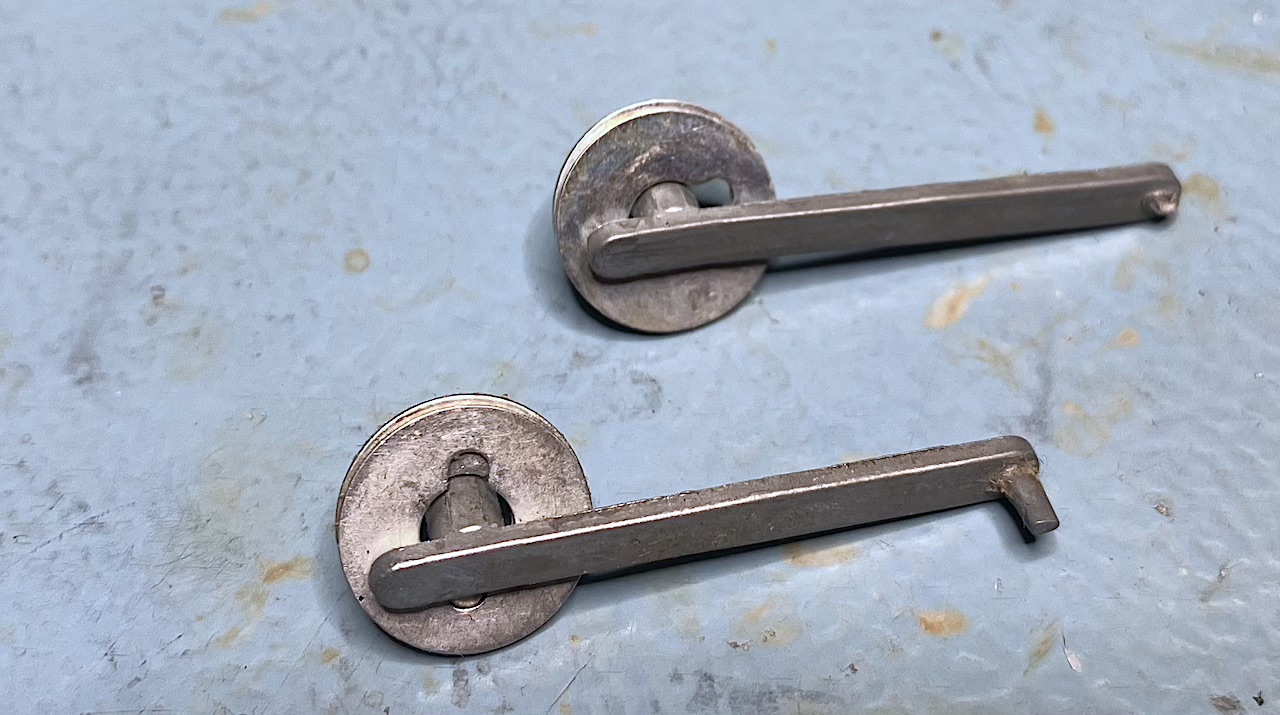

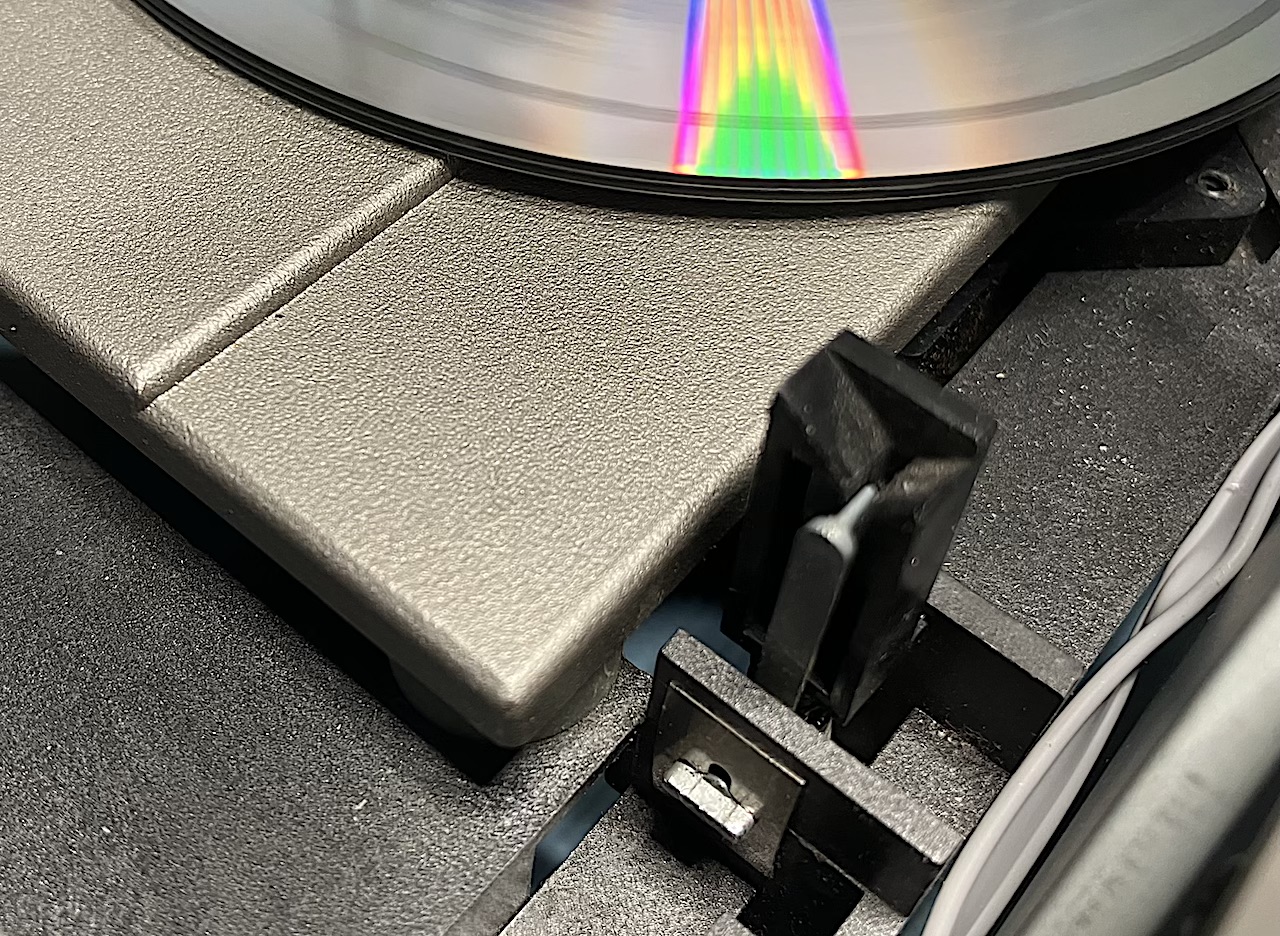

Replaced Lid hook

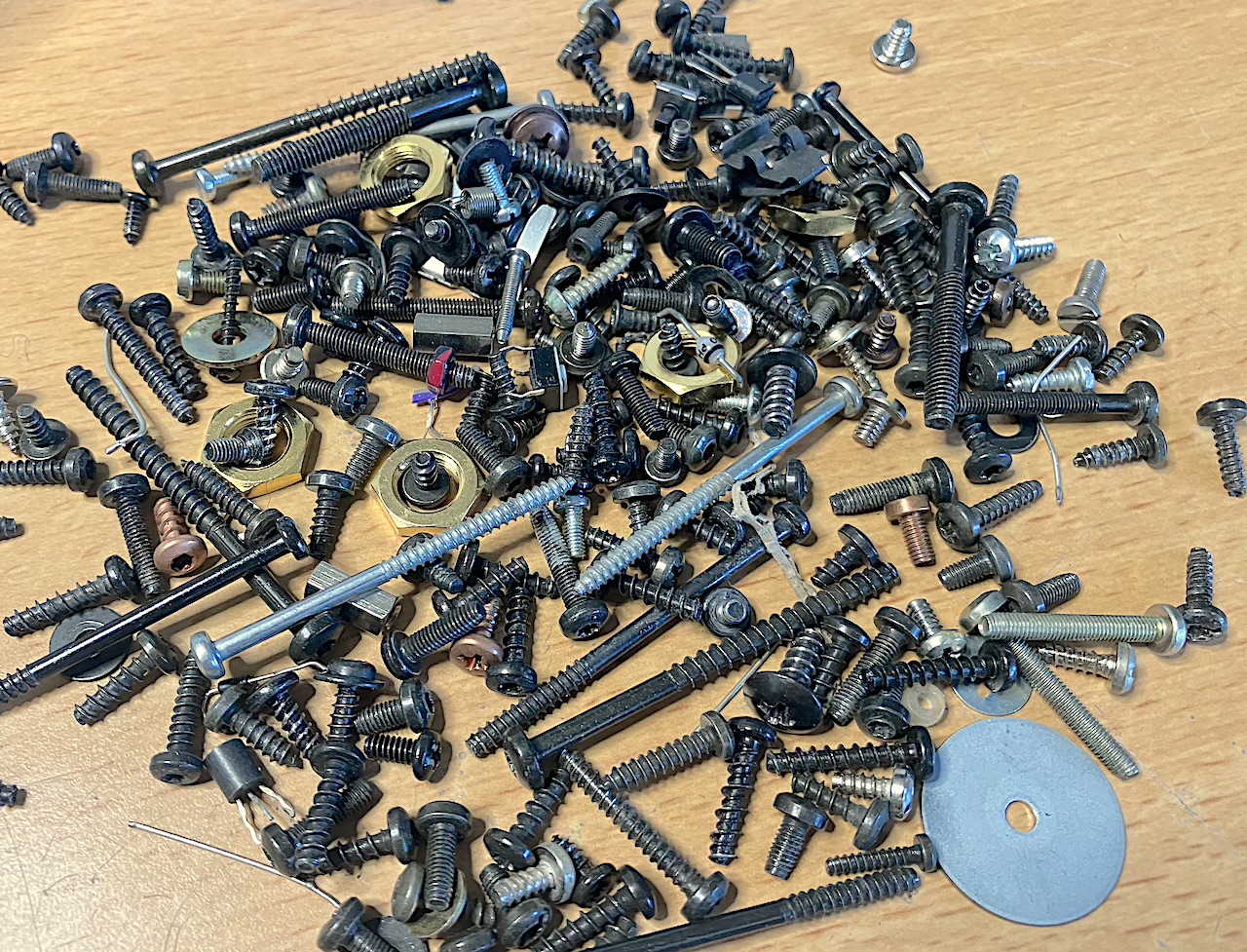

Looking for some screws



more testing





Cleaned the top plate

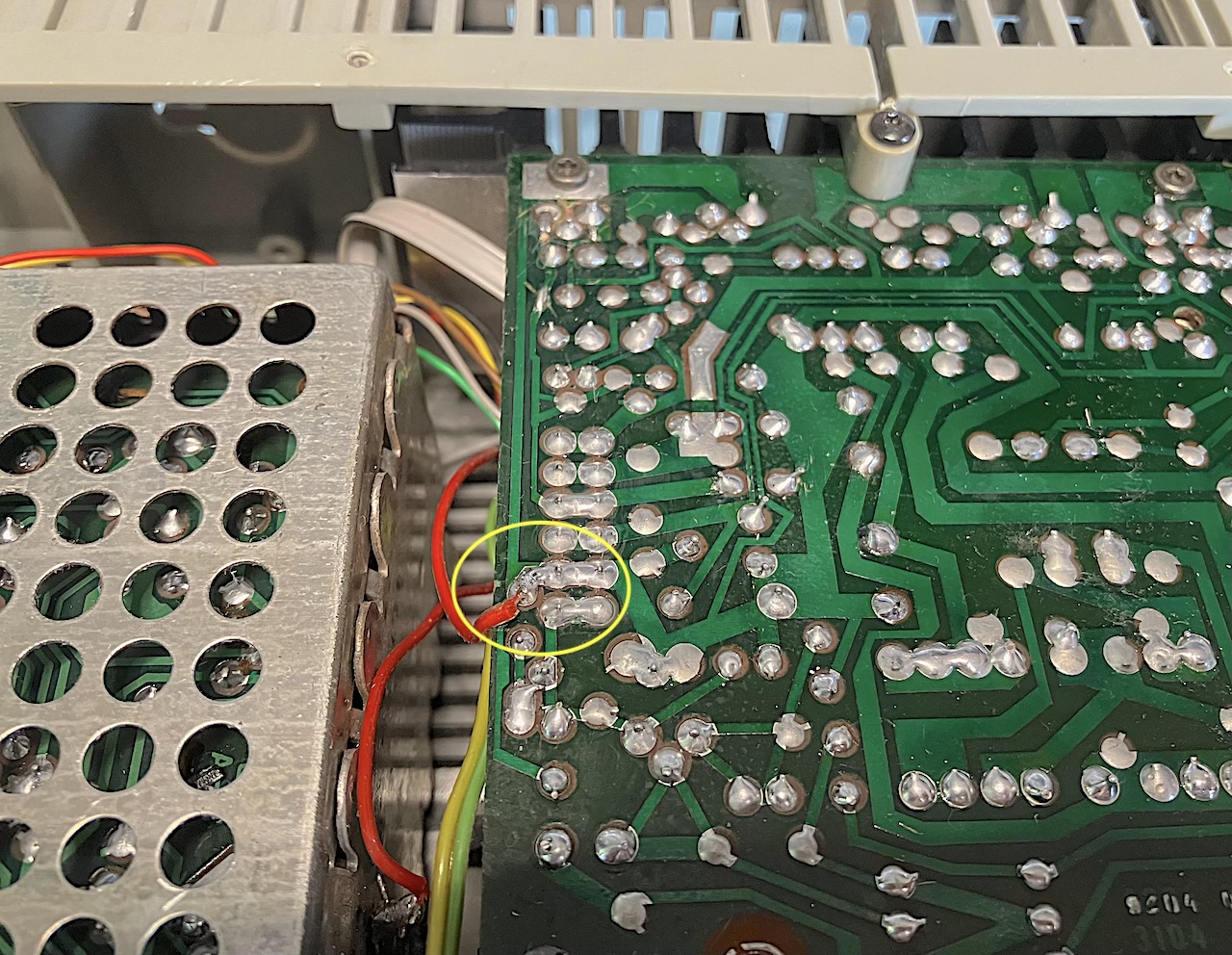

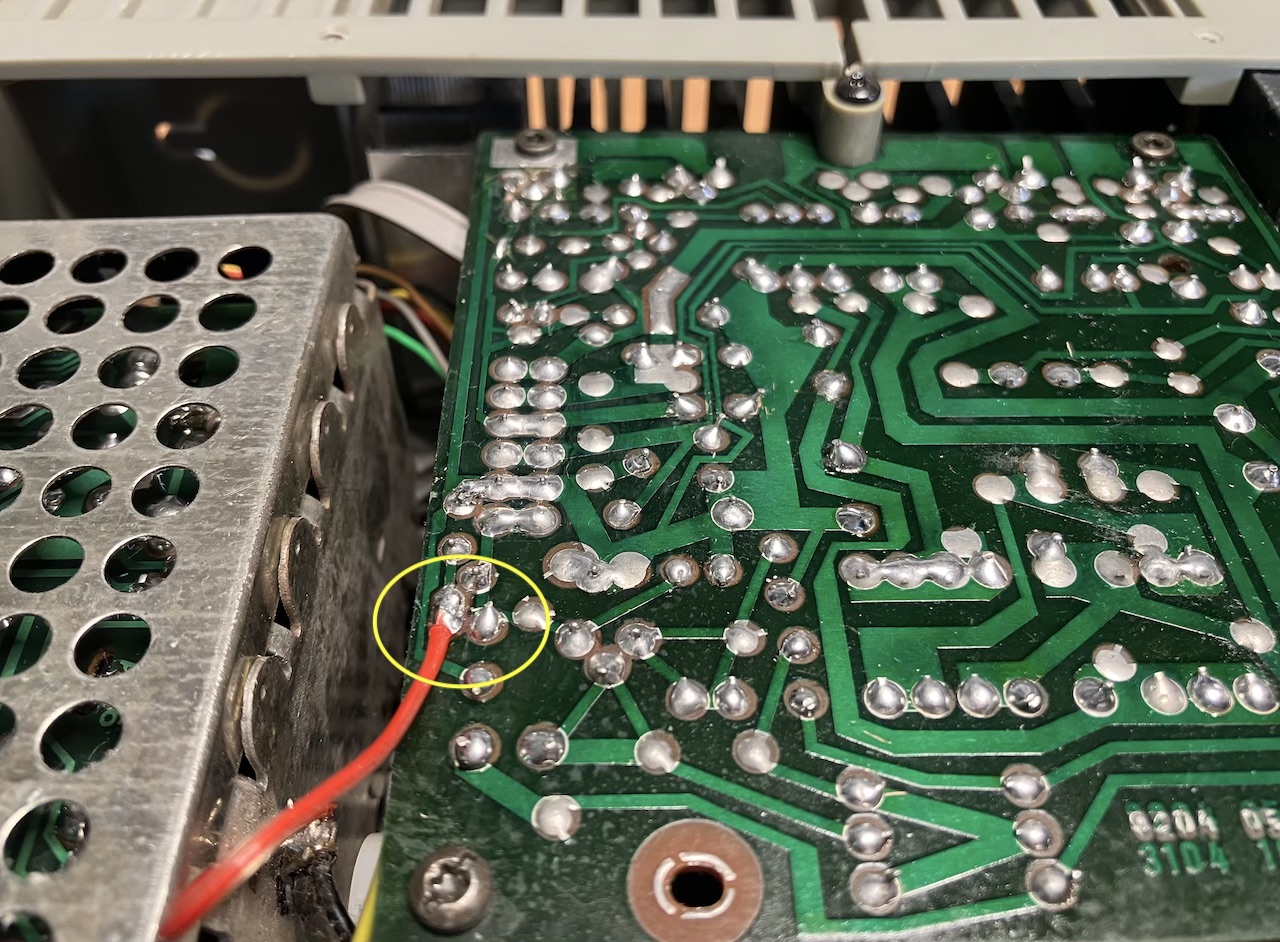

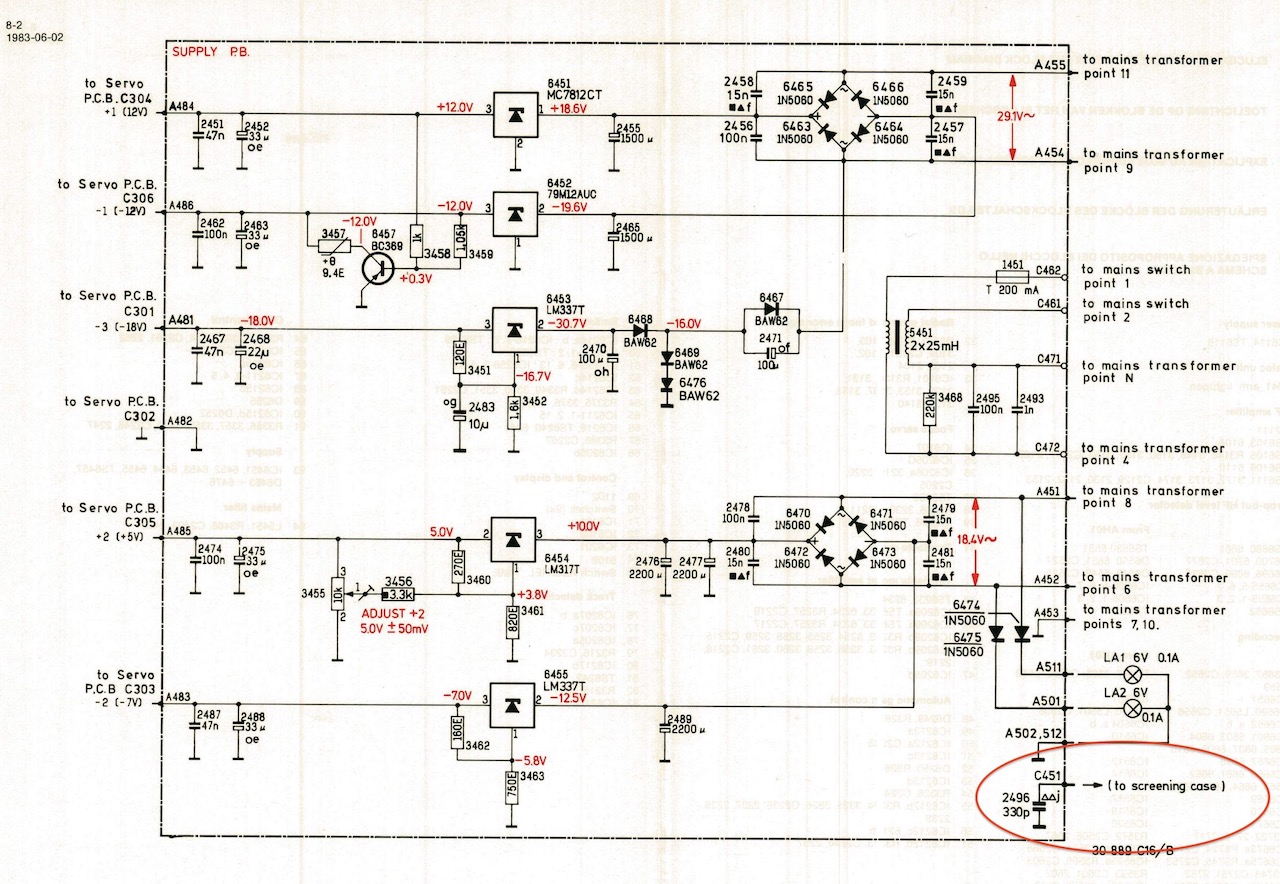

Oeps 🙁 , made a mistake some weird servo and idle tones could be heared in audio 🙁
