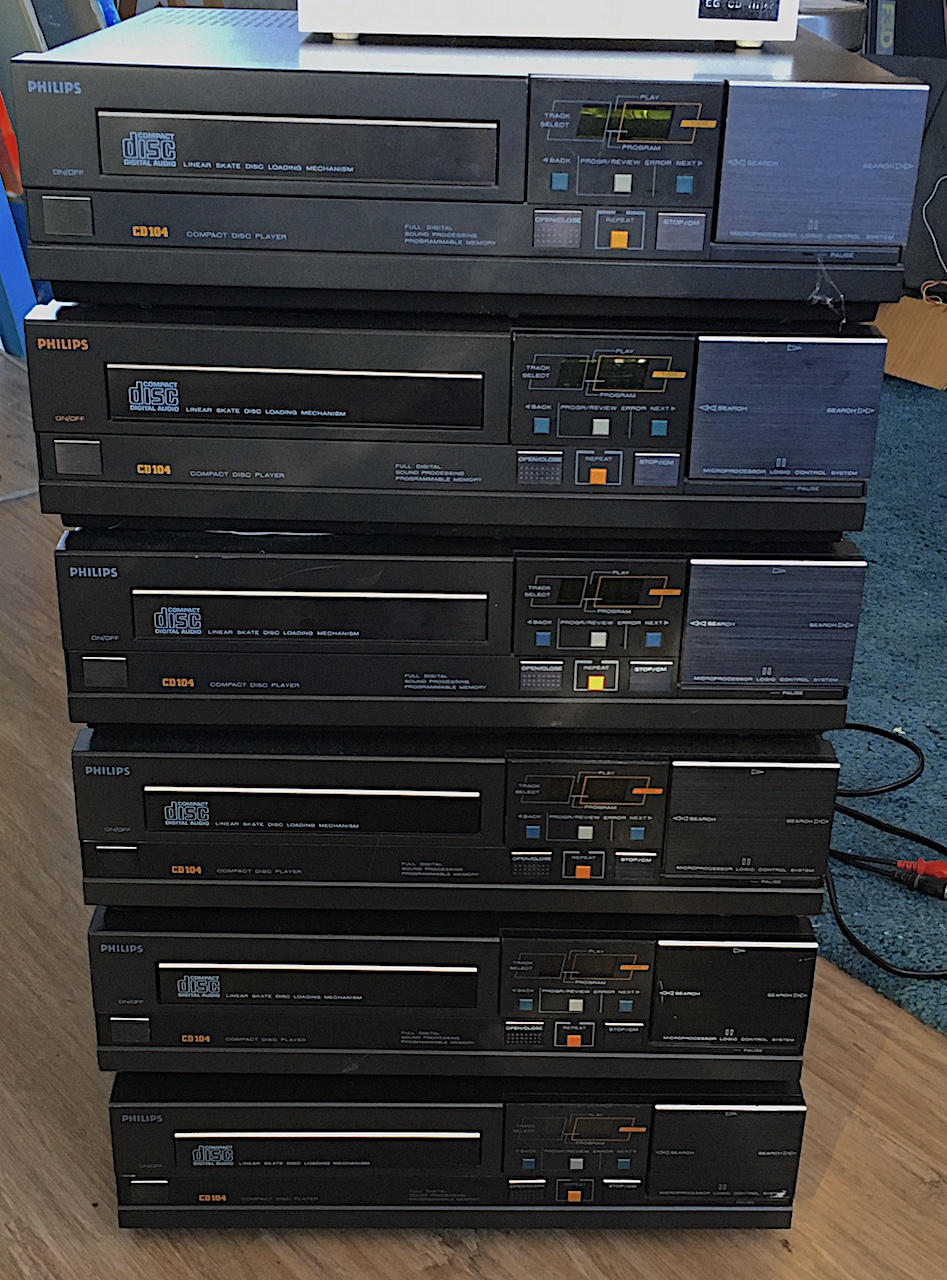

Repairing and refurbish CD 104 ‘s

Number 1 , some strange problems, some times no audio , and disc spinning backwards

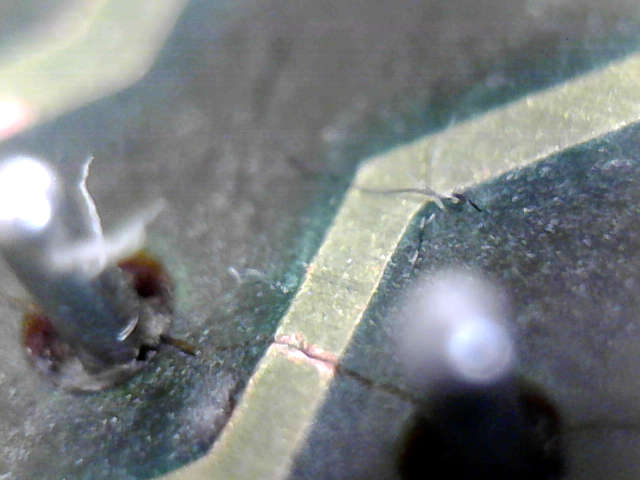

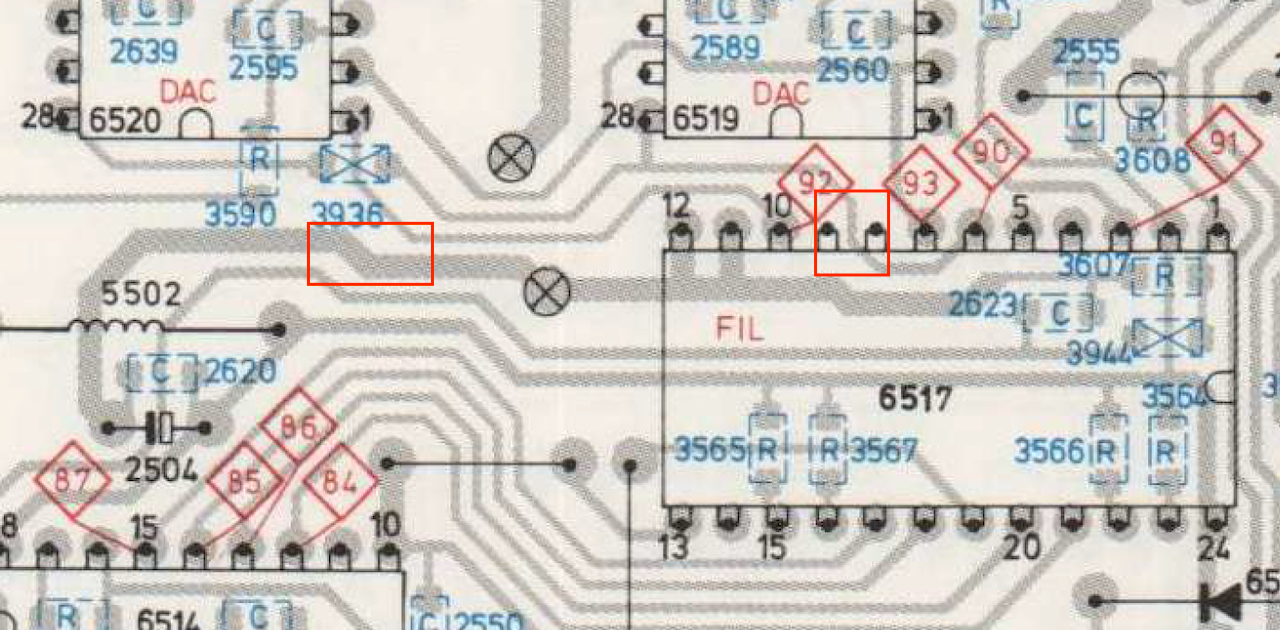

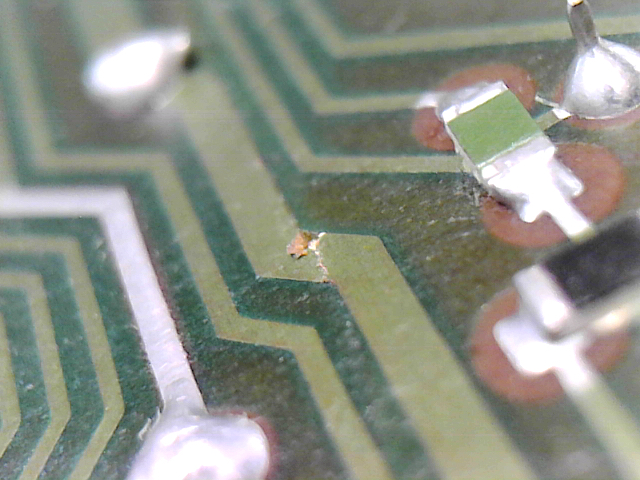

Found some broken traces

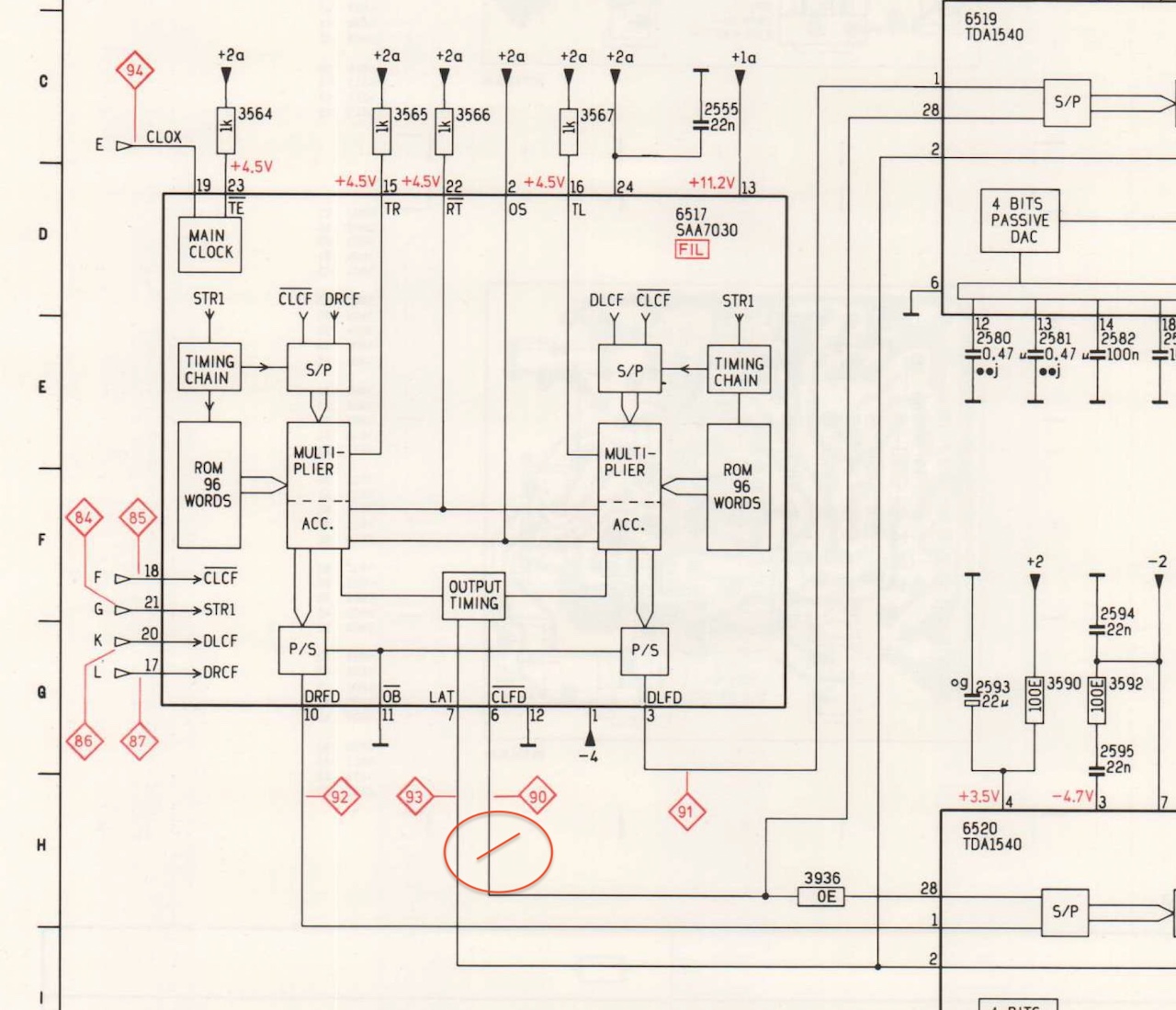

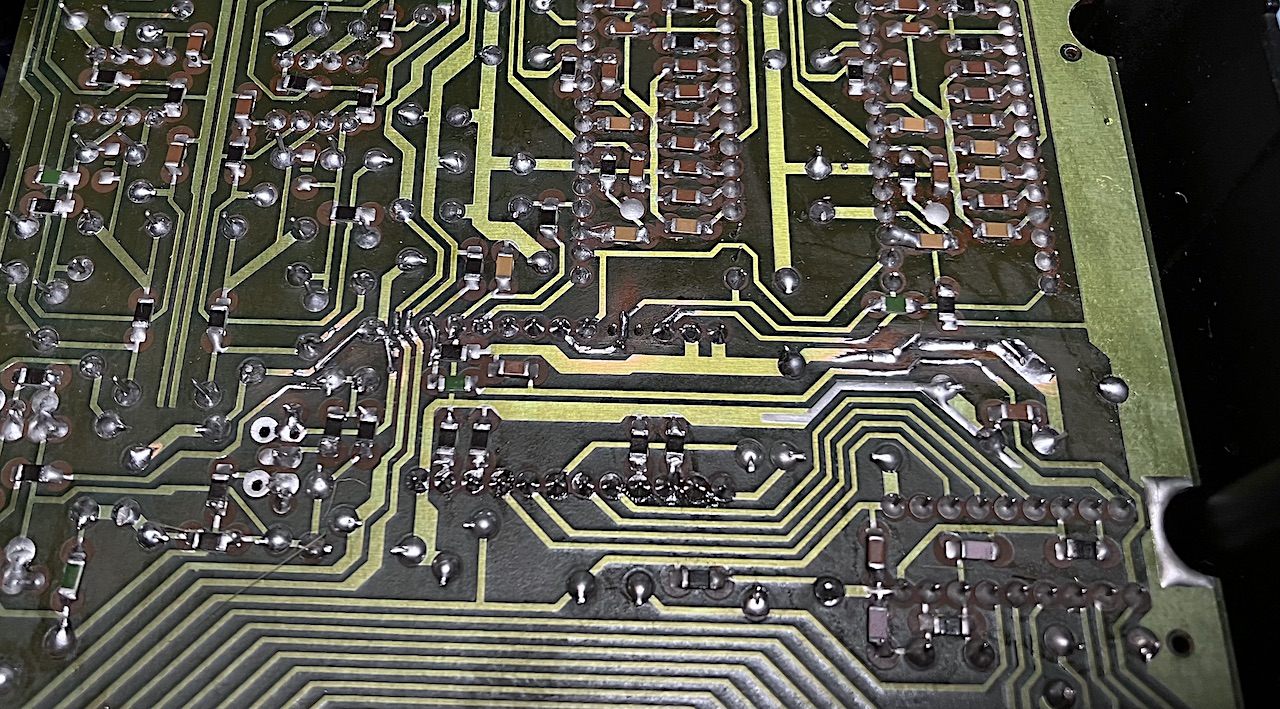

Clock signal from digital filter SAA7030  to both TDA5140.

Number 2

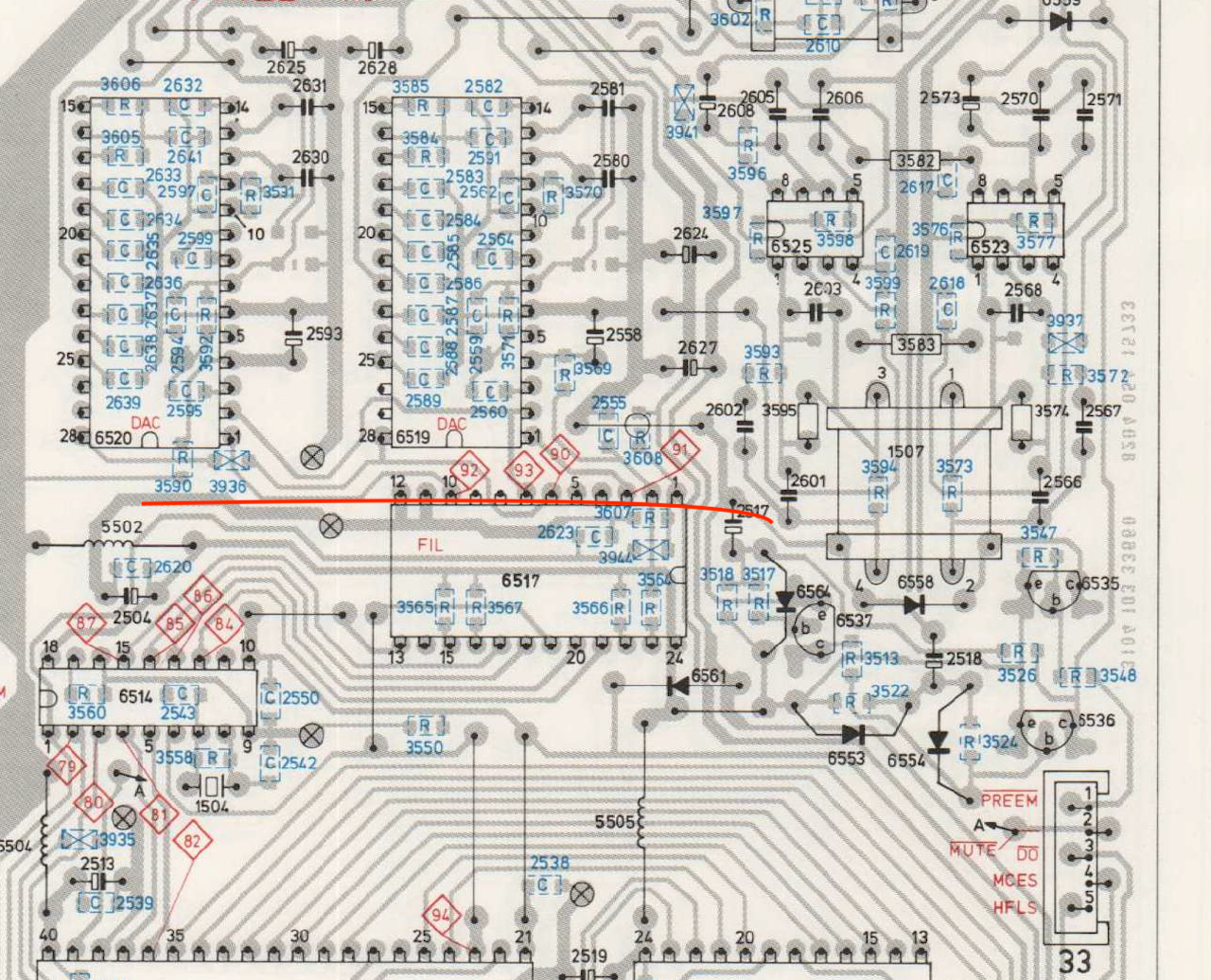

More trouble , in red a foldline 🙂

After some repairs

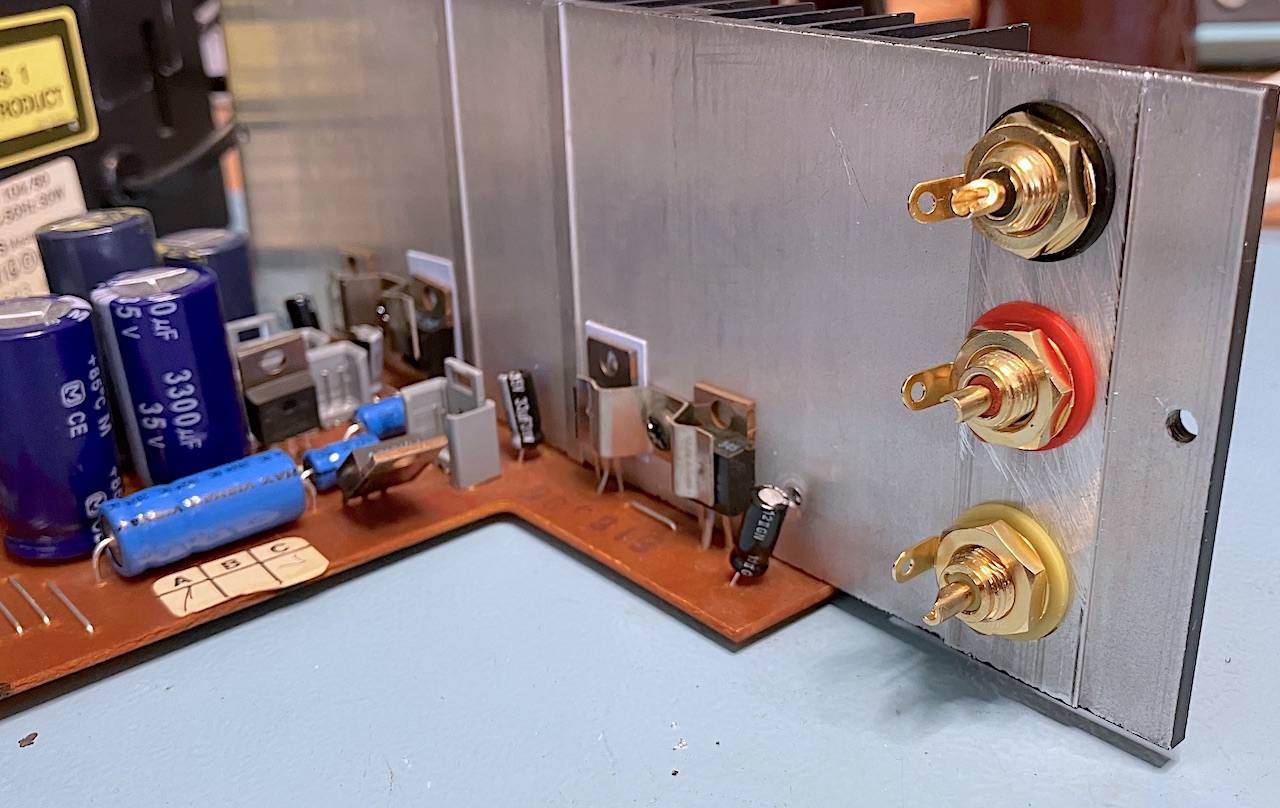

Added 3 cinch Busses ?! Left Right and ..?

Aha , extra cinch for SPdif adapter

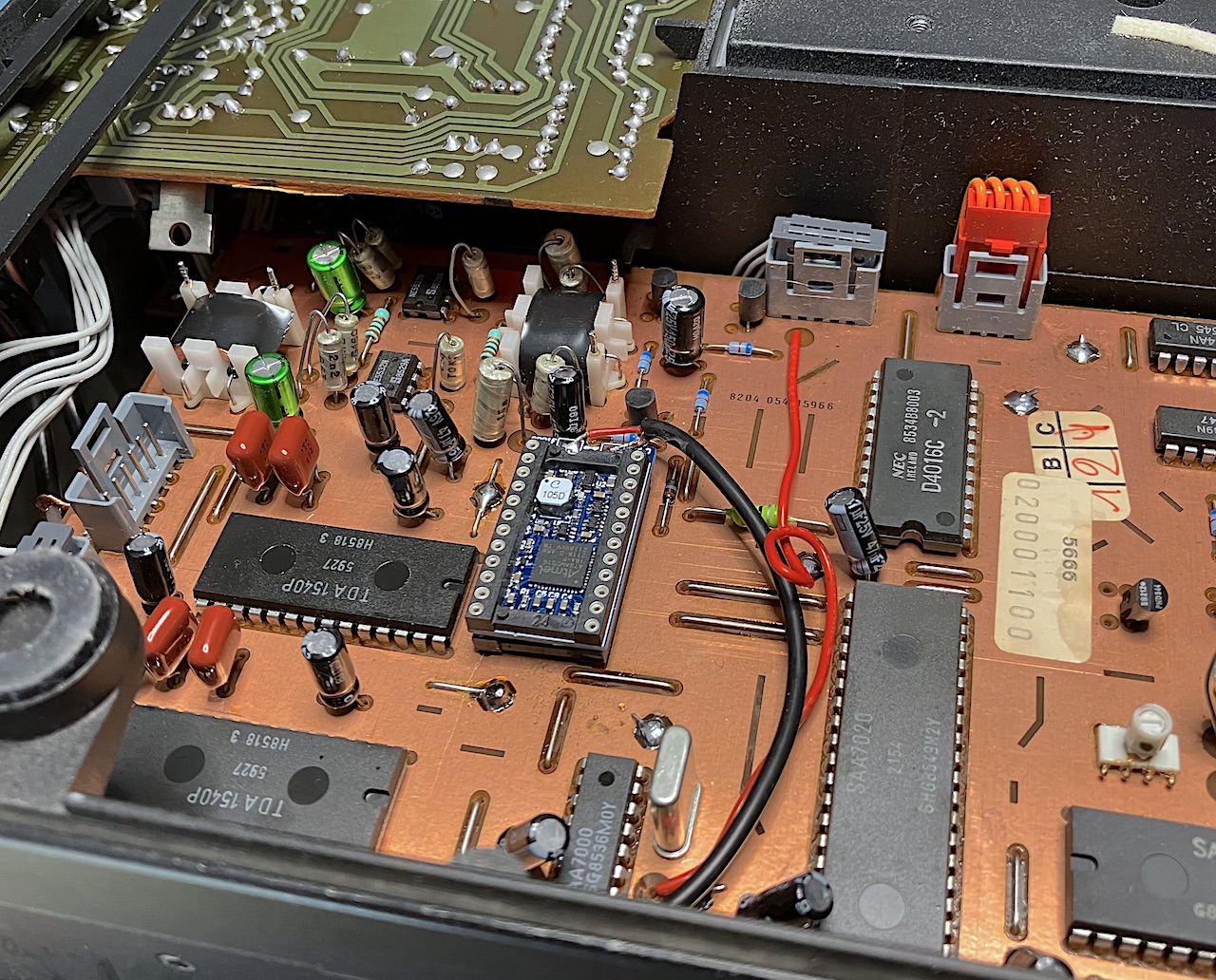

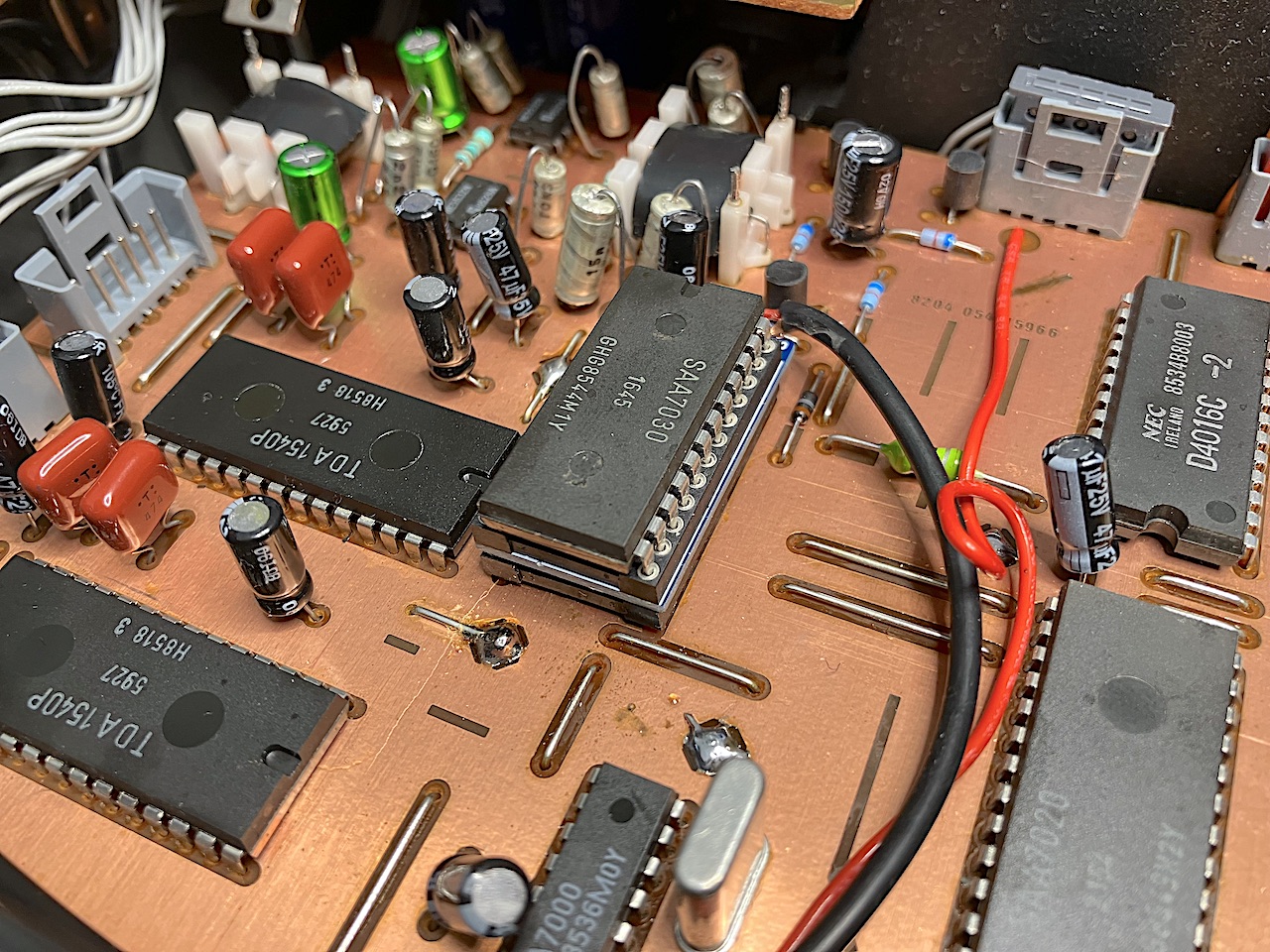

Neat adapter on top the SAA7030
