CD 880 Revisie

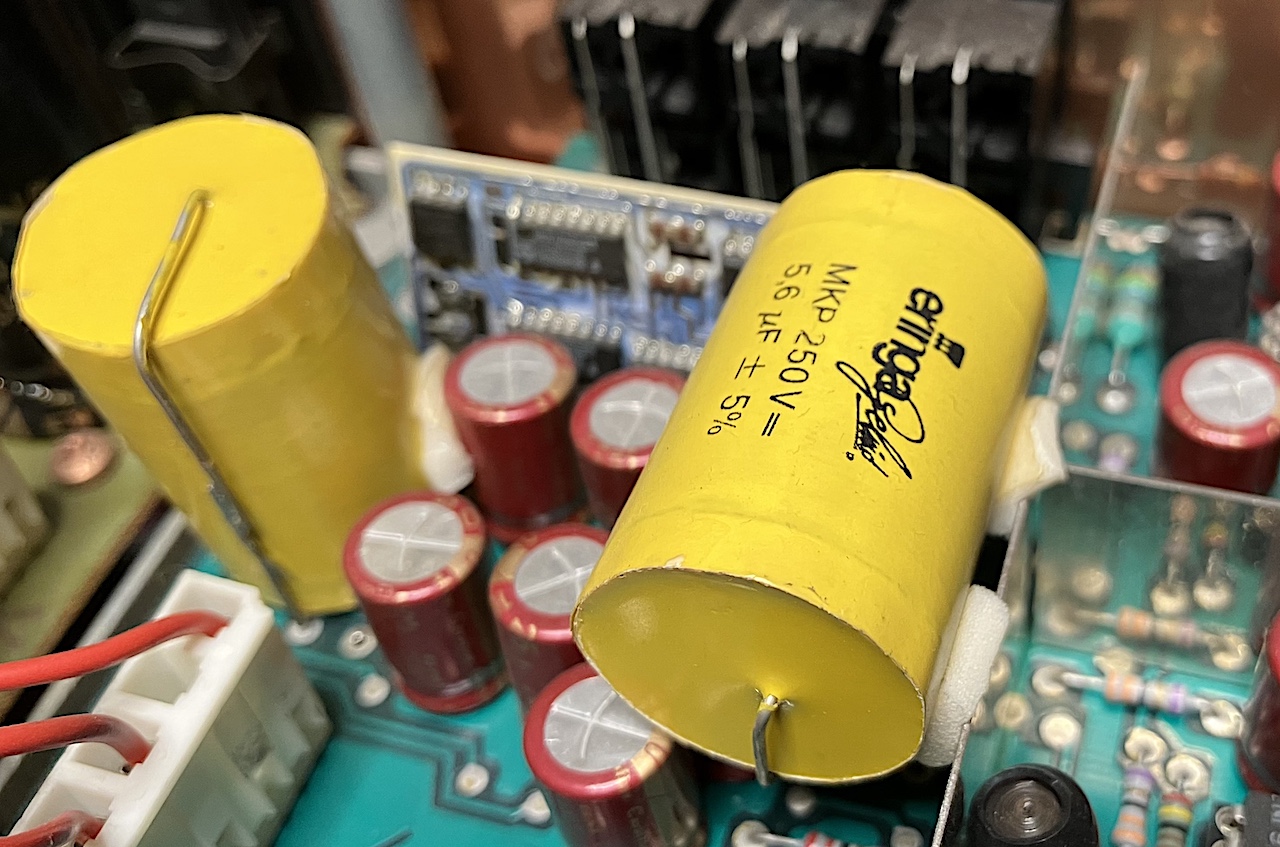

The Eringa modification ,

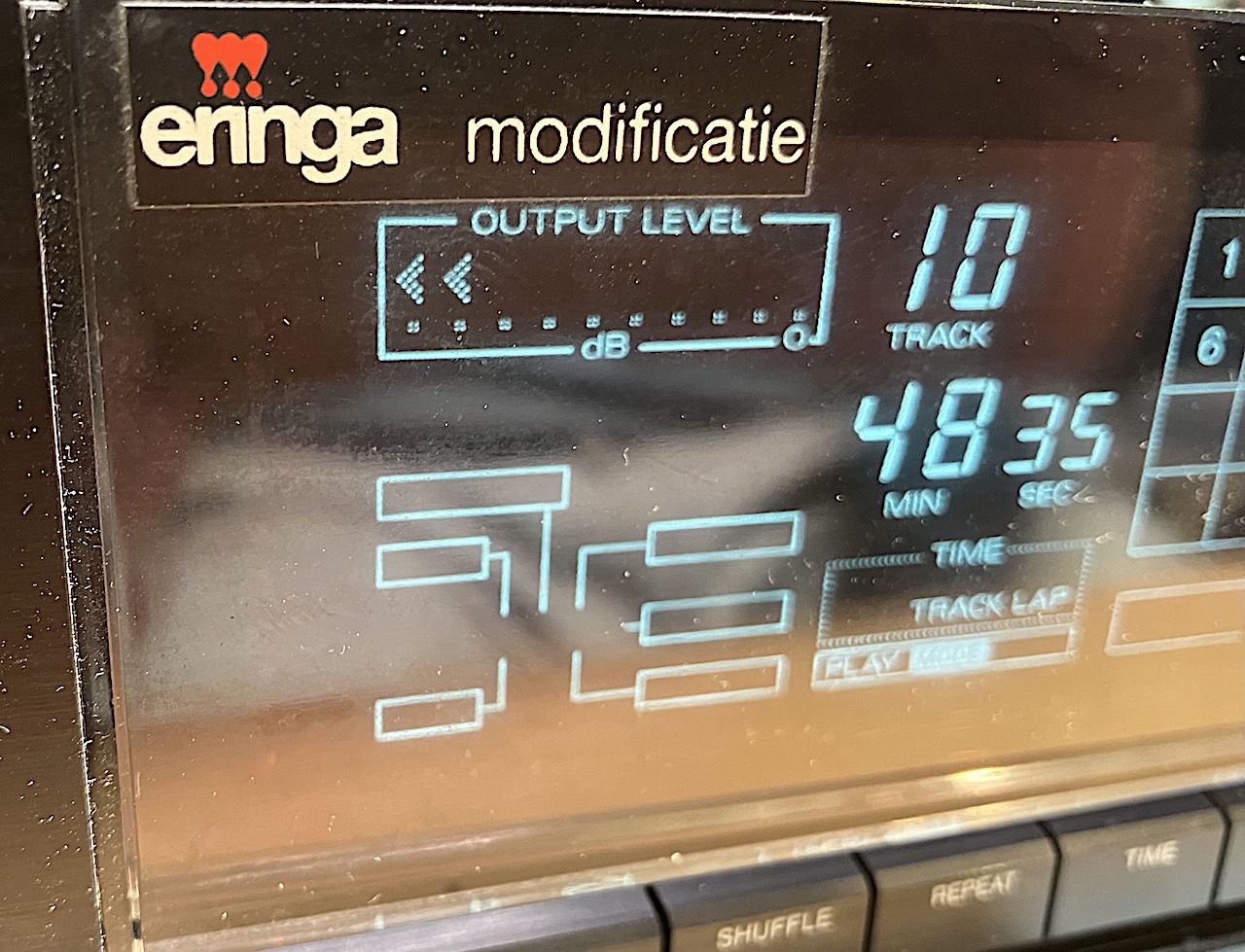

Own Label

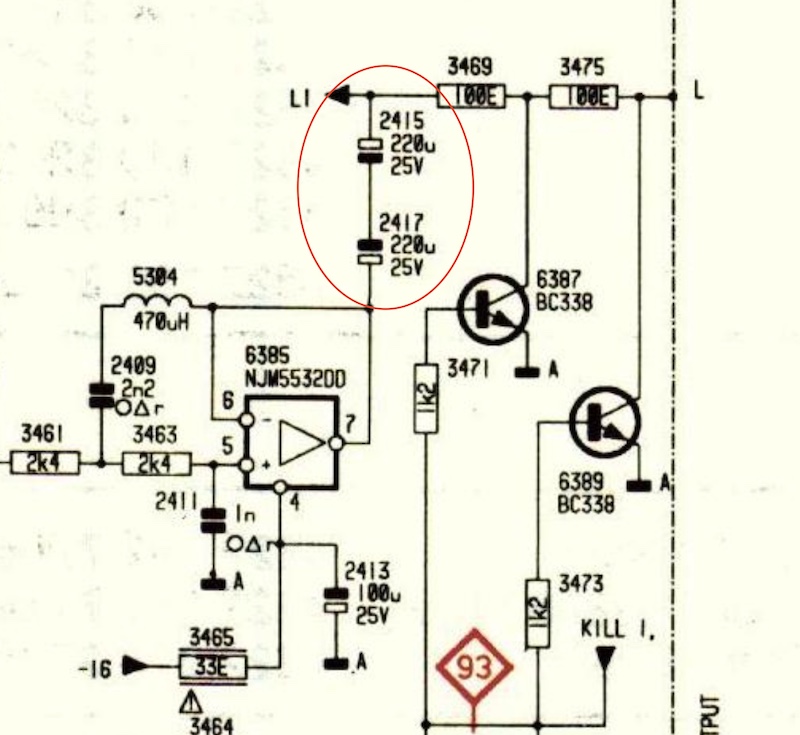

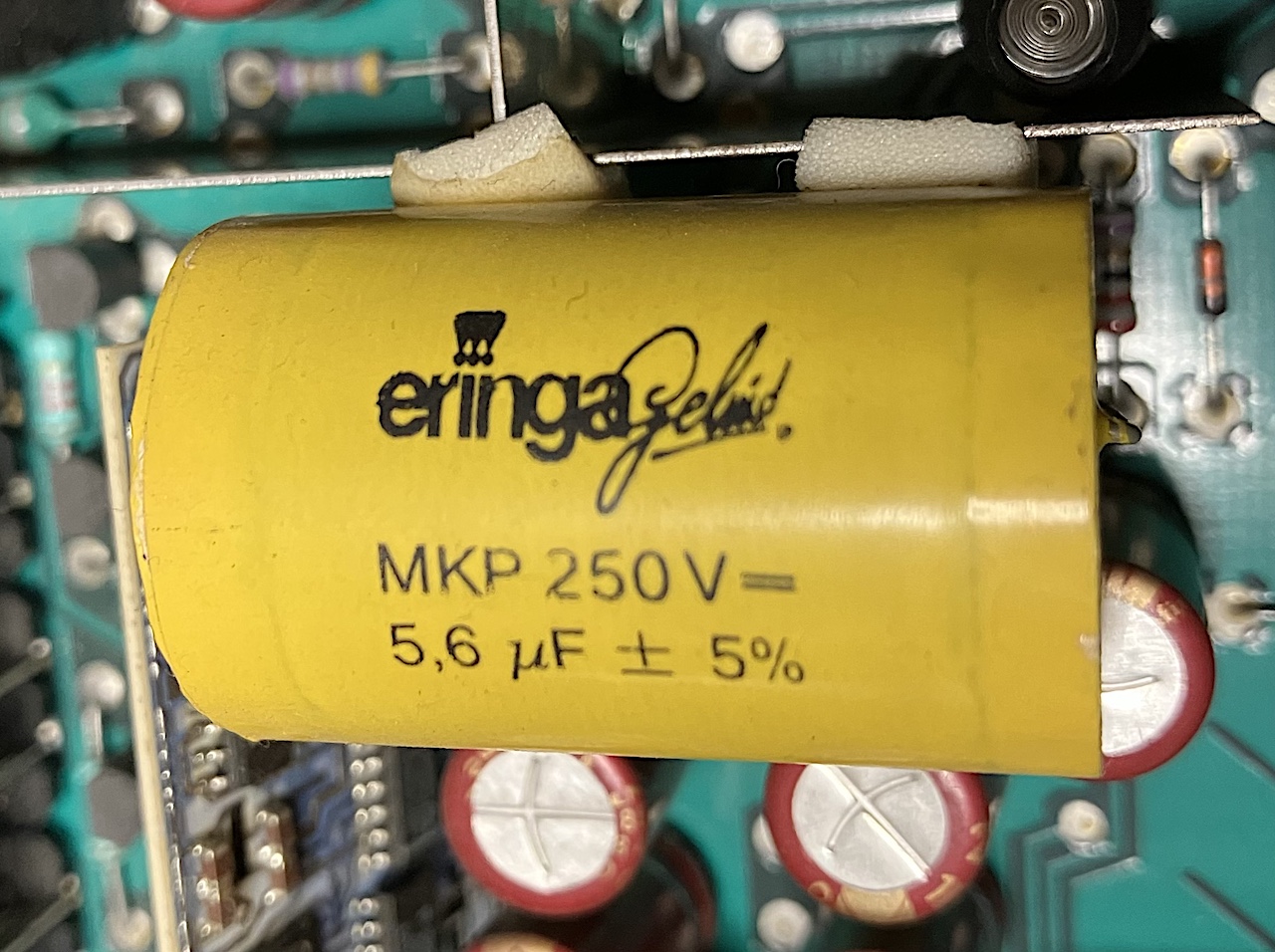

5,6µF instead of 110 µF  , oeps

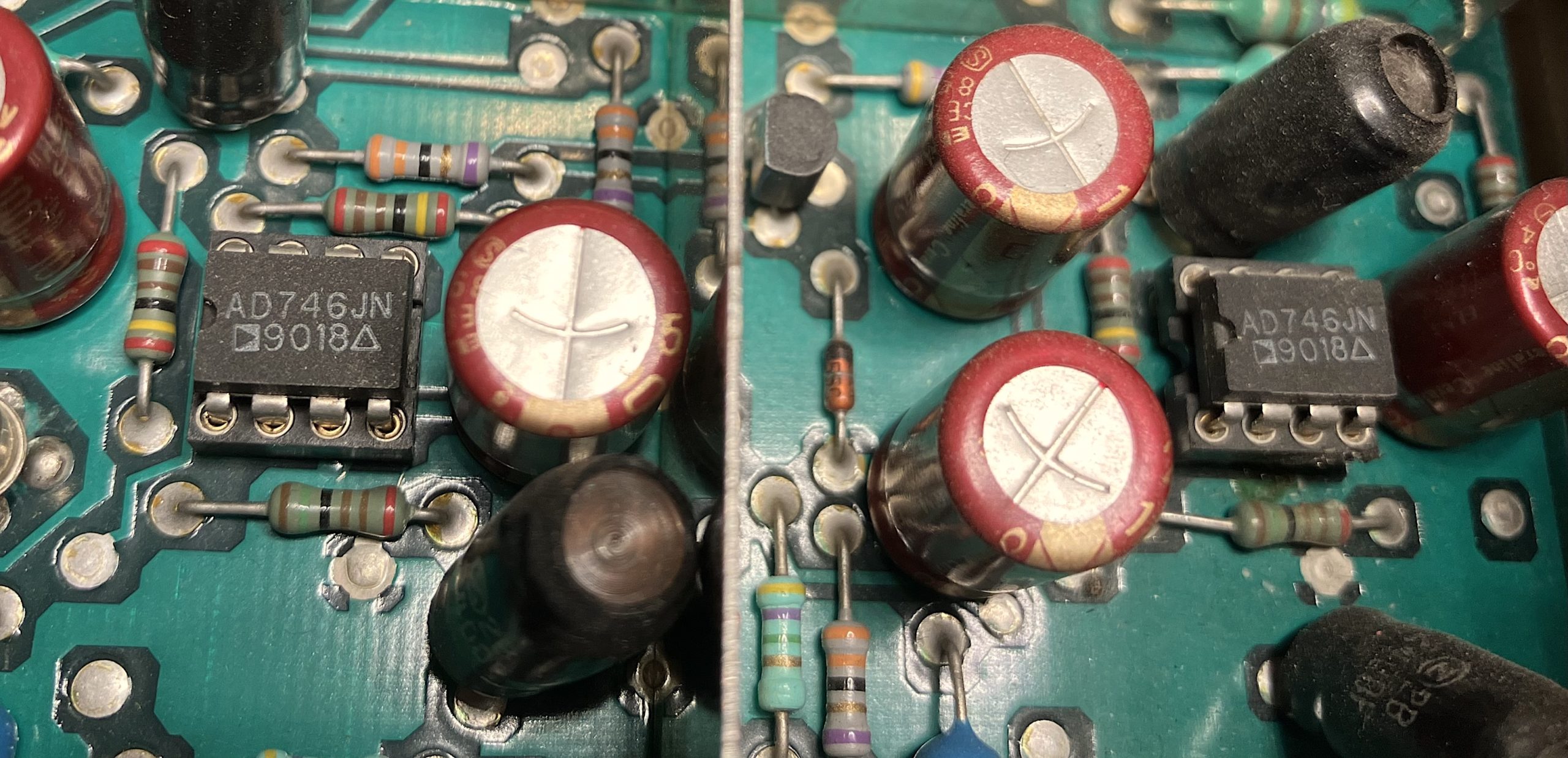

New OpAmp AD746



Quick Check ,

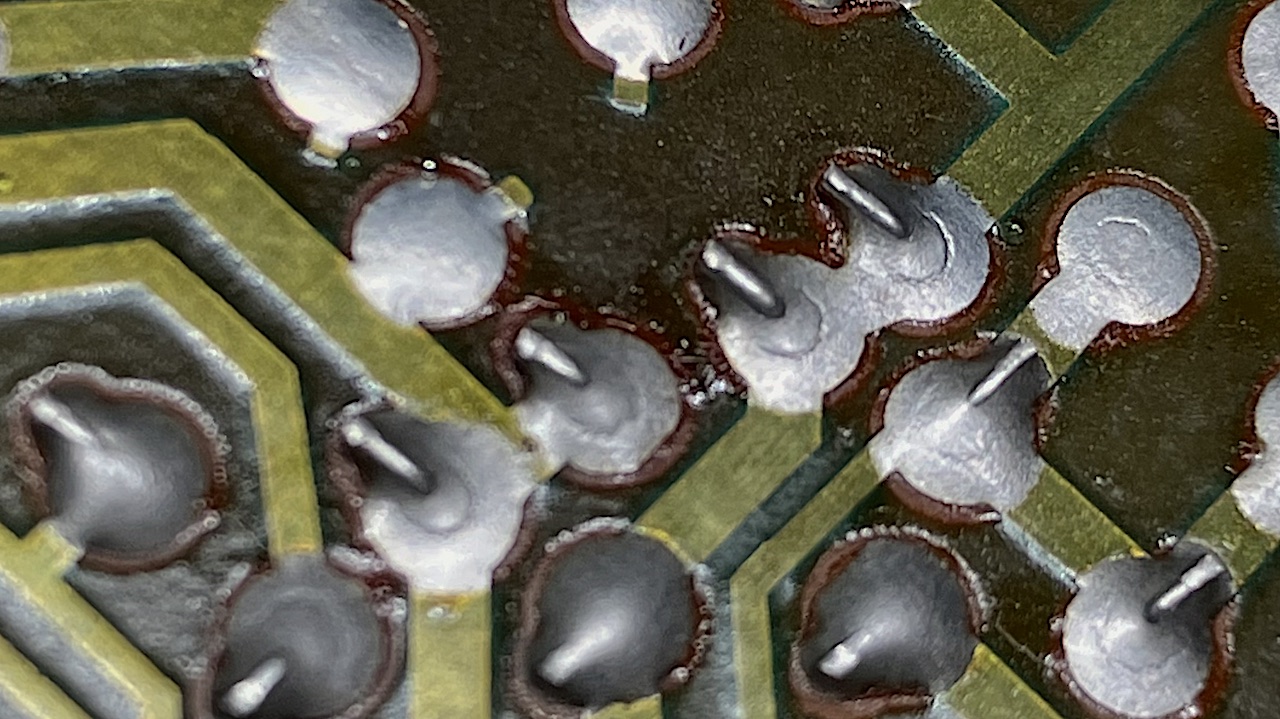

Old Joints in power supply

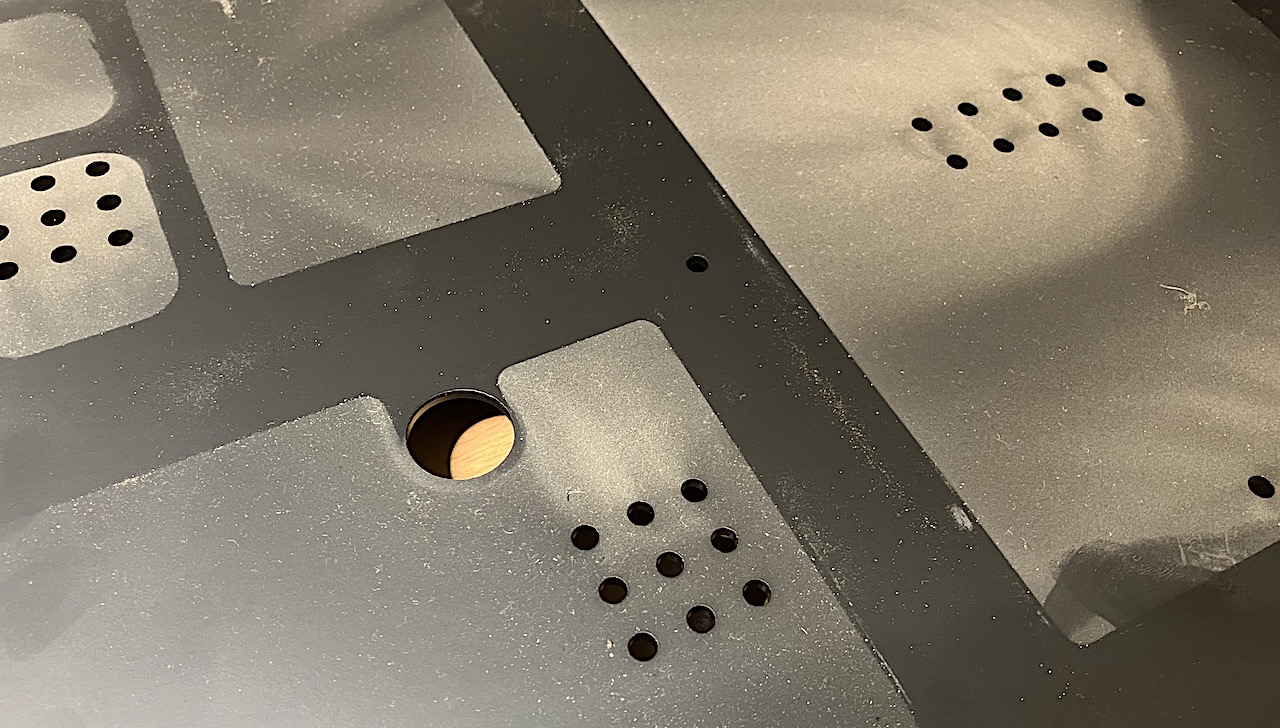

Dust

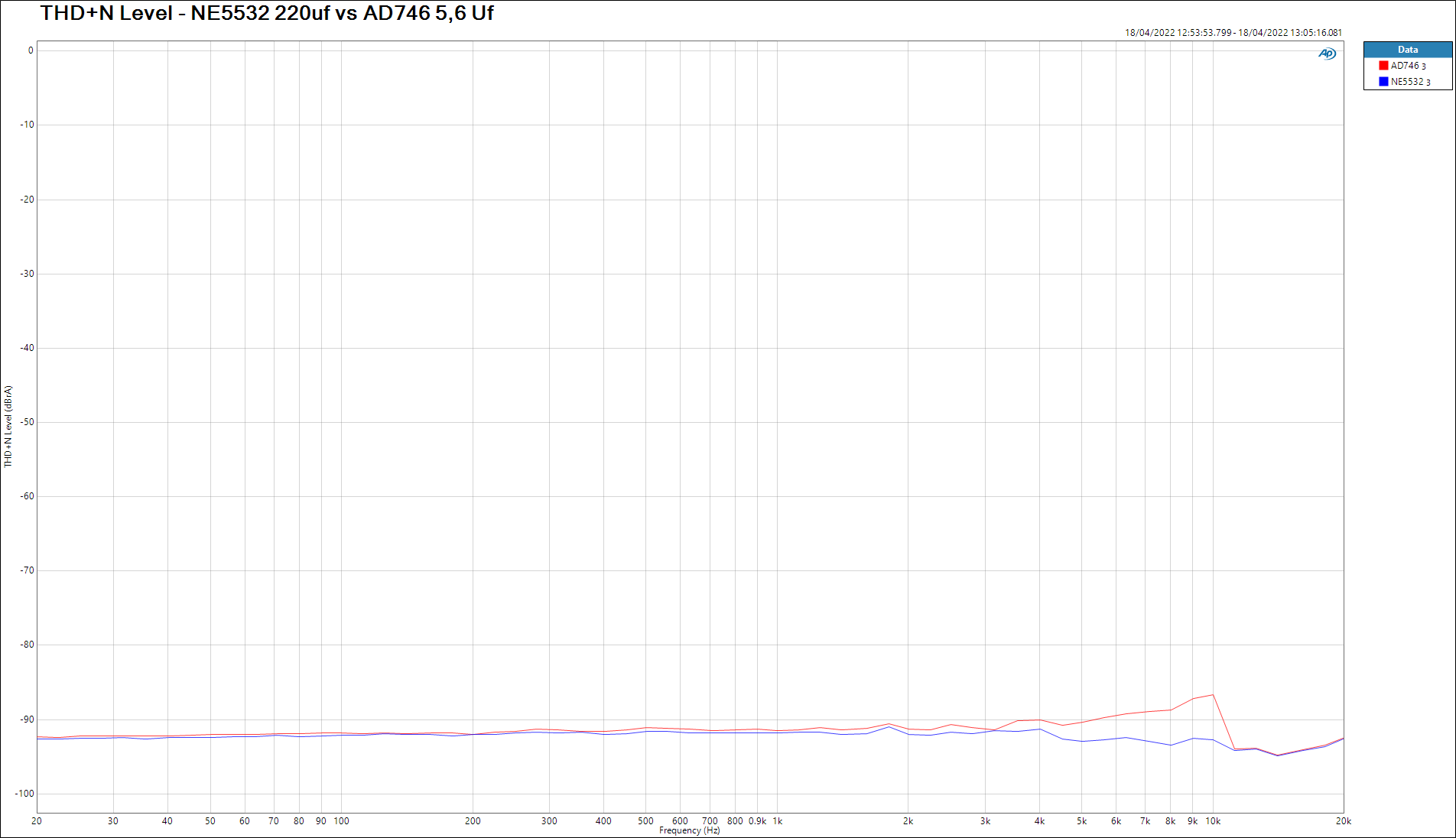

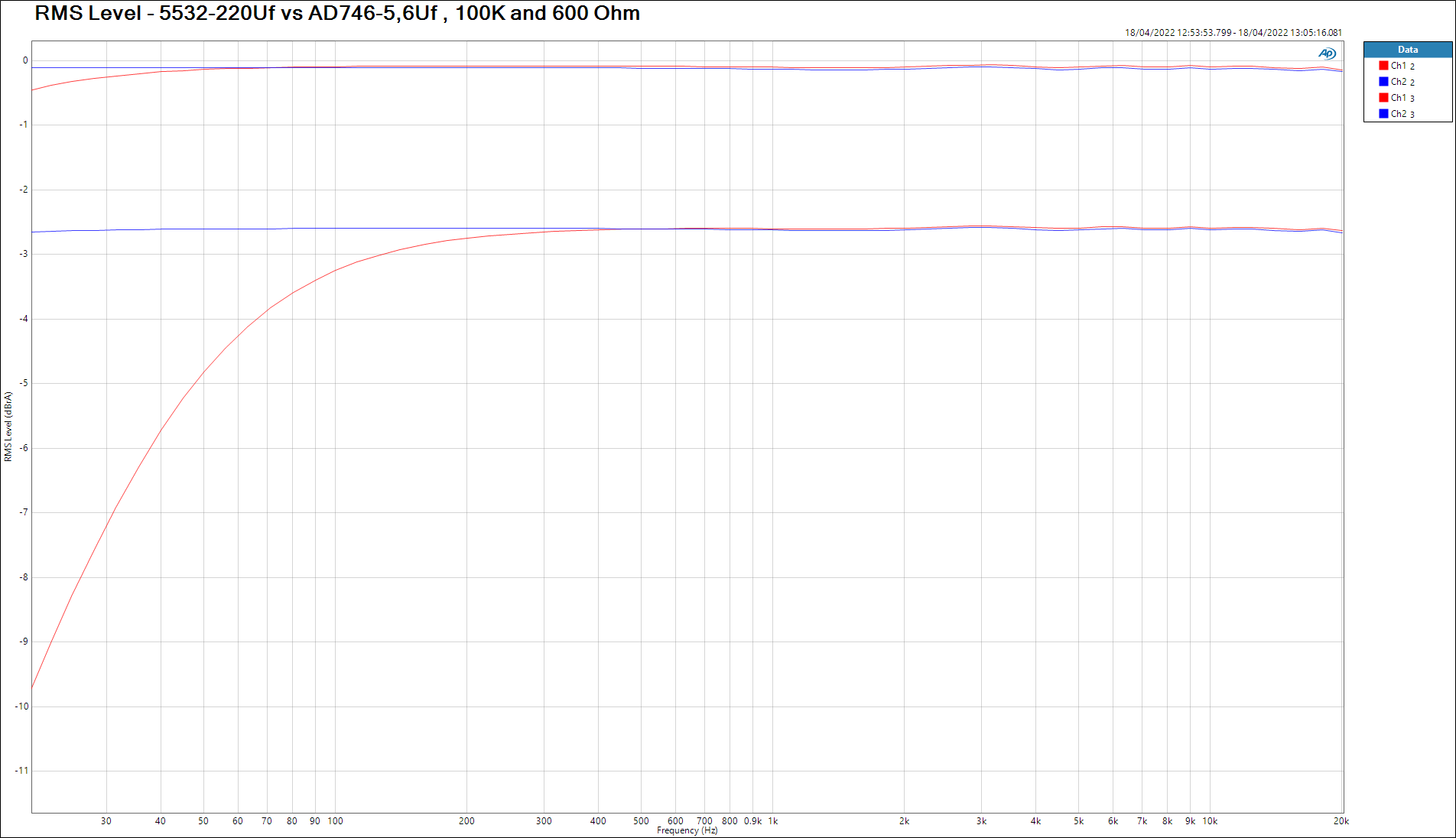

• Blue – Orginal NE5532 opamp and 2 , 220 µF in serie

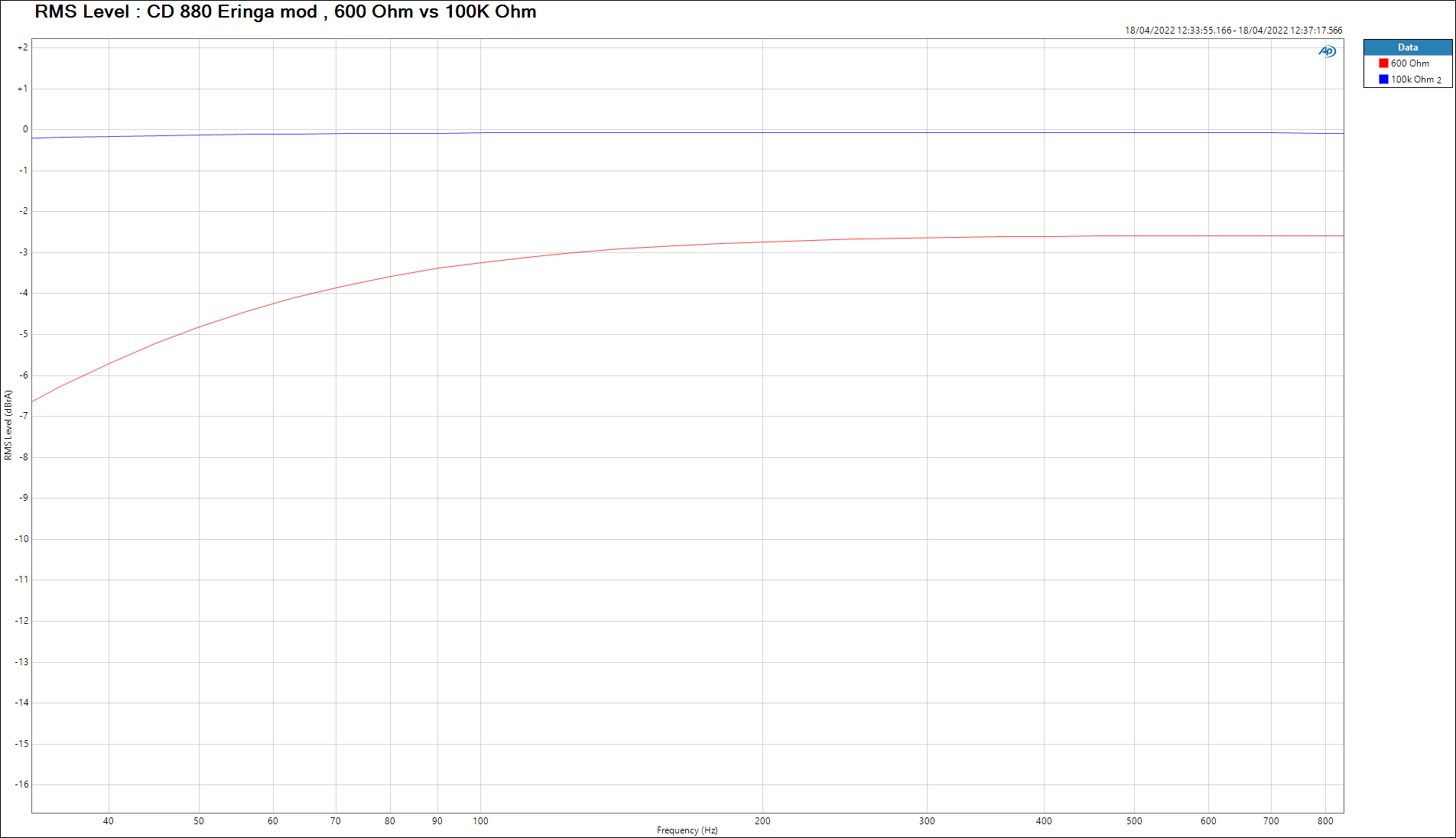

• Red – Eringa Modification AD746 and 5,6 µF

• Blue – Orginal NE5532 opamp and 2 , 220 µF in serie
• Red – Eringa Modification AD746 and 5,6 µF

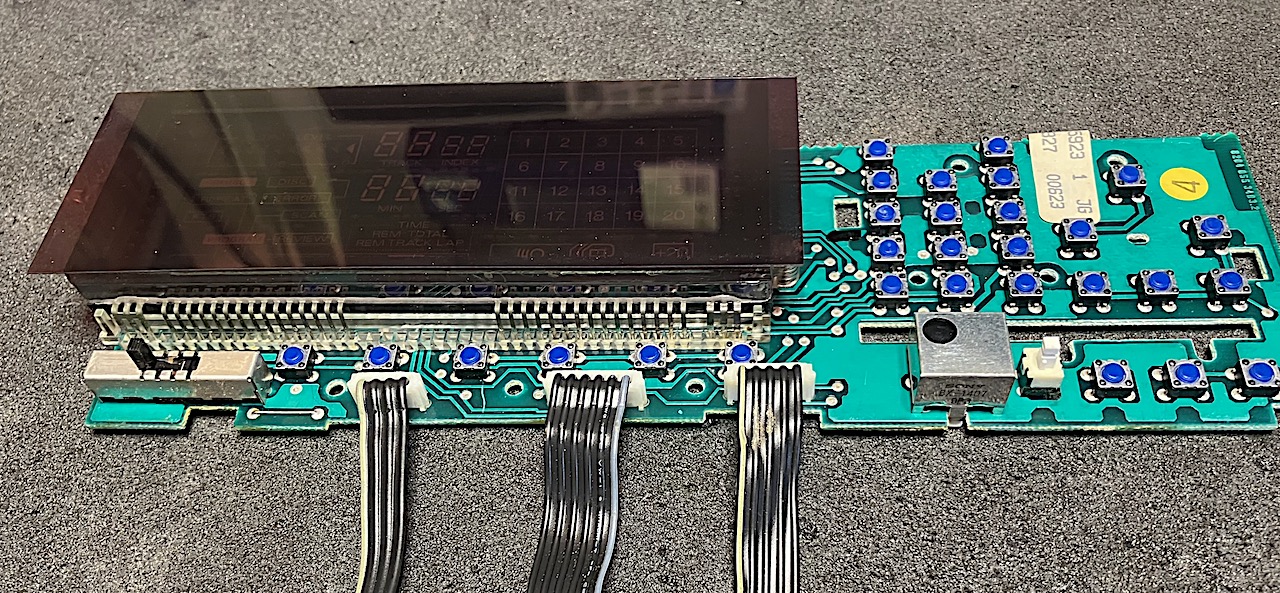

4 hidden caps behind VF Display

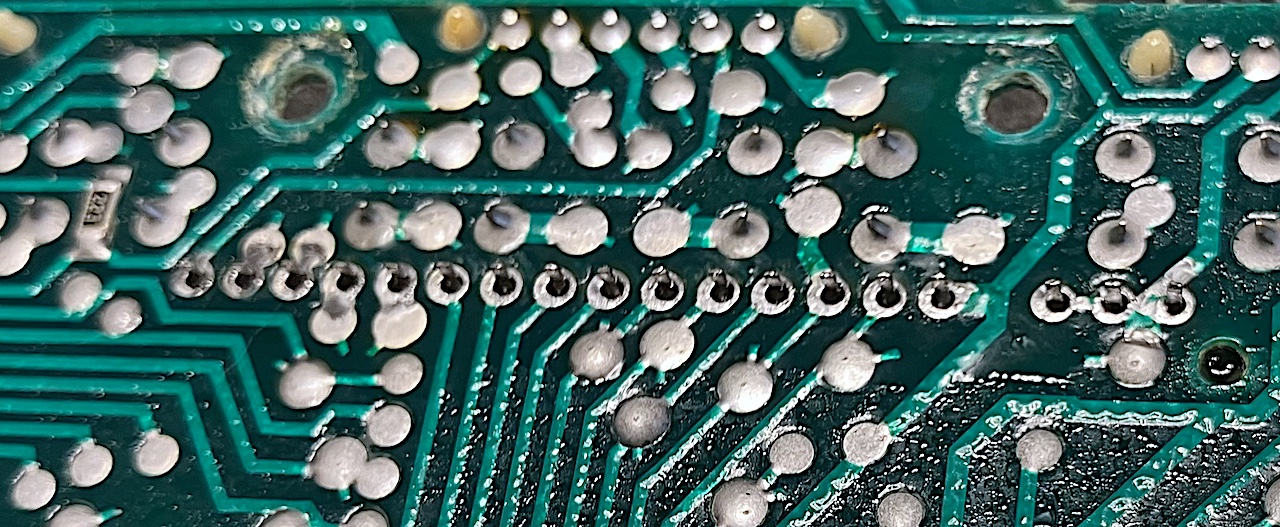

Carefully desoldering

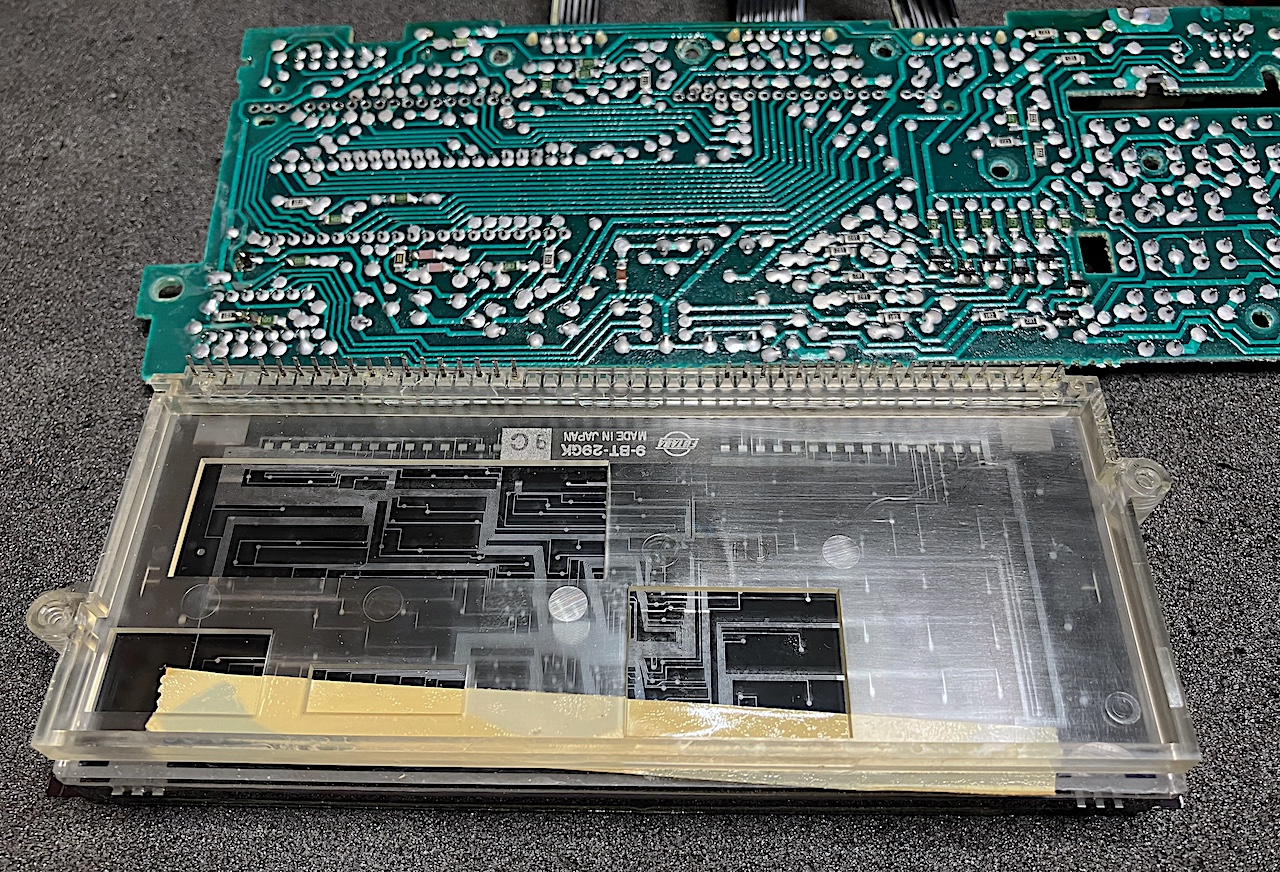

VF display desoldered

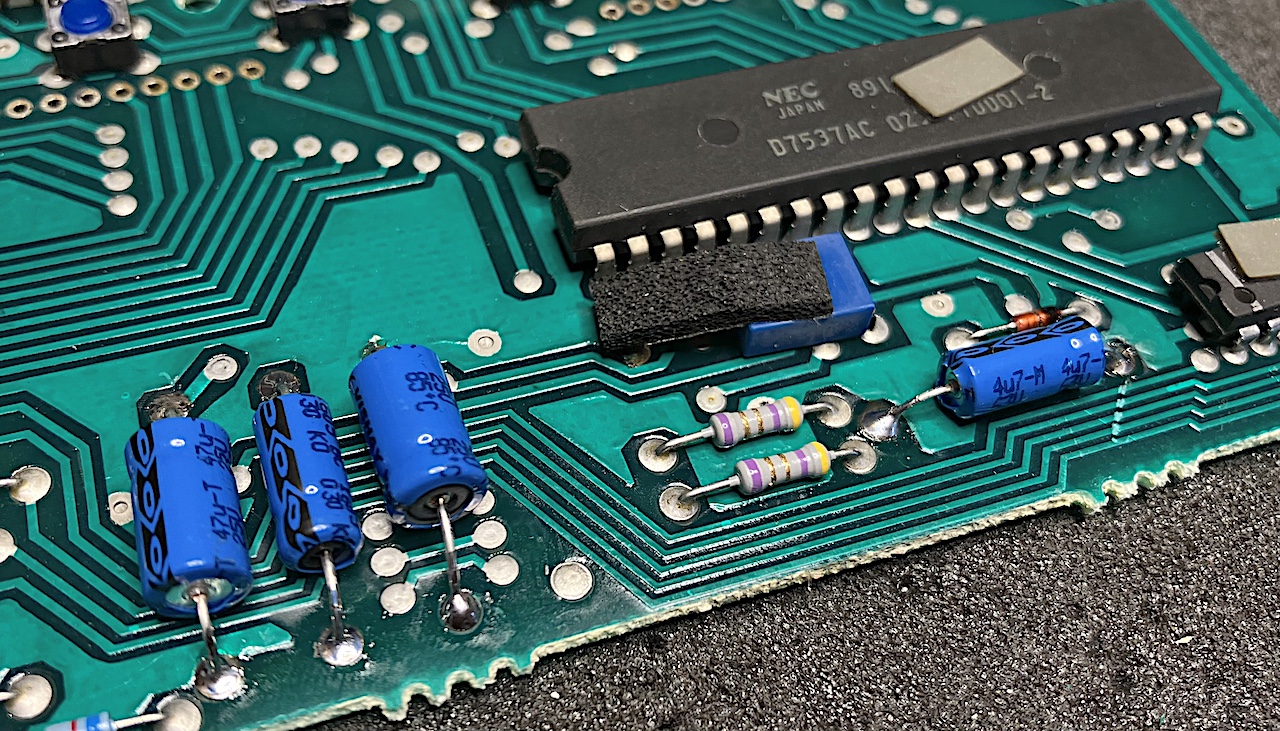

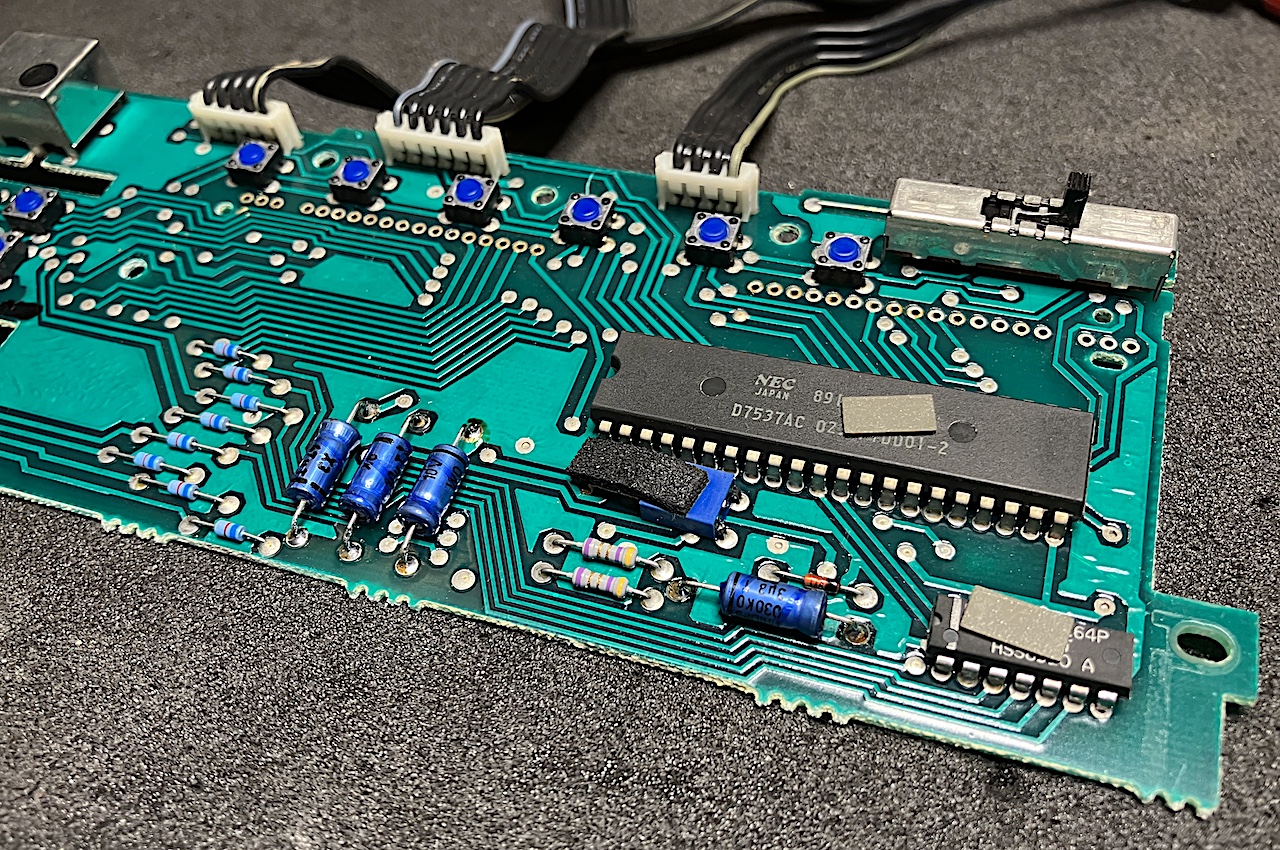

4 Axial capicitors

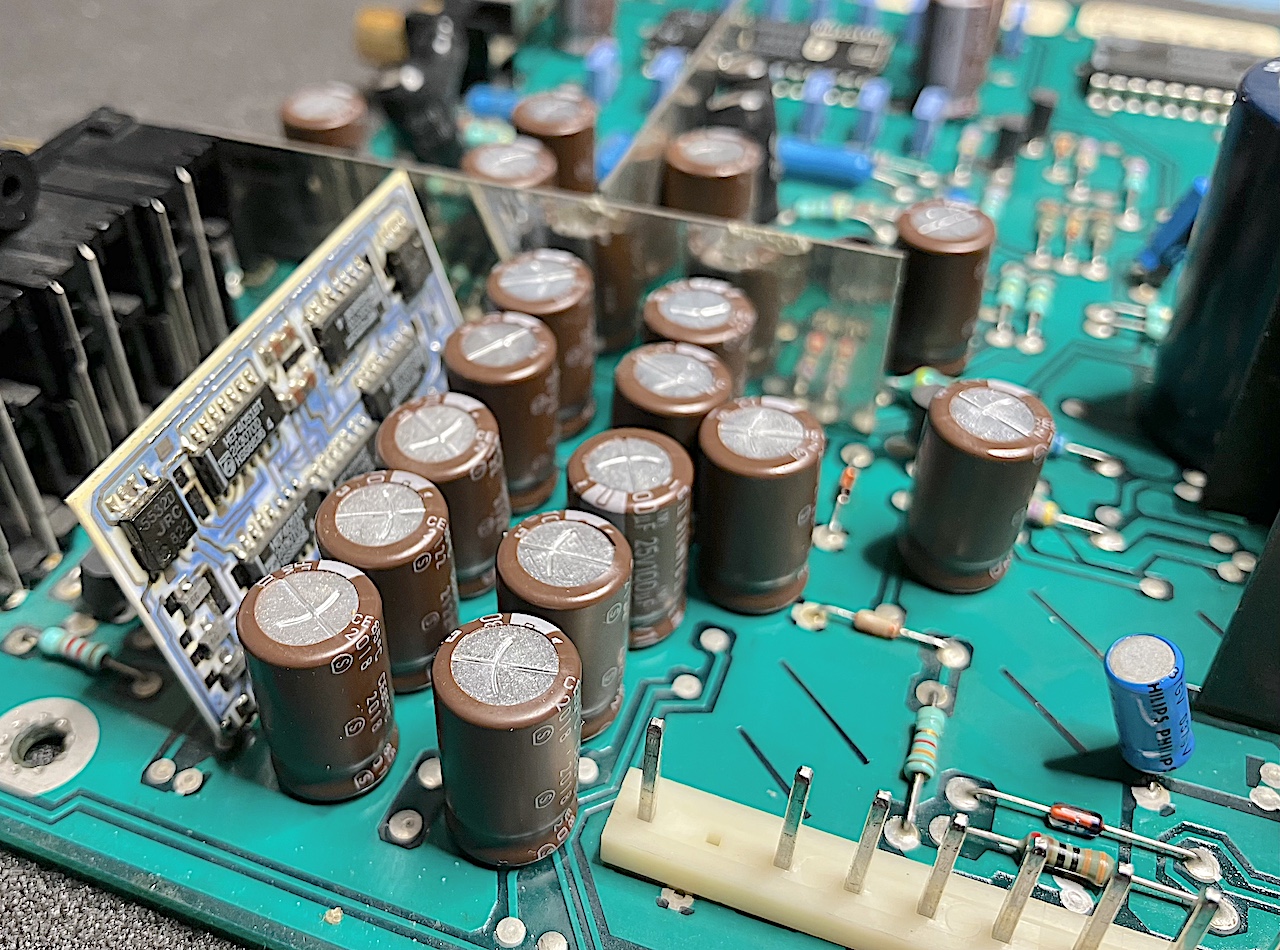

News capicitos

Some Flux to resolder

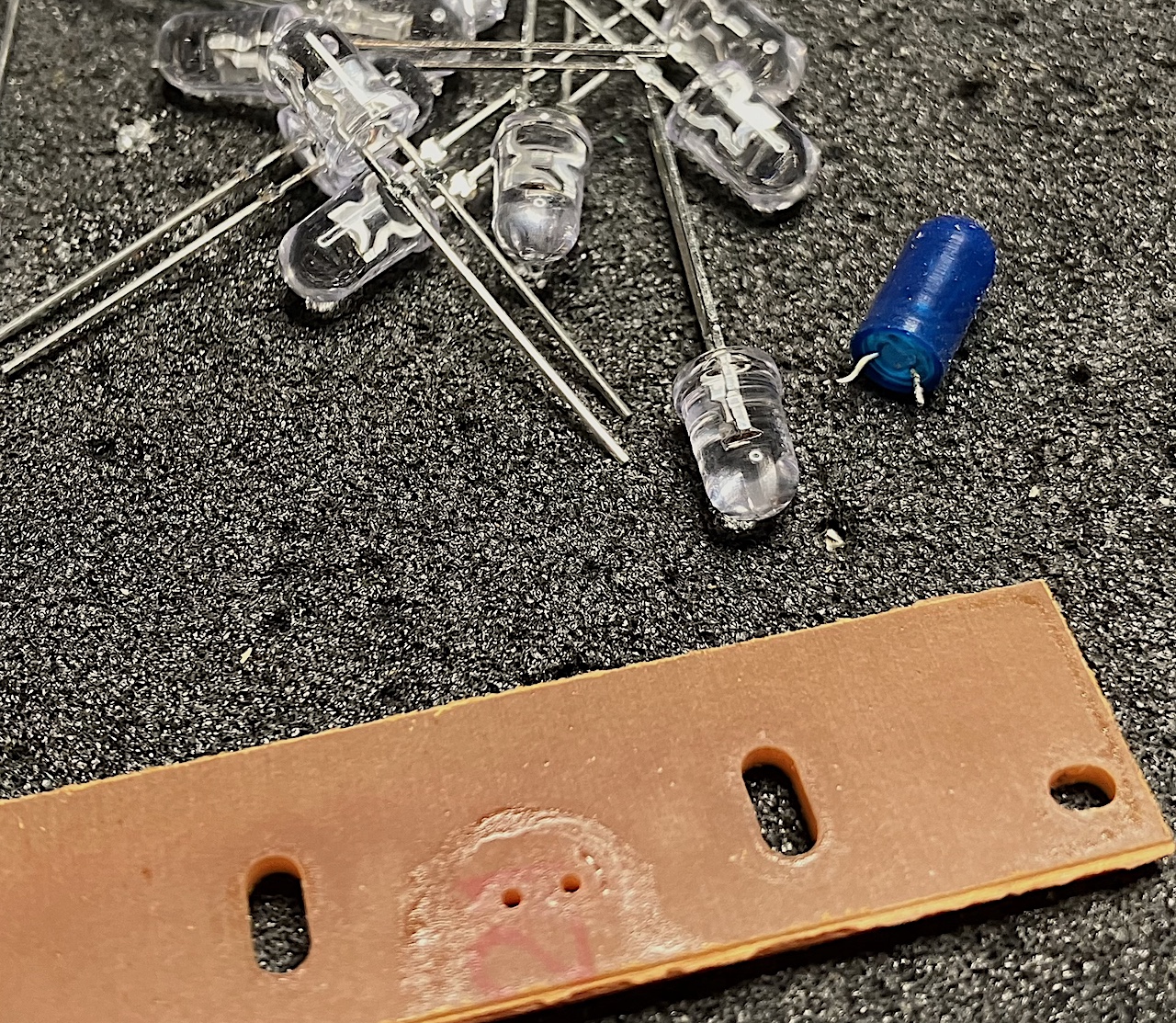

Replacing Bulb With LED

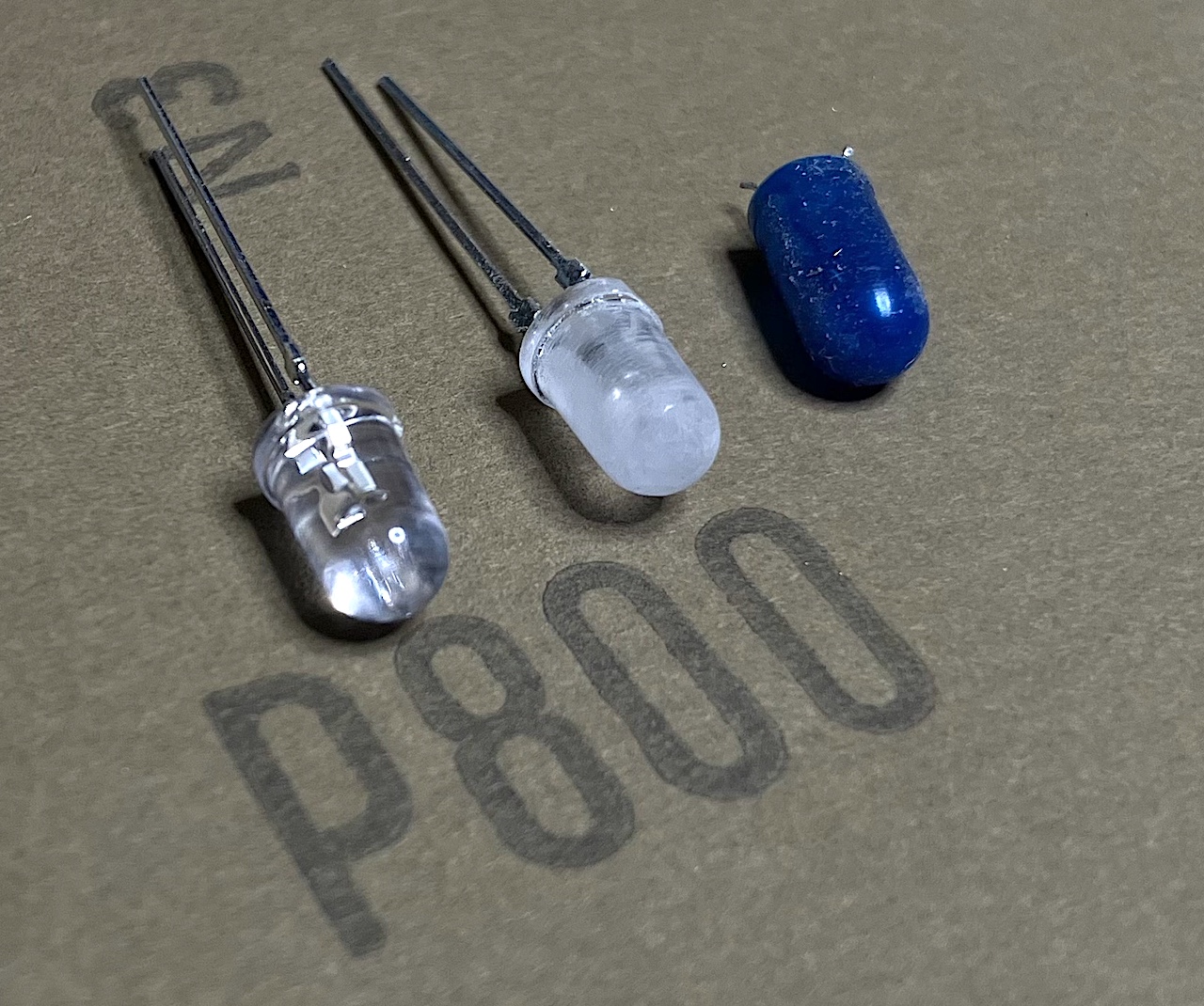

Sandpaper to make the LED diffuse

Removed the Big Yellow Capicitors

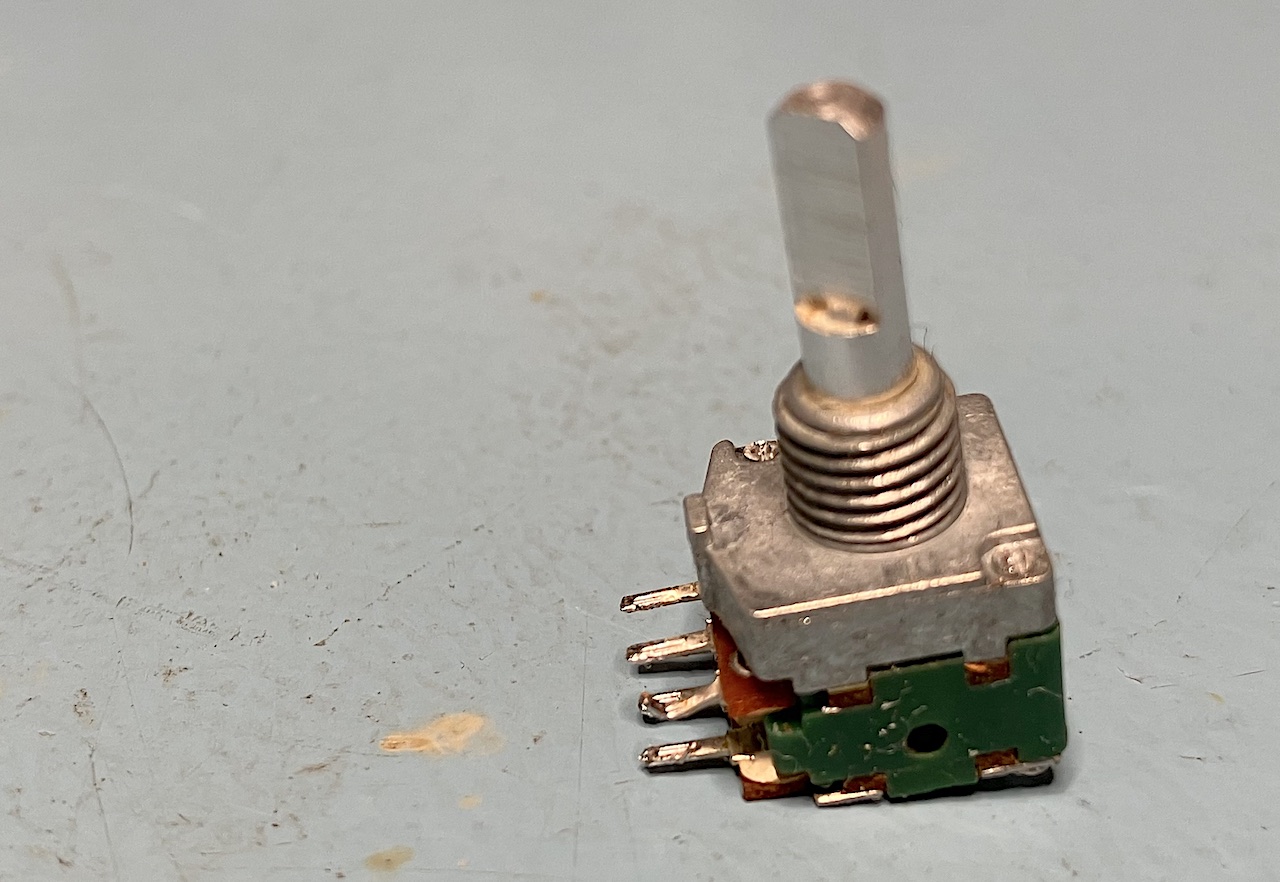

Broken headphone potmeter 10Ka

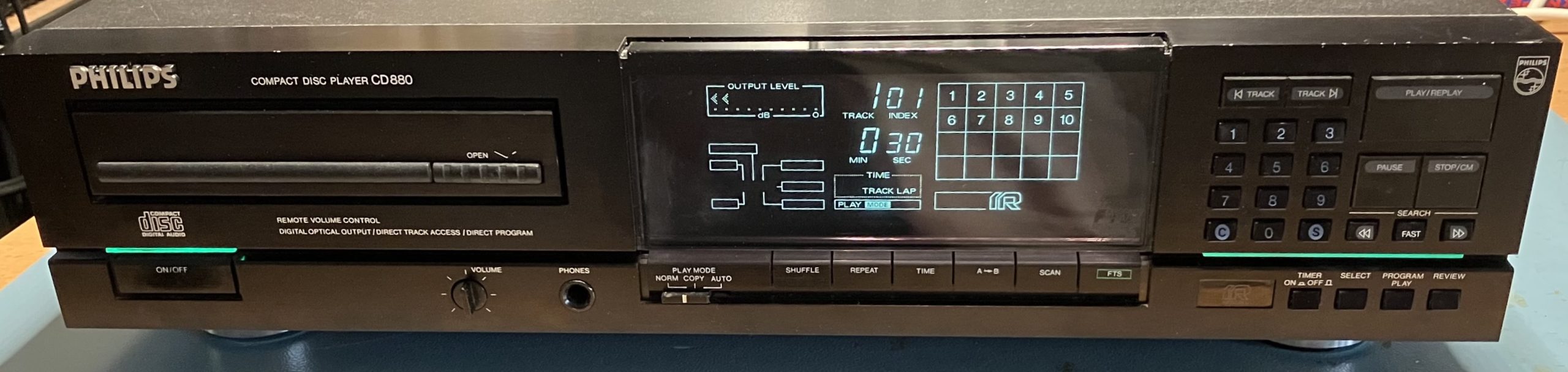

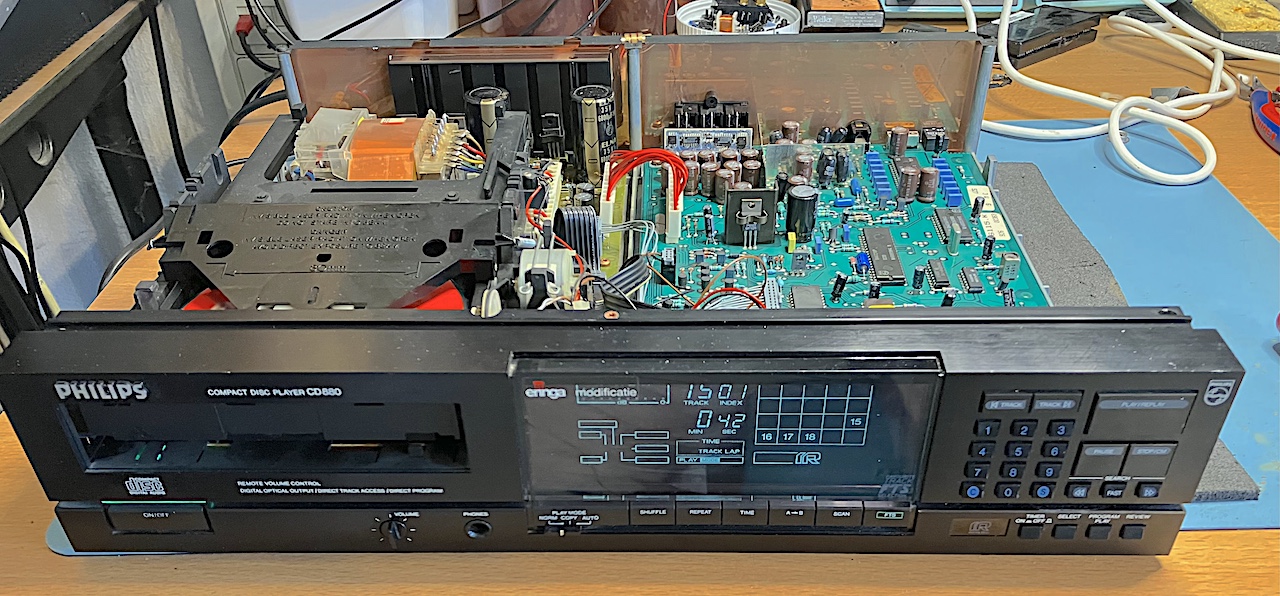

Test run

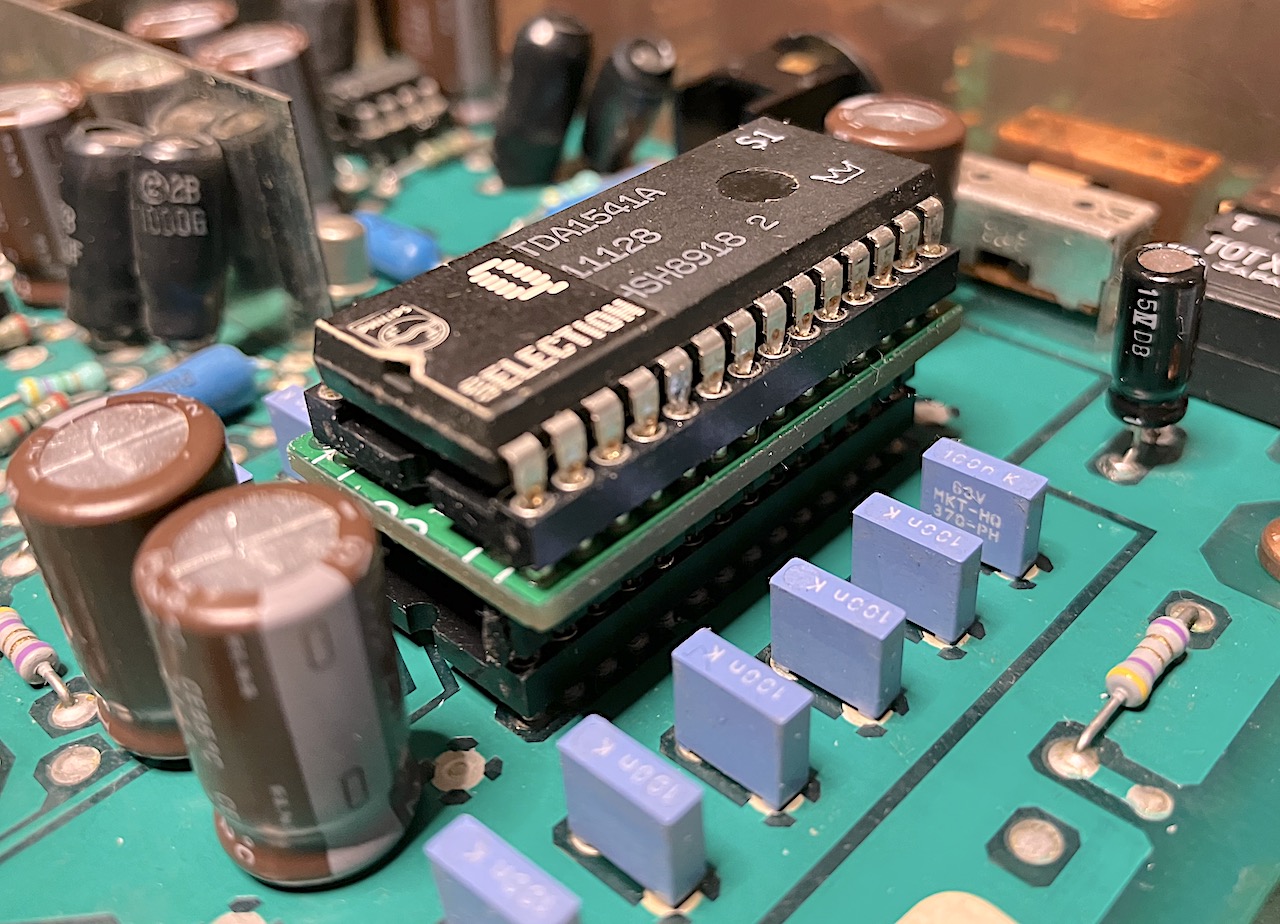

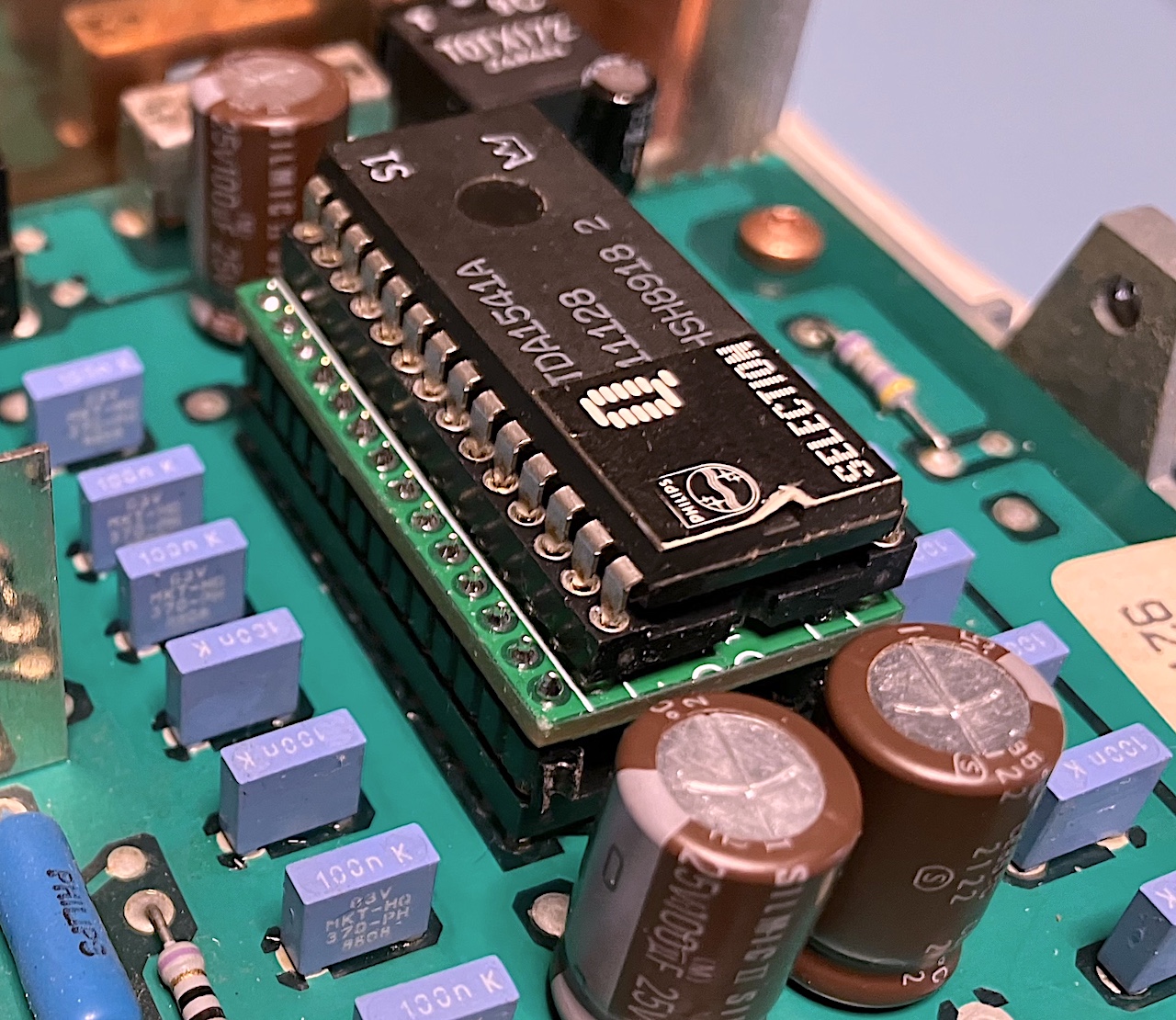

Added Grundig DEM-modification on request



endurance test

“vandaag de Philips CD 880 in de audiokast geplaatst en vervolgens mijn favoriete cd’s beluisterd. De speler klinkt echt prachtig! Ik ben er zo blij mee! Ik wil je nogmaals danken voor jouw vakwerk. “
