CD 100 refurbish

Repair Early CD 100 , 1983 week 19

Won’t read TOC , Disc is spinning very very fast , The problem is that some time’s the HF signal complete disappears .

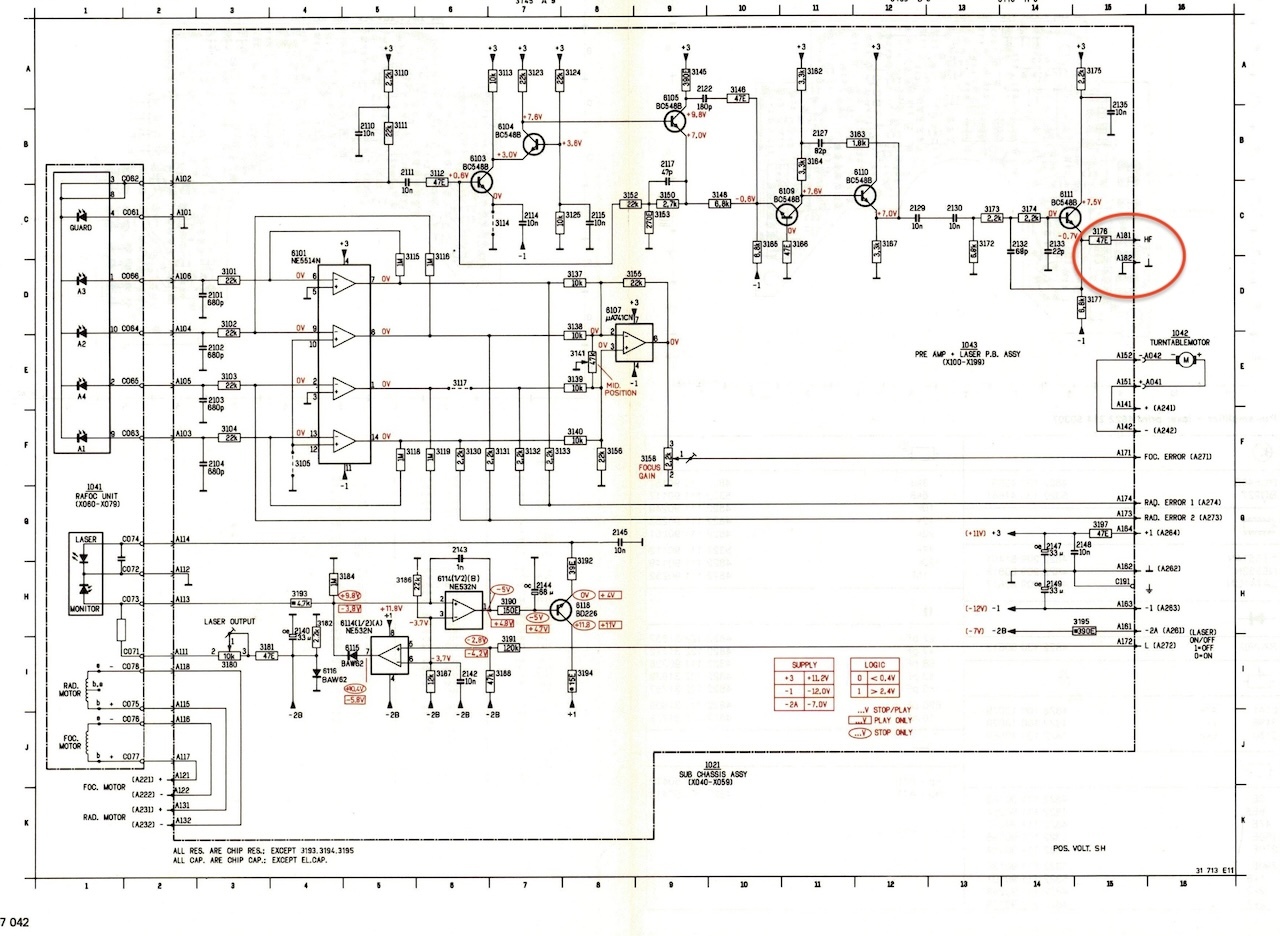

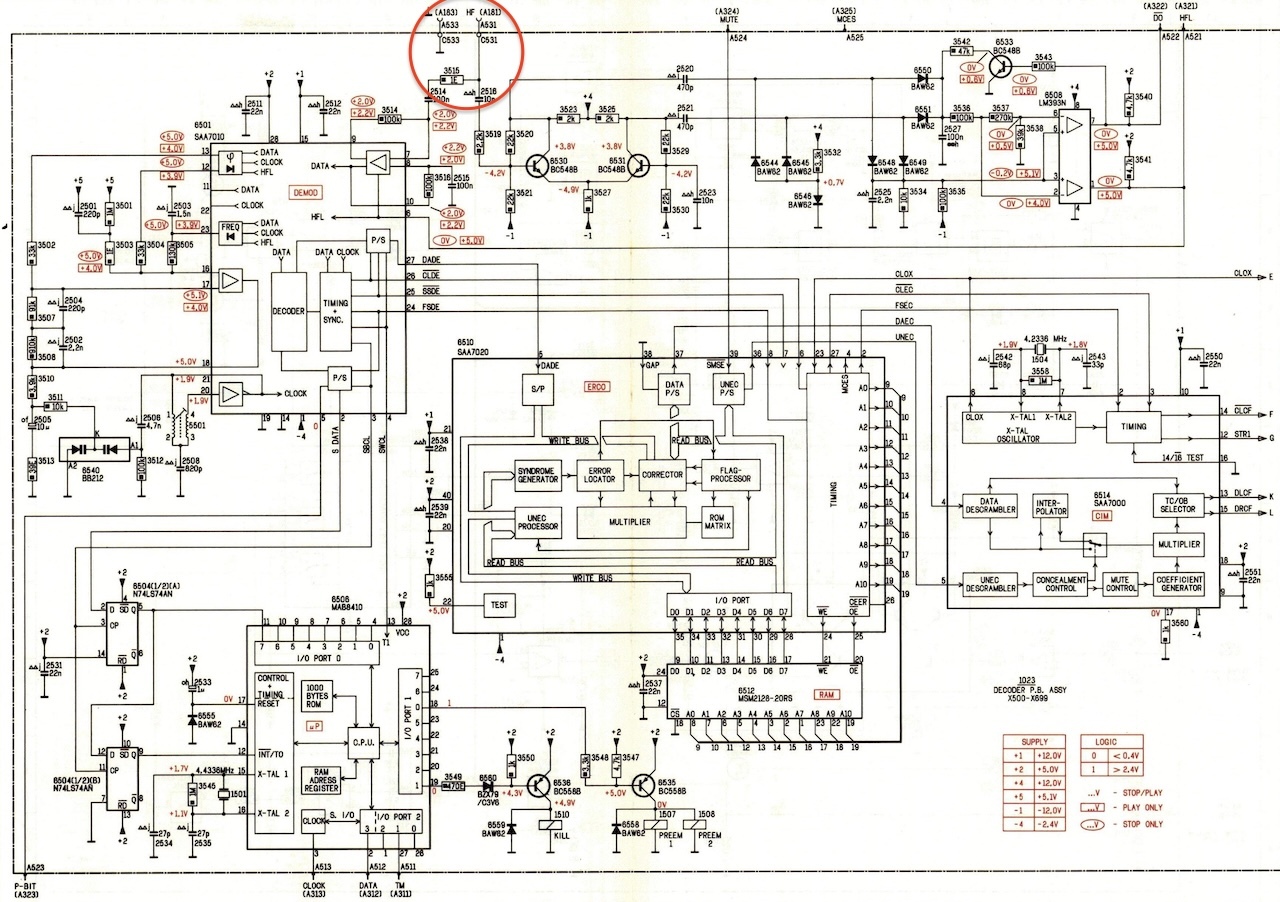

HF signal missing sometimes

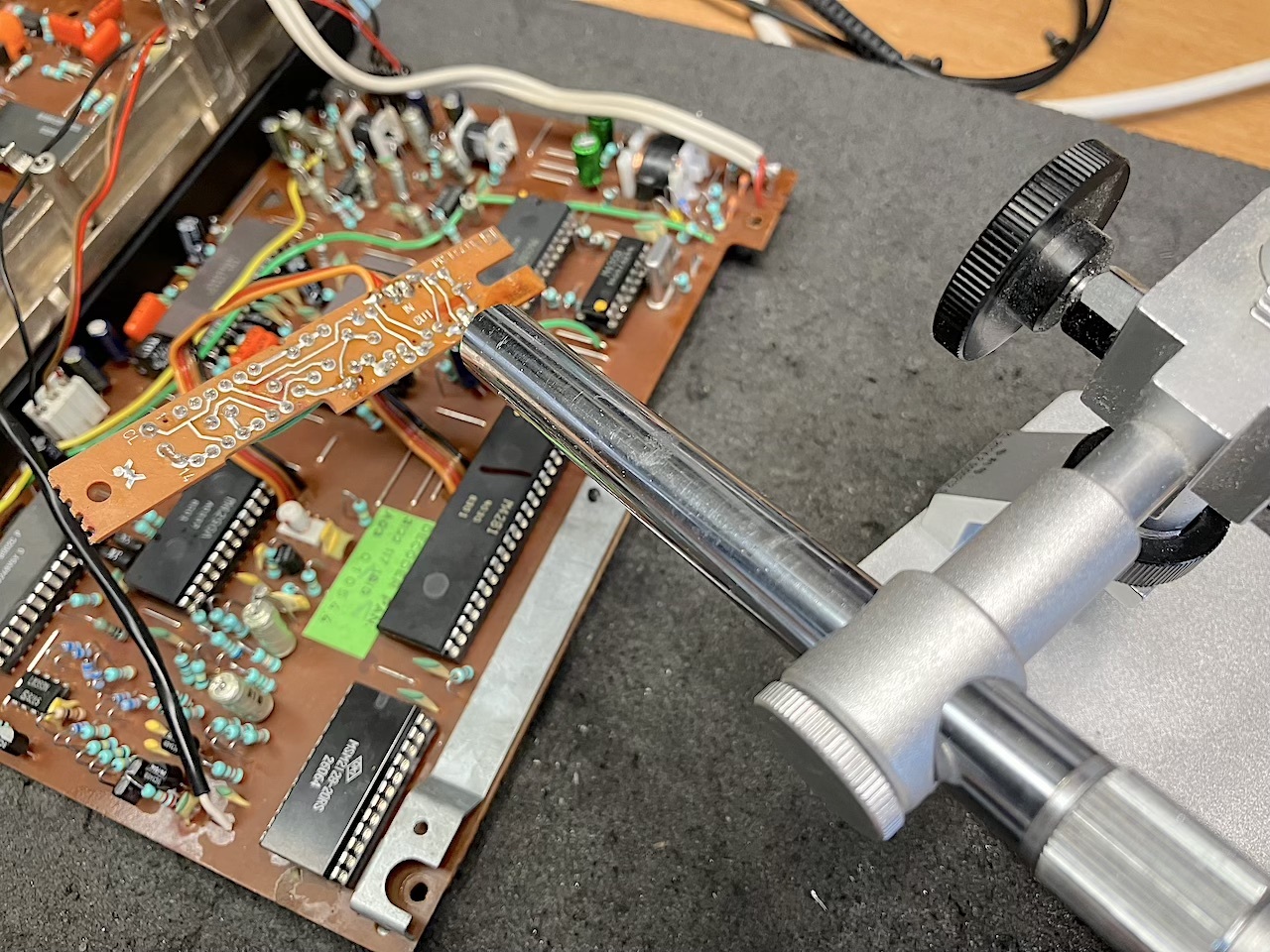

Have to check CDM Board 😉

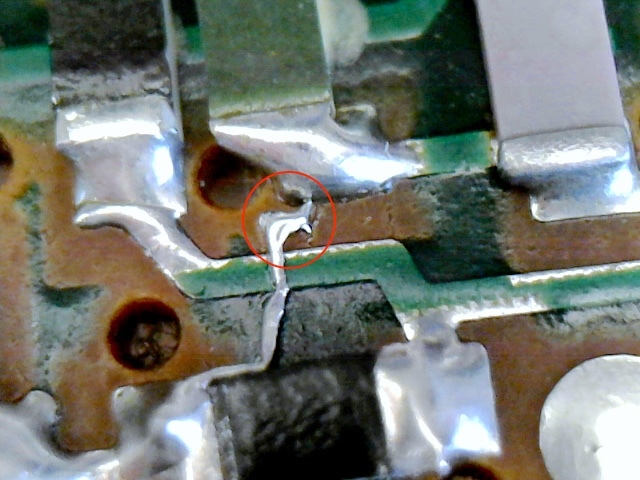

Aha, a tin jumper 😉 , Making short in HF Filter / Amp.

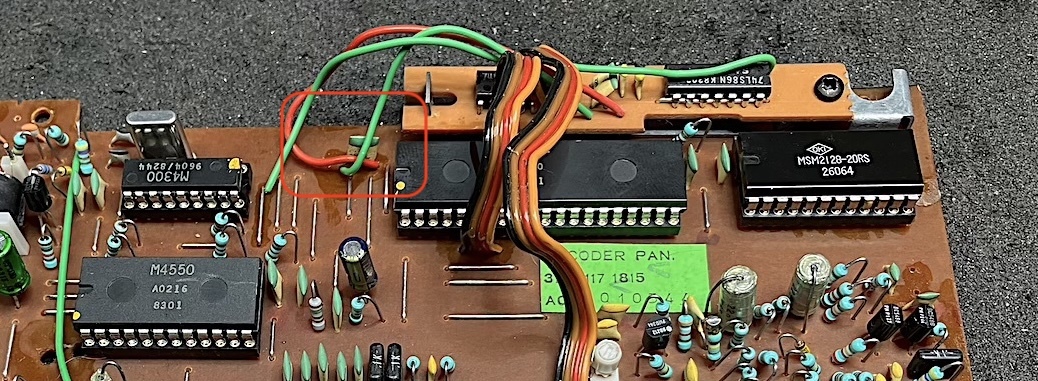

Bad contact in solderjoint 5 volt glue logic, causing audio to dissapear.

and one more

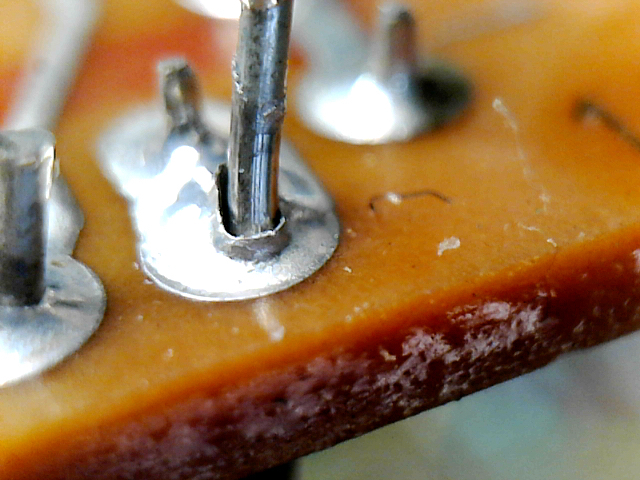

broken joint
