CD 100 Dead after recap
“Could you please help me , after replacing capicitors with a revision / replacement-kit the player work stopt working …”

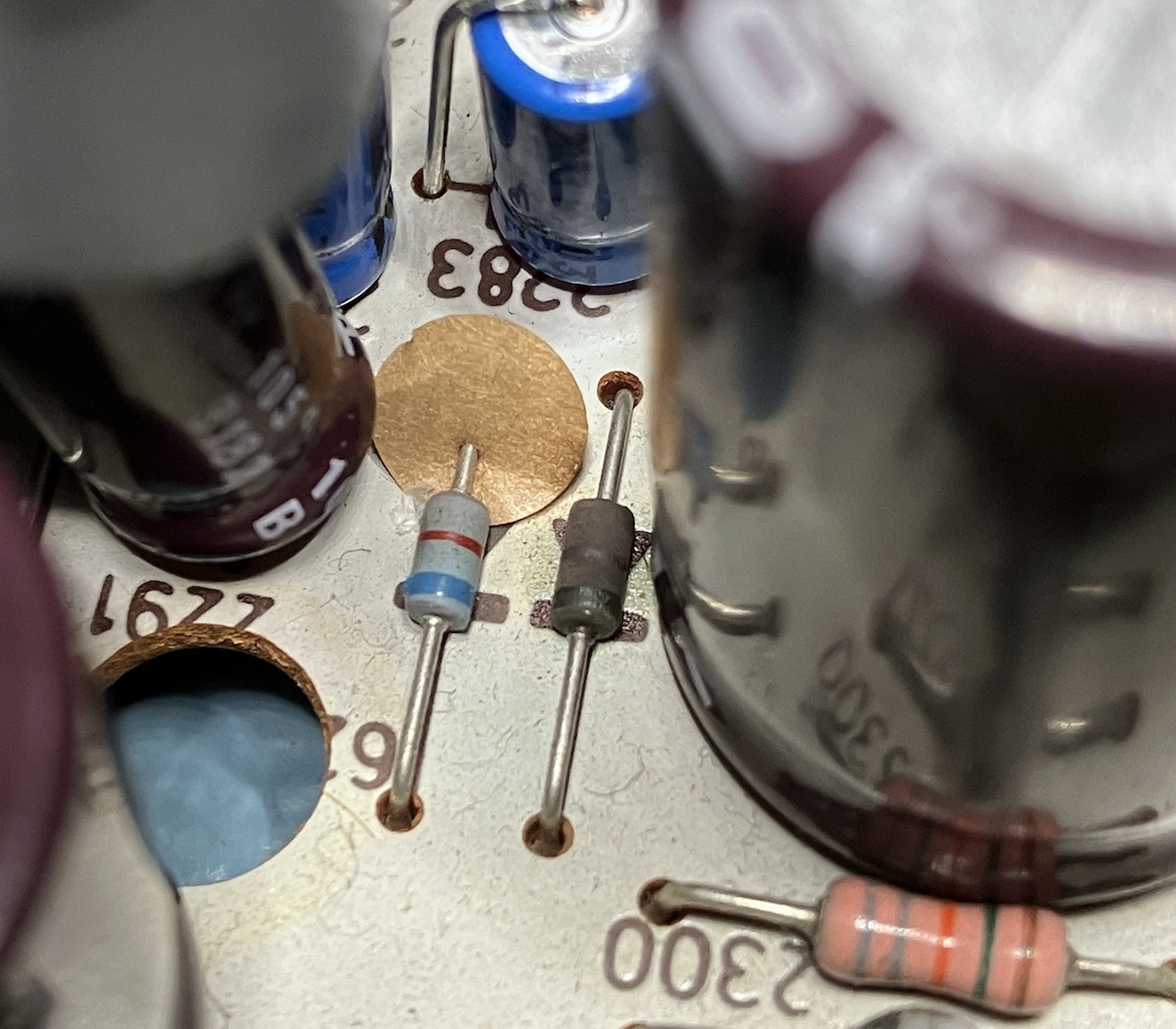

The 200 mA was blown , after firt like i found burned BAW 62 diode in -18 powersupply..
is this the root cause of the dead -18 volt., the s audio cable shield touching the LM337 ..photo is with decoder-pcb in service-stands…

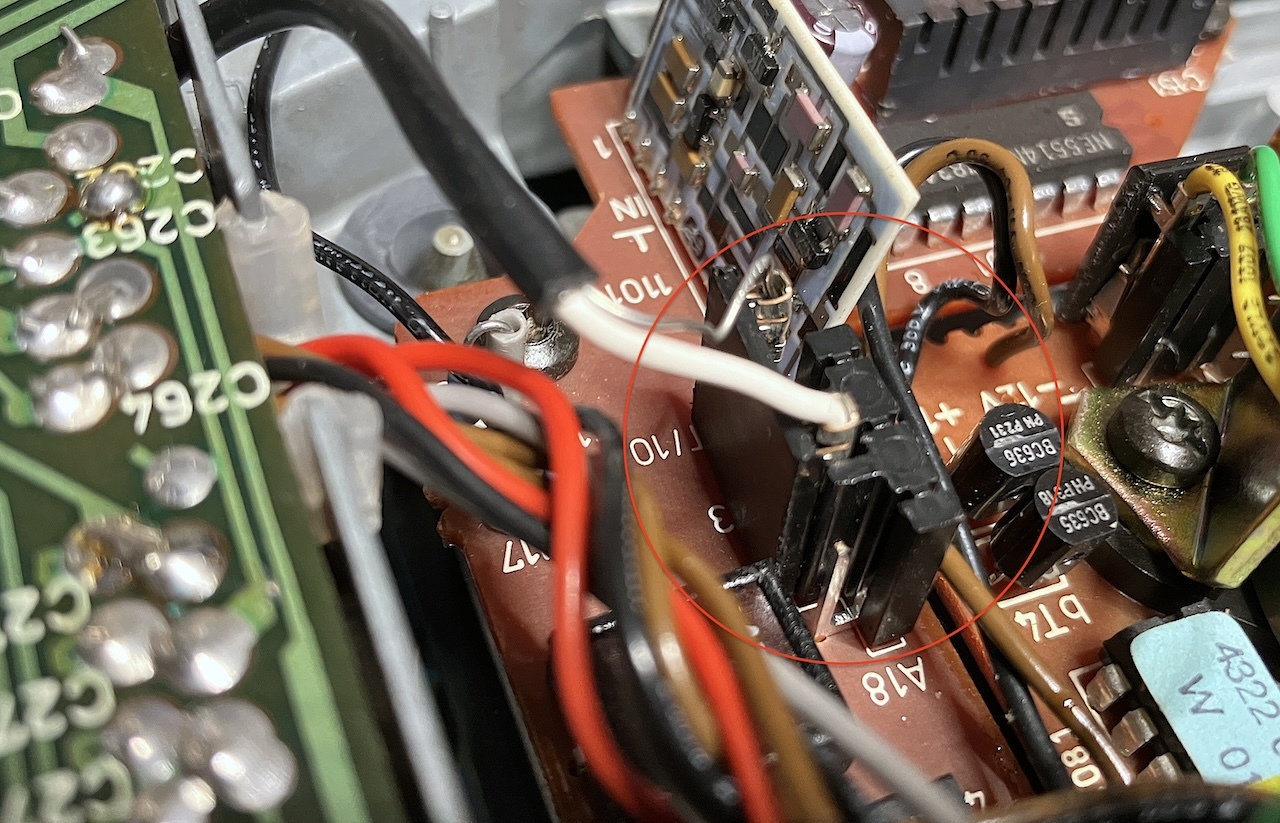

After replacing diodes and fuse , the player started , disc spinning but no table of content , problem found, hf cable in wrong position

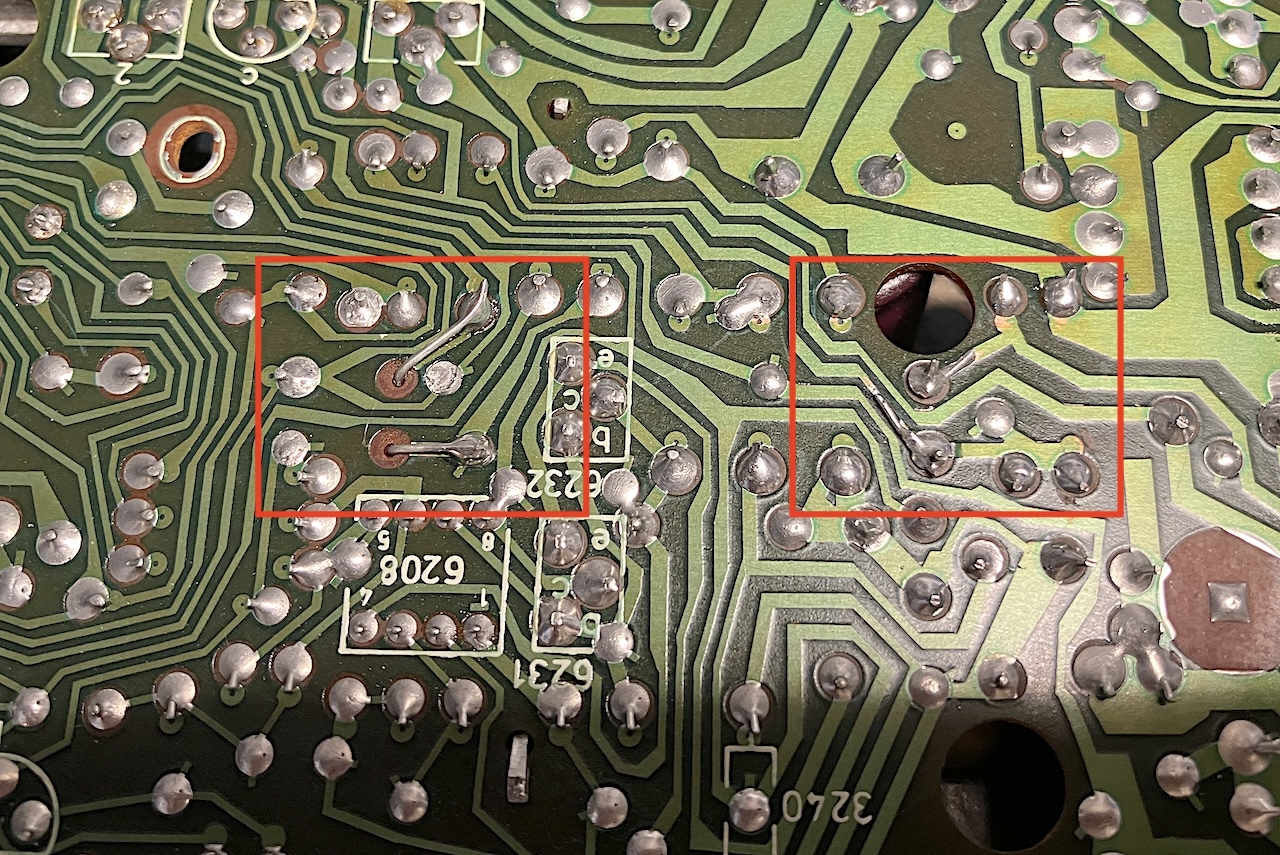

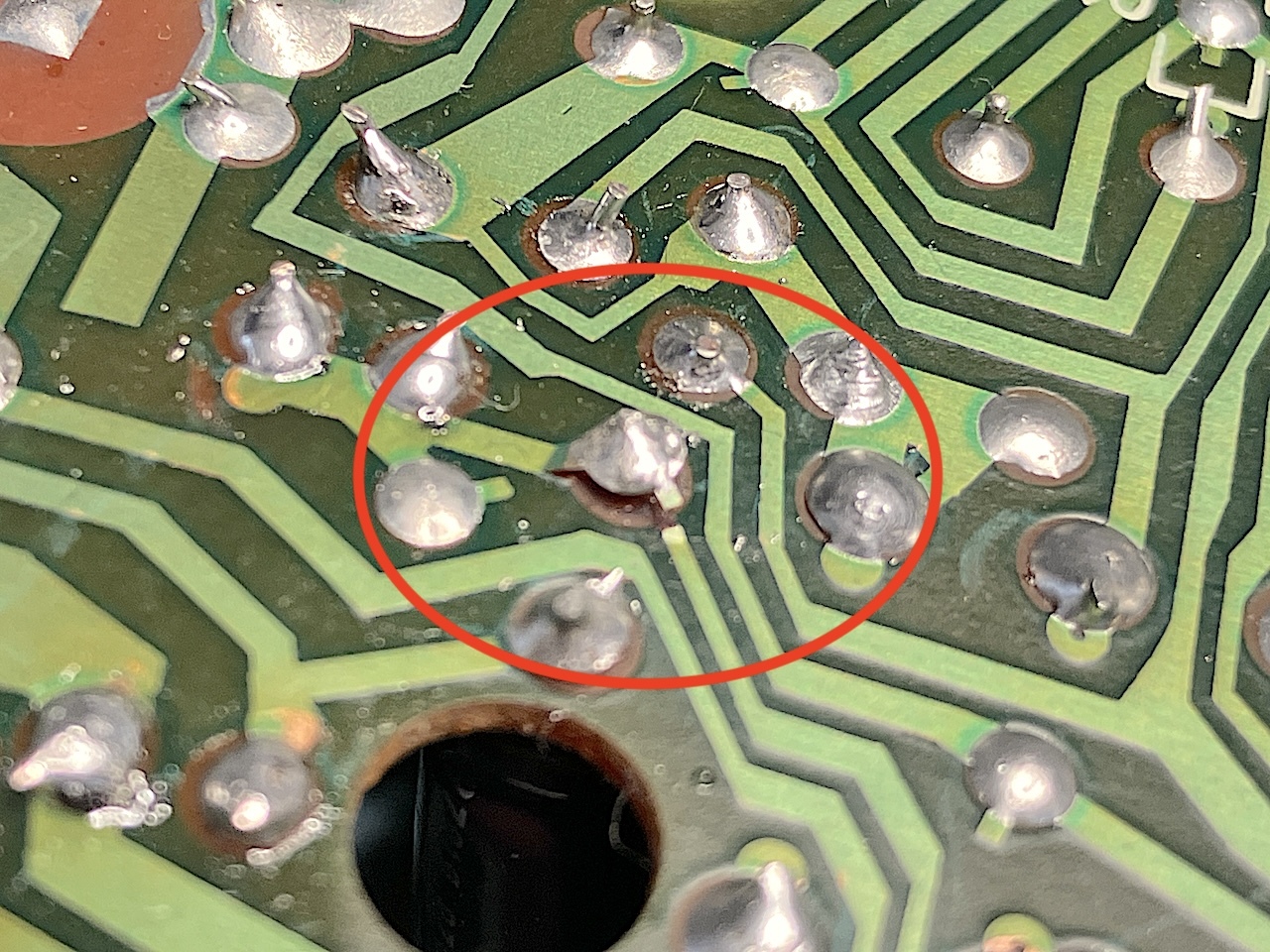

After putting the connector is the richtway , there was audio for 15 minutes then audio stopt but disc stil turning.some more searching, look broken trace by replaced capicitors.
placed some bridges.. -18 volt is working again
rewired audio cable and isolated the audio ground..

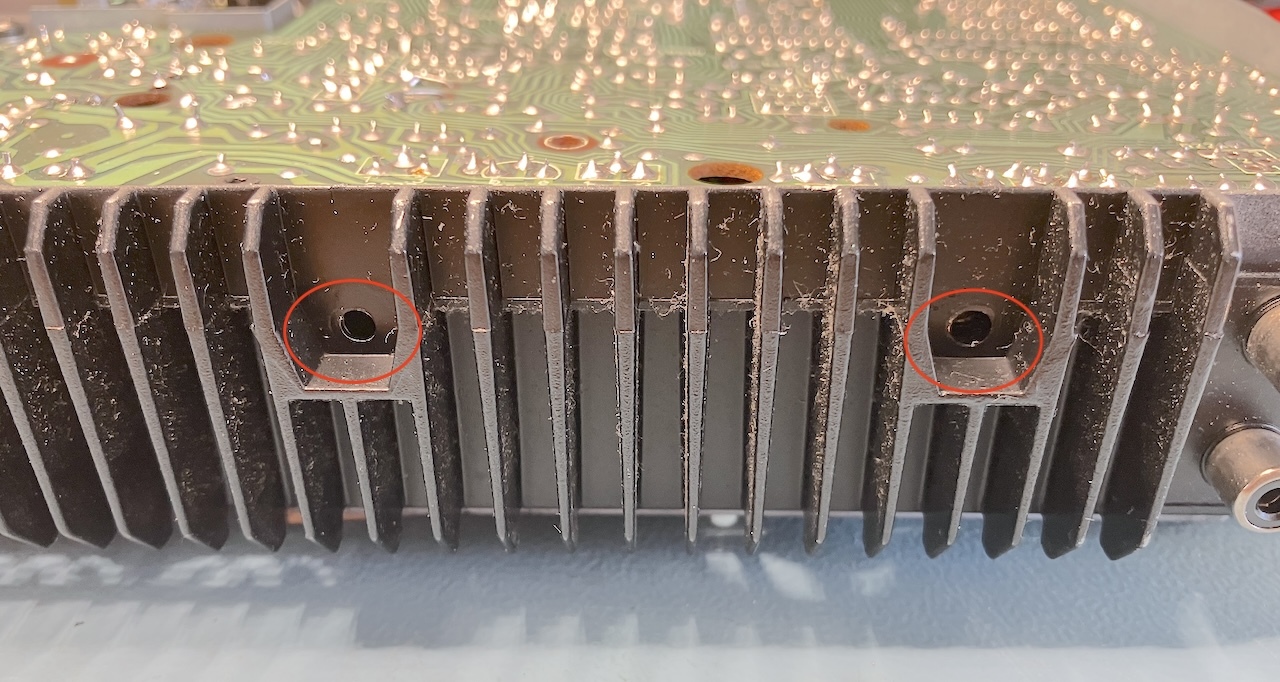

and finally , some missing screws on the heatsink
